Product Overview

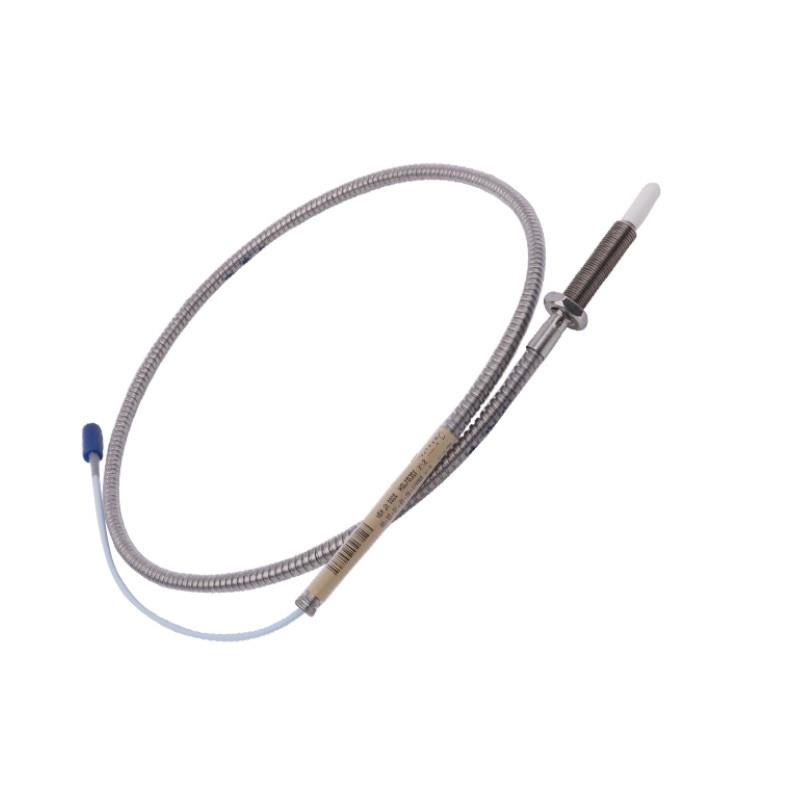

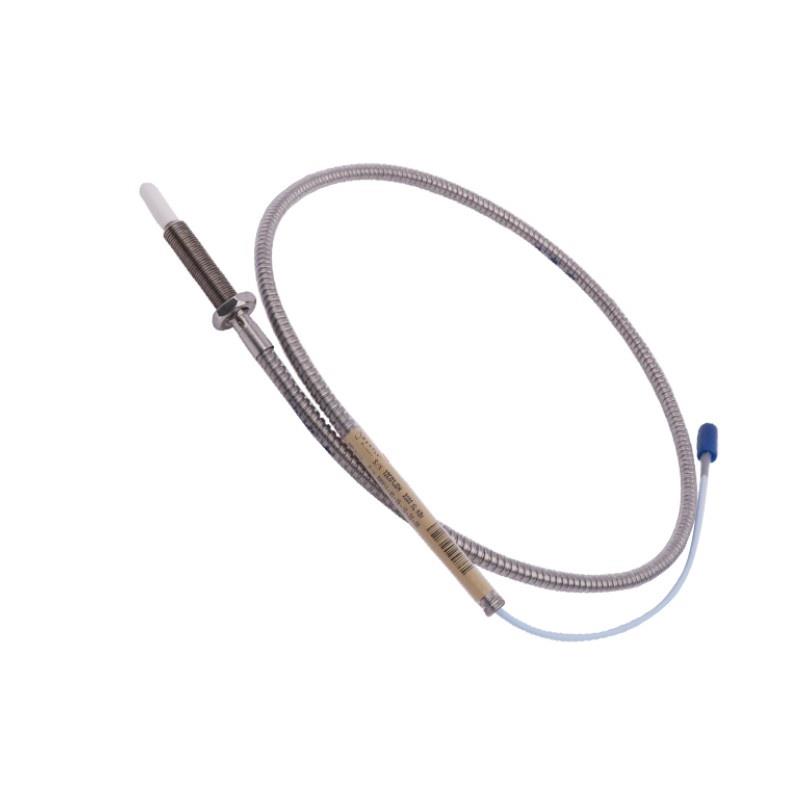

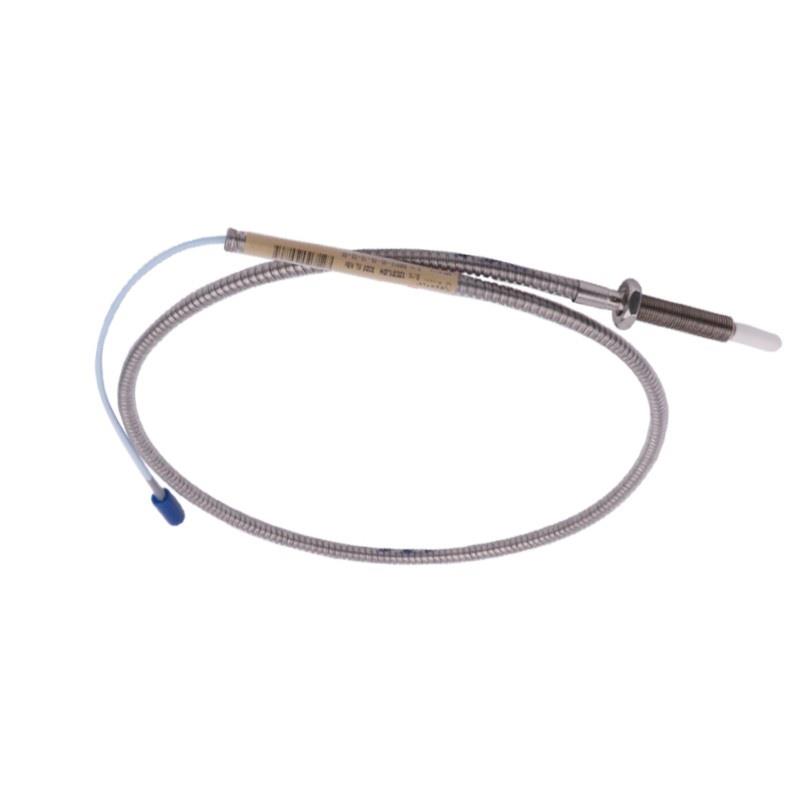

The Bently Nevada 330910-00-50-10-02-00 3300 NSv Proximity Probe is a high-performance, narrow-side-view probe designed for precision vibration and position measurements in compact rotating machinery. It provides reliable and accurate data where traditional 8 mm probes cannot be installed due to space constraints.
Key Features
-
Compact probe designed for confined installations
-
Compatible with the 3300 NSv Proximitor System
-
Provides accurate and linear vibration and position measurements
-
Ideal for small-diameter shafts and tight machinery spaces
-
Resistant to oil, dust, and environmental contaminants
-
Rugged stainless-steel construction for durability
-
Factory-calibrated for consistent accuracy
-
Long service life with minimal maintenance requirements
Technical Specifications
| Item | Specification |
|---|---|
| الشركة المصنعة | Bently Nevada |
| رقم القطعة | 330910-00-50-10-02-00 |
| Product Type | 3300 NSv Proximity Probe |
| System Compatibility | 3300 NSv Proximitor Sensor System |
| Dimensions | Total Length : 1.0 meter |
| الوزن | 0.15 kg |
| Measurement Range | 0–1.0 mm (0–40 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) typical |
| Frequency Response | DC to 10 kHz |
| Linearity | ±1% over full range |
| Operating Temperature | –35 °C to +177 °C |
| Storage Temperature | –40 °C to +200 °C |
| Material | Stainless steel housing |
| Mounting Method | Threaded sleeve or clamp installation |
| Applications | Shaft vibration, axial displacement, and position monitoring |
Industry Applications
-
Steam and gas turbines
-
Compressors and blowers
-
Motors and generators
-
Gearboxes and pumps
-
Industrial fans and rotating machinery
-
Oil, gas, and energy production facilities
الأسئلة الشائعة (FAQ)
Q1: What is the main function من the 330910-00-50-10-02-00 probe?
It measures shaft vibration and position in compact rotating equipment.
Q2: Which system is it compatible with?
It works with the Bently Nevada 3300 NSv Proximitor Sensor System.
Q3: What is the probe’s diameter and length?
It has a 5 mm diameter and approximately 50 mm length.
Q4: What is the operating temperature range?
The probe can operate between –35 °C and +177 °C.
Q5: What is the sensitivity rating?
It منfers a typical sensitivity من 7.87 V/mm (200 mV/mil).
Q6: Is it suitable for harsh environments?
Yes, it is designed to withstand oil, dust, and industrial contaminants.
Q7: How is the probe mounted?
It can be mounted using a threaded sleeve or bracket for precise positioning.
Q8: What are its common applications?
It is typically used in turbines, compressors, motors, and other compact machinery.
