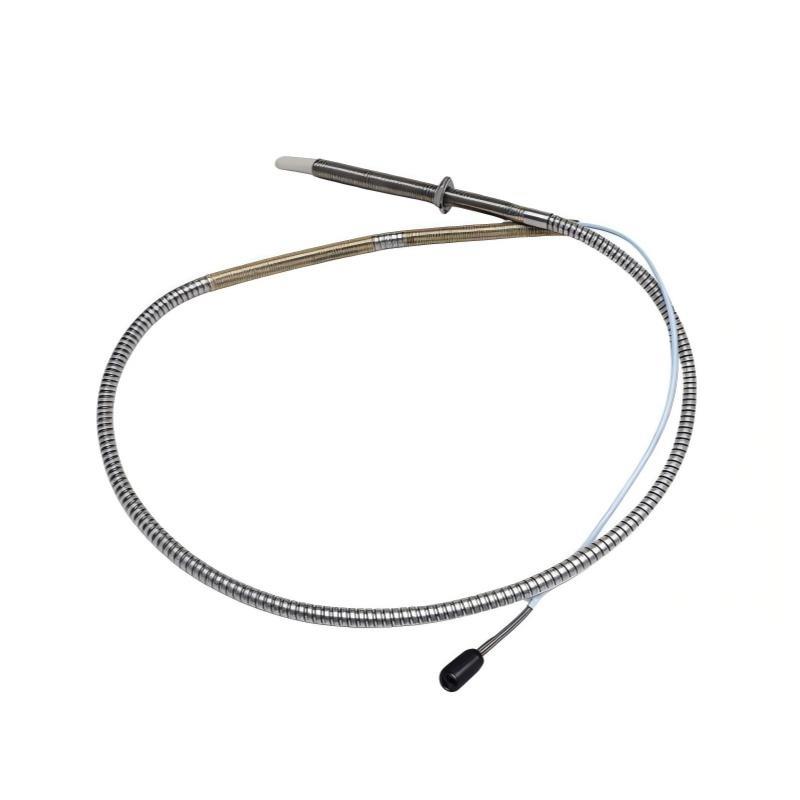

The Bently Nevada 330910-00-05-02-00 3300 NSv Proximity Probe is a high-precision, non-contact displacement transducer designed for continuous monitoring من industrial rotating machinery. Part من the 3300 NSv Series, this probe provides accurate vibration, position, and displacement measurement, enabling early detection من machinery issues and ensuring reliable machine protection.
Unlike standard proximity probes, the 3300 NSv series is optimized for high-speed, high-resolution measurement, delivering excellent performance in monitoring small to medium shaft diameters and slow to fast rotating equipment. Utilizing eddy current sensing technology, the probe converts shaft motion into a proportional voltage output, which is processed by the corresponding NSv signal conditioning system.
This model meets API 670 requirements for machine condition monitoring and protection. Its compact and rugged design, combined with a hermetically sealed stainless steel body, ensures durability in harsh industrial environments including oil, moisture, dust, and electromagnetic interference. The 330910-00-05-02-00 is widely used in turbines, generators, compressors, pumps, and motors, providing reliable real-time data for protection systems and predictive maintenance programs.
مواصفات المنتج
| Parameter | الوصف |
|---|---|
| الطراز Number | 330910-00-05-02-00 |
| Series | Bently Nevada 3300 NSv Proximity Probe |
| الشركة المصنعة | Bently Nevada (GE Measurement & Control) |
| Measurement Principle | Eddy current, non-contact displacement measurement |
| System Compatibility | 3300 NSv Proximity Transducer System |
| Linear Range | 5 mm (200 mils) |
| System Sensitivity | 7.87 V/mm (200 mV/mil) |
| Frequency Response | DC to 10 kHz |
| Nominal Gap (Target Distance) | 2.5 mm (100 mils) |
| Linearity | ±1% من full-scale output |
| Target Material | AISI 4140 steel or equivalent conductive material |
| Probe Tip Diameter | 12 mm |
| Thread Size | M20 × 1.5 or ¾-inch UNC (depending on variant) |
| Cable Length | Optional (factory specified) |
| Extension Cable الطراز | 330925 series |
| Total Length | Optional (based on configuration) |
| Operating Temperature (Probe) | -40°C to +180°C |
| Operating Temperature (Cable) | -40°C to +150°C |
| Storage Temperature | -50°C to +200°C |
| Environmental Protection | Hermetically sealed, corrosion and oil resistant |
| Electrical Connector Type | Coaxial connector with keyway |
| Material | Stainless steel housing, PEEK sensing tip |
| Power Requirements | Powered by NSv system (no external source needed) |
| Insulation Resistance | >10 MΩ at 500 VDC |
| Shock Resistance | 500 g peak, 11 ms half-sine |
| Vibration Tolerance | 50 g, 10–5000 Hz |
| Mounting Type | Threaded mount or probe holder assembly |
| Protection Rating | IP68 (probe and cable assembly) |
| Compliance Standards | API 670, CE, RoHS |
| الوزن | 0.15 kg |
Product Applications
The Bently Nevada 330910 NSv Proximity Probe is suitable for high-precision monitoring من industrial rotating machinery, including small, medium, and high-speed shafts. Its applications include:
-
Steam and Gas Turbines: Monitoring axial and radial vibration, thermal growth, and shaft displacement.
-
Compressors and Expanders: Detecting rotor eccentricity, vibration, and misalignment.
-
Hydrogenerators and Electric Motors: Measuring rotor position and detecting imbalance in large and medium machines.
-
Pumps and Fans: Monitoring shaft vibration and bearing displacement in process industries.
-
Petrochemical and Refinery Equipment: Providing condition monitoring for critical rotating machinery.
-
Power Generation: Integrating with NSv monitoring systems for real-time protection and diagnostics.
Its high-frequency response makes it particularly suitable for dynamic vibration analysis, transient monitoring, and predictive maintenance.
Product Advantages
-
High Accuracy and Resolution: ±1% linearity ensures reliable detection من subtle shaft movements.
-
Wide Frequency Response: DC to 10 kHz allows detection من high-speed vibrations.
-
Compact and Robust Design: Stainless steel body and hermetic sealing protect against oil, dust, and moisture.
-
Non-اتصل بنا Measurement: Eliminates mechanical wear and minimizes maintenance requirements.
-
API 670 Compliance: Meets international standards for rotating machinery protection systems.
-
Flexible Installation: Optional cable lengths and threaded mounting allow versatile integration.
-
EMI/RFI Resistant: Ensures stable measurements even in electrically noisy environments.
-
Interchangeable Components: Compatible with 3300 NSv sensors, cables, and driver modules.
-
Real-Time الحالة Monitoring: الدعمs predictive maintenance and early fault detection.
-
Proven Industrial Reliability: Trusted by industries worldwide for continuous monitoring من critical machinery.
FAQ
-
What measurement technology does the 330910 NSv probe use?
The probe uses eddy current sensing to measure shaft displacement without contact. -
What is the standard output sensitivity?
The system provides 7.87 V/mm (200 mV/mil) sensitivity. -
Can it operate at high speeds and frequencies?
Yes, the probe supports DC to 10 kHz frequency response for high-speed applications. -
Is the probe compatible with NSv monitoring systems?
Yes, it is fully compatible with the 3300 NSv system and associated driver modules. -
What target material ensures optimal performance?
AISI 4140 steel or equivalent conductive material is recommended. -
Does it require an external power supply?
No, the probe is powered directly by the NSv system. -
What is the vibration and shock tolerance?
It can withstand 50 g vibration (10–5000 Hz) and 500 g shock (11 ms half-sine). -
Can it be used for small-diameter or medium shafts?
Yes, the NSv series is optimized for small to medium shafts with high-resolution measurement. -
How is the probe protected against environmental hazards?
The probe is hermetically sealed and rated IP68, resistant to oil, dust, and moisture. -
Are factory-matched cables required?
Yes, to ensure calibration and measurement accuracy, factory-matched extension cables should be used.
Related الطرازs (Same Series or Equivalent)
| الطراز | الوصف | Linear Range | Sensitivity | Temperature Range |
|---|---|---|---|---|
| 330910-00-05-02-01 | NSv Probe, Short Version | 5 mm | 7.87 V/mm | -40°C to +180°C |
| 330912-01-10-00-00 | NSv Probe, Medium Range | 10 mm | 7.87 V/mm | -40°C to +180°C |
| 330914-01-15-00-00 | NSv Probe, Extended Range | 15 mm | 7.87 V/mm | -40°C to +180°C |
| 330925-02-12-00-00 | NSv Extension Cable | — | — | -40°C to +150°C |
| 330926-04-12-00-00 | Heavy-Duty NSv Cable | — | — | -40°C to +150°C |
| 330180-95-00 | NSv Driver Module | — | 200 mV/mil | -40°C to +180°C |
Popular Bently Nevada الطرازs (Same العلامة التجارية)
| الطراز | الوصف | Product Type | Key Feature |
|---|---|---|---|
| 330103-00-07-10-02-05 | 8 mm Proximity Probe | Displacement Sensor | General-purpose probe for rotating machinery |
| 3500/42M | Vibration Monitor | Monitoring Module | Dual-axis vibration measurement |
| 3500/22M | Transient Data Interface | Communication Module | High-speed waveform capture |
| 3500/25 | Keyphasor Module | Phase Reference | Provides shaft phase reference |
| 330130-040-00-00 | Extension Cable | Coaxial Cable | 4 m standard matched cable |
| 330180-91-05 | Proximity Sensor | Driver Module | Converts probe signals into conditioned output |
