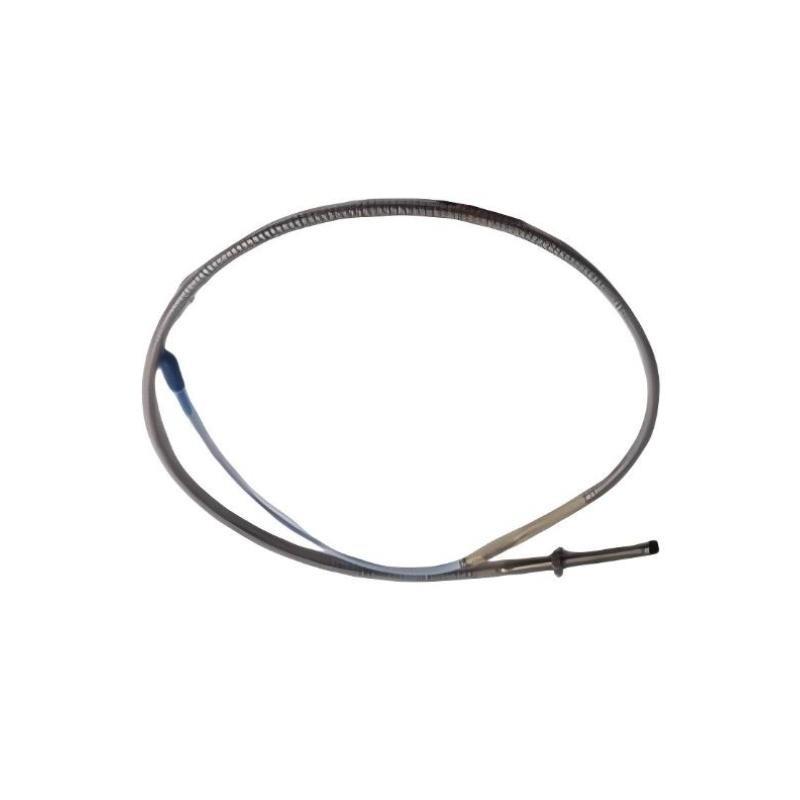

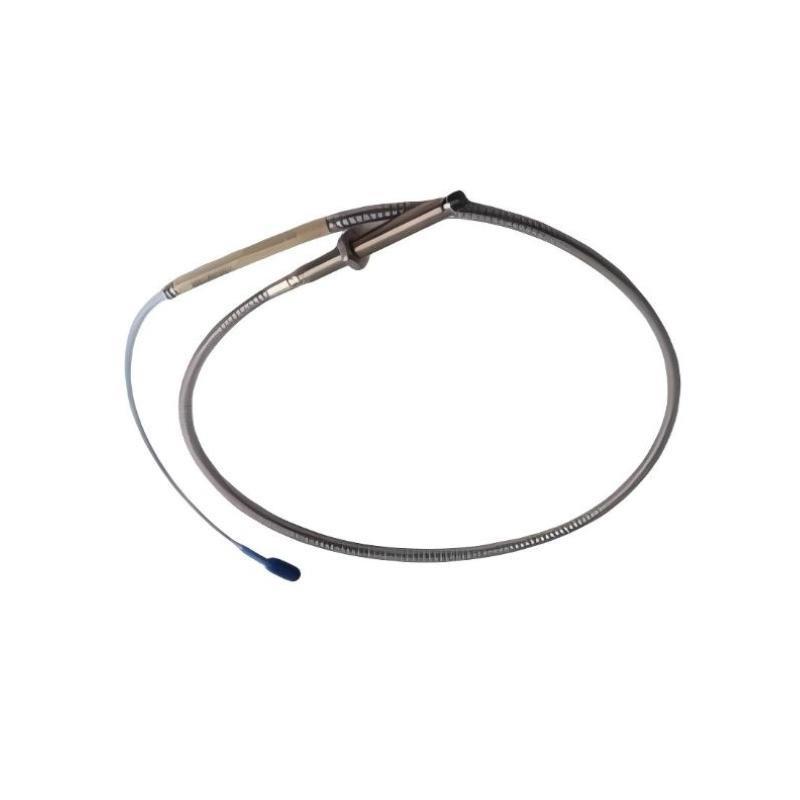

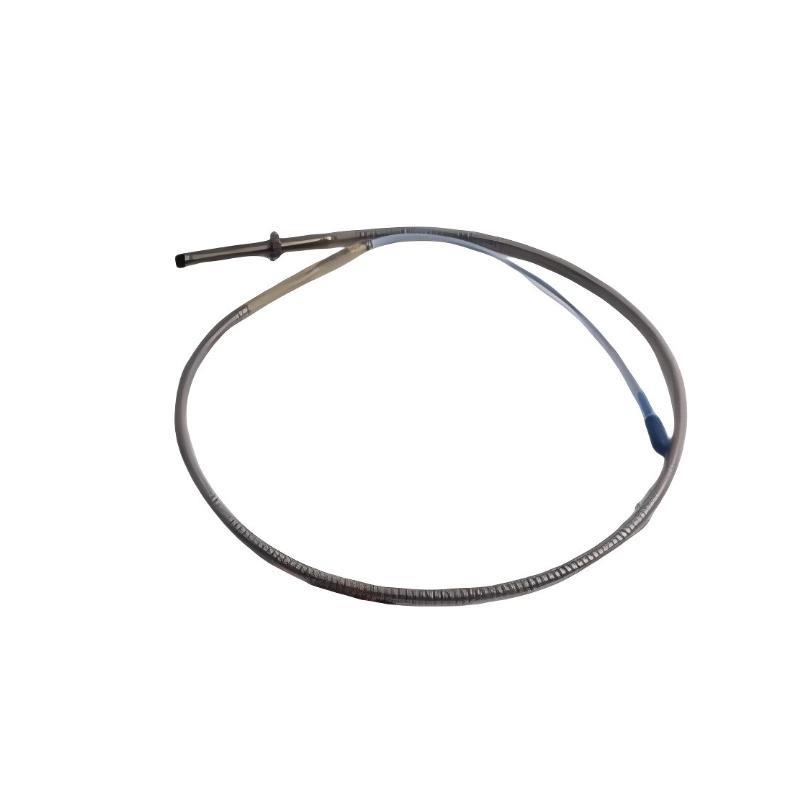

Product Overview
The Bently Nevada 330909-00-25-10-02-00 is a high-precision 3300 NSv Proximity Probe designed for monitoring shaft displacement and vibration in critical rotating machinery. It delivers reliable and accurate measurements under harsh industrial conditions and is fully compatible with Bently Nevada 3300 XL and NSv monitoring systems.
Key Features
-
High-accuracy measurement من shaft displacement and vibration
-
Compatible with 3300 XL and NSv monitoring systems
-
Non-contact eddy-current sensing for long-term reliability
-
Industrial-grade construction resistant to shock, vibration, and temperature extremes
-
Fast response time for real-time monitoring
Technical Specifications
| Specification | Details |
|---|---|
| الطراز | 330909-00-25-10-02-00 |
| Type | 3300 NSv Proximity Probe |
| Measurement Type | Shaft displacement / vibration |
| Sensor Principle | Eddy-current (non-contact) |
| Probe Tip Material | Stainless steel |
| Probe Cable | Shielded coaxial cable |
| Frequency Response | 0–10 kHz |
| Sensitivity | 50 mV/mil |
| Operating Temperature | –40 °C to +120 °C |
| Storage Temperature | –40 °C to +125 °C |
| Insulation Resistance | > 100 MΩ |
| Probe Shaft Diameter | 8 mm |
| Probe Length | 25 mm |
| Dimensions | Total Length : 1.0 meter |
| الوزن | 0.15 kg |
الأسئلة الشائعة (FAQ)
1. What is the primary function من the 330909-00-25-10-02-00 probe?
It measures shaft displacement and vibration for critical rotating machinery.
2. Is this probe compatible with 3300 XL systems?
Yes, it works fully with Bently Nevada 3300 XL and NSv monitoring systems.
3. What is the probe tip made من?
The probe tip is made from durable stainless steel.
4. What type من sensing technology does it use?
It uses non-contact eddy-current sensing for precise measurements.
5. What is the frequency response range?
The probe responds from 0 to 10 kHz.
6. Can it operate in extreme temperatures?
Yes, the operating range is –40 °C to +120 °C, and storage up to +125 °C.
7. What is the insulation resistance من the probe?
The insulation resistance is greater than 100 MΩ.
8. How is it connected to the monitoring system?
Via a shielded coaxial cable with a gold-plated connector for stable signal transmission.
