Product Overview

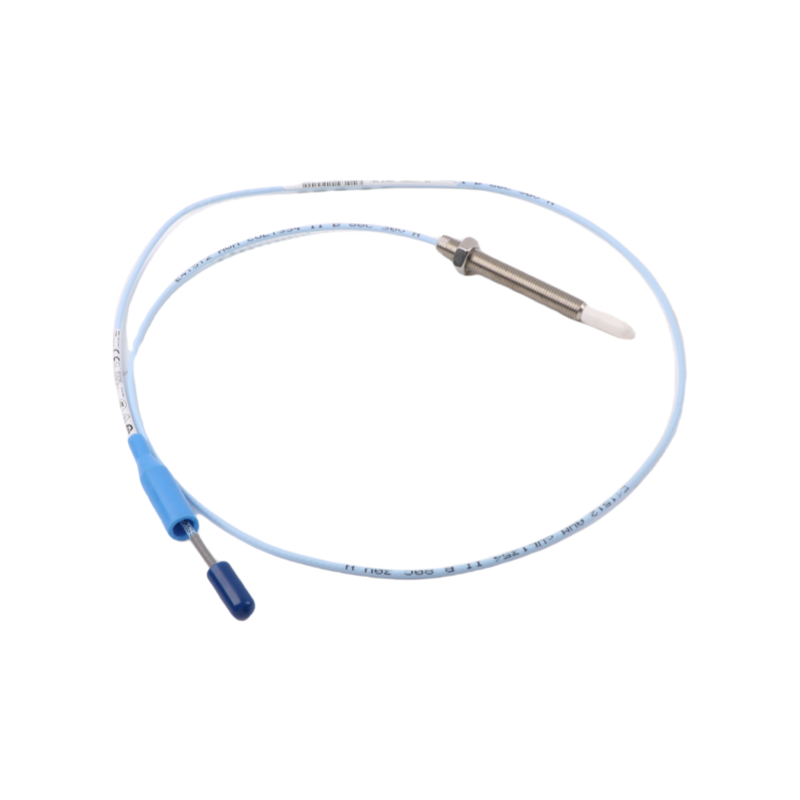

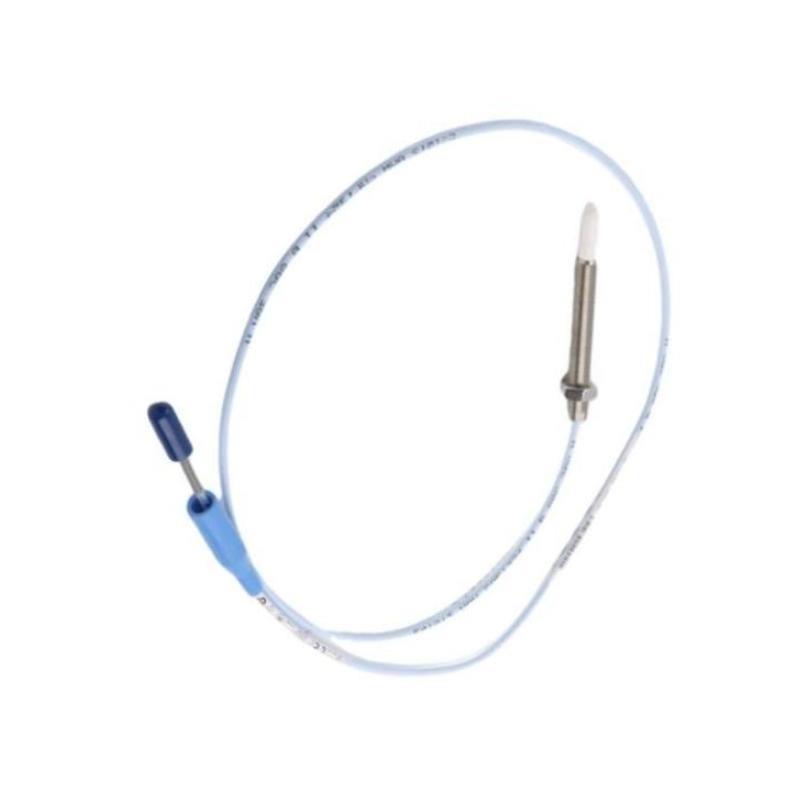

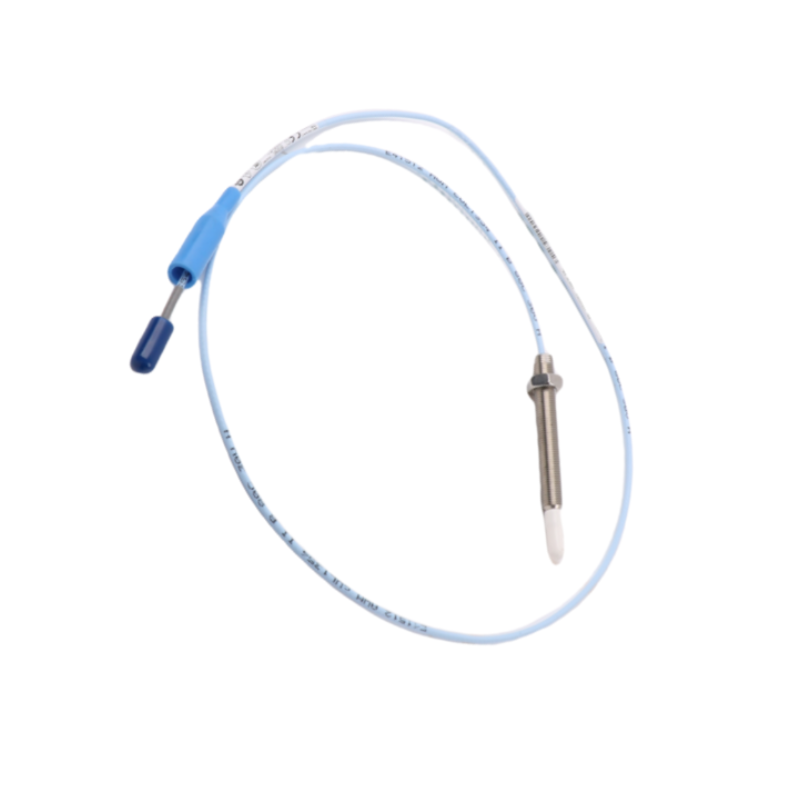

The Bently Nevada 330908-10-55-05-02-00 3300 NSv Proximity Probe is a high-performance probe engineered for accurate measurement من shaft vibration and position in compact rotating machinery. Its 5 mm design allows it to be installed in tight spaces where standard 8 mm probes cannot be used.
Key Features
-
Compact 5 mm probe design for limited-space installations
-
Compatible with the Bently Nevada 3300 NSv Proximity Transducer System
-
Provides precise shaft vibration and position measurement
-
ممتاز linearity and temperature stability
-
Suitable for small, high-speed rotating machines
-
Resistant to oil, dust, and harsh environments
-
Simple installation and maintenance
-
Long-term durability and reliability
Technical Specifications
| Item | Specification |
|---|---|
| الشركة المصنعة | Bently Nevada |
| رقم القطعة | 330908-10-55-05-02-00 |
| Product Type | 3300 NSv Proximity Probe |
| System Compatibility | 3300 NSv Proximity Transducer System |
| Dimensions | Total Length : 0.5 meter |
| الوزن | 0.15 kg |
| Measurement Range | 0–1.0 mm (0–40 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) typical |
| Frequency Response | DC to 10 kHz |
| Operating Temperature | –35 °C to +177 °C |
| Storage Temperature | –40 °C to +200 °C |
| Humidity | 0–95% RH, non-condensing |
| Mounting | Threaded sleeve installation |
| Applications | Shaft vibration, position monitoring, and machinery protection |
Industry Applications
-
Small steam and gas turbines
-
Compressors and pumps
-
Electric motors and generators
-
Gearboxes and blowers
-
Oil, gas, and power generation industries
-
الحالة-based monitoring systems
الأسئلة الشائعة (FAQ)
Q1: What is the main function من the 330908-10-55-05-02-00 probe?
It measures shaft vibration and position for compact rotating machinery.
Q2: Which system is it compatible with?
It is compatible with the Bently Nevada 3300 NSv Proximity Transducer System.
Q3: What is the probe size?
It has a 5 mm tip diameter and 55 mm probe length.
Q4: What is the measurement range?
The probe منfers a linear range من 0–1.0 mm (0–40 mils).
Q5: What is its sensitivity?
Typical sensitivity is 7.87 V/mm (200 mV/mil).
Q6: What is the frequency response range?
DC to 10 kHz, providing accurate vibration response.
Q7: Can it operate in harsh industrial environments?
Yes, it is resistant to oil, dust, and contaminants, suitable for harsh sites.
Q8: What are typical applications for this probe?
Used in small turbines, compressors, motors, and other confined-space machinery.
Related Bently Nevada Modules
| الطراز | الوصف |
|---|---|
| 330908-05-20-05-02-00 | 3300 NSv Proximity Probe |
| 330908-05-30-05-02-00 | 3300 NSv Proximity Probe |
| 330908-10-40-05-02-00 | 3300 NSv Proximity Probe |
| 330907-05-30-10-02-05 | 3300 NSv Reverse Mount Probe |
| 330901-01-45-10-02-00 | 3300 NSv Proximity Probe |
| 330172-22-10-05-02-00 | 3300 NSv Extension Cable |
Popular Bently Nevada Modules
| الطراز | الوصف |
|---|---|
| 330908-10-55-05-02-00 | 3300 NSv Proximity Probe |
| 330907-05-30-10-02-05 | 3300 NSv Reverse Mount Probe |
| 330901-01-45-10-02-00 | 3300 NSv Proximity Probe |
| 330104-00-12-10-02-05 | 3300 XL 8 mm Proximity Probe |
| 330106-05-30-50-02-05 | 3300 XL 8 mm Reverse Mount Probe |
| 330130-045-13-05 | 3300 XL Standard Extension Cord |
