مقدمة المنتج

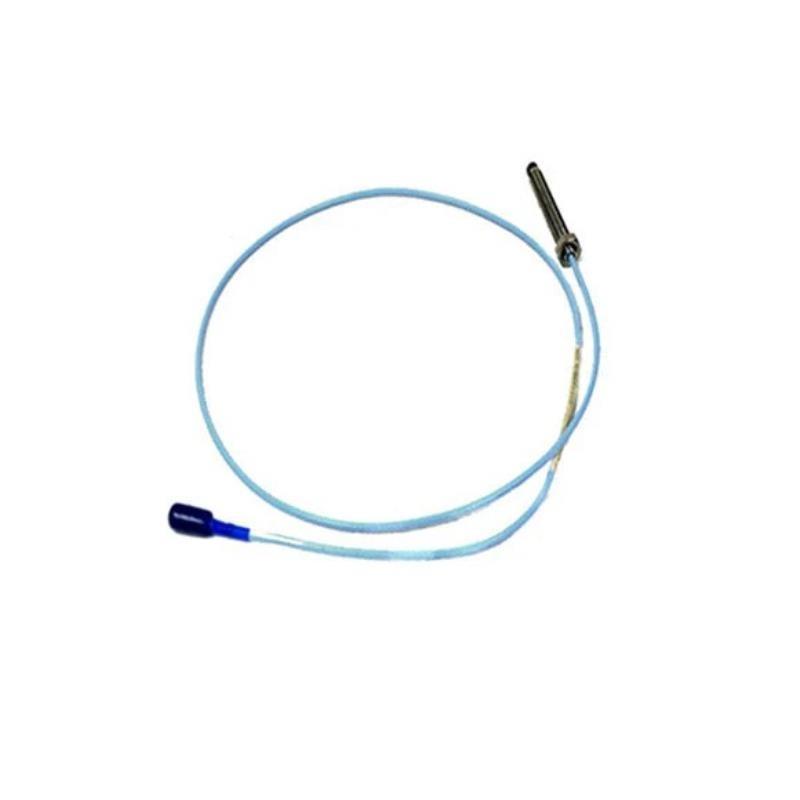

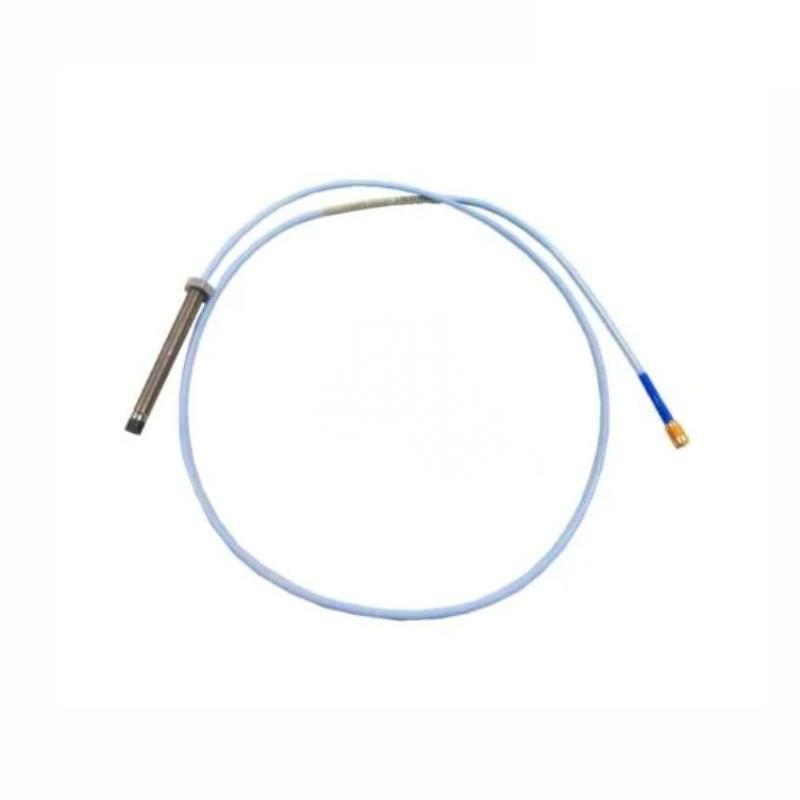

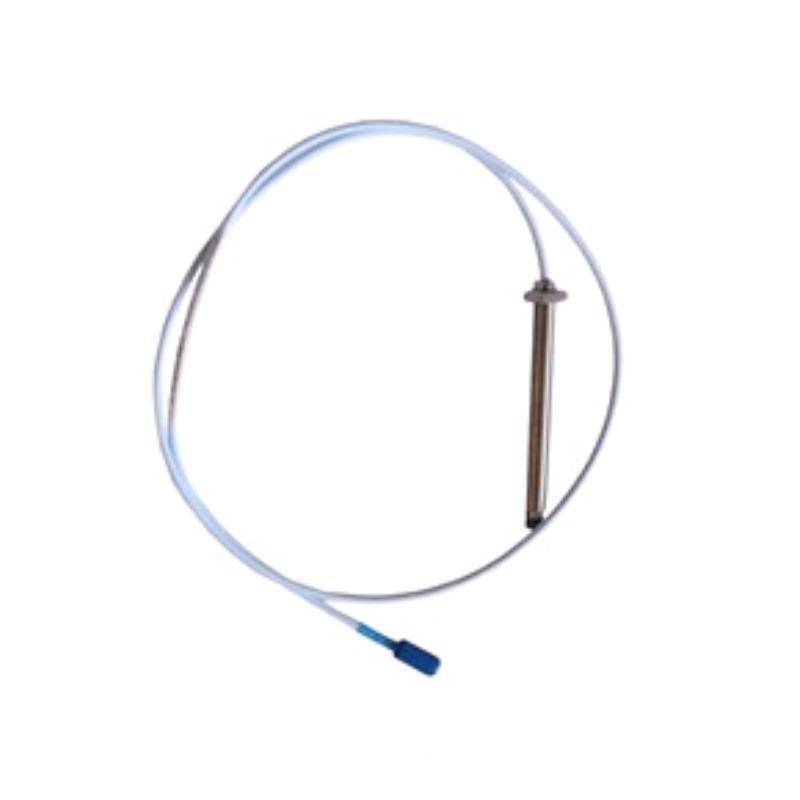

The Bently Nevada 330902-00-47-10-02-05 3300 NSv Proximity Probe is a high-performance sensor designed for precise vibration and shaft position measurement in rotating machinery. It is part من the 3300 NSv (Narrow Side-view) series, which is engineered for applications where space constraints or challenging mounting orientations exist.
Technical Specifications
| Parameter | Value |
|---|---|
| الطراز Number | 330902-00-47-10-02-05 |
| Series | 3300 NSv Proximity Probe |
| Measurement Principle | Eddy Current, Non-contact |
| Sensitivity | 7.87 mV/µm (200 mV/mil) |
| Linear Range | 0.25 mm to 2.0 mm |
| Probe Tip Diameter | 5 mm |
| Cable Length | 5 m (factory calibrated) |
| Extension Cable | Matched with 3300 NSv systems |
| Operating Temperature | -35 °C to +177 °C |
| Frequency Response | Up to 10 kHz |
| Total Length | 1 m |
| الوزن | 0.15 kg |
| Compatibility | 3300 NSv Extension Cable & Driver |
Product Applications
-
Steam and Gas Turbines: Monitoring shaft vibration and rotor dynamics.
-
Compressors: Detecting imbalance, misalignment, and early fault conditions.
-
Industrial Pumps: Ensuring stable shaft movement and avoiding dry running.
-
Motors and Generators: Shaft position and vibration analysis for predictive diagnostics.
-
Petrochemical Plants: الدعمing high-availability machinery with continuous monitoring.
Product Advantages
-
Compact Design: Suited for installations with limited mounting space.
-
High Accuracy: Delivers consistent, precise vibration and position measurements.
-
Rugged Construction: Designed for harsh industrial environments and extreme temperatures.
-
System Integration: Fully compatible with the 3300 NSv monitoring system.
-
Early Fault Detection: Enhances reliability by enabling predictive maintenance strategies.
-
Proven Reliability: Widely trusted in critical machinery protection applications.
FAQ
Q1: What type من sensor technology does this probe use?
A1: It uses an eddy current, non-contact measurement principle.
Q2: Can this probe be used with other Bently Nevada extension cables?
A2: It must be paired with its designated 3300 NSv extension cables to maintain calibration accuracy.
Q3: What is the output sensitivity من this probe?
A3: The output sensitivity is 7.87 mV/µm (200 mV/mil).
Q4: How does temperature affect the probe performance?
A4: The probe is designed to operate in temperatures from -35 °C to +177 °C without affecting accuracy.
Q5: Is it suitable for high-frequency vibration monitoring?
A5: Yes, the probe supports frequency response up to 10 kHz.
Q6: What is the primary function من the probe in a monitoring system?
A6: It measures shaft vibration and displacement to protect machinery from faults.
Q7: Can the probe be field-calibrated?
A7: No, the probe and cable assembly are factory calibrated as a matched system.
Q8: What monitoring systems is this probe compatible with?
A8: It is compatible with the Bently Nevada 3300 NSv Proximity Transducer System.
Q9: How does the linear range affect measurement accuracy?
A9: The linear range ensures accurate displacement readings within 0.25 mm to 2.0 mm.
Q10: Does it provide real-time shaft position feedback?
A10: Yes, it continuously monitors shaft displacement in real time.
Related الطرازs
| الطراز Number | الوصف |
|---|---|
| 330901-00-05-10-02-00 | 3300 NSv Proximity Probe, standard cable |
| 330902-00-08-10-02-05 | 3300 NSv Probe, extended range |
| 330930-040-01-00 | 3300 NSv Extension Cable, 4 m |
| 330932-005-01-00 | 3300 NSv Extension Cable, 5 m |
| 330935-01-00 | 3300 NSv Proximitor Sensor |
| 330980-50-05 | 3300 NSv Probe with ruggedized tip |
Popular الطرازs from Bently Nevada
| الطراز Number | الوصف | Application Focus |
|---|---|---|
| 330103-00-05-10-02-05 | Standard 3300 XL Proximity Probe | General machinery monitoring |
| 330104-00-09-10-02-05 | 3300 XL Proximity Probe, long cable | Turbines and compressors |
| 330106-05-30-10-02-05 | 3300 XL Probe, high-temperature version | Harsh environment applications |
| 3500/22M-01-01-00 | Transient Data Interface Module | Advanced machinery diagnostics |
| 3500/42M-01-00 | Proximitor/Seismic Monitoring Module | Vibration and position monitoring |
| 3500/60-00-01 | Temperature Monitoring Module | Bearing and process monitoring |
| 3500/72M-01-00 | Reciprocating Compressor Monitor | Specialized machinery protection |
| 330500-01-00 | Velomitor Piezo-Velocity Sensor | Low-frequency vibration monitoring |
