مقدمة المنتج

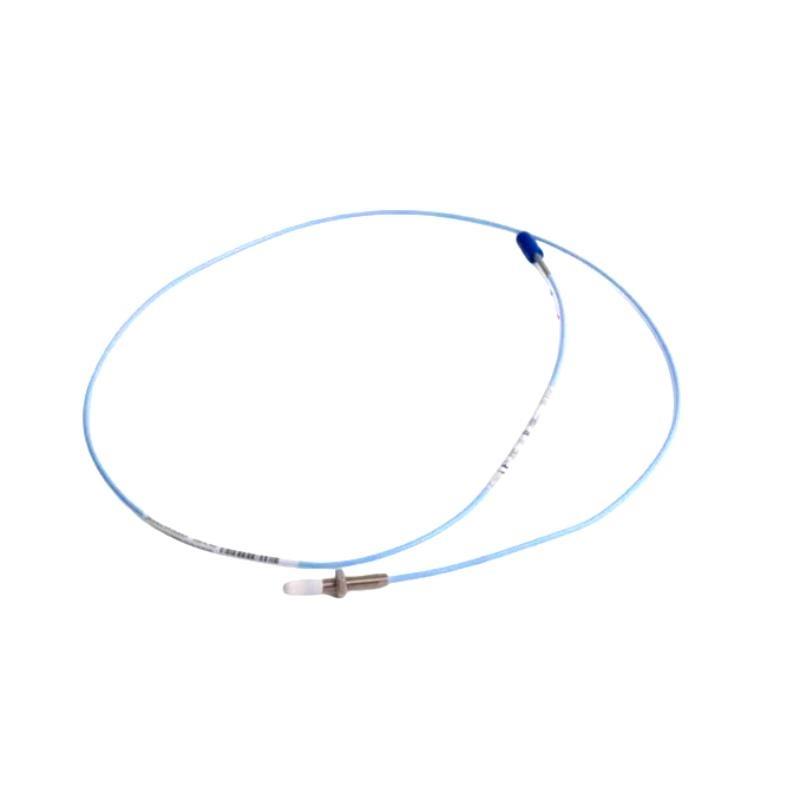

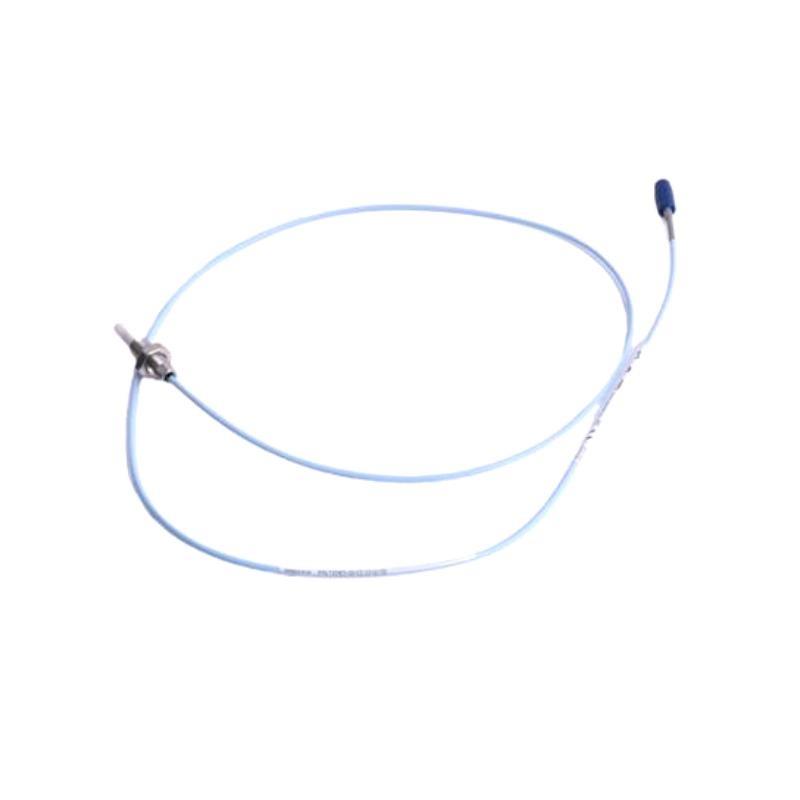

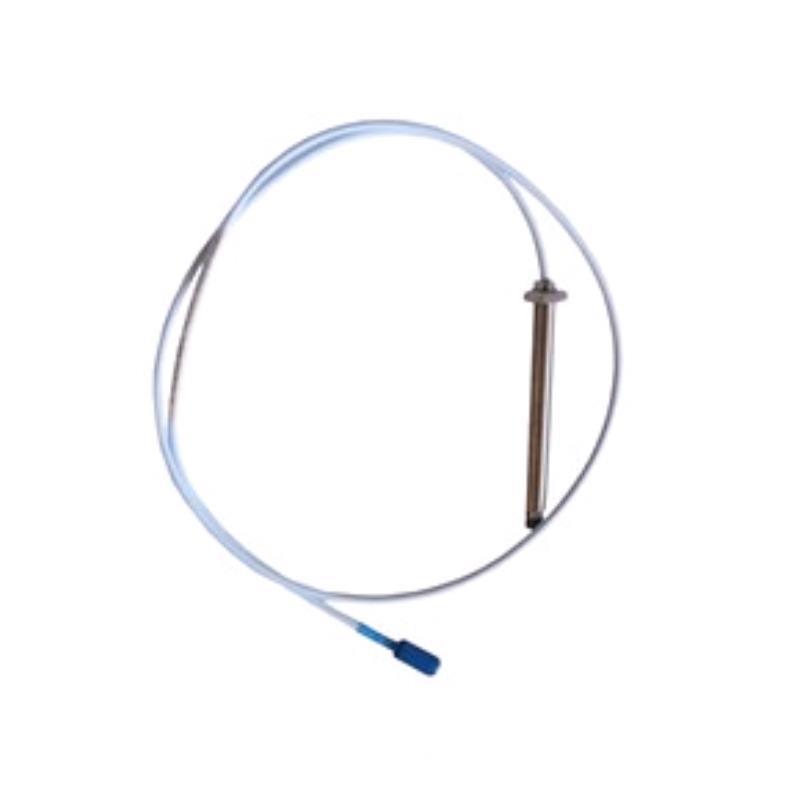

The Bently Nevada 330902-00-40-10-10-02-05 3300 NSv Proximity Probe is a high-performance probe designed for precise vibration and position measurements in rotating machinery. As part من the renowned 3300 NSv (Narrow Side-view) series, it is specifically optimized for small machines and installations with limited space. This probe delivers accurate displacement measurements by utilizing Eddy current technology to sense the relative motion between the probe tip and the target surface.
Technical Specifications
| Parameter | Value |
|---|---|
| الطراز Number | 330902-00-40-10-10-02-05 |
| Series | 3300 NSv Proximity Probe |
| Measurement Principle | Eddy Current Displacement Sensing |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| Linear Range | 0.25 – 2.0 mm (10 – 80 mils) |
| Probe Tip Diameter | 5 mm (0.197 in) |
| Thread Size | M8 × 1 |
| Operating Temperature | -35 °C to +180 °C |
| Cable Type | Integral coaxial cable with connector |
| Total Length | 1 m |
| الوزن | 0.15 kg |
| Compatible Drivers | 3300 NSv Proximity Transducer System |
Product Applications
-
Small and medium-sized turbines, compressors, pumps, and fans.
-
High-speed rotating equipment with restricted installation spaces.
-
Monitoring radial vibration, shaft position, and rotor dynamics.
-
الحالة monitoring systems where accurate displacement detection is critical.
-
Industrial environments requiring reliable machine protection.
Product Advantages
-
Compact Design – Optimized for tight installation spaces without compromising performance.
-
High Accuracy – Provides stable and precise vibration and displacement measurement.
-
Robust Construction – Built to withstand harsh industrial environments.
-
System Compatibility – Seamlessly integrates with Bently Nevada monitoring and protection systems.
-
Extended Temperature Range – Suitable for demanding operating conditions.
-
Trusted Reliability – Part من the globally recognized Bently Nevada 3300 series.
FAQ
Q1: What is the typical linear range من this probe?
A1: The probe منfers a linear range from 0.25 mm to 2.0 mm (10 – 80 mils).
Q2: Can this probe be used for radial vibration monitoring?
A2: Yes, it is specifically designed for both radial vibration and shaft position measurements.
Q3: What type من signal does the probe output?
A3: It outputs a voltage signal proportional to the shaft displacement, typically 7.87 mV/μm.
Q4: How is the probe connected to the monitoring system?
A4: It uses an integral coaxial cable with a connector to interface with the 3300 NSv Proximitor driver.
Q5: Does the probe require calibration after installation?
A5: Calibration is not normally required; however, system verification and gap voltage checks are recommended.
Q6: What materials are used for the probe tip?
A6: The probe tip is made من a non-conductive ceramic material to ensure stable sensing.
Q7: Is this probe resistant to electromagnetic interference (EMI)?
A7: Yes, it is shielded to minimize EMI effects and maintain accurate readings.
Q8: Can this probe be used in hazardous area environments?
A8: Yes, when installed with certified proximitor drivers and according to local safety regulations.
Q9: What is the recommended shaft material for accurate measurements?
A9: It is optimized for steel targets, which provide the best calibration accuracy.
Q10: How is thermal stability ensured in high-temperature conditions?
A10: The probe design includes materials with low thermal expansion and stable electrical properties.
Related الطرازs
| الطراز Number | الوصف |
|---|---|
| 330902-00-50-10-10-02-05 | NSv probe with 5 m cable |
| 330902-00-60-10-10-02-05 | NSv probe with 9 m cable |
| 330909-00-05-10-02-00 | NSv extension cable, 5 m |
| 330930-080-00-05 | NSv Proximitor sensor, 80 mV/mil |
| 330910-00-05-10-02-00 | Standard extension cable, 5 m |
| 330932-005-01-05 | NSv proximitor, hazardous area certified |
Popular الطرازs from Bently Nevada
| الطراز Number | الوصف |
|---|---|
| 330103-00-04-10-02-05 | Standard proximity probe, 5 mm tip |
| 330104-00-09-10-02-05 | Standard proximity probe, 8 mm tip |
| 330105-02-12-10-02-00 | Standard proximity probe, 11 mm tip |
| 330106-05-30-10-02-00 | Standard proximity probe, 25 mm tip |
| 330500-01-00 | Velocity transducer for vibration |
| 3500/22M | Transient Data Interface module |
| 3500/42M | Proximitor/Seismic Monitor module |
| 3500/60 | Temperature Monitor module |
