مقدمة المنتج

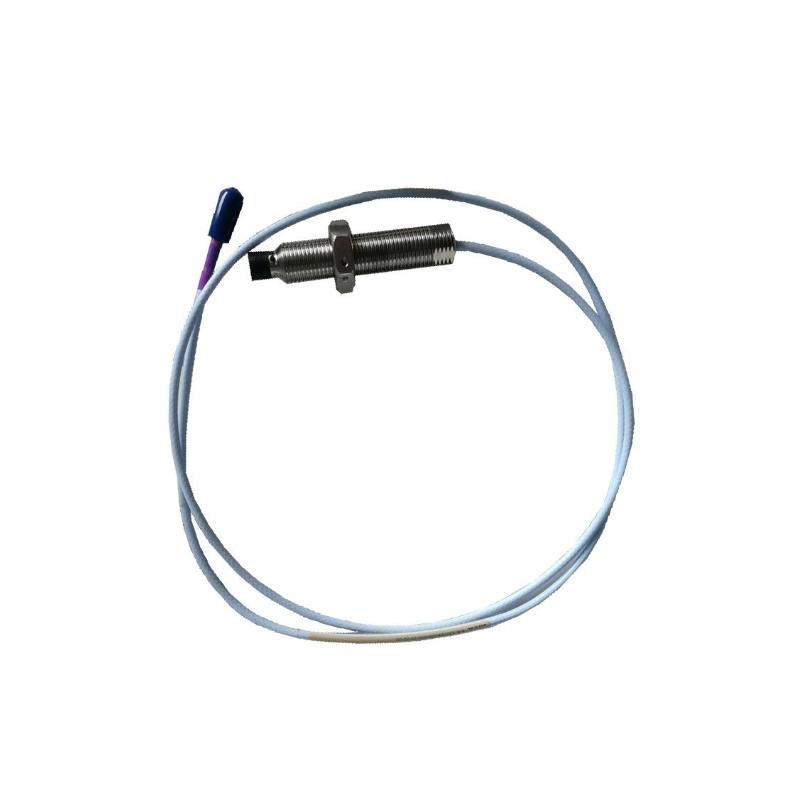

The Bently Nevada 330851-02-000-110-10-00-CN 3300 XL 25 mm Proximity Probe is part من the 3300 XL series من proximity probes designed for high-reliability vibration monitoring in rotating machinery. This probe منfers precision measurement من shaft displacement and vibration, enabling early detection من machinery faults. It is widely used in critical applications such as turbines, compressors, pumps, and generators where accurate and dependable monitoring is essential.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | Proximity Probe |
| Sensing Range | 25 mm |
| Total Length | 1 m |
| الوزن | 0.23 kg |
| Cable Type | Coaxial |
| Output Type | AC Voltage |
| Operating Temperature | -40°C to 120°C |
| Connector Type | LEMO 00 (standard) |
| System Compatibility | 3300 XL Series Monitoring System |
| Tip Material | Non-magnetic stainless steel |
| Linearity | ±1% full scale |
| Signal Frequency Response | DC to 25 kHz |
| Insulation Resistance | >100 MΩ at 500 VDC |
| Shock Resistance | 100 g, 11 ms |
Product Applications
-
Rotating Machinery Monitoring: Turbines, compressors, pumps, generators.
-
Vibration Analysis: Early fault detection in bearings, shafts, and couplings.
-
Process Safety: Monitoring critical rotating equipment to prevent unplanned shutdowns.
-
Control System Integration: Feeding accurate shaft position and vibration data to Bently Nevada 3300 XL monitoring systems.
Product Advantages
-
High Accuracy and Linearity: Ensures precise monitoring من shaft vibration and displacement.
-
Rugged Design: Resistant to mechanical shock, vibration, and extreme temperatures.
-
Interference Immوحدةy: Minimal signal distortion from electromagnetic sources.
-
Ease من Installation: Standardized connectors and flexible cabling allow quick deployment.
-
Proven Reliability: Widely adopted in power generation, oil & gas, and industrial applications.
-
Modular Integration: Seamlessly connects to Bently Nevada 3300 XL monitoring systems for real-time diagnostics.
FAQ
-
Q: What is the maximum tip vibration frequency this probe can accurately measure?
A: Up to 25 kHz, consistent with the 3300 XL system requirements. -
Q: Can this probe operate in high-humidity environments?
A: Yes, it is designed to operate in relative humidity up to 95% non-condensing. -
Q: Is the probe output compatible with standard 3300 XL monitors?
A: Yes, the output signal is AC voltage, fully compatible with 3300 XL monitoring systems. -
Q: Can the probe be used in explosive environments?
A: Only when installed with appropriate explosion-proمن housings and certified systems. -
Q: What cable lengths are supported beyond the standard 1 m probe length?
A: Custom cable lengths can be provided up to 30 m with factory calibration to maintain signal integrity. -
Q: Does the probe require any calibration after installation?
A: Initial calibration is recommended when first installed in the monitoring system to ensure accurate readings. -
Q: How resistant is the probe to electromagnetic interference?
A: Designed with shielding to maintain signal integrity in high EMI environments. -
Q: Can the probe tip material affect measurement in metallic environments?
A: The non-magnetic stainless steel tip ensures negligible interference with metallic components. -
Q: Does this probe support differential measurements?
A: It is single-ended; differential measurements require the associated monitoring module. -
Q: Is the probe compatible with other vibration monitoring systems?
A: It is optimized for the Bently Nevada 3300 XL system, but may work with other systems with appropriate signal conditioning.
Recommended 6 Same-Series or Related الطرازs
| الطراز Number | Sensing Range | Total Length | الوزن | Special Feature |
|---|---|---|---|---|
| 330851-02-000-100-10-00-00 | 25 mm | 1 m | 0.23 kg | Standard tip |
| 330851-02-000-080-10-00-00 | 25 mm | 1 m | 0.23 kg | High-temperature cable |
| 330851-02-000-070-10-00-00 | 25 mm | 1 m | 0.23 kg | Coaxial output |
| 330851-02-000-060-50-00-CN | 25 mm | 1 m | 0.23 kg | Chinese market variant |
| 330851-02-000-110-10-01-05 | 25 mm | 1 m | 0.23 kg | Custom connector option |
| 330851-02-000-078-10-01-05 | 25 mm | 1 m | 0.23 kg | Enhanced EMI protection |
Recommended 6 Popular الطرازs from Bently Nevada
| الطراز Number | Sensing Range | Total Length | الوزن | Application |
|---|---|---|---|---|
| 3300 XL 330851-00-000-00-00-00 | 12.7 mm | 1 m | 0.21 kg | Standard proximity sensing |
| 3300 XL 330851-01-000-10-00-00 | 25 mm | 1 m | 0.23 kg | Turbine monitoring |
| 3300 XL 330851-02-000-050-10-00 | 25 mm | 1 m | 0.23 kg | Pump monitoring |
| 3300 XL 330851-02-000-060-10-05 | 25 mm | 1 m | 0.23 kg | High-temp applications |
| 3300 XL 330851-02-000-070-90-00-05 | 25 mm | 1 m | 0.23 kg | Coaxial for industrial use |
| 3300 XL 330851-02-000-110-10-05 | 25 mm | 1 m | 0.23 kg | Enhanced monitoring system |
