مقدمة المنتج

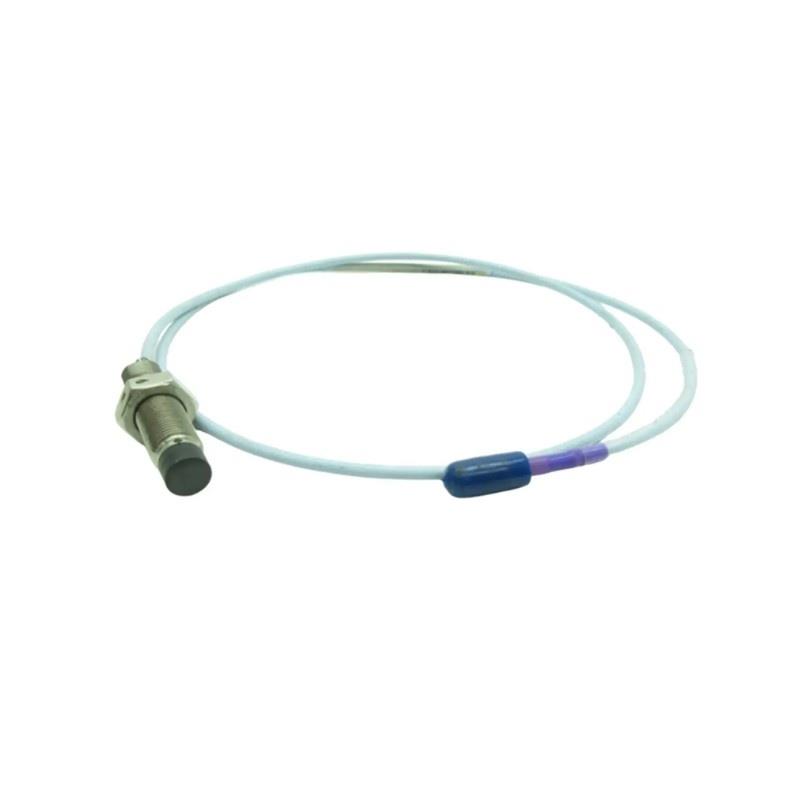

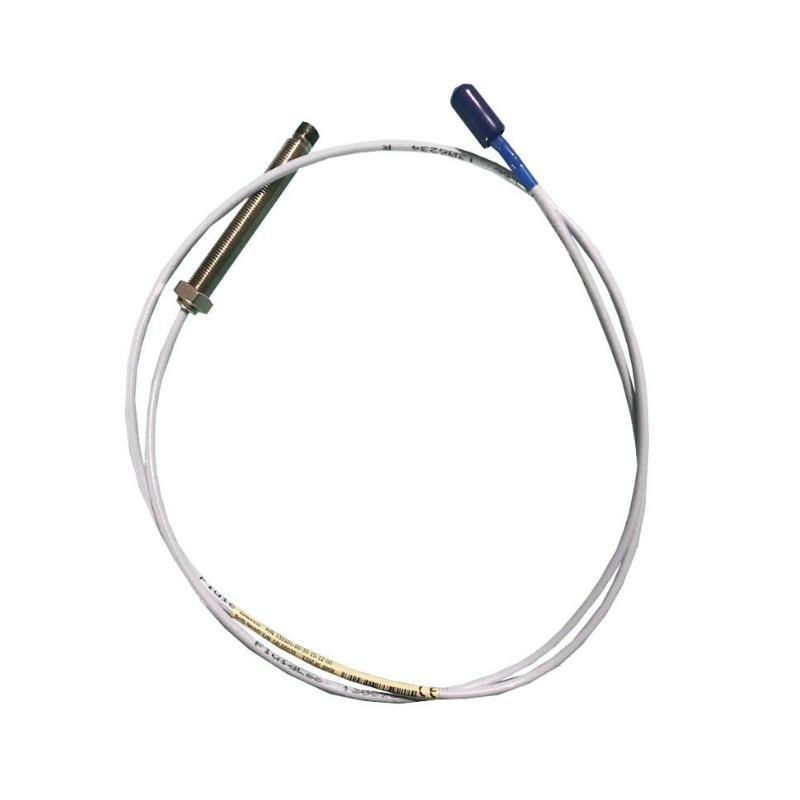

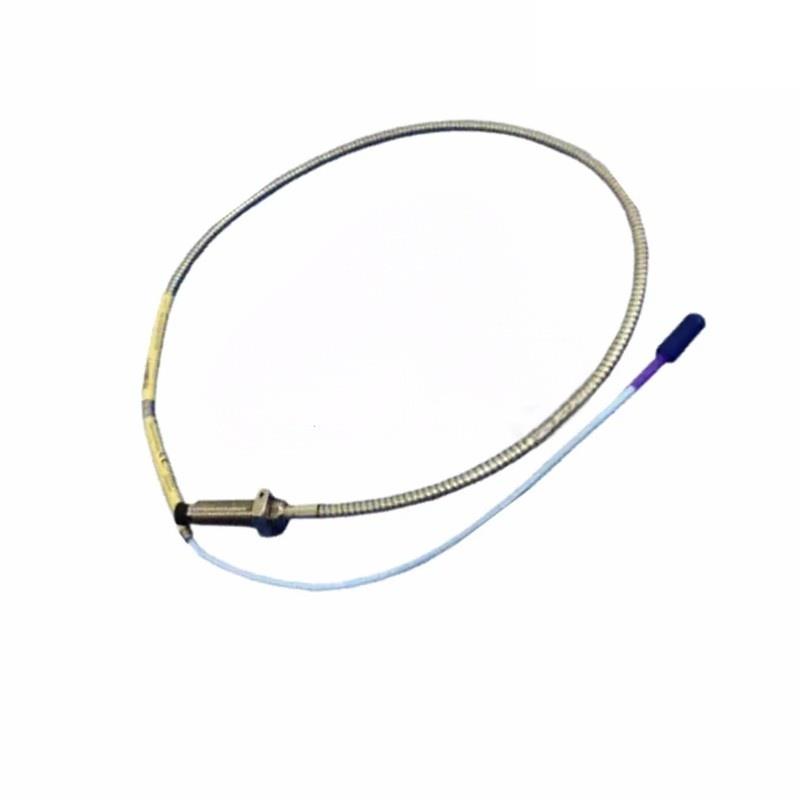

The 330704-000-070-10-02-00 3300 XL 11 mm Proximity Probe is a high-precision sensor designed for monitoring the vibration and position من rotating machinery. It is part من the Bently Nevada 3300 XL series, which is widely recognized for its reliability in industrial environments. The probe operates with eddy-current sensing technology, providing accurate displacement measurements under challenging operating conditions. Its 11 mm tip diameter ensures precise detection while maintaining compatibility with standard probe holders.
Technical Specifications
| Parameter | Specification |
|---|---|
| الطراز Number | 330704-000-070-10-02-00 |
| Probe Type | Proximity Probe |
| Series | 3300 XL |
| Tip Diameter | 11 mm |
| Sensing Principle | Eddy-current |
| Measurement Range | ±0.25 mm typical |
| Frequency Response | DC to 10 kHz |
| Total Length | 1 m |
| الوزن | 0.07 kg |
| Operating Temperature | -40°C to 120°C |
| Cable Type | Shielded coaxial |
| Connector Type | Standard 2-pin |
| Maximum Vibration Tolerance | 50 g |
| Compatibility | 3300 XL Monitoring System |
Applications
-
Monitoring rotor vibration in turbines, compressors, and generators.
-
Shaft position and displacement measurement in critical rotating equipment.
-
Early fault detection for predictive maintenance programs.
-
High-speed machinery monitoring for industrial plants, power generation, and oil & gas sectors.
-
Integration with Bently Nevada 3300 XL monitoring systems for continuous protection.
Advantages
-
High Accuracy: Eddy-current sensing ensures precise displacement measurements.
-
Robust Design: Designed to operate in extreme industrial environments.
-
Easy Integration: Compatible with existing 3300 XL monitoring systems.
-
Wide Temperature Range: Reliable performance from -40°C to 120°C.
-
Lightweight and Compact: 0.07 kg weight and 1 m total length for convenient installation.
-
Enhanced Machinery Protection: الدعمs predictive maintenance and early fault detection.
FAQ
Q1: What is the typical measurement range من this probe?
A1: The typical measurement range is ±0.25 mm.
Q2: Can the probe operate in high-temperature environments?
A2: Yes, it operates reliably from -40°C to 120°C.
Q3: What sensing technology does this probe use?
A3: It uses eddy-current sensing technology.
Q4: Is this probe compatible with all vibration monitoring systems?
A4: It is specifically designed for use with Bently Nevada 3300 XL monitoring systems.
Q5: What type من cable does this probe use?
A5: The probe uses a shielded coaxial cable.
Q6: What is the frequency response من the probe?
A6: The frequency response is DC to 10 kHz.
Q7: What is the probe’s maximum vibration tolerance?
A7: The probe can tolerate up to 50 g من vibration.
Q8: Can this probe be used for shaft displacement measurement?
A8: Yes, it is suitable for shaft position and displacement monitoring.
Q9: What type من connector does the probe use?
A9: It uses a standard 2-pin connector.
Q10: Is the probe suitable for high-speed rotating machinery?
A10: Yes, it is designed for high-speed industrial equipment and turbines.
Recommended 6 Same-Series or Related الطرازs
| الطراز Number | Tip Diameter | Measurement Range | Total Length | الوزن | Compatibility |
|---|---|---|---|---|---|
| 330704-000-070-10-02-01 | 11 mm | ±0.25 mm | 1 m | 0.07 kg | 3300 XL |
| 330704-000-070-10-03-00 | 11 mm | ±0.25 mm | 1.5 m | 0.08 kg | 3300 XL |
| 330704-000-100-10-02-00 | 10 mm | ±0.2 mm | 1 m | 0.065 kg | 3300 XL |
| 330704-000-120-10-02-00 | 12 mm | ±0.3 mm | 1 m | 0.075 kg | 3300 XL |
| 330704-000-110-10-01-00 | 11 mm | ±0.25 mm | 0.75 m | 0.065 kg | 3300 XL |
| 330704-000-070-10-02-02 | 11 mm | ±0.25 mm | 2 m | 0.09 kg | 3300 XL |
Recommended 6 Popular Bently Nevada الطرازs
| الطراز Number | Type | Tip Diameter | Measurement Range | Total Length | الوزن | Application |
|---|---|---|---|---|---|---|
| 3300 XL Proximity Sensor | Proximity Probe | 12 mm | ±0.3 mm | 1 m | 0.08 kg | General Machinery |
| 3300 XL 1/2” Probe | Proximity Probe | 12.7 mm | ±0.3 mm | 1 m | 0.09 kg | Turbines |
| 3300 XL Accelerometer | Vibration Sensor | N/A | N/A | 0.3 m | 0.05 kg | Vibration Monitoring |
| 3300 XL Remote Amplifier | Signal الحالةing Module | N/A | N/A | N/A | 1.2 kg | System Integration |
| 3300 XL Shielded Cable | Signal Cable | N/A | N/A | 2 m | 0.1 kg | Connectivity |
| 3300 XL Monitor Module | Monitoring Module | N/A | N/A | N/A | 2 kg | System Monitoring |
