Product Overview

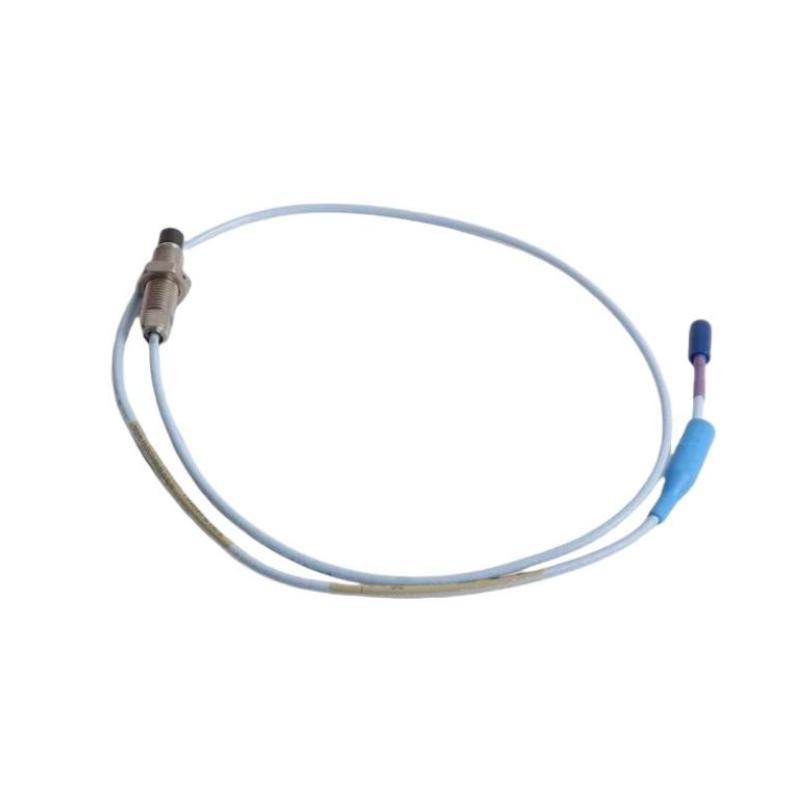

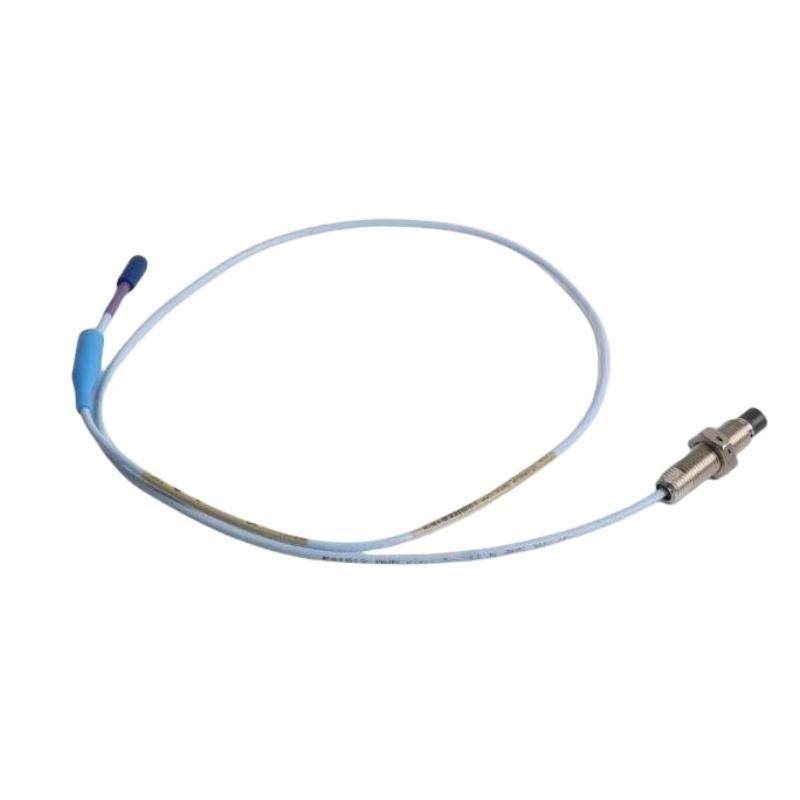

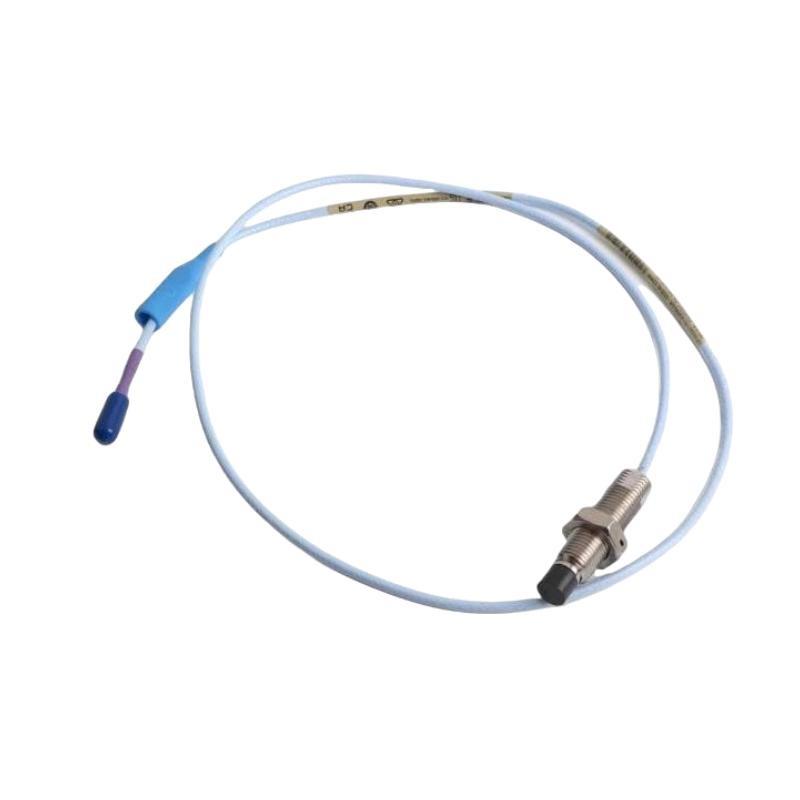

The Bently Nevada 330703-000-026-10-01-05 is part من the 3300 XL series من 11 mm Proximity Probes, specifically designed for accurate, non-contact measurement من shaft vibration, position, and displacement in large rotating machinery.With a 26-meter integral cable, this probe provides reliable signal transmission even in complex machinery layouts. It is widely applied in turbines, compressors, and heavy-duty pumps, delivering highly accurate real-time data for machinery protection and predictive maintenance.
Key Features
-
11 mm probe tip for extended linear measurement range
-
Comes with a 26 m integral cable for long-distance installations
-
Optimized for use with 3300 XL Proximitor® Sensors
-
Ensures excellent linearity and accuracy across measurement range
-
Rugged design suitable for high-temperature and high-vibration environments
-
Widely applied in critical rotating equipment protection systems
Technical Specifications
| Item | Specification |
|---|---|
| الشركة المصنعة | Bently Nevada |
| رقم القطعة | 330703-000-026-10-01-05 |
| Product Type | 3300 XL 11 mm Proximity Probe |
| Probe Tip Diameter | 11 mm |
| Dimensions | Total Length : 1.0 meter |
| الوزن | 0.07 kg |
| Probe Type | Non-contact eddy-current displacement probe |
| Linear Range | 0.5 – 4.0 mm (20 – 160 mils) |
| Sensitivity | 7.87 V/mm (200 mV/mil) typical |
| Frequency Response | DC to 5 kHz |
| Operating Temperature | –35 °C to +177 °C |
| Storage Temperature | –40 °C to +200 °C |
| Humidity | 0–95% RH, non-condensing |
| Compatibility | Bently Nevada 3300 XL Proximitor® Sensors |
| Applications | Shaft vibration, displacement, and position monitoring |
Industry Applications
-
Large steam and gas turbines
-
Centrifugal and axial compressors
-
Heavy-duty pumps and blowers
-
Generators and motors
-
Gearboxes and other industrial rotating assets
-
Oil & gas, power generation, and process industries
الأسئلة الشائعة (FAQ)
Q1: What is the cable length من the 330703-000-026-10-01-05 probe?
It comes with a 26-meter integral cable.
Q2: What is the probe tip size?
This probe has an 11 mm diameter tip.
Q3: Which sensors is this probe compatible with?
It is designed to work with Bently Nevada 3300 XL Proximitor® Sensors.
Q4: What is the linear measurement range?
0.5 – 4.0 mm (20 – 160 mils).
Q5: What is the sensitivity?
7.87 V/mm (200 mV/mil).
Q6: What is the frequency response?
DC to 5 kHz.
Q7: Can it withstand harsh environments?
Yes, it operates reliably from –35 °C to +177 °C.
Q8: What industries commonly use this probe?
It is used in oil & gas, power generation, and heavy industry for machinery protection.
