مقدمة المنتج

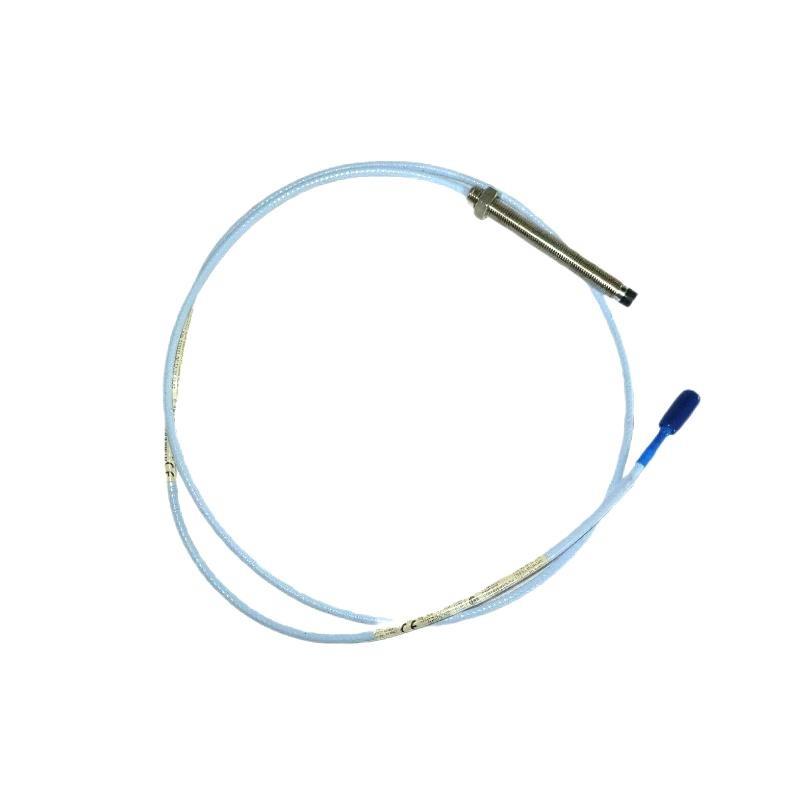

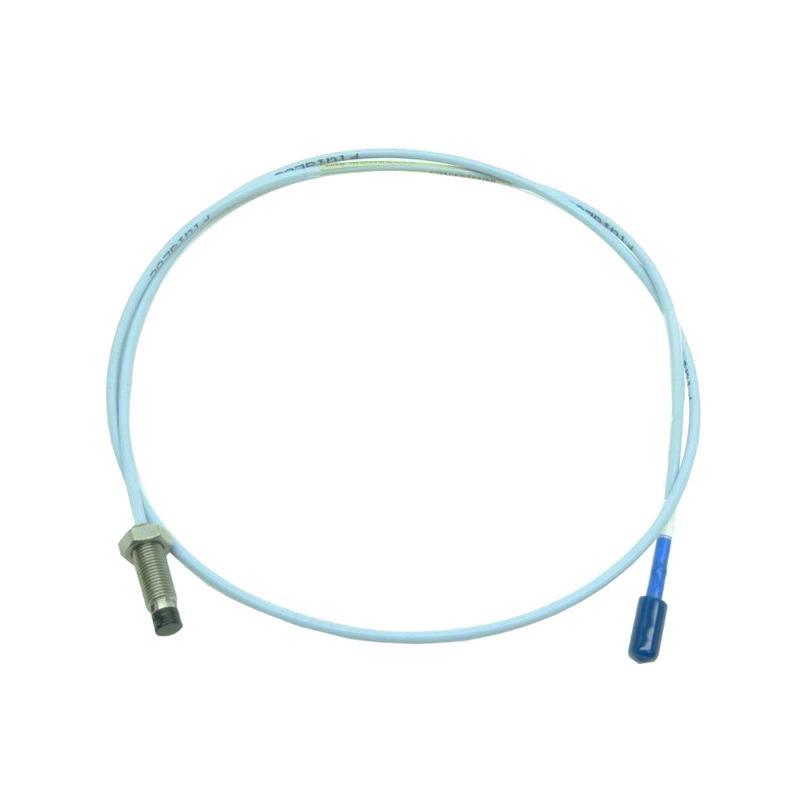

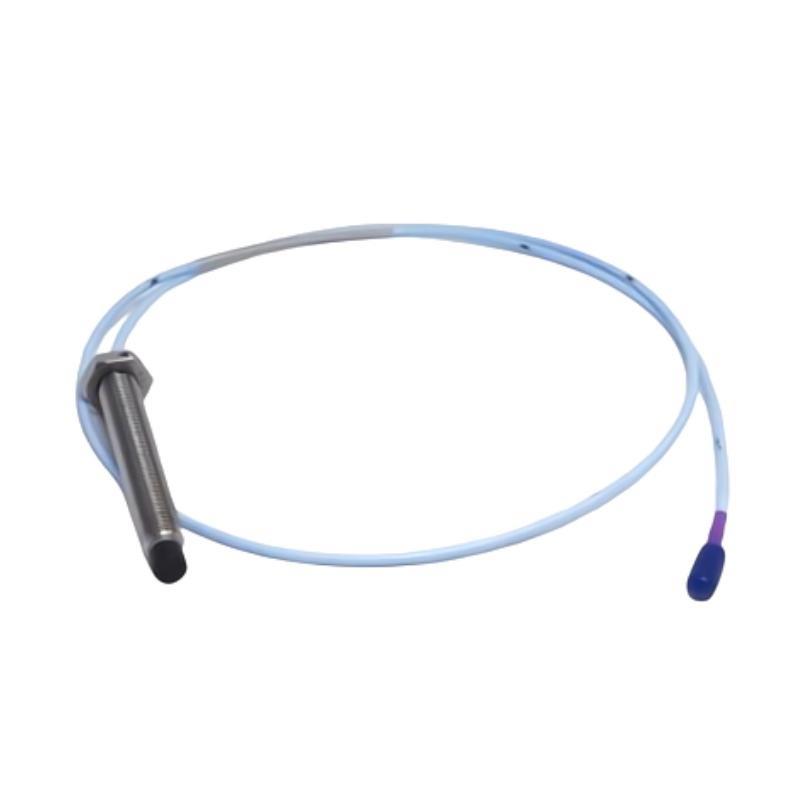

The Bently Nevada 330701-00-15-50-01-CN 3300 XL 11 mm Proximity Probe is a high-precision non-contact displacement sensor designed for continuous machinery protection and condition monitoring. As part من the 3300 XL series, it provides stable, repeatable measurements من shaft vibration and position, ensuring critical rotating equipment—such as turbines, compressors, and industrial motors—operates safely and efficiently.
Built with robust materials and advanced eddy-current sensing technology, this probe maintains accuracy in harsh industrial environments including high temperature, high humidity, and areas with strong electromagnetic interference. Its optimized design allows seamless integration with Bently Nevada 3300 XL proximity transducer systems, enabling predictive maintenance strategies and reducing unplanned downtime.
Technical Specifications
| Parameter | Details |
|---|---|
| الطراز Number | 330701-00-15-50-01-CN |
| Series | 3300 XL 11 mm Proximity Probe |
| Measurement Principle | Eddy current non-contact displacement sensing |
| Tip Diameter | 11 mm |
| Linear Measurement Range | 0 to 4 mm |
| Power Supply (via Driver) | –24 V DC nominal |
| Frequency Response | 0 to 10 kHz |
| Operating Temperature | –35 °C to +180 °C |
| Storage Temperature | –50 °C to +200 °C |
| Humidity Tolerance | Up to 95% non-condensing |
| Mounting Thread | M14 × 1.5 or equivalent |
| Output Sensitivity | 200 mV/mil standard |
| Insulation Resistance | >10 MΩ at 500 V |
| Housing Material | Stainless steel with corrosion-resistant coating |
| الوزن | 0.25 kg |
Applications
-
Turbomachinery Monitoring: Continuous shaft vibration and axial position measurement for gas and steam turbines.
-
Compressor Systems: Real-time rotor displacement tracking to prevent mechanical failures.
-
Industrial Pumps: Accurate detection من shaft movement for predictive maintenance.
-
High-Speed Motors: Ensures precise vibration analysis for critical rotating assets.
-
Oil & Gas Facilities: Ideal for monitoring equipment in hazardous and corrosive environments.
-
Power Generation: Integral in generator and turbine vibration diagnostics.
Advantages
-
Exceptional Accuracy: Maintains precise displacement readings with excellent linearity.
-
Robust Construction: Stainless steel housing ensures durability in demanding conditions.
-
Wide Temperature Range: Reliable operation from –35 °C to +180 °C.
-
Seamless System Integration: Fully compatible with Bently Nevada 3300 XL transducer systems.
-
Fast Frequency Response: Up to 10 kHz, enabling detection من high-speed vibration events.
-
Predictive Maintenance الدعم: Enables early fault detection to minimize downtime.
-
Corrosion and Moisture Resistance: Protective coating shields against harsh chemicals and moisture.
-
Stable Calibration: Long-term stability reduces recalibration requirements.
FAQ
1. What measurement technology does the 330701-00-15-50-01-CN probe use?
It uses eddy current sensing to detect shaft displacement and vibration without physical contact.
2. What is the standard output signal من this probe?
The probe delivers a calibrated output من 200 mV per mil من displacement when paired with the matching driver.
3. Which Bently Nevada systems are compatible with this probe?
It is designed for seamless integration with the Bently Nevada 3300 XL proximity transducer system.
4. What is the linear measurement range?
The probe accurately measures shaft motion within a 0 to 4 mm linear range.
5. How does the probe maintain accuracy in harsh environments?
Its stainless steel housing and specialized insulation provide resistance to corrosion, oil, and electromagnetic interference.
6. What frequency range can the probe effectively monitor?
It supports a frequency response من 0 to 10 kHz for high-speed machinery monitoring.
7. How is electrical insulation ensured?
The probe provides insulation resistance greater than 10 MΩ at 500 V, protecting against electrical noise.
8. Can the probe be used in hazardous industrial zones?
Yes, it is engineered to perform reliably in areas with chemical exposure and high humidity.
9. What is the recommended driver for proper operation?
The probe is optimized for use with Bently Nevada 3300 XL drivers and extension cables.
10. How does the probe assist in predictive maintenance?
By delivering continuous, accurate vibration and displacement data, it helps detect early equipment issues before costly failures occur.
Related الطرازs in the Same Series
| الطراز | الوصف |
|---|---|
| 330701-00-15-10-02-05 | 3300 XL 11 mm probe with standard configuration |
| 330701-00-20-10-02-05 | 3300 XL 11 mm probe with 2.0 m total cable length |
| 330701-00-25-10-02-05 | 3300 XL 11 mm probe with 5.0 m total cable length |
| 330701-00-30-10-02-05 | High-pressure resistant 3300 XL 11 mm probe |
| 330701-00-18-10-02-05 | 3300 XL 11 mm probe for extended temperature applications |
| 330701-00-40-10-02-05 | 3300 XL 11 mm probe with enhanced signal stability |
Popular Bently Nevada الطرازs
| الطراز | الوصف |
|---|---|
| 3500/22M | Transient data interface module for advanced machinery analysis |
| 3300 XL 8 mm | Compact proximity probe for limited-space installations |
| 330400 | Velomitor sensor for low-frequency vibration detection |
| 330500 | Proximity sensor for high-speed rotating machinery |
| 3500/42M | Four-channel vibration monitoring module |
| 330180 | High-temperature extension cable for proximity probe systems |
