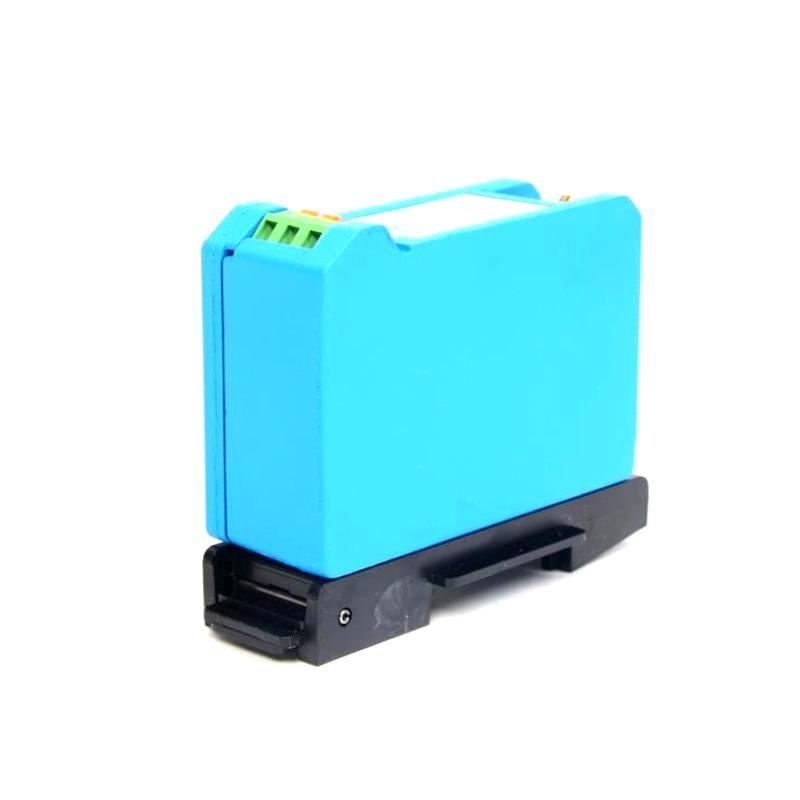

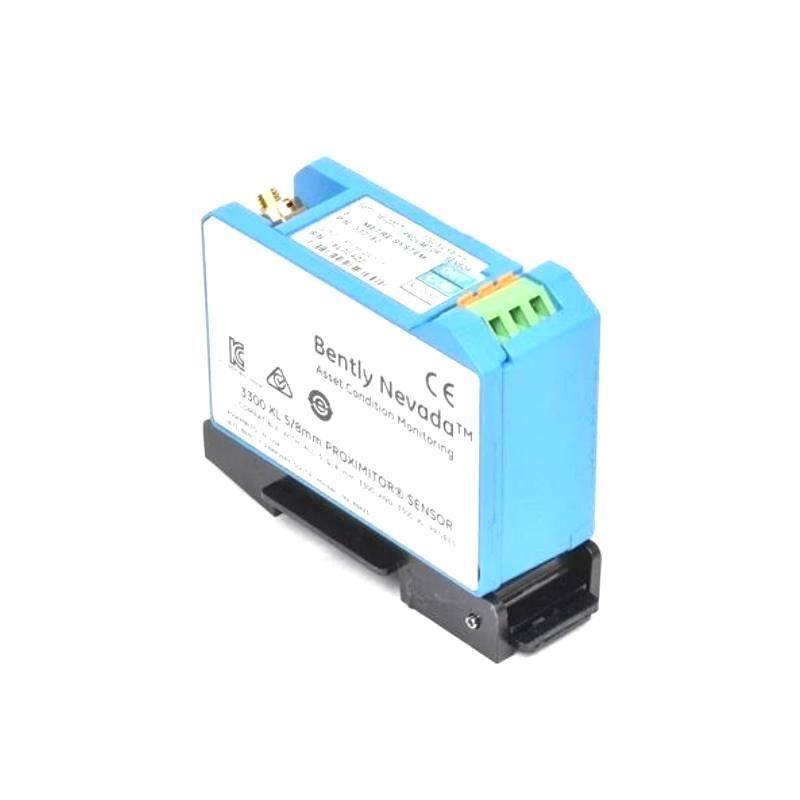

The Bently Nevada 330180-X1-RU 143416-49 is a 3300 XL Proximitor Sensor designed for use in the 3300 XL 8 mm Proximity Transducer System. This system provides a voltage output directly proportional to the distance between the probe tip and a conductive surface, enabling precise measurement من both static (position) and dynamic (vibration) parameters.
It meets API 670 standards for mechanical configuration, accuracy, linear range, and temperature stability, ensuring full interchangeability without the need for matched calibration من components. The sensor features advanced RFI/EMI immوحدةy, high-density DIN or panel mount capability, and robust SpringLoc terminals for reliable, tool-free wiring connections.
Technical Specifications
| Parameter | Specification |
|---|---|
| الطراز | 330180-X1-RU 143416-49 |
| System Compatibility | 3300 XL 8 mm Proximity Transducer System |
| Input | Accepts one 3300-series 5 mm, 3300 XL 8 mm probe & extension cable |
| Power Supply | -17.5 Vdc to -26 Vdc (12 mA max) |
| Output Resistance | 50 Ω |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | -9 Vdc (approx. 1.27 mm / 50 mils) |
| Scale Factor | 7.87 V/mm (200 mV/mil) ±5% |
| Frequency Response | 0 to 10 kHz (+0, -3 dB) |
| Operating Temperature | -52°C to +100°C |
| Storage Temperature | -52°C to +105°C |
| Dimensions | 81.3 × 35.1 × 63.5 mm |
| الوزن | 0.246 kg |
| Material | A308 aluminum housing, gold-plated connectors |
| Mounting Options | DIN-rail or panel mount |
| Compliance | API 670, CE, RoHS, SIL 2/3 |
| Approvals | CSA, ATEX, IECEx for hazardous areas |
Applications
-
Vibration and position monitoring in fluid-film bearing machines
-
Shaft speed and Keyphasor reference measurements
-
Turbomachinery condition monitoring
-
Generator and motor bearing health tracking
-
Overspeed and protection systems (per application guidelines)
-
Industrial machinery performance diagnostics
Advantages
-
Full API 670 compliance for accuracy, linear range, and stability
-
High interchangeability with no calibration needed between components
-
ممتاز RFI/EMI immوحدةy, allowing flexible installation without special shielding
-
Robust mechanical design with corrosion-resistant ClickLoc connectors
-
Wide temperature operating range for harsh environments
-

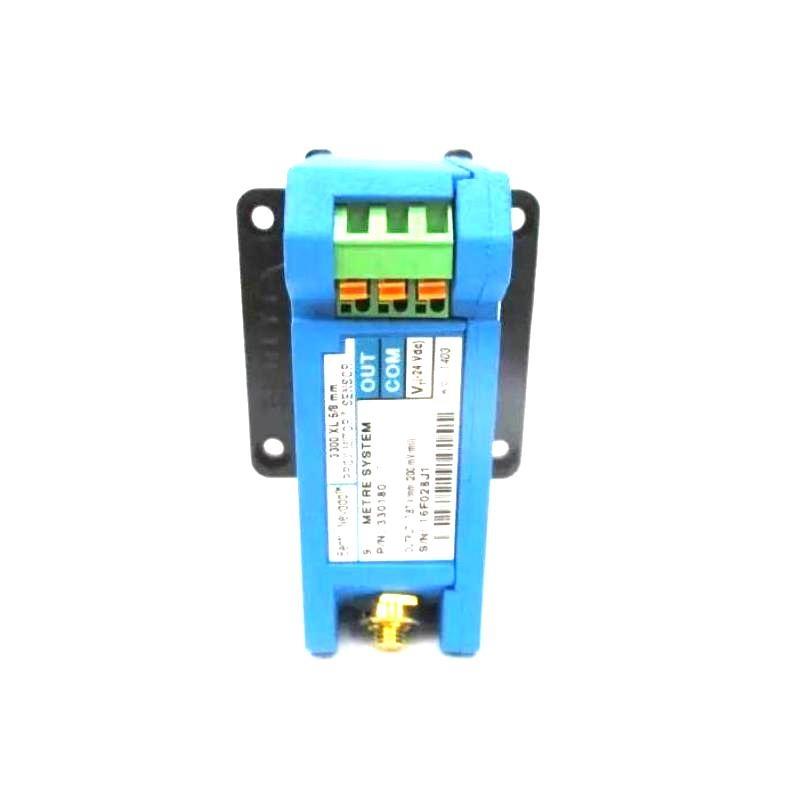

SpringLoc terminals for quick, secure, and tool-free wiring
FAQ
Q1: What type من probe is compatible with the 330180-X1-RU Proximitor Sensor?
A1: It is compatible with 3300 XL 8 mm proximity probes and extension cables, as well as non-XL 3300 5 mm and 8 mm components.
Q2: Does this model meet API 670 standards?
A2: Yes, it fully complies with API 670 mechanical configuration, accuracy, and stability requirements.
Q3: Can it be used in hazardous areas?
A3: Yes, it has CSA, ATEX, and IECEx approvals for use in Class I, II, and III hazardous areas.
Q4: What is the recommended probe gap setting?
A4: Approximately -9 Vdc, equivalent to 1.27 mm (50 mils).
Q5: What is the linear measurement range?
A5: 2 mm (80 mils), from 0.25 mm to 2.3 mm (10 to 90 mils).
Q6: How is it mounted?
A6: It supports both DIN-rail and panel mount configurations.
Q7: What is the output scale factor?
A7: 7.87 V/mm (200 mV/mil) ±5% for standard systems.
Q8: Is special wiring required?
A8: No, it uses standard 3-conductor shielded triad cable, with a maximum field wiring length من 305 m.
Q9: Can it be used for overspeed protection?
A9: Yes, but consult the manufacturer’s guidelines for eddy current probe overspeed applications.
Q10: What are its environmental limits?
A10: Operating temperature is -52°C to +100°C, with high humidity resistance per IEC 68 2 3.
Related الطرازs – Same Series
| الطراز | الوصف | Dimensions (mm) | الوزن |
|---|---|---|---|
| 330180-50 | Proximitor Sensor, 5 m system length | 81.3 × 35.1 × 63.5 | 0.246 kg |
| 330180-90 | Proximitor Sensor, 9 m system length | 81.3 × 35.1 × 63.5 | 0.246 kg |
| 330180-11 | Proximitor Sensor, 1 m DIN mount | 81.3 × 35.1 × 63.5 | 0.246 kg |
| 330180-51 | Proximitor Sensor, 5 m DIN mount | 81.3 × 35.1 × 63.5 | 0.246 kg |
| 330180-91 | Proximitor Sensor, 9 m DIN mount | 81.3 × 35.1 × 63.5 | 0.246 kg |
| 330180-12 | Proximitor Sensor, 1 m no mount | 81.3 × 35.1 × 63.5 | 0.246 kg |
