Product Overview

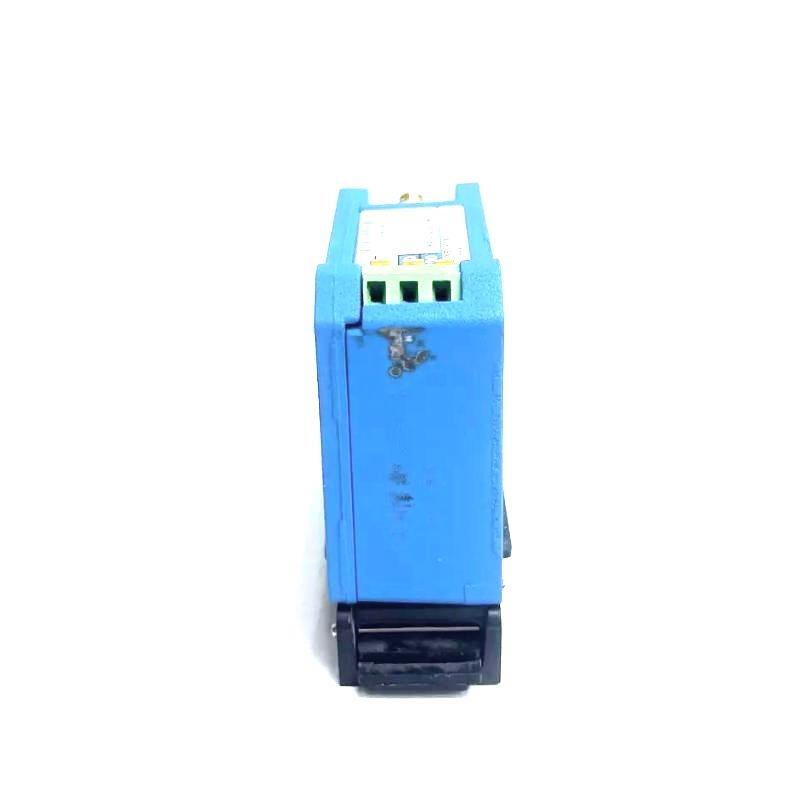

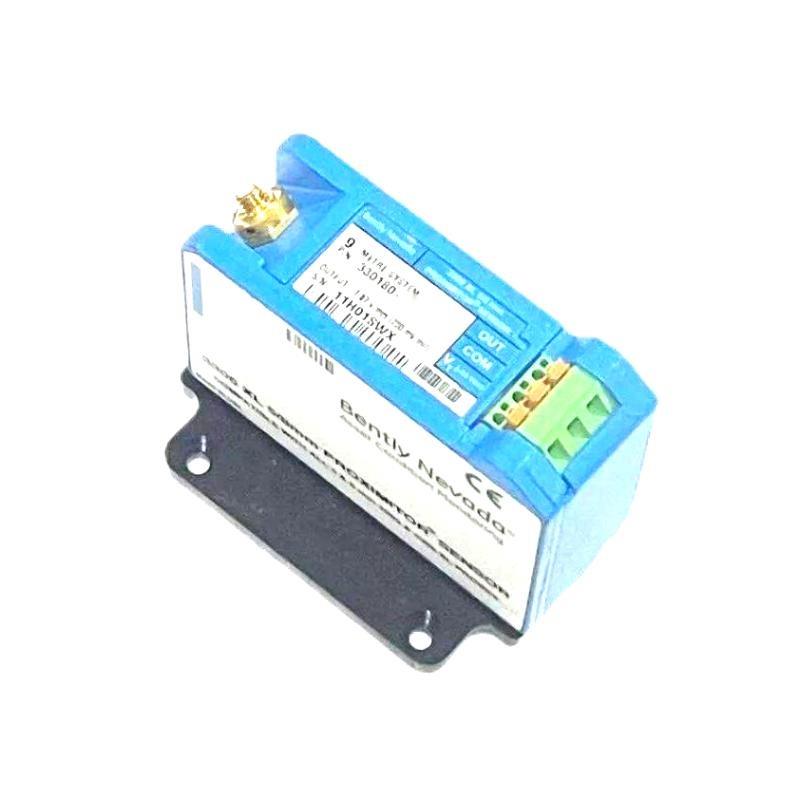

The Bently Nevada 330180-X1-R0 3300 XL Proximitor Sensor is part من the 3300 XL 8 mm Proximity Transducer System, designed for precise vibration and position measurements in critical machinery. It delivers an output voltage proportional to the distance between the probe tip and the target surface, supporting both static and dynamic measurements. The sensor is fully compliant with API 670 standards, منfering high reliability, stability, and interchangeability without the need for individual component calibration.
Technical Specifications
| Parameter | Value |
|---|---|
| Compatible Probes | 3300 XL 8 mm and 3300 series 5 mm probes |
| System Length Options | 1 m, 5 m, 9 m |
| Power Supply | –17.5 Vdc to –26 Vdc, max 12 mA |
| Output Resistance | 50 Ω |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils), –9 Vdc |
| Frequency Response | 0 to 10 kHz (±3 dB) |
| Minimum Target Size | 15.2 mm diameter |
| Operating Temperature (Sensor) | –52°C to +100°C |
| Storage Temperature (Sensor) | –52°C to +105°C |
| Size (L × W × H) | 81.3 × 35.1 × 63.5 mm |
| الوزن | 0.246 kg |
Applications
-
Vibration Monitoring – Radial and axial vibration measurement in turbines, compressors, and pumps.
-
Shaft Position Measurement – Accurate detection من shaft displacement in fluid-film bearing machines.
-
Keyphasor and Speed Monitoring – الدعمs reference and speed measurement for rotating equipment.
-
الحالة Monitoring Systems – Integrates with Bently Nevada monitoring systems for predictive maintenance.
Advantages
-
API 670 Compliance for mechanical configuration, accuracy, and stability.
-
Interchangeable Components – No need for individual calibration.
-
High RFI/EMI Immوحدةy – Suitable for installations without shielded conduit.
-
Flexible Mounting – DIN-rail or panel mount options.
-
Robust Design – Gold-plated connectors, SpringLoc terminals, and corrosion-resistant materials.
-
Extended Temperature Capability with compatible ETR probes and cables.
الأسئلة الشائعة (FAQ)
Q1: What probes are compatible with the 330180-X1-R0 Proximitor Sensor?
A1: It is compatible with 3300 XL 8 mm proximity probes and legacy 3300 series 5 mm probes.
Q2: Is the sensor compliant with API 670 standards?
A2: Yes, the standard 5 m system fully complies with API 670 requirements.
Q3: Can it be used in hazardous areas?
A3: Yes, it has CSA, ATEX, and IECEx approvals for Zone 0, Zone 2, and Division 2 hazardous areas.
Q4: What is the recommended installation gap?
A4: The recommended gap for radial vibration measurement is 1.27 mm (50 mils), equivalent to –9 Vdc output.
Q5: Does it require special calibration for each installation?
A5: No, components are fully interchangeable and pre-calibrated at the factory.
Q6: Can it be mounted on a DIN rail?
A6: Yes, DIN-rail mounting options are available.
Q7: What is the operating temperature range for the sensor?
A7: –52°C to +100°C for operation, and –52°C to +105°C for storage.
Q8: Is it resistant to radio frequency interference?
A8: Yes, it has improved RFI/EMI immوحدةy and meets CE mark requirements.
Q9: Can it measure both vibration and shaft position?
A9: Yes, it is designed for both static (position) and dynamic (vibration) measurements.
Q10: What is the linear measurement range?
A10: The linear range is 2 mm (80 mils), from approximately 0.25 mm to 2.3 mm.
Recommended Related الطرازs (Same Series or Function)
| الطراز | الوصف | System Length | الوزن |
|---|---|---|---|
| 330180-90-05 | 3300 XL Proximitor Sensor, panel mount | 9 m | 0.246 kg |
| 330180-51-05 | 3300 XL Proximitor Sensor, DIN mount | 5 m | 0.246 kg |
| 330180-11-05 | 3300 XL Proximitor Sensor, DIN mount | 1 m | 0.246 kg |
| 330130-040-00 | 3300 XL Extension Cable | 4 m | 0.034 kg/m |
| 330101-00-08 | 3300 XL 8 mm Probe | 2 m | 0.323 kg/m |
| 330192-00-20 | 3300 XL 8 mm ETR Probe | 2 m | 0.323 kg/m |
Popular Bently Nevada الطرازs
| الطراز | الوصف | Measurement Type | الوزن |
|---|---|---|---|
| 3500/42M | Proximitor Seismic Monitor | Vibration | 1.5 kg |
| 3500/92 | Communication Gateway | System Comms | 1.2 kg |
| 3500/32M | 4-Channel Relay Module | Alarm Control | 1.4 kg |
| 3500/22M | Transient Data Interface | Data Acquisition | 1.3 kg |
| 3500/50 | Tachometer Module | Speed Measurement | 1.2 kg |
| 3500/15 | Power Supply Module | System Power | 1.1 kg |
