Product Overview

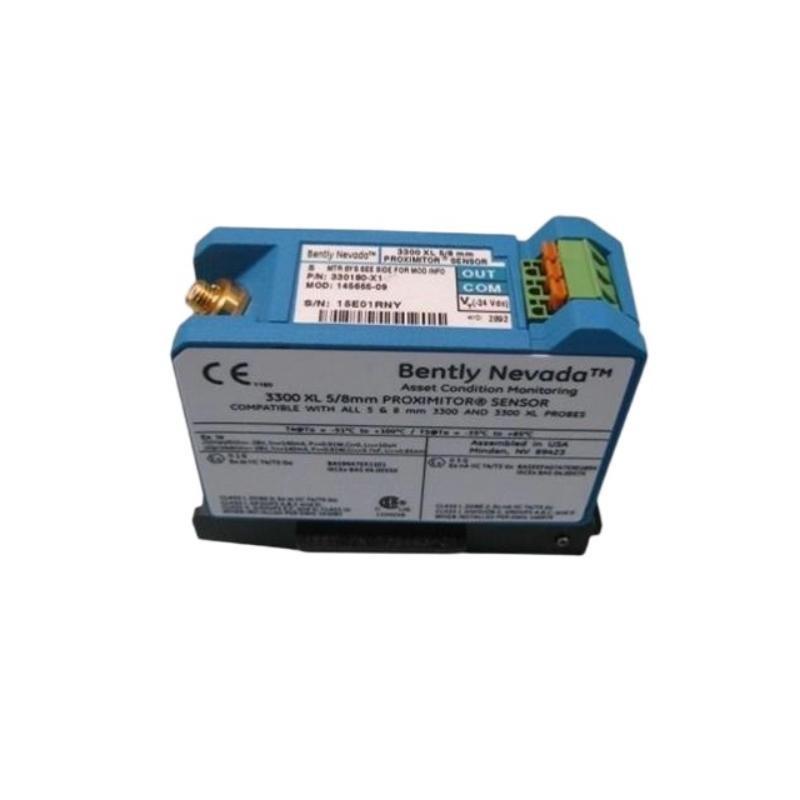

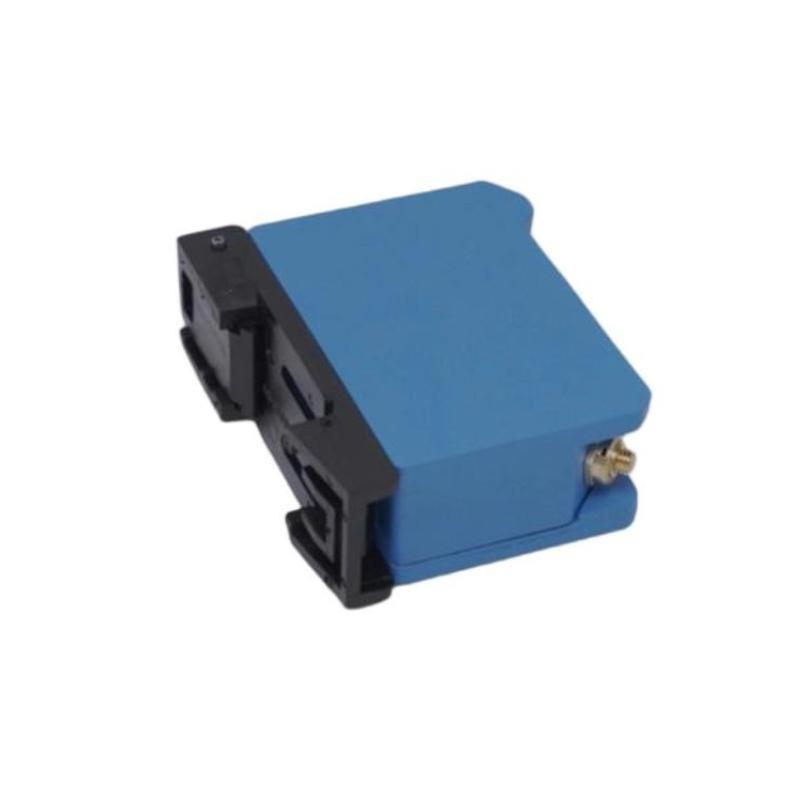

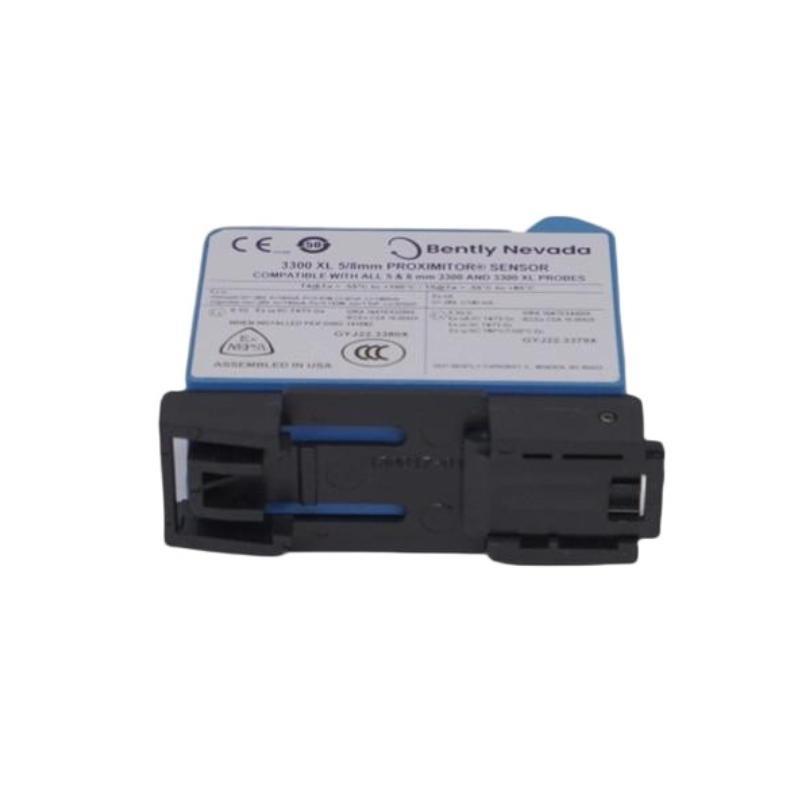

The Bently Nevada 330180-X1-00 143416-27 is a high-performance 8mm Proximitor Sensor from the 3300 XL series, engineered for monitoring the dynamic behavior من rotating equipment. It enables precise, real-time displacement and vibration measurements critical for machinery protection systems. Its robust construction, high accuracy, and compatibility with the Bently Nevada 3300 XL system make it a trusted solution for industrial asset condition monitoring and predictive maintenance.
Key Features
-
8 mm proximity probe optimized for non-contact displacement measurement
-
Compatible with 3300 XL Proximitor monitoring systems
-
Wide operating temperature range and high vibration tolerance
-
Factory-calibrated for consistent, repeatable output
-
Rugged construction for harsh industrial environments
-
AC voltage output proportional to target shaft displacement
-
متاح in multiple probe/cable length combinations
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Proximitor Sensor (Proximity Probe) |
| الطراز Number | 330180-X1-00 |
| رقم القطعة | 143416-27 |
| الشركة المصنعة | Bently Nevada (Baker Hughes) |
| Probe Diameter | 8 mm |
| Probe Length | 50 mm (typical for 330180 series) |
| Measurement Range | 0 to 2 mm (0 to 80 mils) |
| Output Signal | Voltage proportional to target displacement |
| Operating Temperature | -40°C to +121°C |
| Storage Temperature | -55°C to +125°C |
| Vibration Resistance | 10 to 2000 Hz at 30 g |
| Shock Resistance | 100 g, 11 ms duration |
| Connector Type | Integral or extension cable configurations |
| System Compatibility | 3300 XL Proximitor System |
| Dimensions | 81.3 x 35.1 x 63.5 mm |
| الوزن | 0.246 kg |
Industry Applications
-
Gas and Steam Turbines
-
Compressors
-
Motors and Generators
-
Centrifugal Pumps
-
Gearboxes
-
Oil & Gas Industry
-
Power Generation Facilities
-
Marine and Aerospace Equipment
Product Advantages
-
Precision displacement measurement with high signal stability
-
Designed for demanding industrial environments
-
Long service life with excellent mechanical durability
-
الدعمs extended cable lengths for flexible installation
-
Ensures machine health monitoring with high accuracy
-
Easy integration into existing 3300 XL systems
-
Reduces unplanned downtime with real-time diagnostics
الأسئلة الشائعة (FAQ)
1. What is the purpose من the 330180-X1-00 sensor?
It measures shaft displacement and vibration for condition monitoring.
2. What systems is this sensor compatible with?
It is fully compatible with the Bently Nevada 3300 XL system.
3. What is the probe diameter and length?
The probe diameter is 8 mm; the standard length is 50 mm.
4. What output signal does it provide?
It outputs a voltage proportional to the shaft’s displacement.
5. What environments is it suitable for?
Harsh industrial environments including oil & gas, power plants, and marine.
6. What is the weight من the وحدة?
Approximately 0.246 kg.
7. Can it be used with long cables?
Yes, it supports long cable runs with correct configuration.
8. What is the operating temperature range?
From -40°C to +121°C.
9. How is the sensor installed?
Via mounting brackets or threaded connections with optional extension cables.
10. What benefits does it منfer in condition monitoring?
It provides accurate, continuous measurements enabling early fault detection and preventative maintenance.
Related الطرازs
| الطراز Number | الوصف |
|---|---|
| 330180-X0-00 145004-99 | 3300 XL 8mm Proximitor Sensor |
| 330180-X0-05 149032-01 | 3300 XL 8mm Proximitor Sensor |
| 330104-01-05-50-02-00 | 3300 XL 8mm Proximitor Sensor |
| 330101-00-14-10-02-05 | 3300 XL 8mm Proximitor Sensor |
Popular Bently Nevada الطرازs
| الطراز Number | الوصف |
|---|---|
| 3300/16-13-01-00 | 3300 XL Monitor Module |
| 330103-00-05-10-02-00 | 3300 XL Extension Cable |
| 330130-080-00-00 | 3300 XL Standard Extension Cable |
| 330104-00-12-10-02-CN | 3300 XL 8mm Proximity Probe |
| 3300 XL Accessories | Brackets, adaptors, and mounting hardware |
