Product Overview

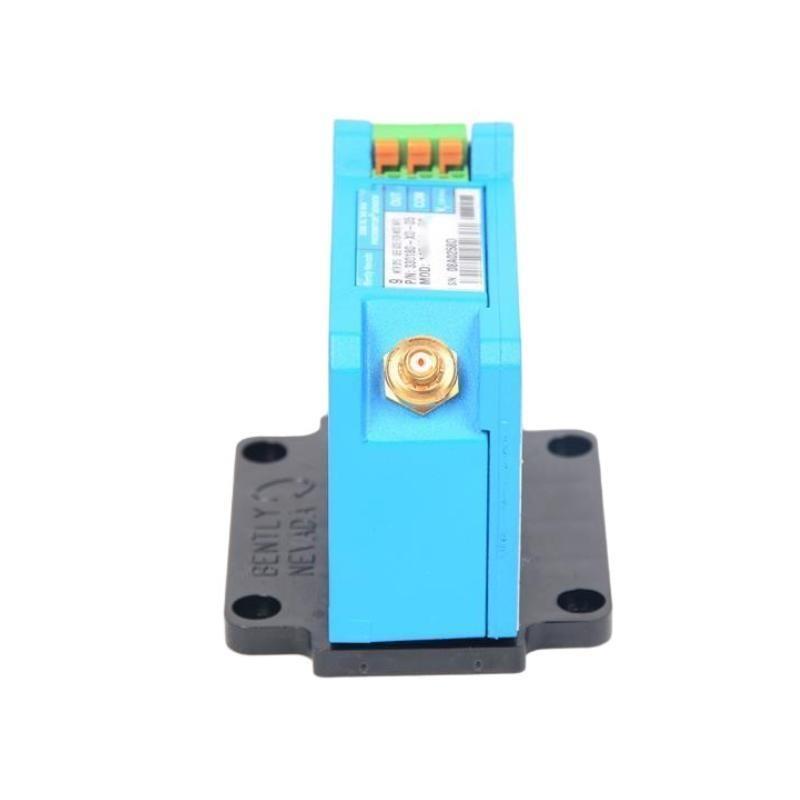

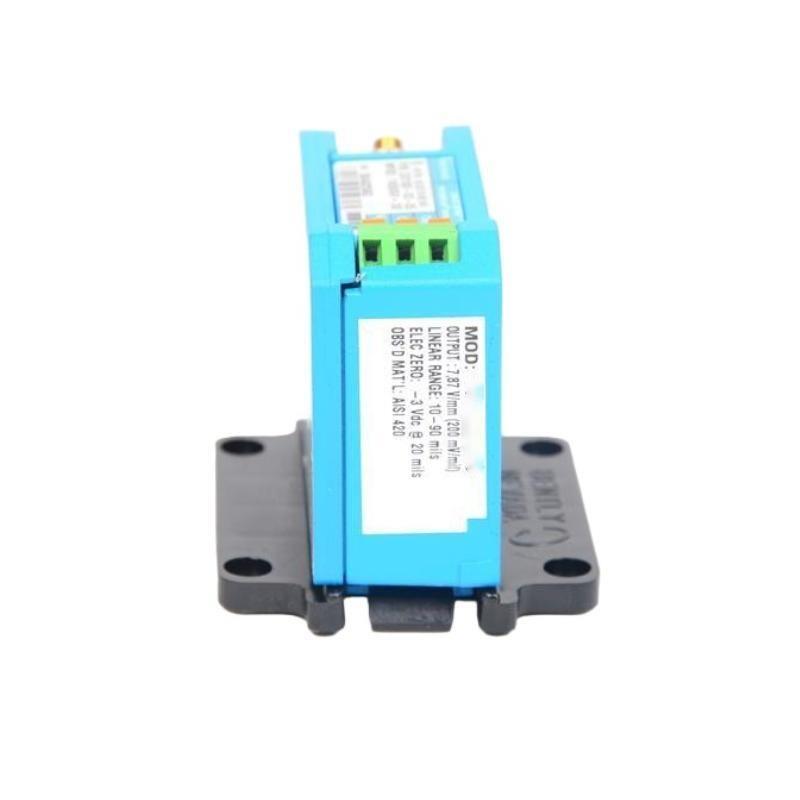

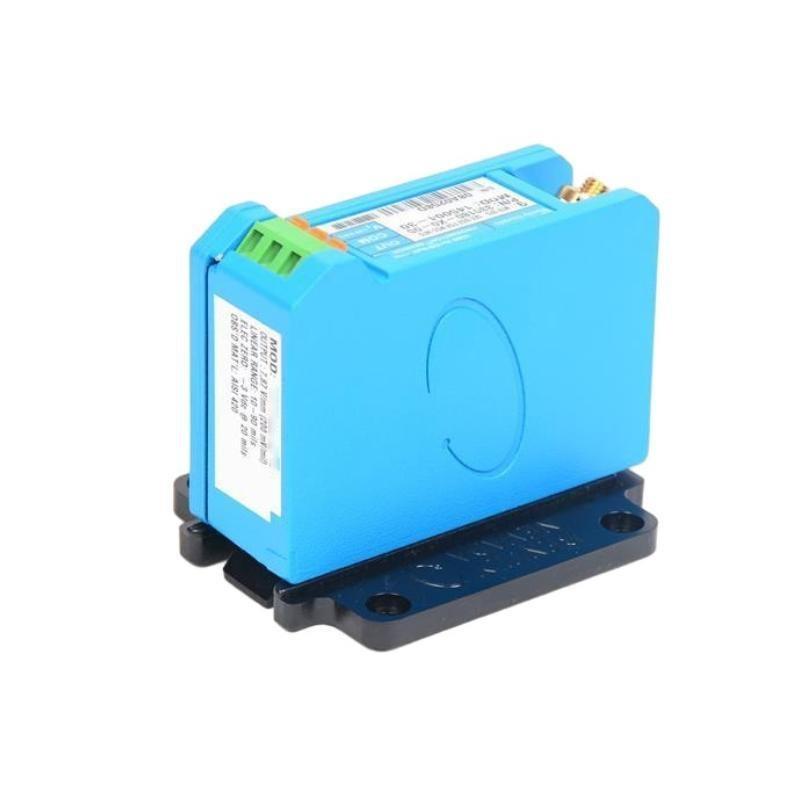

The Bently Nevada 330180-X0-05 145004-05 is a robust and precise 8mm Proximitor Sensor designed for use with the 3300 XL machinery protection system. This sensor delivers accurate shaft displacement and vibration monitoring critical for protecting rotating machinery such as turbines, compressors, and pumps. With its durable construction and reliable performance, it is ideal for harsh industrial environments, ensuring early fault detection and reliable condition monitoring.
Key Features
-
8mm probe diameter for precise and consistent measurements
-
Compatible with the 3300 XL machinery protection system
-
Provides high-resolution AC voltage output proportional to shaft displacement
-
Rugged design for operation in harsh environmental conditions
-
Wide operating temperature range and high resistance to vibration and shock
-
الدعمs long cable lengths for flexible sensor installation
-
Enables effective machinery condition monitoring and predictive maintenance
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Proximitor Sensor (Proximity Probe) |
| الطراز Number | 330180-X0-05 |
| رقم القطعة | 145004-05 |
| الشركة المصنعة | Bently Nevada (Baker Hughes Company) |
| Probe Diameter | 8 mm |
| Probe Length | 50 mm |
| Measurement Range | 0 to 50 mils (0 to 1.27 mm) |
| Output Signal | AC voltage proportional to displacement |
| Operating Temperature | -40°C to +121°C |
| Storage Temperature | -55°C to +125°C |
| Vibration Resistance | 100 g, 10 to 2,000 Hz |
| Shock Resistance | 100 g, 11 ms |
| Cable Length | Up to 20 m (customizable) |
| Connector Type | Integral connector or cable termination options |
| Dimensions | 81.3 x 35.1 x 63.5 mm |
| الوزن | 0.246 kg |
Industry Applications
-
Power Generation Turbines
-
Industrial Compressors
-
Pumps and Motors
-
Gas and Steam Turbines
-
Oil and Gas Industry Equipment
-
Manufacturing Plant Machinery
-
Aerospace and Defense Rotating Equipment
-
Marine Propulsion Systems
Product Advantages
-
Accurate and stable proximity measurement for machinery protection
-
Rugged and reliable for harsh industrial environments
-
Full compatibility with 3300 XL monitoring systems
-
Long cable support for flexible installation options
-
High vibration and shock resistance for sensor longevity
-
Enables early detection من mechanical faults to avoid downtime
-
Easy installation with standard connector options
الأسئلة الشائعة (FAQ)
1. What is the probe diameter?
The probe diameter is 8 mm.
2. What is the measurement range?
0 to 50 mils (0 to 1.27 mm).
3. What type من output signal does the sensor provide?
AC voltage proportional to shaft displacement.
4. Is this sensor compatible with the 3300 XL system?
Yes, it is designed specifically for 3300 XL systems.
5. What is the operating temperature range?
-40°C to +121°C.
6. How resistant is the sensor to vibration and shock?
It withstands 100 g vibration (10 to 2,000 Hz) and 100 g shock for 11 ms.
7. What cable lengths are available?
Standard cable lengths up to 20 meters; custom lengths available.
8. What is the weight من the sensor?
Approximately 0.246 kg.
9. Which industries commonly use this sensor?
Power generation, oil and gas, aerospace, marine, and manufacturing.
10. How easy is it to install?
Installation is straightforward with integral connector or cable termination options.
