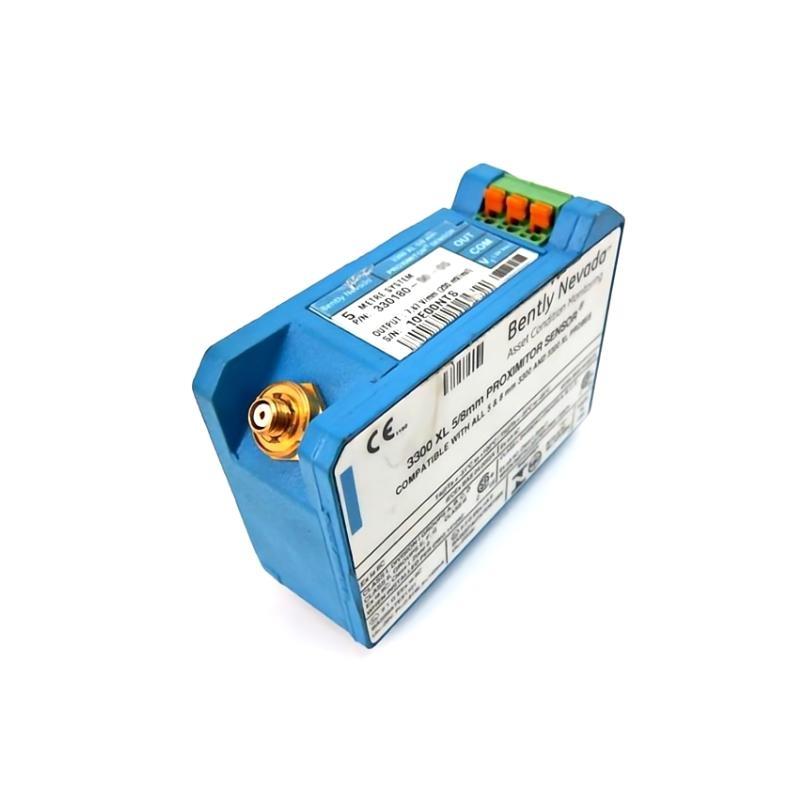

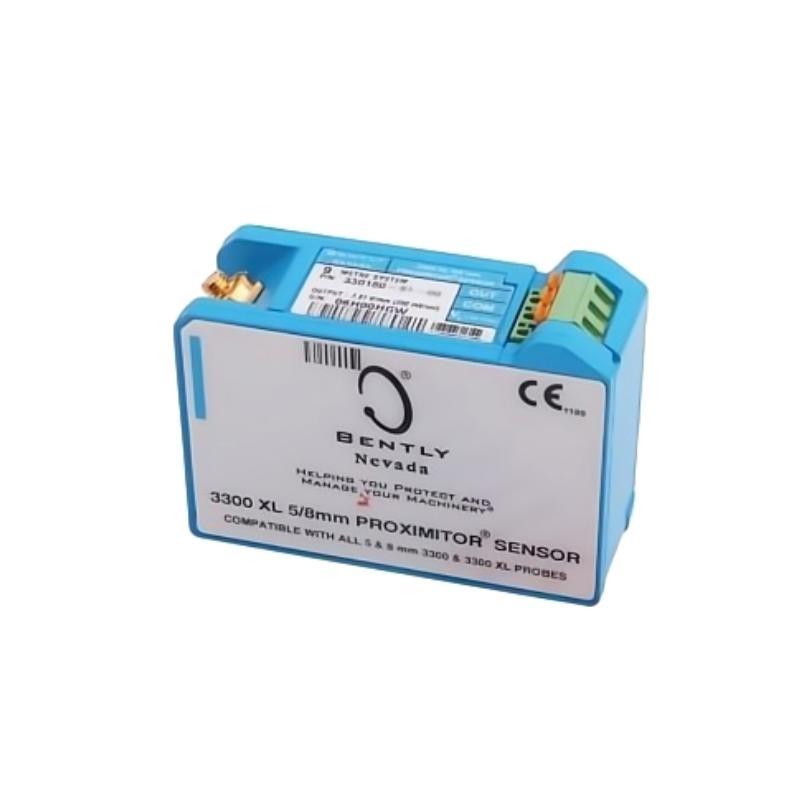

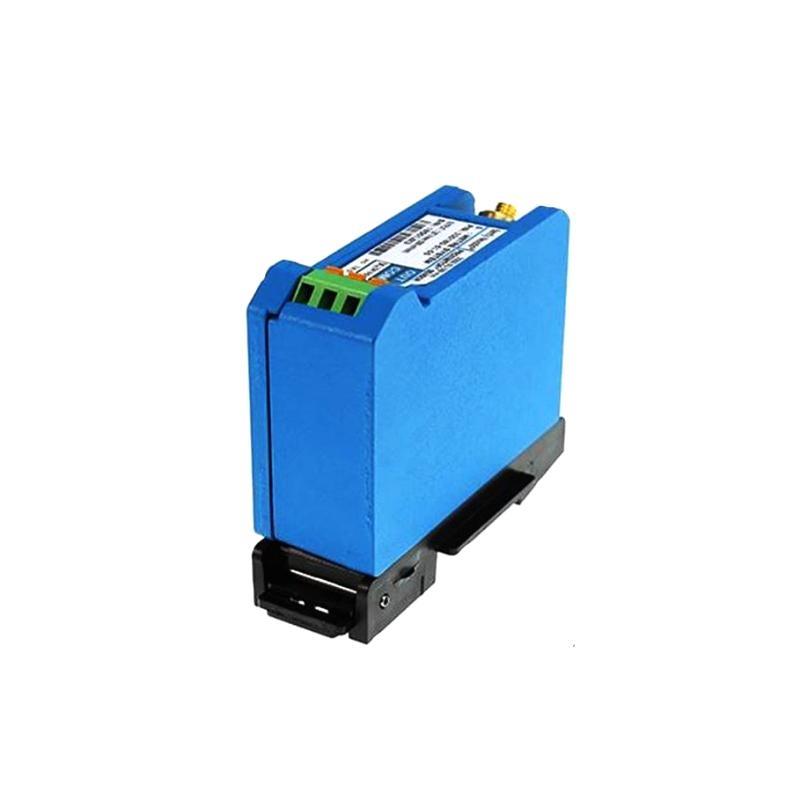

Bently Nevada 330180-91-CN 3300 XL 8mm Proximitor Sensor

مقدمة المنتج

The Bently Nevada 330180-91-CN is a component من the 3300 XL 8mm Proximity Transducer System, designed for precise non-contact vibration and position measurements in rotating machinery. This system comprises a proximity probe, an extension cable, and a Proximitor sensor, collectively providing accurate displacement measurements essential for machinery protection and condition monitoring. The “-91” denotes a 9.0-meter system length with a DIN rail mounting option, while the “-CN” indicates compliance with ATEX/IECEx and Chinese NEPSI hazardous area certifications. ​

Technical Specifications

Applications

The 330180-91-CN Proximitor Sensor is utilized in various industrial applications, including:​

• Monitoring shaft vibration and position in turbines, compressors, pumps, and motors.​

• Detecting radial and axial displacement in rotating machinery.​

• Providing input for machinery protection systems to prevent catastrophic failures.​

• الدعمing condition monitoring programs for predictive maintenance strategies.​

Key Advantages

• High Accuracy: Delivers precise measurements essential for machinery protection.​

• Robust Design: Suitable for harsh industrial environments with high temperatures and humidity.​

• Enhanced RFI/EMI Immوحدةy: Ensures reliable operation near electrical noise sources.​

• Flexible Mounting: Compatible with DIN-rail installations.​

• Compliance with Standards: Meets API 670 requirements and holds ATEX/IECEx and NEPSI certifications for hazardous areas.​

Recent News Headlines

• “Bently Nevada Enhances 3300 XL Series for Improved Machinery Monitoring”​

• “Advancements in Non-اتصل بنا Vibration Sensors: The 3300 XL 8mm Series”​

• “Bently Nevada’s 3300 XL Sensors Now Compliant with Latest API Standards”​

الأسئلة الشائعة (FAQ)

1. What is the primary function من the 330180-91-CN Proximitor Sensor?
   It measures the proximity (displacement) من a target, typically a rotating shaft, without physical contact, using eddy current technology.

2. Can the sensor be used in high-temperature environments?
   Yes, it operates effectively in temperatures up to +100°C and can be stored at temperatures up to +177°C.

3. Is the sensor compliant with API 670 standards?
   Yes, the 3300 XL 8mm system meets the mechanical configuration, linear sensing range, accuracy, and temperature stability requirements من API 670.

4. What are the mounting options available for this sensor?
   It is designed for DIN rail mounting, providing flexibility for various installation scenarios.

5. Does the sensor require special shielding to protect against RFI/EMI?
   No, its improved immوحدةy allows installation in fiberglass housings without adverse effects from nearby radio frequency signals.

6. What is the typical output sensitivity من the sensor?
   The standard output sensitivity is 200 mV/mil (7.87 mV/μm), providing accurate displacement measurements.

7. Are the components من the 3300 XL 8mm system interchangeable?
   Yes, the probes, extension cables, and Proximitor sensors are designed for complete interchangeability, eliminating the need for individual component matching.

8. What is the maximum length من the extension cable available?
   Extension cables are available in lengths up to 9 meters, allowing for flexible installation options.

9. Is the sensor suitable for use in hazardous areas?
   Yes, the “-CN” designation indicates compliance with ATEX/IECEx and Chinese NEPSI hazardous area certifications.

10. Does it require a specific power supply?
    Yes, it typically requires a -24 VDC power supply within a range من -17.5 VDC to -26 VDC, commonly provided by machinery monitoring systems.
