Product Overview

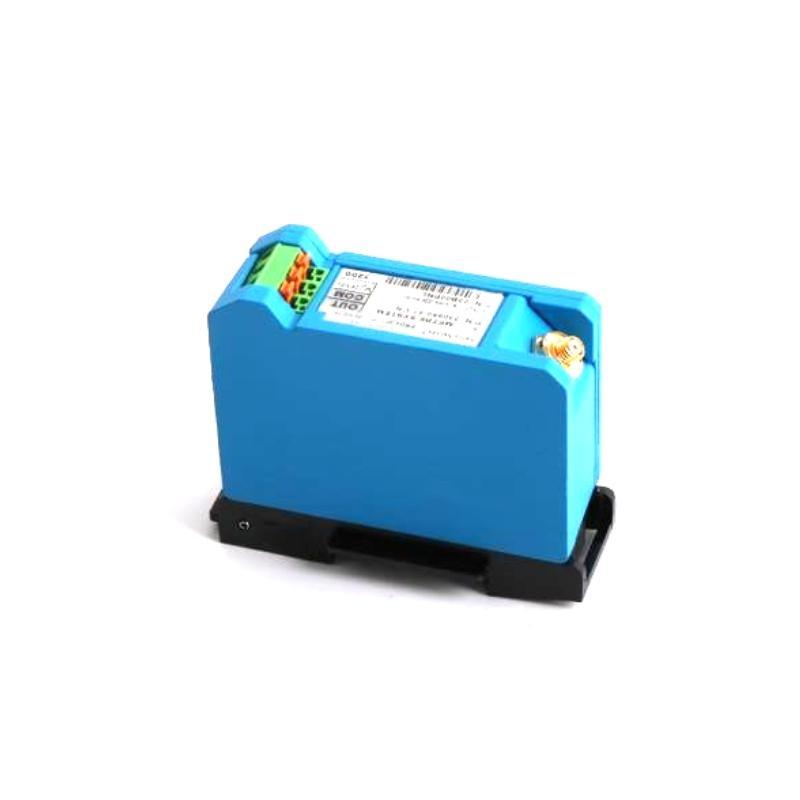

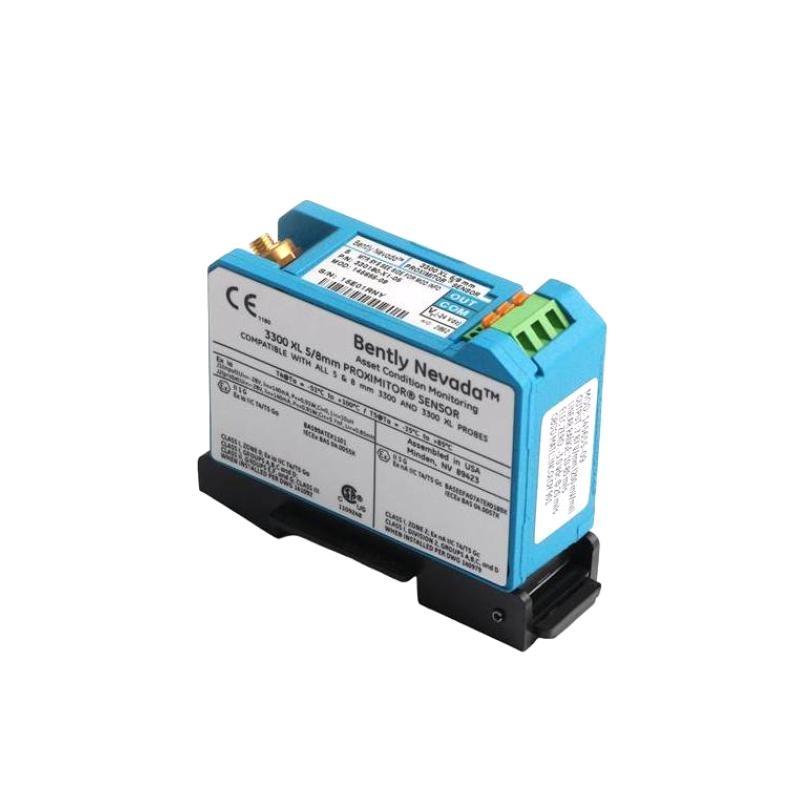

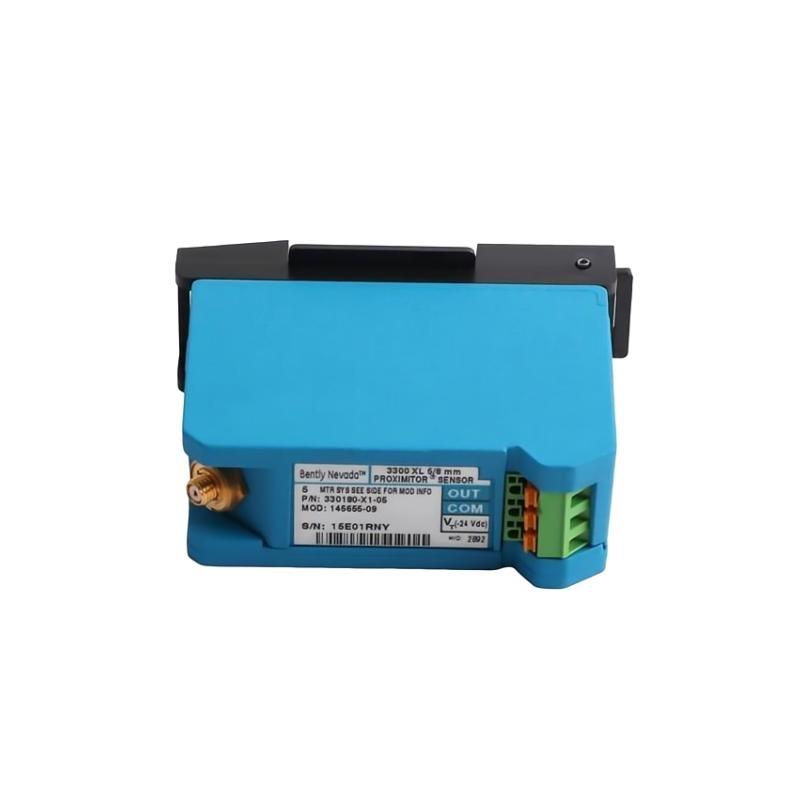

The 330180-52-CN Proximitor Sensor is an integral component من Bently Nevada’s 3300 XL 8mm Proximity Transducer System, which includes a probe, extension cable, and the Proximitor sensor itself. This system is engineered to measure the distance between the probe tip and a conductive surface, providing critical data for assessing machine health. The 3300 XL series is renowned for its high performance, durability, and compliance with industry standards, making it a trusted solution for condition monitoring and machinery protection.
مواصفات المنتج
The following table outlines the key specifications من the Bently Nevada 330180-52-CN 3300 XL 8mm Proximitor Sensor:
| Parameter | Specification |
| Probe Tip Diameter | 8 mm |
| Linear Range | 2 mm (approximately 80 mils) |
| Output Sensitivity | 7.87 V/mm (200 mV/mil) |
| Frequency Response | 0 to 10 kHz |
| Power Supply Voltage | -24 VDC nominal |
| Operating Temperature | -35°C to +177°C (-31°F to +350°F) |
| Probe Pressure Rating | Up to 34 bar (500 psi) |
| الوزن | 0.246 kg |
| Dimensions | 5 m |
| Connector Type | ClickLoc™ connectors with corrosion-resistant, gold-plated contacts |
Applications
The 330180-52-CN Proximitor Sensor is utilized in a wide range من industrial applications, including:
-
Rotating Equipment Monitoring: Measures shaft position and vibration in turbines, compressors, pumps, and motors.
-
Thrust Position Monitoring: Assesses axial displacement in thrust bearing applications.
-
Eccentricity Measurement: Evaluates shaft eccentricity in large rotating machinery.
-
الحالة Monitoring Systems: Integrates with Bently Nevada’s 3500 series machinery protection systems for continuous monitoring.
-
Hydrocarbon Processing Industries: Suitable for use in environments with hazardous gases and liquids.
Advantages
The Bently Nevada 330180-52-CN منfers several notable advantages:
-
High Accuracy and Linearity: Provides precise measurements essential for effective machine diagnostics.
-
Robust Environmental Tolerance: Operates reliably in extreme temperatures and harsh industrial conditions.
-
Enhanced RFI/EMI Immوحدةy: Minimizes interference from radio frequency and electromagnetic sources, allowing installation in various enclosures without special shielding.
-
Ease من Installation and Maintenance: ClickLoc™ connectors facilitate secure connections without the need for special tools.
-
Interchangeability: الدعمs complete interchangeability من probes, extension cables, and Proximitor sensors, eliminating the need for individual component matching or bench calibration.
-
Compliance with Industry Standards: Meets API 670 requirements for mechanical configuration, linear range, accuracy, and temperature stability.
الأسئلة الشائعة (FAQ)
-
What is the primary function من the 330180-52-CN Proximitor Sensor?
-
It measures the distance between the probe tip and a conductive surface, providing data on vibration and position for machinery monitoring.
-
-
Can the 330180-52-CN be used in high-temperature environments?
-
Yes, it operates effectively in temperatures ranging from -35°C to +177°C (-31°F to +350°F).
-
-
Is the sensor compatible with other Bently Nevada systems?
-
Yes, it is designed to integrate seamlessly with Bently Nevada’s 3500 series monitoring systems.
-
-
What type من machinery is the sensor typically used with?
-
It is commonly used with turbines, compressors, pumps, and motors for monitoring shaft position and vibration.
-
-
Does the sensor require special shielding against electromagnetic interference?
-
No, it has enhanced RFI/EMI immوحدةy, allowing installation without special shielded conduit or metallic housings.
-
-
How is the sensor installed?
-
It features ClickLoc™ connectors for secure, tool-free installation.
-
-
What is the linear measurement range من the sensor?
-
It has a linear range من 2 mm (approximately 80 mils).
-
-
Is the sensor resistant to corrosive environments?
-
Yes, it is designed with materials and construction that withstand corrosive industrial environments.
-
-
Can the sensor be used in hazardous locations?
-
Yes, it is suitable for use in environments with hazardous gases and liquids, common in hydrocarbon processing industries.
-
-
What maintenance is required for the sensor?
-
It requires minimal maintenance; however, regular inspections are recommended to ensure optimal performance.
-
Related الطرازs from the Same Series (3300 XL Series or Compatible 8mm Proximitor Sensors)
| الطراز Number | الوصف |
| 330180-51-00 | 3300 XL 8mm Proximitor Sensor with standard cable length |
| 330180-50-00 | 3300 XL 8mm Proximitor Sensor with short extension cable |
| 330180-51-05 | 3300 XL 8mm Proximitor Sensor with 5-meter cable |
| 330180-1E05 | 3300 XL 8mm Proximitor Sensor, enhanced temperature support |
| 330180-90-00 | 3300 XL 8mm Sensor with custom calibration range |
| 330101-00-20-10-02-00 | 3300 XL 8mm Proximity Probe, 20-foot system length |
| 330105-02-12-10-02-00 | 3300 XL 8mm Extension Cable, armored, 12 ft |
| 330104-00-05-10-02-00 | 3300 XL 8mm Proximity Probe, reverse mount, 5 ft |
Popular الطرازs from Bently Nevada (Same العلامة التجارية)
| الطراز Number | الوصف |
| 330104-00-12-10-02-00 | Proximity Probe, 12 ft, 3300 XL 8mm system |
| 330130-040-00-00 | Extension Cable for 3300 XL 8mm Proximity Transducer System |
| 3500/22M | Transient Data Interface (TDI) module for 3500 series rack |
| 3500/42M | Proximitor Seismic Monitor Module |
| 330500-02-00 | High-temperature velocity sensor |
| 330780-91-05 | Proximitor Sensor for REBAM applications |
| 330980-50-00 | High-temperature 3300 XL 5mm Proximitor Sensor |
| 146031-01 | 3500/92 Communication Gateway Module |
