Product Overview

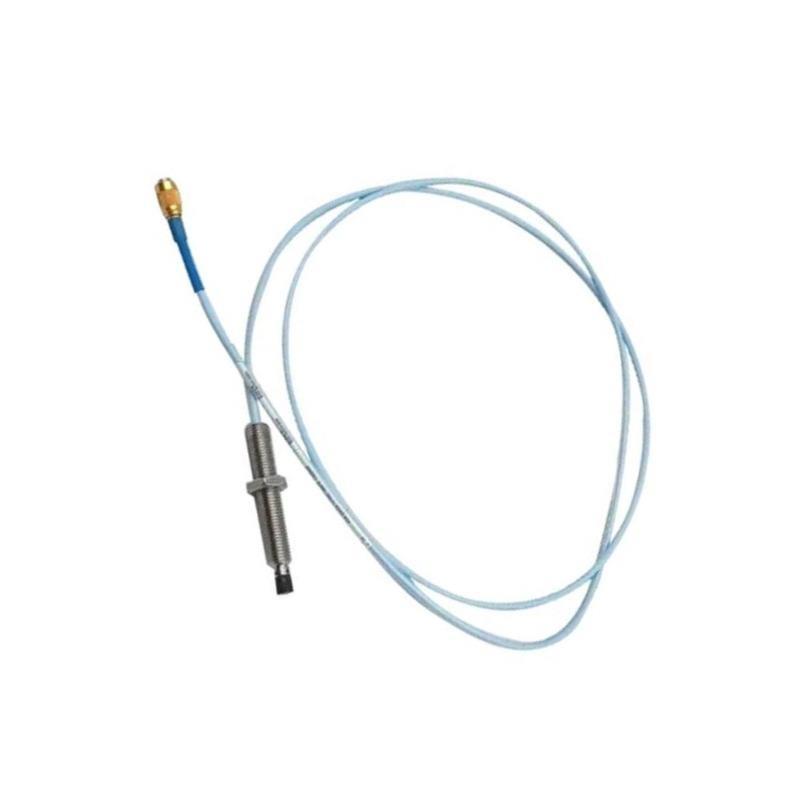

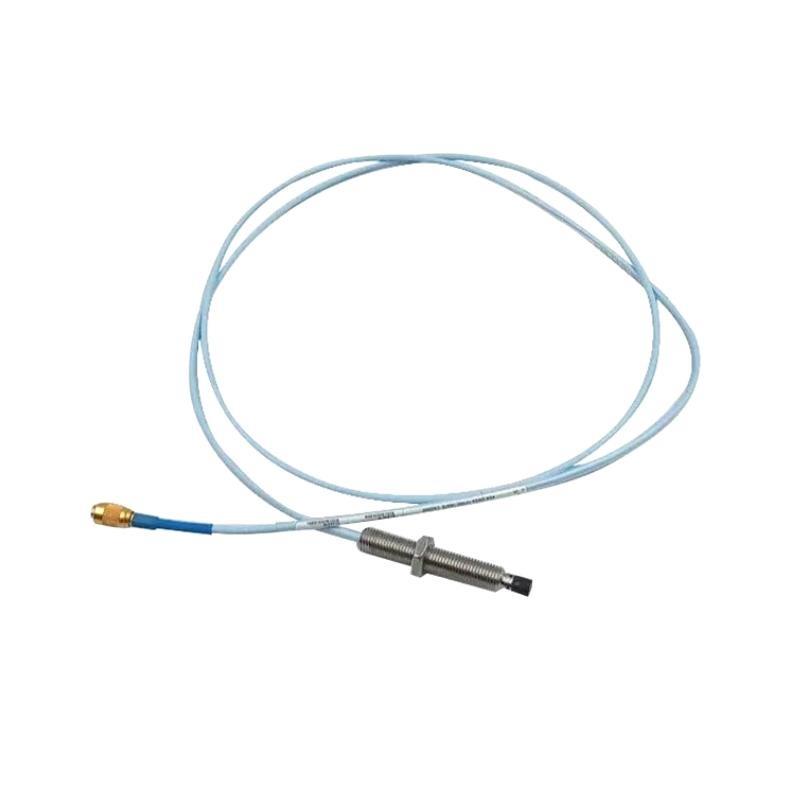

The Bently Nevada 330173-00-07-10-02-05 3300 5 mm Proximity Probe is a precision sensor designed for reliable vibration and shaft displacement monitoring in rotating machinery. Utilizing eddy-current technology, this probe accurately detects changes in shaft position, enabling early fault detection and effective condition-based maintenance.
With a compact 5 mm diameter probe tip and durable stainless steel housing, it is suitable for installation in tight spaces and harsh industrial environments. Its robust construction and wide operating temperature range ensure consistent performance in power generation, petrochemical, and manufacturing applications.
Technical Specifications
| Parameter | Specification |
|---|---|
| الطراز Number | 330173-00-07-10-02-05 |
| Series | 3300 |
| Probe Type | Eddy-Current Displacement Probe |
| Probe Diameter | 5 mm |
| Dimensions | Total Length : 1.0 meter |
| Connector Type | MS Connector |
| Operating Temperature | -40°C to +120°C |
| Storage Temperature | -55°C to +125°C |
| Frequency Response | DC to 20 kHz |
| Target Material | Conductive metals |
| Sensitivity | Approx. 15 mV/mil (0.591 mV/µm) |
| الوزن | 0.323 kg |
| Housing Material | Stainless Steel |
| Mounting Style | Threaded probe body |
| Environmental Protection | IP67 |
Applications
The 3300 5 mm Proximity Probe is commonly used for:
-
Vibration and shaft position monitoring in turbines, compressors, and generators
-
الحالة monitoring من pumps, motors, and gearboxes
-
Early detection من shaft misalignment, imbalance, and wear
-
Industrial machinery protection in petrochemical, power, and manufacturing plants
-
Enhancing predictive maintenance programs to reduce unplanned downtime
Advantages
-
Compact and Durable: Small 5 mm probe diameter fits confined spaces; stainless steel housing withstands harsh conditions.
-
Accurate Measurement: Eddy-current technology provides precise shaft displacement and vibration data.
-
Wide Operating Range: Performs reliably across a broad temperature and environmental spectrum.
-
Simple Installation: Threaded body and MS connector ensure ease من mounting and system compatibility.
-
Low Maintenance: Designed for long service life with minimal upkeep required.
-
Seamless Integration: Compatible with Bently Nevada 3500 and related monitoring systems.
الأسئلة الشائعة (FAQ)
-
What technology does this probe use for measurement?
It uses eddy-current displacement sensing to detect shaft position changes. -
What is the probe diameter and length?
The probe diameter is 5 mm; probe length is 20 mm. -
How long is the cable supplied with the probe?
Standard cable length is 2 meters. -
What environmental protections does the probe have?
It is rated IP67 for dust and water resistance. -
What is the temperature range for operation?
Operating temperature ranges from -40°C to +120°C. -
Can this probe measure vibration frequencies?
Yes, it supports frequency response from DC up to 20 kHz. -
How is the probe mounted?
It is installed via a threaded probe body. -
What maintenance is required?
Routine inspection and cleaning are recommended; otherwise, minimal maintenance is needed. -
What materials can this probe detect?
It detects conductive metals such as steel and aluminum. -
Is it compatible with other systems?
Primarily designed for Bently Nevada systems but may work with others supporting similar signals and connectors.
Related الطرازs
| الطراز Number | الوصف |
|---|---|
| 330173-00-09-10-02-CN | 3300 5 mm Proximity Probe |
| 330171-00-12-10-01-05 | 3300 5 mm Proximity Probe |
| 330173-00-07-10-02-05 | 3300 5 mm Proximity Probe |
| 330104-01-05-50-02-00 | 3300 XL 8 mm Proximity Probe |
| 330701-00-30-10-02-05 | 3300 XL 11 mm Eddy-Current Probe |
| 330101-00-14-10-02-05 | 3300 XL 8 mm Eddy-Current Probe |
Popular Bently Nevada الطرازs
| الطراز Number | الوصف |
|---|---|
| 330104-01-05-50-02-00 | 3300 XL 8 mm Proximity Probe |
| 330701-00-30-10-02-05 | 3300 XL 11 mm Eddy-Current Probe |
| 330173-00-09-10-02-CN | 3300 5 mm Proximity Probe |
| 330171-00-12-10-01-05 | 3300 5 mm Proximity Probe |
| 330130-045-01-05 | 3300 XL Standard Extension Cord |
| 330101-00-14-10-02-05 | 3300 XL 8 mm Eddy-Current Probe |
