Product Overview

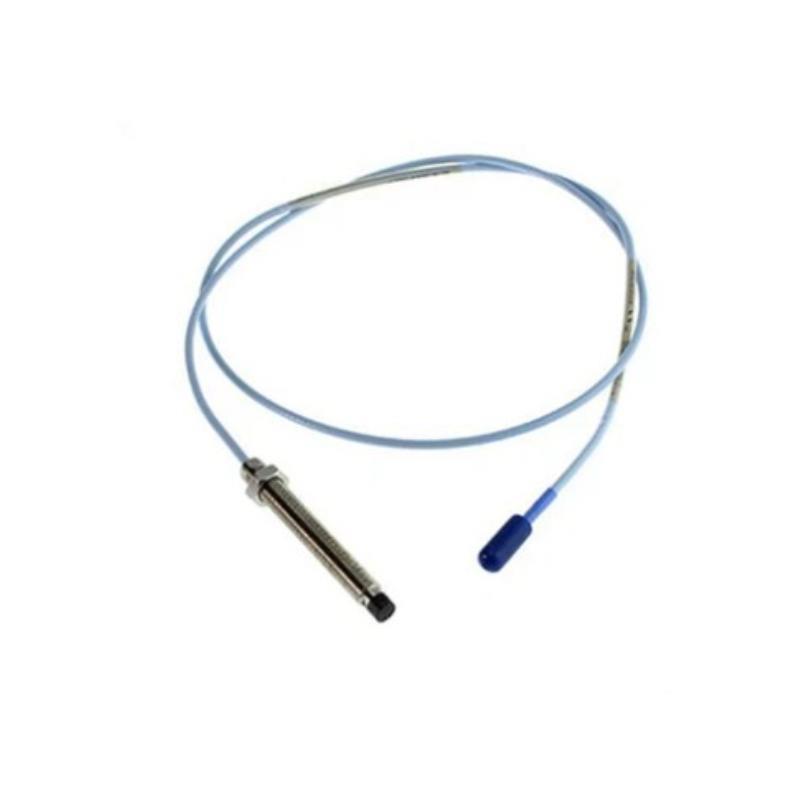

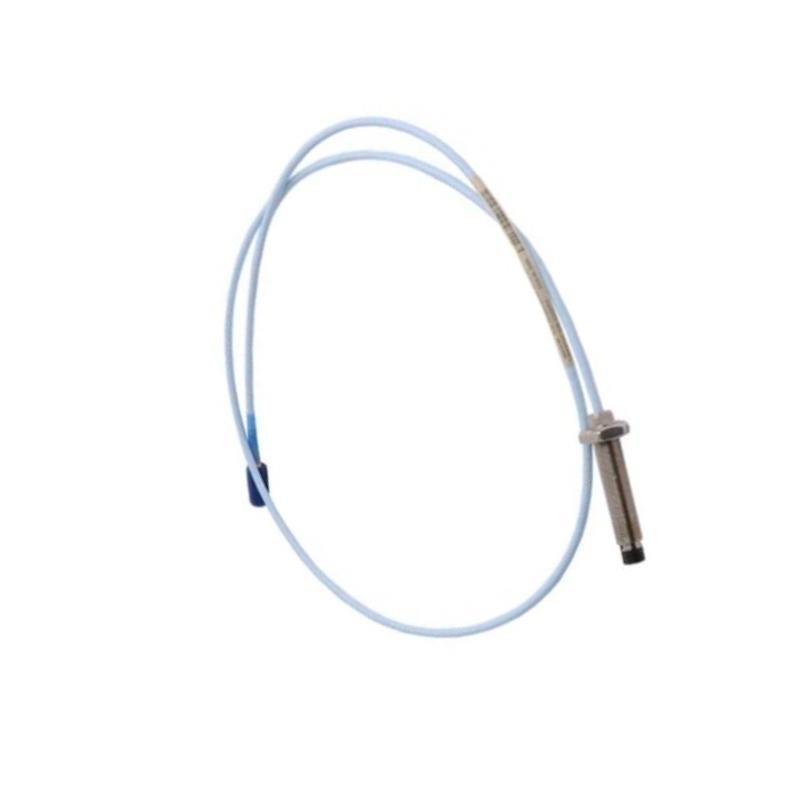

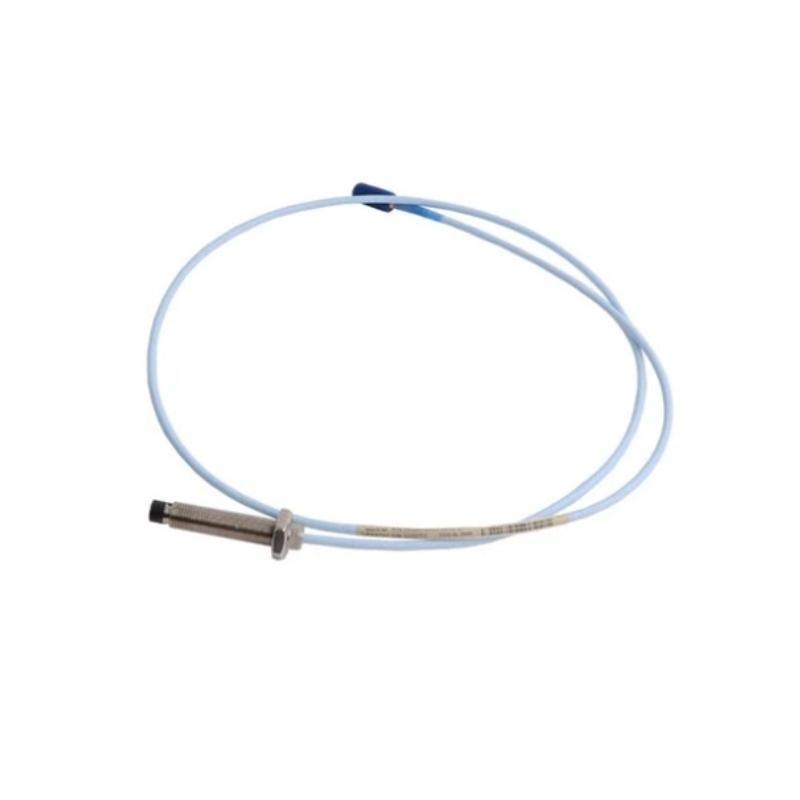

The Bently Nevada 330173-00-06-10-02-05 is a 5 mm proximity probe from the renowned 3300 series, designed for high-precision, non-contact vibration and displacement measurement من rotating machinery. It is ideal for applications with tight installation spaces or smaller shaft diameters, while still delivering excellent signal fidelity and stability.
This probe is fully compatible with the 3300 XL series extension cables and Proximitor sensors, ensuring seamless integration into existing machinery protection and condition monitoring systems.
Key Features
-
Compact 5 mm tip for confined-space applications
-
Accurate non-contact measurement من vibration and axial position
-
Rugged stainless steel construction with corrosion resistance
-
Designed for long-term operation in industrial environments
-
Works with 3300 XL Proximitor® sensors and extension cables
-
Ideal for high-density installation and OEM machinery
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Proximity Probe |
| الطراز Number | 330173-00-06-10-02-05 |
| Probe Tip Diameter | 5 mm |
| Dimensions | Total Length : 1.0 meter |
| Measurement Range | 0 to 1.0 mm (typical) |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| Thread Size | 1/4-28 UNF |
| Material | Stainless steel |
| Environmental Rating | IP65 |
| Operating Temperature | -40°C to +100°C |
| Storage Temperature | -51°C to +177°C |
| الوزن | 0.323 kg |
| Compliance | CE, RoHS, ISO 9001 |
Industry Applications
-
OEM Equipment – Small machinery with limited installation space
-
Turbomachinery – Position sensing in compact assemblies
-
Pulp & Paper – Critical pump vibration detection
-
Oil & Gas – Compressors and auxiliary rotating assets
-
Marine Applications – Vibration monitoring in tight compartments
-
General Industrial – Motors, fans, and gearboxes
Advantages
-
Compact design suited for smaller shaft and tight installations
-
High reliability in harsh conditions with stainless steel build
-
Factory-calibrated for consistent accuracy
-
Wide compatibility with 3300 series transducers
-
Low maintenance design with long service life
-
Quick installation with standard threaded mounting
الأسئلة الشائعة (FAQ)
-
What does the 330173-00-06-10-02-05 probe measure?
It measures shaft vibration and axial displacement using non-contact sensing. -
What is the difference between 5 mm and 8 mm probes?
The 5 mm probe is smaller and suitable for compact or OEM applications, while 8 mm probes are used for standard installations. -
Is this probe compatible with the 3300 XL Proximitor sensor?
Yes, it is fully compatible with 3300 XL systems and sensors. -
Can I use this probe outdoors?
Yes, its IP65 rating and rugged design make it suitable for outdoor use. -
What is the sensitivity من this probe?
The sensitivity is 7.87 mV/μm (200 mV/mil), standard across the 3300 series. -
Does the cable length affect accuracy?
No, as long as proper extension cables are used with matching systems. -
What is the thread type for installation?
This probe uses a 1/4-28 UNF thread. -
How do I replace this probe?
Simply disconnect and unscrew the old وحدة, then install the new one with correct orientation and torque. -
Is recalibration necessary after installation?
No recalibration is required; it is factory-calibrated. -
Is this part RoHS compliant?
Yes, it is compliant with CE and RoHS directives.
