مقدمة المنتج

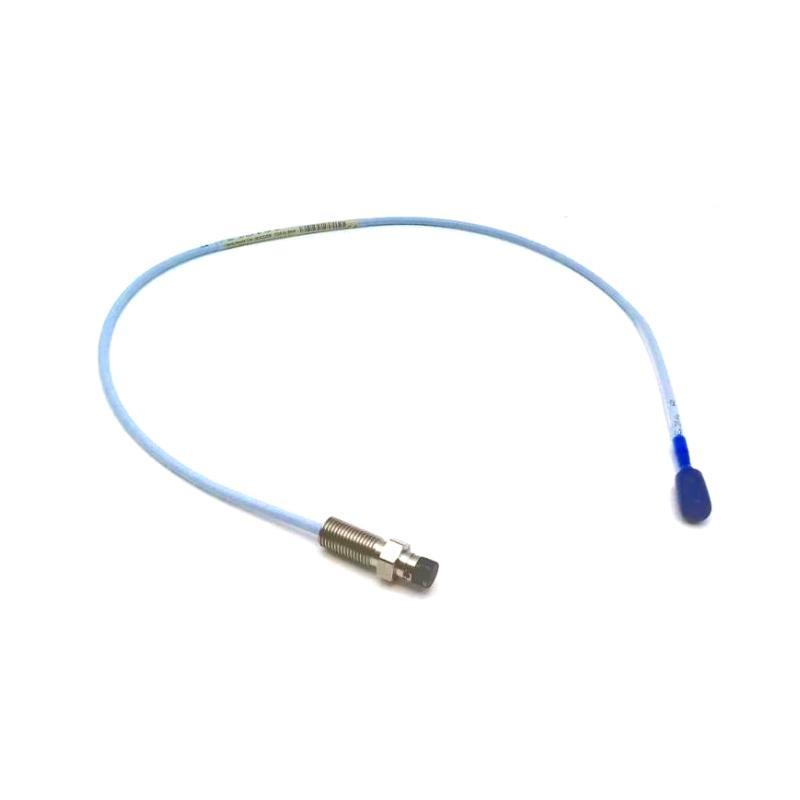

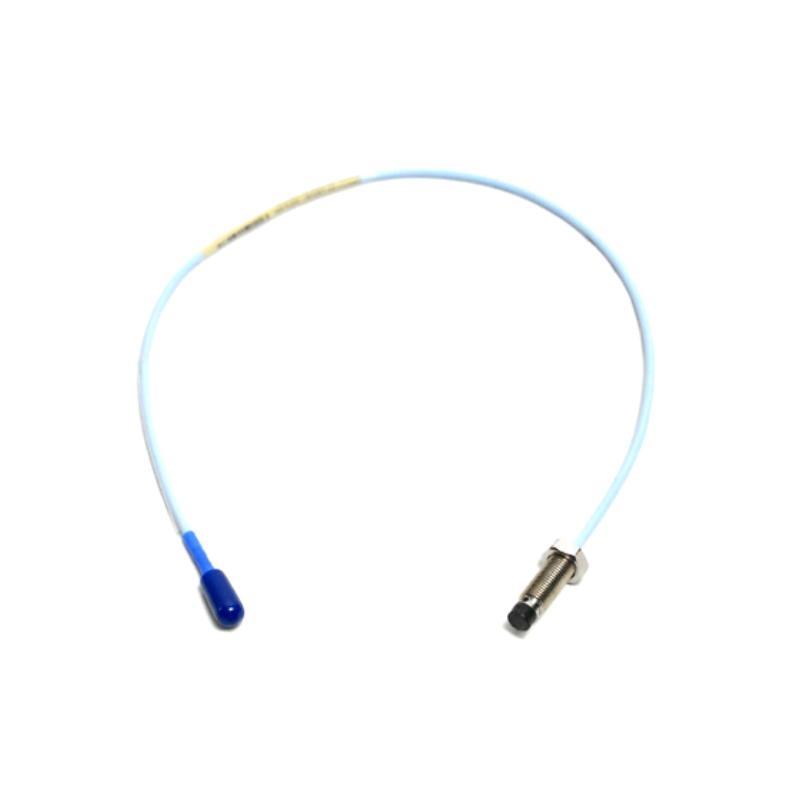

The Bently Nevada 330171-00-40-10-02-00 is part من the 3300 XL 5 mm Proximity Transducer System, a widely trusted and industry-recognized solution for vibration and position measurements in rotating machinery. Designed and manufactured by Bently Nevada, a Baker Hughes business, this proximity probe is known for its robust construction, reliable performance, and exceptional long-term stability even in harsh industrial environments.
This model utilizes a 5 mm tip, compatible with various 3300 XL extension cables and Proximitor sensors. The 3300 series has been optimized for turbine, compressor, pump, and motor applications, منfering real-time monitoring من shaft vibration and axial position—crucial for machinery protection and predictive maintenance systems.
مواصفات المنتج
| Parameter | الوصف |
| الطراز Number | 330171-00-40-10-02-00 |
| Product Series | 3300 XL 5 mm Proximity Probes |
| Sensing Range | 0.25 mm to 2.0 mm (10 to 80 mils) |
| Linear Range | 0.5 mm (20 mils) |
| Probe Tip Diameter | 5 mm (0.197 inches) |
| Thread Size | 3/8-24 UNF-2A |
| Case Material | AISI 303 Stainless Steel |
| Total Length | 1.0 meters |
| Connector Type | Miniature coaxial, gold-plated contact |
| Temperature Range | -35°C to +177°C (-31°F to +350°F) |
| Operating Frequency | 1 MHz nominal |
| الوزن | 0.323 kg |
| Overall Length (with cable) | Approx. 4.5 meters depending on configuration |
| Mounting Torque | 1.0 to 1.4 N·m (9 to 12 in·lbf) |
| Electrical Isolation | >10⁹ ohms at 500 Vdc |
| Compatible with | 3300 XL Extension Cable and 3300 XL Proximitor Sensor |
Product Applications
The Bently Nevada 330171-00-40-10-02-00 proximity probe is widely used in:
-
Steam turbines and gas turbines for shaft vibration monitoring
-
Centrifugal compressors for rotor position and clearance measurement
-
Large industrial pumps for vibration diagnostics
-
Motors and generators in high-value assets for condition monitoring
-
Gearboxes and gear-driven equipment
-
OEM machinery integration requiring compact sensor solutions
-
Critical rotating equipment in oil & gas, power generation, and petrochemical industries
Key Product Advantages
Field-Proven Reliability: The 3300 XL series is one من the most installed proximity transducer systems globally.
High Temperature Capability: Operates up to 177°C without performance degradation.
Robust Construction: Stainless steel housing ensures long service life in industrial environments.
ممتاز Linearity: Offers precise measurements over a consistent linear range.
Interchangeable Components: Compatible with 3300 XL extension cables and Proximitor sensors.
Easy Installation: Flexible mounting options and long cable support.
Backed by Bently Nevada: World leader in machinery protection and condition monitoring systems.
Low Maintenance Requirements: Engineered for long-term stability and accuracy.
Latest News Titles Related to Bently Nevada Probes
-
Baker Hughes Expands الحالة Monitoring Solutions with AI Integration
-
Bently Nevada’s 3300 XL Series Hits Record Global Installations
-
Proximity Probes Technology Enhances Predictive Maintenance in Refining Sector
-
Turbomachinery Vibration Monitoring: The Rise من Proximity Sensors
-
Bently Nevada Launches التالي-Gen Integration Platform for Rotating Assets
-
Bently’s 3300 Series Continues to Lead in Oil & Gas Applications
-
Digital Twin Integration Boosts Sensor Applications in Industrial Assets
-
Baker Hughes Strengthens Global الدعم for Machinery Diagnostics
-
Proximitor Systems: The Backbone من Modern الحالة Monitoring
-
Bently Nevada Sensors See Increased Demand in Renewable Power Plants
الأسئلة الشائعة (FAQ)
-
What does the model number 330171-00-40-10-02-00 represent?
It represents a specific configuration من the 3300 XL 5 mm probe, including tip diameter, cable length, connector orientation, and thread specifications. -
Can this probe be used in high-temperature environments?
Yes, it supports temperatures up to 177°C, making it suitable for turbine and compressor applications. -
What type من machinery is this probe ideal for?
It’s ideal for rotating equipment such as turbines, compressors, pumps, motors, and gearboxes. -
Is the probe compatible with older Bently Nevada systems?
The 3300 XL series is backward compatible with many legacy systems, especially within the same 5 mm configuration. -
How accurate is the linear range?
It provides highly accurate readings within a 0.5 mm (20 mils) linear range. -
What are the maintenance requirements?
Minimal. The probe is designed for long-term operation with high reliability and stability. -
What’s the maximum cable length supported?
It varies by configuration, but this model supports up to 1 meters between probe and Proximitor. -
Is this probe affected by electromagnetic interference?
It’s designed with shielding and grounding provisions to minimize EMI effects. -
How is the probe typically mounted?
It can be threaded into mounting brackets or sleeves, tightened to specific torque values (1.0–1.4 N·m). -
Can this probe be customized for OEM use?
Yes, Bently Nevada منfers OEM customization options for cable length, connector type, and mounting features.
Related الطرازs from the Same Series (3300 XL)
| الطراز Number | الوصف | Cable Length | Tip Diameter | Application Focus |
| 330171-00-20-10-02-00 | 5 mm Probe with 2m cable, straight connector | 2 meters | 5 mm | Compact machinery |
| 330171-00-60-10-02-00 | 5 mm Probe with 6m cable | 6 meters | 5 mm | Extended-reach applications |
| 330180-90-00 | 3300 XL 8 mm Probe | 9 meters | 8 mm | Higher clearance monitoring |
| 330101-00-12-10-02-00 | 5 mm Probe with short cable | 1.2 meters | 5 mm | OEM equipment integration |
| 330130-040-00 | Extension Cable, 4 meters | 4 meters | 5 mm | Cable extension |
| 330105-02-12-10-02-00 | 8 mm Probe, 2 meters | 2 meters | 8 mm | High displacement readings |
| 330178-50-00 | Proximitor Sensor for 5 mm probe | 2 meters | 5 mm | Signal processing |
| 330103-00-05-10-02-00 | Short probe, 0.5m cable | 0.5 meters | 5 mm | Embedded installations |
Popular Bently Nevada الطرازs
| الطراز Number | Product Type | الوصف | Key Use Case |
| 3500/22M | Transient Data Interface | Interface for condition monitoring racks | System integration and diagnostics |
| 3500/42M | Vibration Monitor Module | Measures radial vibration and axial thrust | Machinery protection |
| 3500/05 | System Rack | Housing for 3500 monitoring modules | System housing |
| 3500/25 | Keyphasor Module | Shaft rotation speed/phase detection | Rotational analysis |
| 330104-00-12-10-02-00 | 8 mm Probe | Proximity probe with extended range | Large rotor clearance monitoring |
| 330980-50-00 | Proximitor Sensor | Signal conditioning for proximity system | 5 mm probe integration |
| 3500/15 | Power Supply Module | Delivers power to 3500 rack modules | Critical power redundancy |
| 330130-040-00 | Extension Cable | Connects probe to proximitor sensor | Long-distance sensing installations |
