Product Overview

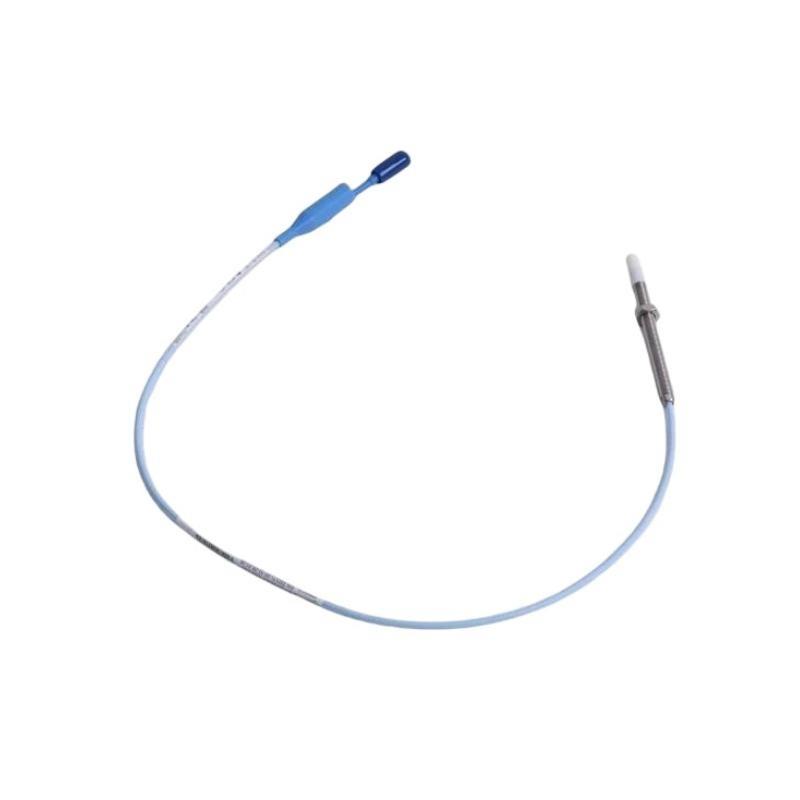

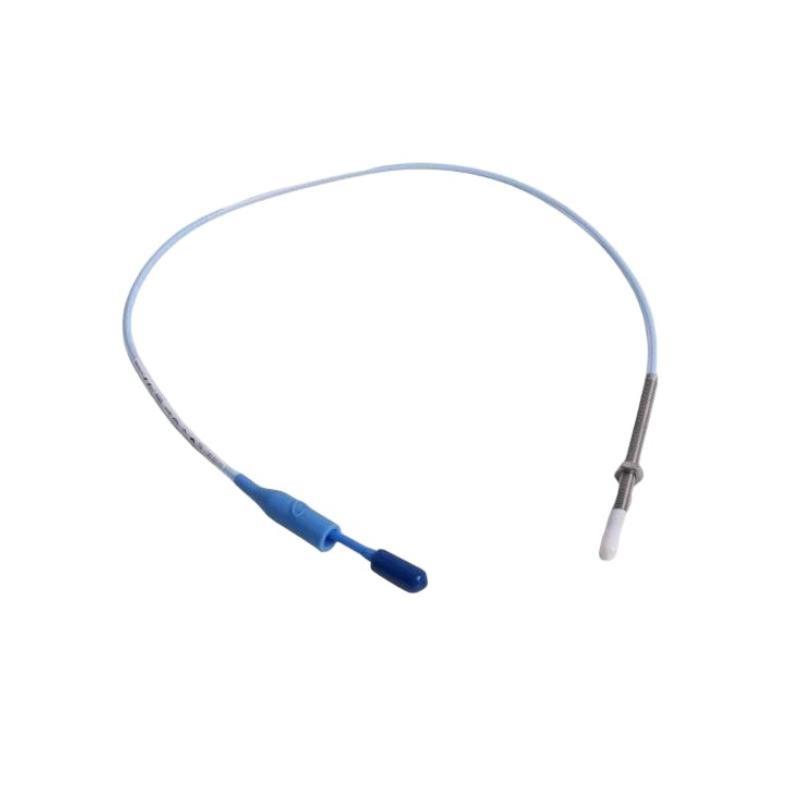

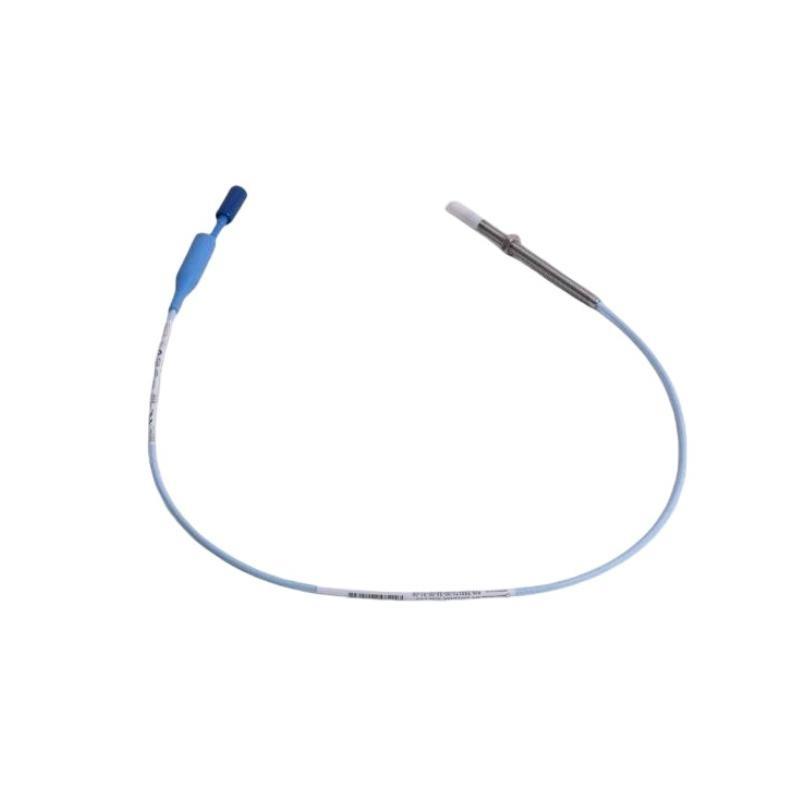

The Bently Nevada 330171-00-28-10-01-05 3300 5 mm Proximity Probe is a precision sensor designed to accurately monitor shaft displacement and vibration in critical rotating machinery. Utilizing advanced eddy-current technology, this probe delivers reliable measurements essential for condition monitoring and machinery protection.
Featuring a compact 5 mm probe diameter and a durable stainless steel housing, this model is engineered for challenging industrial environments. The probe’s 28 mm length and 1-meter cable provide flexibility in installation, allowing it to fit various machinery setups such as turbines, compressors, motors, and pumps in power plants and manufacturing facilities.
Technical Specifications
| Parameter | Specification |
|---|---|
| الطراز Number | 330171-00-28-10-01-05 |
| Series | 3300 |
| Probe Type | Eddy-Current Displacement Probe |
| Probe Diameter | 5 mm |
| Dimensions | Total Length : 1.0 meter |
| Connector Type | MS Connector |
| Operating Temperature | -40°C to +120°C |
| Storage Temperature | -55°C to +125°C |
| Frequency Response | DC to 20 kHz |
| Target Material | Conductive metals |
| Sensitivity | Approx. 15 mV/mil (0.591 mV/µm) |
| الوزن | 0.323 kg |
| Housing Material | Stainless Steel |
| Mounting Style | Threaded probe body |
| Environmental Protection | IP67 |
Applications
Common applications من this 3300 5 mm Proximity Probe include:
-
Monitoring shaft displacement and vibration in turbines and compressors
-
الحالة monitoring for motors and pumps
-
Machinery protection in petrochemical, power generation, and manufacturing industries
-
Early detection من equipment faults to minimize downtime
-
Integration in vibration analysis and predictive maintenance programs
Advantages
-
Compact Design: The 5 mm probe diameter enables installation in tight or confined spaces.
-
Reliable Performance: Eddy-current sensing provides high precision for displacement and vibration measurement.
-
Durable Construction: Stainless steel housing and IP67 rating protect against harsh industrial conditions.
-
Wide Operating Range: Suitable for extreme temperatures and environments.
-
Easy Installation: Threaded probe body and MS connector facilitate quick and secure mounting.
-
Compatibility: Designed for seamless integration with Bently Nevada 3500 and other 3300 series systems.
الأسئلة الشائعة (FAQ)
-
What measurement principle does this probe use?
Eddy-current technology detects changes in shaft position via electromagnetic induction. -
What are the probe dimensions?
The probe length is 28 mm with a diameter من 5 mm. -
How long is the cable?
Standard cable length is 1 meter. -
What temperature range can the probe operate in?
Operating temperatures range from -40°C to +120°C. -
Is the probe waterproمن?
Yes, it has an IP67 rating for dust and water resistance. -
What materials can it detect?
It detects conductive metals like steel and aluminum. -
How is it mounted?
The probe is mounted using a threaded body. -
Can it measure vibration frequencies?
Yes, it supports frequency response from DC up to 20 kHz. -
What maintenance is required?
Minimal maintenance is needed; periodic cleaning is recommended. -
Is it compatible with other monitoring systems?
Primarily designed for Bently Nevada systems but may be compatible with others with similar connectors and signal requirements.
Related الطرازs
| الطراز Number | الوصف |
|---|---|
| 330173-00-07-10-02-05 | 3300 5 mm Proximity Probe |
| 330173-00-09-10-02-CN | 3300 5 mm Proximity Probe |
| 330171-00-28-10-01-05 | 3300 5 mm Proximity Probe |
| 330104-01-05-50-02-00 | 3300 XL 8 mm Proximity Probe |
| 330701-00-30-10-02-05 | 3300 XL 11 mm Eddy-Current Probe |
| 330101-00-14-10-02-05 | 3300 XL 8 mm Eddy-Current Probe |
