Product Overview

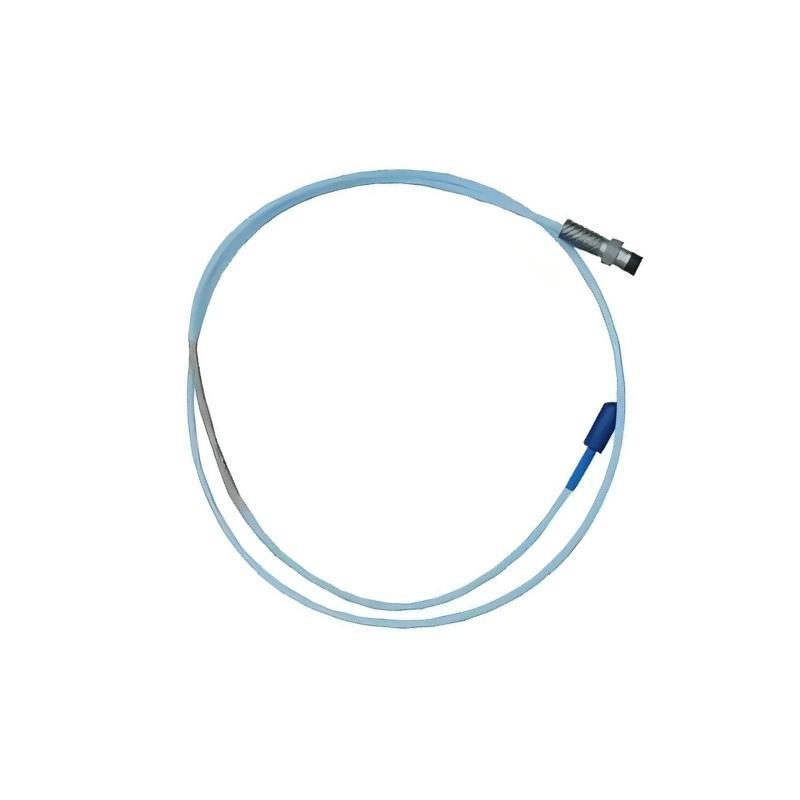

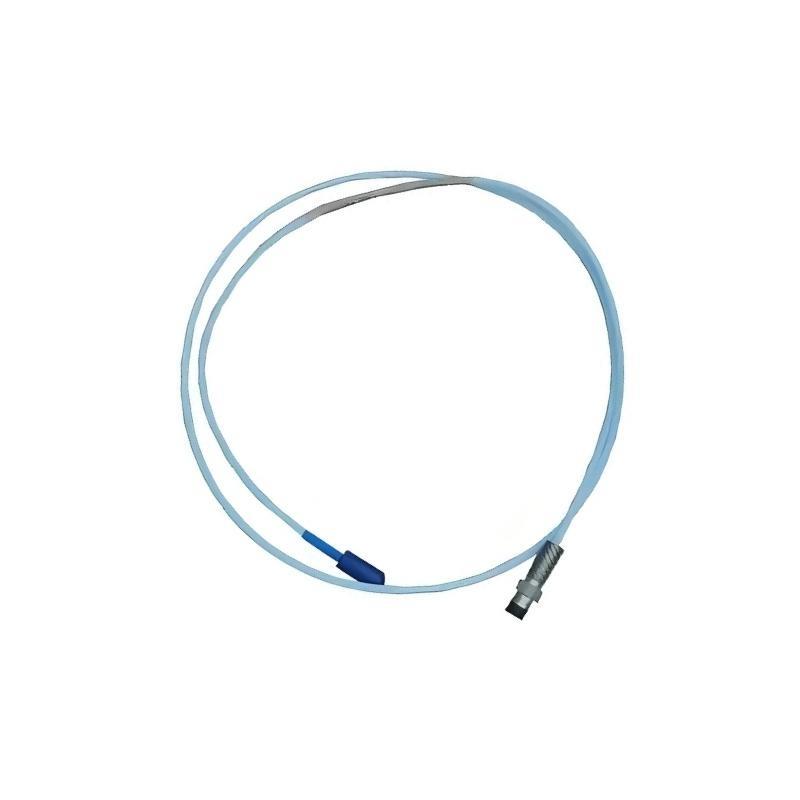

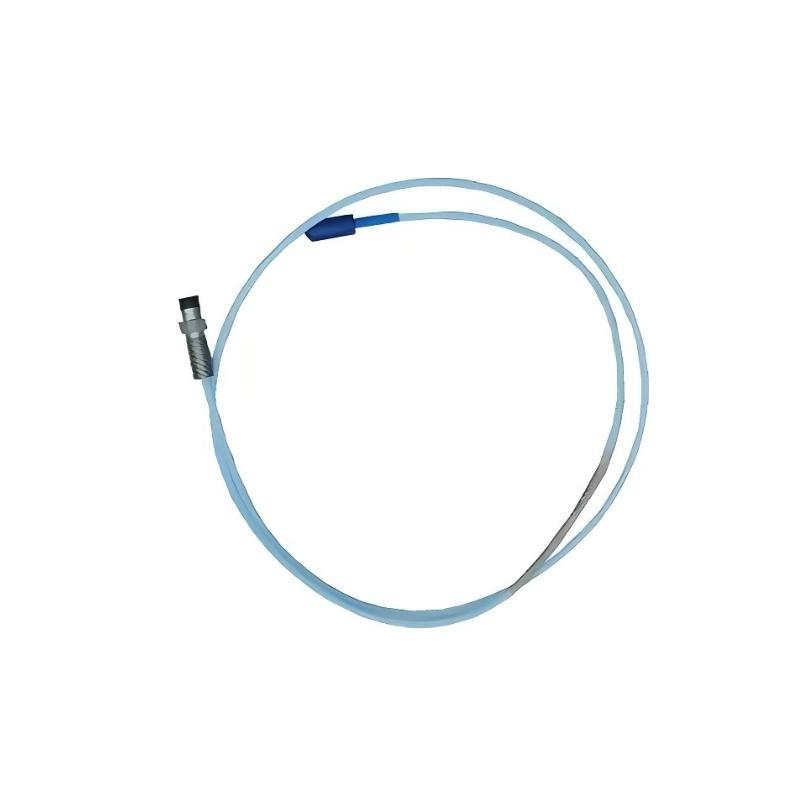

The Bently Nevada 330171-00-28-05-02-05 is part من the 3300 XL 8 mm Proximity Probe series, engineered to provide precise non-contact measurements من shaft vibration and position in rotating machinery. With a robust construction and extended cable configuration, it is suitable for use in demanding industrial environments where reliable monitoring is critical for asset protection and predictive maintenance.
This probe منfers enhanced vibration signal accuracy and is compatible with all components in the 3300 XL monitoring system, including extension cables and Proximitor sensors.
Key Features
-
8 mm probe tip for standard measurement applications
-
Compatible with 3300 XL extension cables and Proximitor sensors
-
Rugged stainless steel body with corrosion resistance
-
IP65-rated for protection in industrial environments
-
Extended 28-foot probe cable for long-distance installation
-
Factory-calibrated for high linearity and thermal stability
-
Ideal for applications in tight or hazardous locations
Technical Specifications
| Item | Specification |
|---|---|
| Product Type | Proximity Probe |
| الطراز Number | 330171-00-28-05-02-05 |
| Probe Tip Diameter | 8 mm |
| Dimensions | Total Length : 0.5 meter |
| Measurement Range | 0 to 2 mm (typical) |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| Thread Size | 3/8-24 UNF or M10 x 1 |
| Operating Temperature | -40°C to +100°C |
| Storage Temperature | -51°C to +177°C |
| Material | Stainless steel |
| Environmental Rating | IP65 |
| الوزن | 0.161 kg |
| Compliance | CE, RoHS, ISO 9001 |
Industry Applications
-
Oil & Gas – Turbomachinery and compressor protection
-
Power Generation – Generator and turbine shaft monitoring
-
Petrochemical – Critical pump and motor condition tracking
-
Steel and Mining – Rotary equipment diagnostics
-
Pulp & Paper – High-precision vibration sensing
-
Marine & Offshore – Harsh-environment machinery monitoring
Advantages
-
Non-contact precision measurement من shaft vibration and position
-
Reliable long-cable operation ideal for remote monitoring points
-
High mechanical durability in harsh industrial settings
-
Factory pre-calibrated to maintain accuracy
-
Universal compatibility with Bently Nevada monitoring systems
-
Low maintenance, no need for frequent recalibration
الأسئلة الشائعة (FAQ)
-
What does this probe measure?
It measures vibration and axial position من rotating shafts. -
What is the cable configuration?
28 ft probe cable, 5 ft extension cable, 2 ft connector. -
What monitoring systems is this probe compatible with?
It works with the Bently Nevada 3300 XL series systems. -
Is the probe suitable for outdoor or harsh environments?
Yes, its IP65-rated stainless steel housing ensures durability. -
Does it require recalibration over time?
No, it is factory-calibrated and designed for long-term use. -
What is the probe’s thread size?
Standard 3/8-24 UNF or optional metric M10 x 1 thread. -
What’s the typical measurement range?
0 to 2 mm, depending on installation and shaft conditions. -
What is the probe tip material?
PPS (polyphenylene sulfide), known for chemical resistance. -
Can this probe be used in hazardous locations?
Yes, when paired with appropriate intrinsically safe systems. -
What systems can it be installed with?
Compatible with 3300 XL extension cables and Proximitor sensors.
