Product Overview

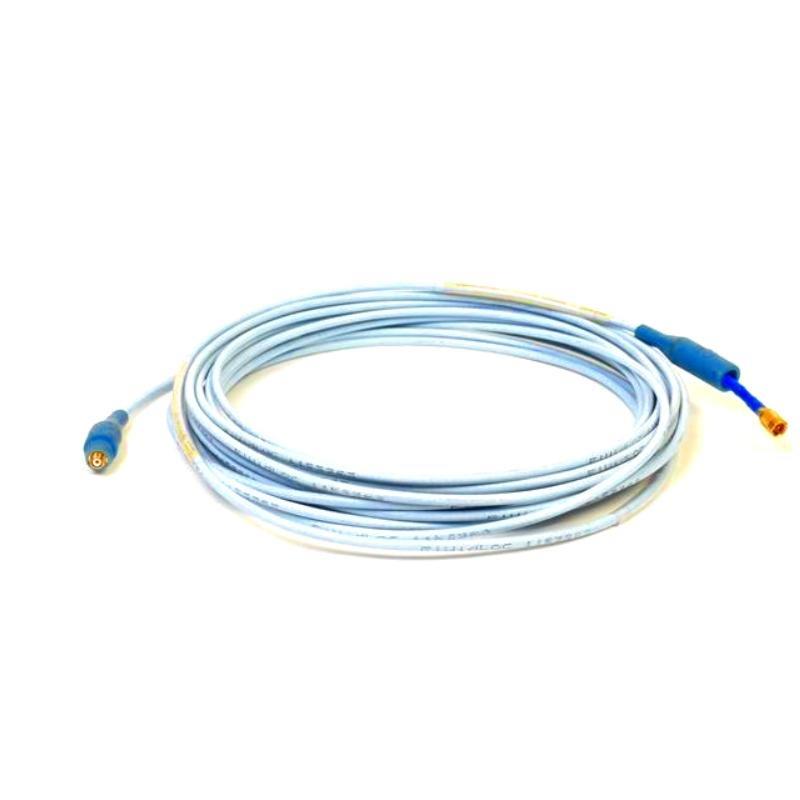

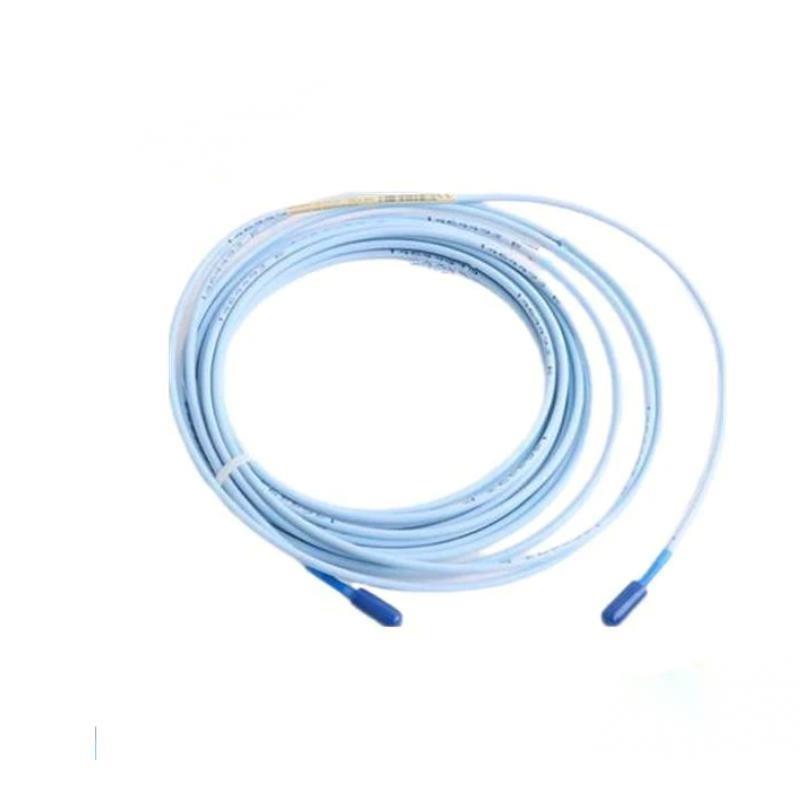

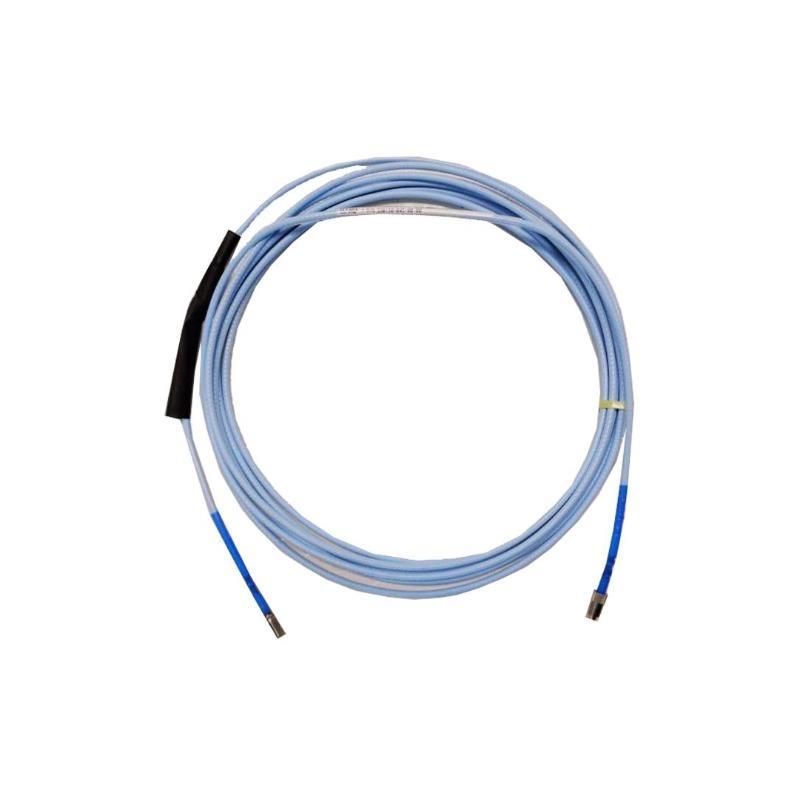

The Bently Nevada 330130-085-12-00 is a precision-engineered 3300 XL series standard extension cable specifically designed for use in proximity transducer systems. With a cable length من 8.5 meters, this model features a male TNC connector on one end and a miniature coaxial connector on the other, enabling connection between the proximity probe and the Proximitor Sensor over extended distances.
Built for high-reliability and signal integrity, this extension cable plays a critical role in transferring accurate vibration and position data in demanding industrial environments such as turbines, compressors, motors, and gearboxes. The 3300 XL cable line is known for rugged performance, EMI/RFI shielding, and compatibility with Bently Nevada monitoring systems.
Key Features
-
8.5 meters (27.9 feet) من high-performance coaxial cabling
-
TNC male connector to mini coaxial connector configuration
-
Low-noise, shielded construction for enhanced signal integrity
-
FEP insulation for excellent thermal and chemical resistance
-
Designed to match 3300 XL proximity transducer systems
-
Factory-assembled and fully tested to Bently Nevada specifications
Technical Specifications
| Specification | Details |
|---|---|
| الطراز Number | 330130-085-12-00 |
| Cable Length | 8.5 meters (27.9 feet) |
| Connector A | TNC Male |
| Connector B | Miniature Coaxial Connector (for probe connection) |
| Cable Type | Coaxial, low-noise, double-shielded |
| Jacket Material | FEP (Fluorinated Ethylene Propylene) |
| Cable Diameter | Approx. 5 mm |
| Operating Temperature | -51°C to +177°C (-60°F to +350°F) |
| Voltage Rating | <30 V (signal level only) |
| Minimum Bend Radius | 25.4 mm (1 inch) |
| Resistance to Chemicals | ممتاز (oils, solvents, acids) |
| Environmental Protection | Harsh industrial rating |
| System Compatibility | 3300 XL 5mm/8mm Probes and Proximitor Sensors |
| Dimensions | Cable Length : 8.5 meters |
| الوزن | 0.289 kg |
Industry Applications
The 330130-085-12-00 extension cord is widely applied across multiple industries where precision monitoring من rotating machinery is required:
-
Oil & Gas – Critical for compressors, turbines, and drilling systems
-
Power Generation – Monitoring shaft dynamics in gas/steam turbines
-
Petrochemical Processing – Ideal for high-temperature vibration monitoring
-
Pulp & Paper – Ensures mechanical integrity من high-speed rolls
-
Mining & Metals – Monitors vibration on mills, crushers, and conveyor motors
-
Marine Engineering – Shaft and bearing vibration detection
Product Advantages
-
Consistent Signal Quality – Maintains signal fidelity over extended lengths
-
Simplified Installation – Factory-terminated with verified impedance matching
-
Superior Durability – FEP jacket withstands mechanical stress and harsh environments
-
Noise Immوحدةy – Double shielding protects against electromagnetic interference
-
Flexible Design – Easily routed in tight industrial enclosures
-
System Reliability – Minimizes installation errors and maintenance downtime
الأسئلة الشائعة (FAQ)
-
What is the connector configuration من the 330130-085-12-00 cable?
It features a male TNC connector on one end and a mini coaxial connector on the other. -
Can I use this with both 5mm and 8mm proximity probes?
Yes, it is compatible with both 3300 XL 5mm and 8mm probes and Proximitor Sensors. -
Is this cable pre-terminated or field-assembled?
It is factory-terminated, ensuring consistent quality and performance. -
Is the cable jacket resistant to oil and chemicals?
Yes, the FEP jacket منfers excellent resistance to oils, solvents, and chemicals. -
Can this cable be used outdoors?
While designed for harsh conditions, outdoor use is best done with appropriate conduit or protective routing. -
What is the purpose من the miniature coax connector?
It directly connects to the proximity probe, while the TNC connector interfaces with the Proximitor Sensor. -
How should I handle bending during installation?
Maintain a minimum bend radius من 25.4 mm to preserve cable integrity. -
Can the cable length be shortened if needed?
رقم This cable is not designed to be cut or altered. Order the appropriate length for your application. -
Does this cable transmit power or signal?
It transmits signal only — low-voltage, high-integrity sensor data. -
Is this cable certified for hazardous area installations?
It is designed for industrial environments, but specific area classification should be verified based on system configuration.
