Product Overview

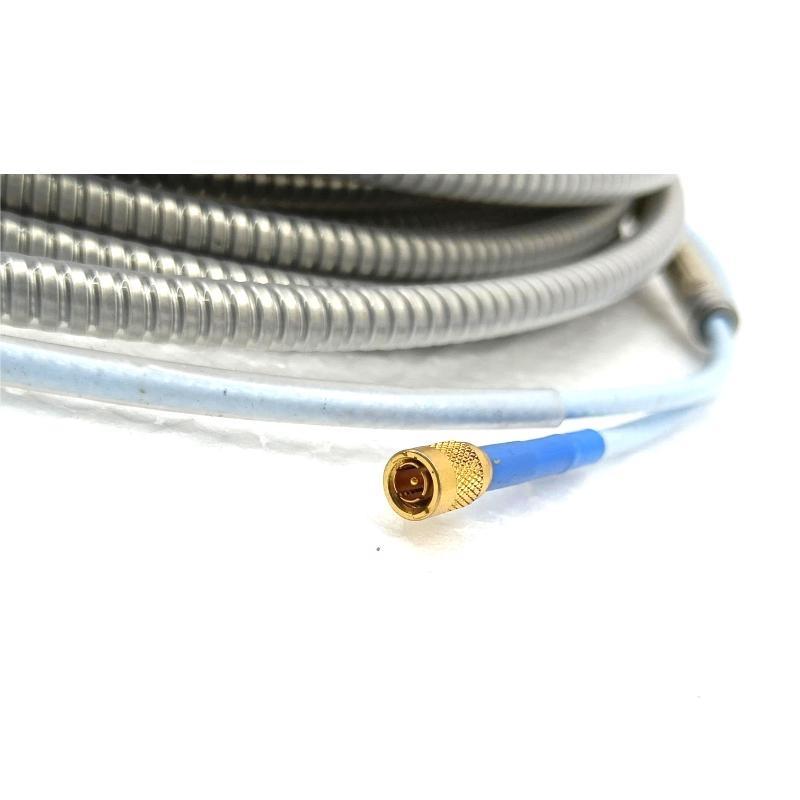

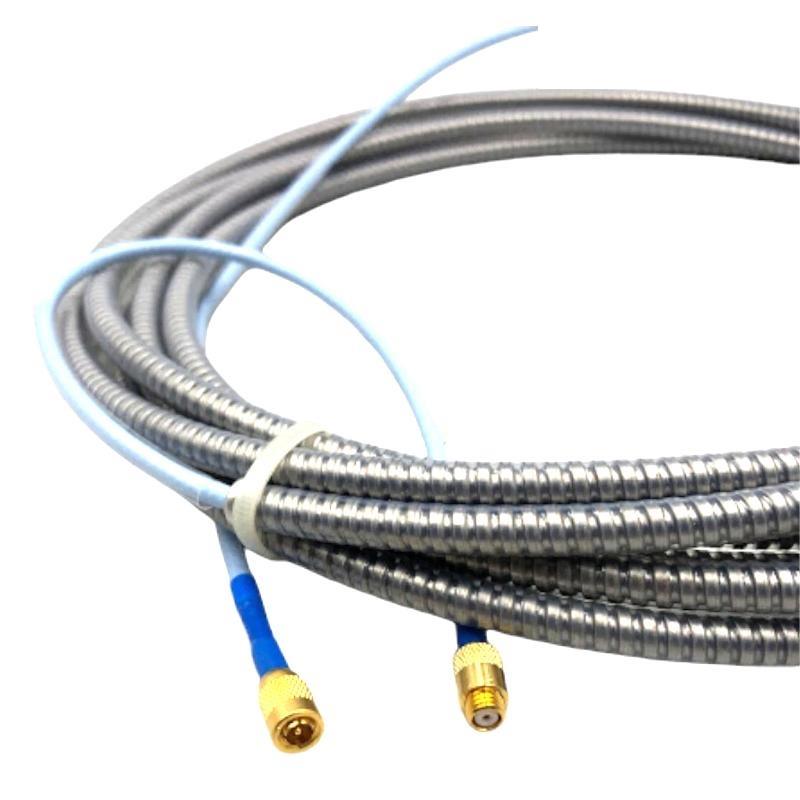

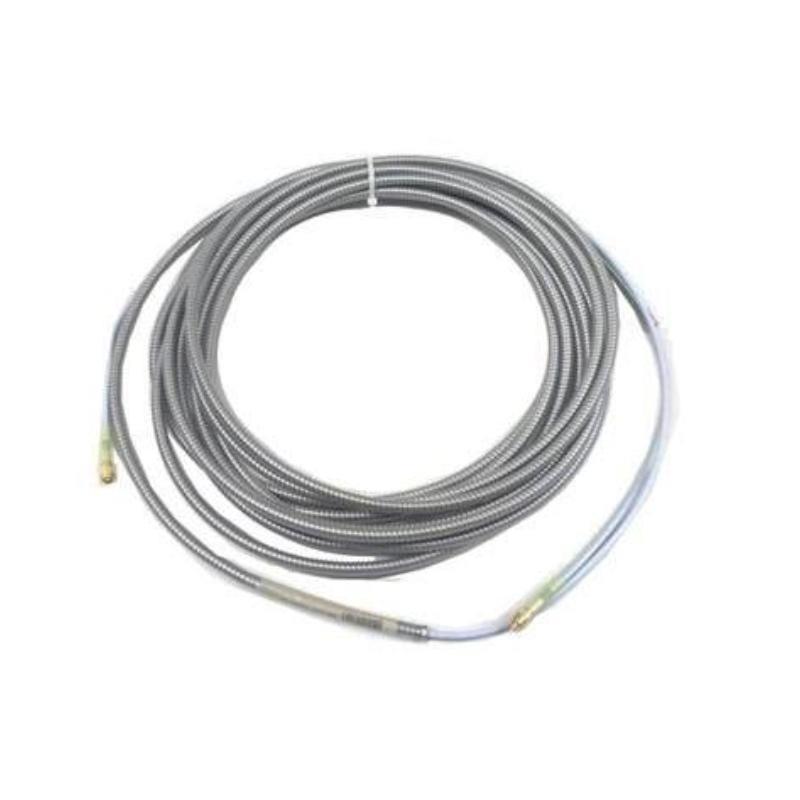

The Bently Nevada 330130-085-03-00 is part من the 3300 XL 8 mm Proximity Transducer System, acting as the standard extension cable component. It provides robust signal transmission between the proximity probe and the Proximitor sensor. This 8.5-meter cable ensures high-fidelity dynamic and static signal delivery in machinery condition monitoring applications.
Technical Specifications
| Parameter | Value |
|---|---|
| Cable Type | 75Ω triaxial, FEP insulated |
| Connector Type | ClickLoc gold-plated coaxial |
| Cable Length | 8.5 meters (27.9 feet) |
| الوزن | 0.876 kg |
| Capacitance | 69.9 pF/m typical |
| Minimum Cable Bend Radius | 25.4 mm (1.0 in) |
| Max Connector Torque | 0.565 N·m (5 in·lbf) |
| Operating Temp Range | -52°C to +177°C |
| Armored Option | متاح upon order |
| Compliance | CSA, ATEX, IECEx optional |
Applications
-
Turbine and compressor vibration monitoring
-
Radial and axial position measurement
-
Keyphasor® reference systems
-
Overspeed and rotor dynamics diagnostics
-
الحالة-based maintenance programs
Key Advantages
-
Interchangeability: Compatible with all 3300 XL 8 mm components without recalibration
-
ClickLoc™ Connectors: Prevent loosening and reduce installation errors
-
FluidLoc Option: Prevents oil ingress along the cable
-
High EMI/RFI Immوحدةy: Suitable for harsh industrial environments
-
Robust Mechanical Design: CableLoc™ منfers 330 N pull strength for durability
-
Compliance: Meets API 670 mechanical and performance requirements
الأسئلة الشائعة (FAQ)
Q1: What is the function من the 330130-085-03-00 cable?
A1: It connects the 3300 XL proximity probe to the Proximitor sensor, transmitting accurate vibration and position data.
Q2: Is this extension cable interchangeable with other 3300 XL components?
A2: Yes, it is fully interchangeable without performance loss or recalibration.
Q3: What is the maximum temperature rating for this cable?
A3: The standard cable can operate up to +177°C. Extended Temperature Range versions can handle up to +260°C.
Q4: Can I use this cable with armored protection?
A4: Yes, armored and FluidLoc variants are available for enhanced protection.
Q5: What makes ClickLoc connectors beneficial?
A5: They provide a secure “click” lock with no need for tools, reducing risk من connector failure.
Q6: Is this cable suitable for hazardous environments?
A6: Yes, with proper agency approval options like CSA, ATEX, and IECEx.
Q7: How is this cable protected from electromagnetic interference?
A7: Its triaxial design and shielded construction provide strong EMI/RFI resistance.
Q8: What length options are available besides 8.5 meters?
A8: Lengths range from 3.0 to 9.0 meters in 0.5-meter increments.
Q9: Can it be used with non-XL 3300 series probes?
A9: Yes, though performance defaults to the lower specification من the non-XL components.
Q10: Is calibration needed after replacing this cable?
A10: No, the system is designed for plug-and-play use without bench calibration.
Related الطرازs (Same Series or Function)
| الطراز Number | الوصف | Cable Length | الوزن |
|---|---|---|---|
| 330130-080-00-00 | Standard Extension Cable | 8.0 m | 0.824 kg |
| 330130-075-00-00 | Standard Extension Cable | 7.5 m | 0.772 kg |
| 330130-070-00-00 | Standard Extension Cable | 7.0 m | 0.720 kg |
| 330130-060-00-00 | Standard Extension Cable | 6.0 m | 0.618 kg |
| 330130-045-00-00 | Standard Extension Cable | 4.5 m | 0.463 kg |
| 330130-030-00-00 | Standard Extension Cable | 3.0 m | 0.309 kg |
Popular Bently Nevada الطرازs
| الطراز Number | الوصف | Application | الوزن |
|---|---|---|---|
| 330104-00-06-10-11-00 | 8 mm Proximity Probe | General-purpose monitoring | 0.45 kg |
| 330180-90-05 | 9 m Proximitor Sensor Panel Mount | Panel installations | 0.25 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor Module | Vibration monitoring | 0.45 kg |
| 3500/22M | Transient Data Interface | Online system communication | 0.4 kg |
| 330500 | Velomitor Piezo-Velocity Sensor | Low-frequency vibration detection | 0.35 kg |
| 3500/15E | Power Supply Module | Power backup for rack systems | 1.2 kg |
