Product الوصف

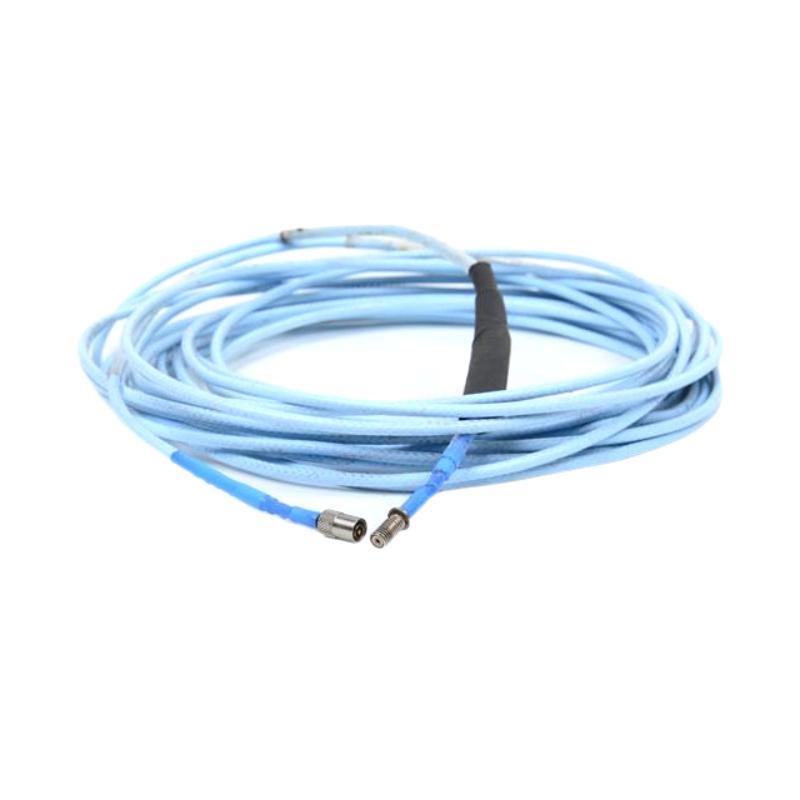

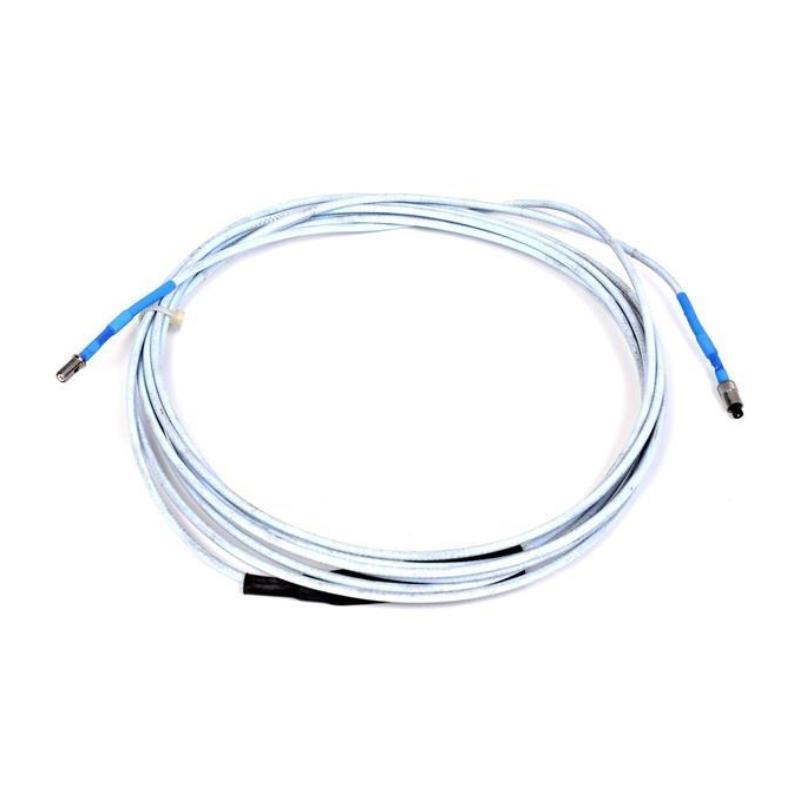

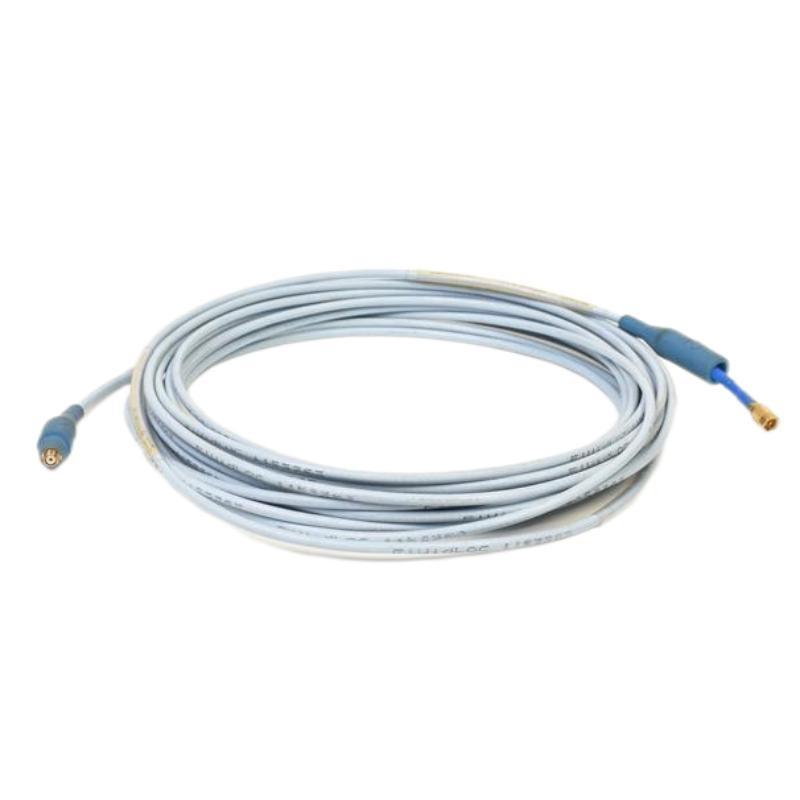

The Bently Nevada 330130-080-00-05 is a standard 8.0-meter extension cable designed for use with the 3300 XL 8 mm Proximity Transducer System. This cable connects the proximity probe to the Proximitor Sensor, forming a complete eddy current system for monitoring vibration and shaft position in rotating equipment. It supports high reliability and is engineered for harsh industrial environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Standard Extension Cable |
| رقم القطعة | 330130-080-00-05 |
| Cable Length | 8.0 meters |
| الوزن | 0.272 kg |
| Capacitance | 69.9 pF/m typical |
| Conductor Type | 75 Ω triaxial, FEP insulated |
| Jacket Material | Fluoroethylene propylene (FEP) |
| Connector Type | Gold-plated ClickLoc connectors |
| Connector Torque | 0.565 N·m (5 in·lb) max |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Resistance (Center to Center) | 1.76 ± 0.26 Ω |
| Resistance (Outer to Outer) | 0.53 ± 0.11 Ω |
| Operating Temp. Range (Standard) | -52°C to +177°C (-62°F to +350°F) |
Applications
-
Turbomachinery vibration monitoring
-
Shaft position measurement in fluid-film bearing machines
-
Integration in API 670 compliant systems
-
Use in harsh industrial environments (refineries, power plants)
Product Advantages
-
Interchangeable Compatibility – Compatible with all 3300 XL 8 mm systems
-
High Durability – Enhanced mechanical strength with CableLoc design
-
Environmental Protection – Optional connector protectors for oil resistance
-
Tool-Free Assembly – ClickLoc connectors simplify installation
-
Stable Performance – ممتاز temperature and EMI/RFI immوحدةy
FAQs
Q1: What is the function من the 330130-080-00-05 extension cable?
A1: It links the 8 mm proximity probe to the Proximitor sensor for accurate vibration and position monitoring.
Q2: Is this cable compatible with older 3300 series components?
A2: Yes, it is backward compatible with non-XL 3300 5 mm and 8 mm components.
Q3: Can this cable be used in high-temperature environments?
A3: Yes, standard versions withstand up to 177°C. For higher temperatures, ETR versions are available.
Q4: Is this cable shielded against EMI/RFI?
A4: Yes, it is shielded and paired with sensors منfering high RFI/EMI immوحدةy.
Q5: Are tools required to install the connectors?
A5: No, ClickLoc connectors are finger-tightened and do not require tools.
Q6: What is the bend radius من this extension cable?
A6: The minimum bend radius is 25.4 mm (1.0 inch).
Q7: What connector materials are used?
A7: Connectors are gold-plated brass or gold-plated beryllium copper.
Q8: How does this cable perform in humid environments?
A8: It منfers excellent resistance to moisture and minimal variation in scale factor under high humidity.
Q9: What is the tolerance on resistance values for this length?
A9: Center-to-center resistance is 1.76 ± 0.26 Ω; jacket resistance is 0.53 ± 0.11 Ω.
Q10: Can I get this cable with additional protection features?
A10: Yes, it’s available with connector protectors or as an armored version.
Related الطرازs in the Same Series
| الطراز Number | الوصف | Cable Length | الوزن |
|---|---|---|---|
| 330130-060-00-05 | XL Extension Cable, 6.0 m | 6.0 m | ~0.204 kg |
| 330130-070-00-05 | XL Extension Cable, 7.0 m | 7.0 m | ~0.238 kg |
| 330130-085-00-05 | XL Extension Cable, 8.5 m | 8.5 m | ~0.289 kg |
| 330130-080-03-05 | XL Extension Cable, 8.0 m, Armored | 8.0 m | ~0.824 kg |
| 330190-080-00-05 | ETR Extension Cable, 8.0 m | 8.0 m | ~0.272 kg |
| 330190-085-01-05 | ETR Armored Cable, 8.5 m | 8.5 m | ~0.855 kg |
Popular الطرازs from Bently Nevada
| الطراز Number | الوصف | Application | الوزن |
|---|---|---|---|
| 3300/42M-01-00 | Proximitor Seismic Monitor | Vibration Monitoring | ~0.6 kg |
| 330104-00-06-10-02-00 | XL 8mm Probe, armored, M10x1, 1.0 m | Shaft Vibration | ~0.3 kg |
| 330180-50-05 | 5 m Proximitor Sensor, Panel Mount | Panel-mount Proximity Monitoring | ~0.25 kg |
| 330101-00-08-10-02-05 | XL 8mm Probe, 3/8-24 UNF, 1.0 m, ClickLoc | Shaft Displacement | ~0.3 kg |
| 3500/22M-01-01-00 | Transient Data Interface | Data Acquisition | ~1.2 kg |
| 3500/15-05-05-00 | Power Supply Module, 110/220V | Power Supply for 3500 Series | ~0.85 kg |
