Product Overview

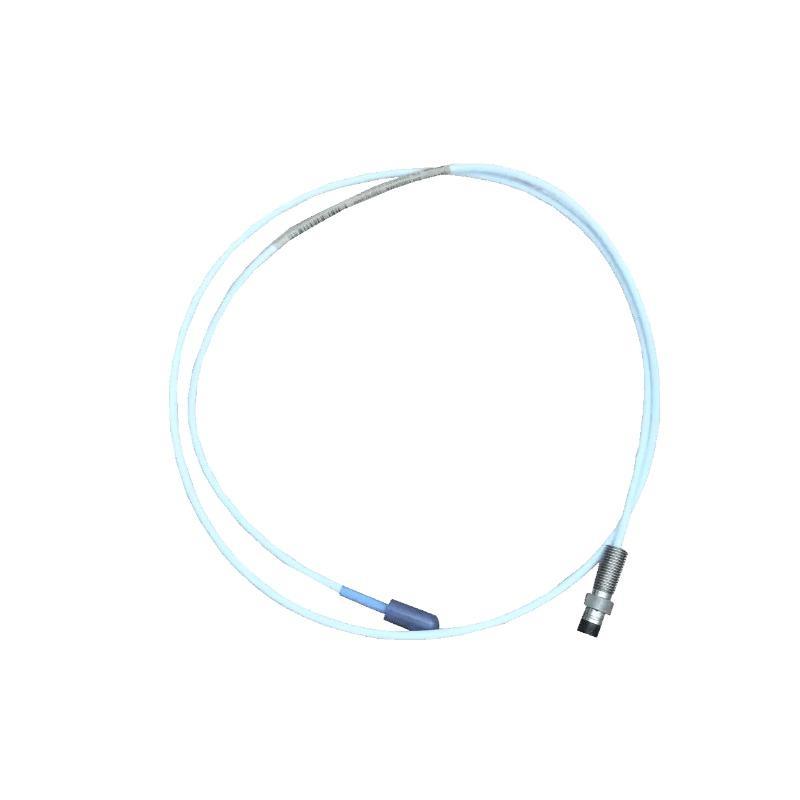

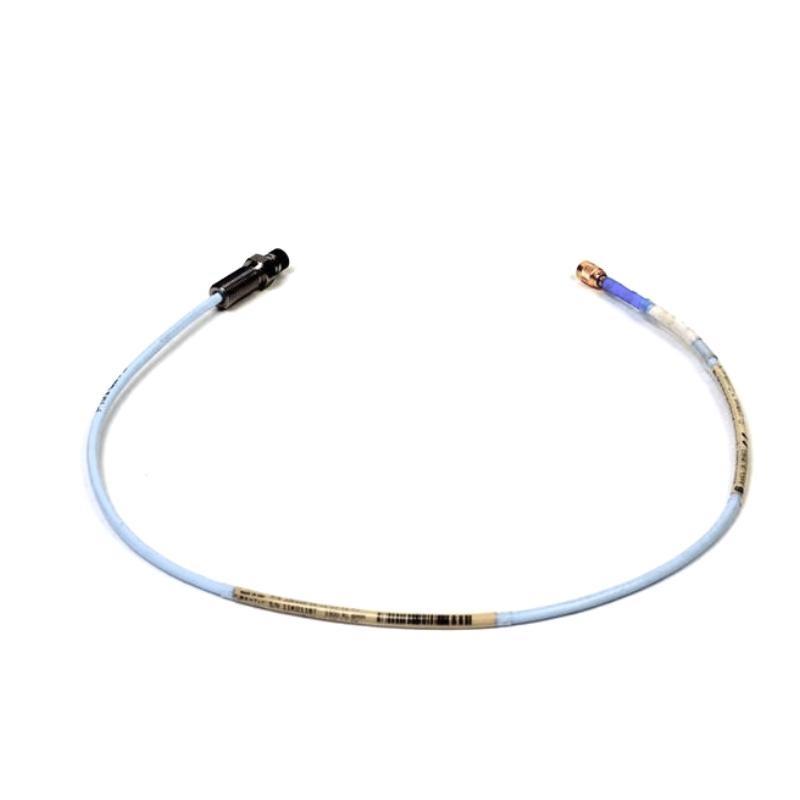

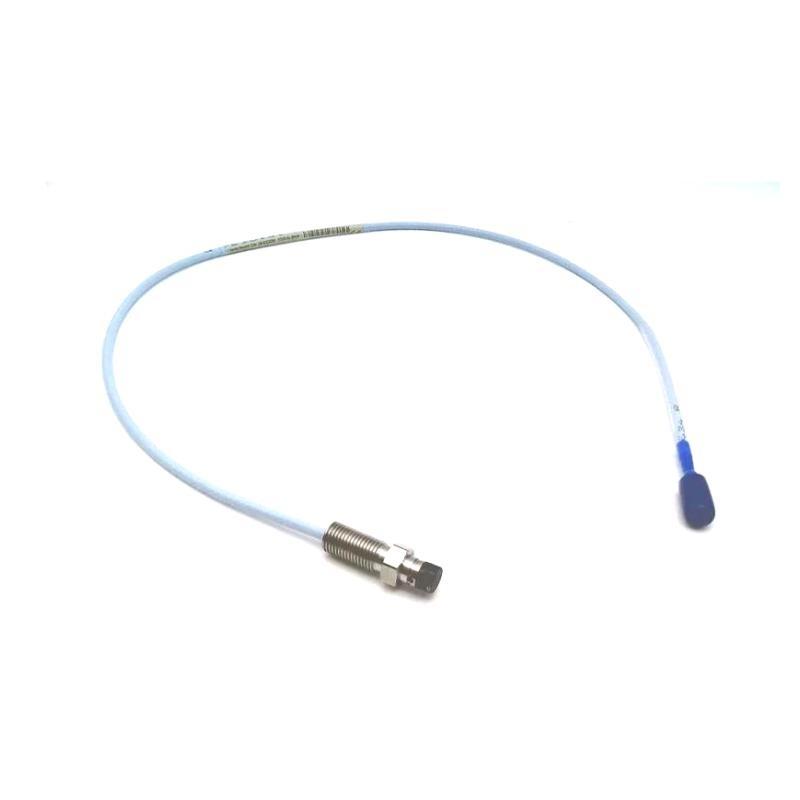

The Bently Nevada 330105-05-30-05-02-00 is a reverse mount 8 mm eddy current proximity probe from the 3300 XL series. It provides non-contact measurement من vibration and position for critical machinery, with a robust design suited for high-temperature and high-vibration environments. It includes a reverse-mounted probe, extension cable, and Proximitor sensor for complete installation flexibility.
Applications
-
Steam and gas turbines
-
Compressors
-
Pumps
-
Generators
-
Industrial motors
-
Gearboxes
Key Advantages
-
Reverse-mount design for tight installations
-
Rugged construction with high tensile strength
-
FluidLoc and ClickLoc cable options for leak and vibration resistance
-
Fully compliant with API 670
-
Interchangeable with 3300 and non-XL systems
-
Extended temperature and environmental resistance
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Series | 3300 XL 8 mm Reverse Mount Probe |
| رقم القطعة | 330105-05-30-05-02-00 |
| Mounting Type | Reverse Mount (3/8-24 UNF threads) |
| Tip Diameter | 8.0 mm (0.31 in) |
| Total Length | 9.0 meters |
| الوزن | 2.907 kg (approximate) |
| Case Material | AISI 303 or 304 Stainless Steel |
| Cable Type | 75Ω triaxial FEP insulated |
| Connector | Miniature ClickLoc coaxial |
| Temperature Range | -52°C to +177°C (standard) |
| Extended Temp Probe Tip | Up to +218°C (ETR version) |
| Pressure Sealing | Viton® O-ring |
| Frequency Response | 0 to 10 kHz, +0/-3 dB |
| Linear Range | 2 mm (80 mils) |
| Output Sensitivity | 200 mV/mil (7.87 V/mm) |
| System Compliance | API 670, CE, FCC, SIL2/3, RoHS |
الأسئلة الشائعة (FAQ)
Q1: What is the main purpose من the 330105-05-30-05-02-00 probe?
A1: It measures shaft vibration and position in rotating machinery with a reverse-mount installation.
Q2: Is this probe compatible with non-XL systems?
A2: Yes, it is backward compatible with older 3300 5 mm and 8 mm components.
Q3: What temperature can the standard version withstand?
A3: The standard version operates up to +177°C, with extended versions rated up to +218°C.
Q4: Can I install this in hazardous areas?
A4: Yes, it holds approvals like ATEX, CSA, and IECEx for Zone 0/1 and Class I Div 2 environments.
Q5: Does the probe support API 670 compliance?
A5: Yes, it is fully compliant with API 670 mechanical and performance standards.
Q6: What type من cable does this model use?
A6: It uses a 75Ω triaxial cable with FEP insulation; FluidLoc options are available.
Q7: Is field calibration required?
A7: No field calibration is needed as all components are factory matched and interchangeable.
Q8: What is the recommended gap voltage?
A8: -9 VDC, corresponding to 1.27 mm (50 mils) probe gap.
Q9: How is connector locking ensured?
A9: It features ClickLoc connectors that “click” at finger-tight torque for secure locking.
Q10: What is the probe’s durability against pull forces?
A10: It supports up to 330 N (75 lbf) tensile strength at the probe body.
Related الطرازs from Same Series
| الطراز Number | الوصف | Mount Type | Length | Temperature Range |
|---|---|---|---|---|
| 330101-00-20-10-02-00 | XL 8 mm Probe, standard mount | Forward | 2.0 m | -52 to +177°C |
| 330102-00-20-10-02-05 | XL 8 mm Probe, with armor | Forward | 2.0 m | -52 to +177°C |
| 330103-00-05-10-02-00 | XL 8 mm Probe, metric thread | Forward | 1.0 m | -52 to +177°C |
| 330104-01-05-50-02-00 | XL 8 mm Probe, armored metric | Forward | 5.0 m | -52 to +177°C |
| 330106-05-30-05-02-00 | XL 8 mm Reverse Mount, M10x1 thread | Reverse | 5.0 m | -52 to +177°C |
| 330195-02-12-05-02-00 | XL 8 mm Reverse Mount, Extended Temp | Reverse | 5.0 m | Up to +218°C |
