Product Overview

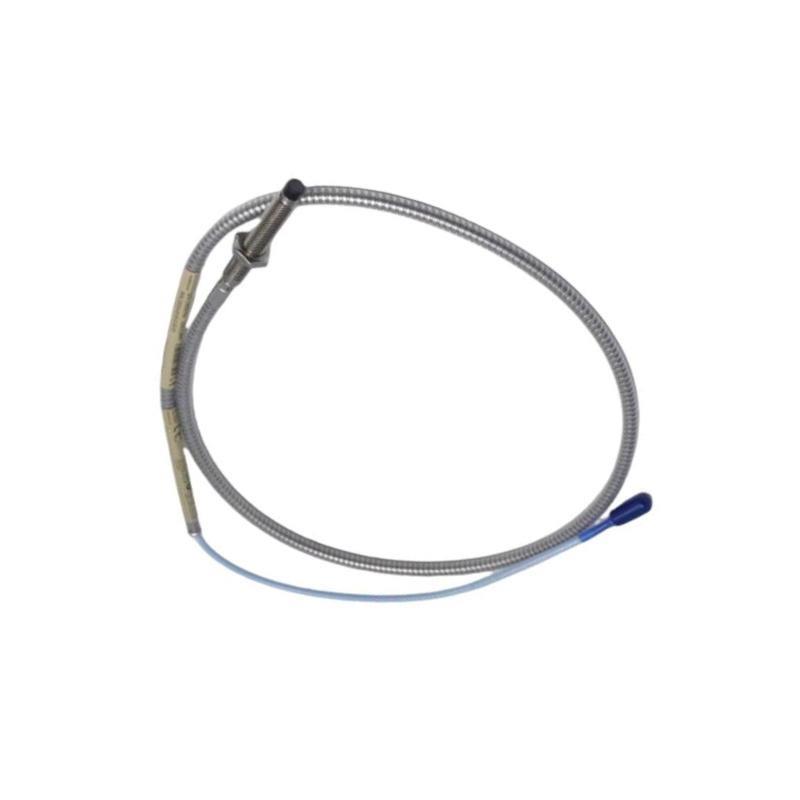

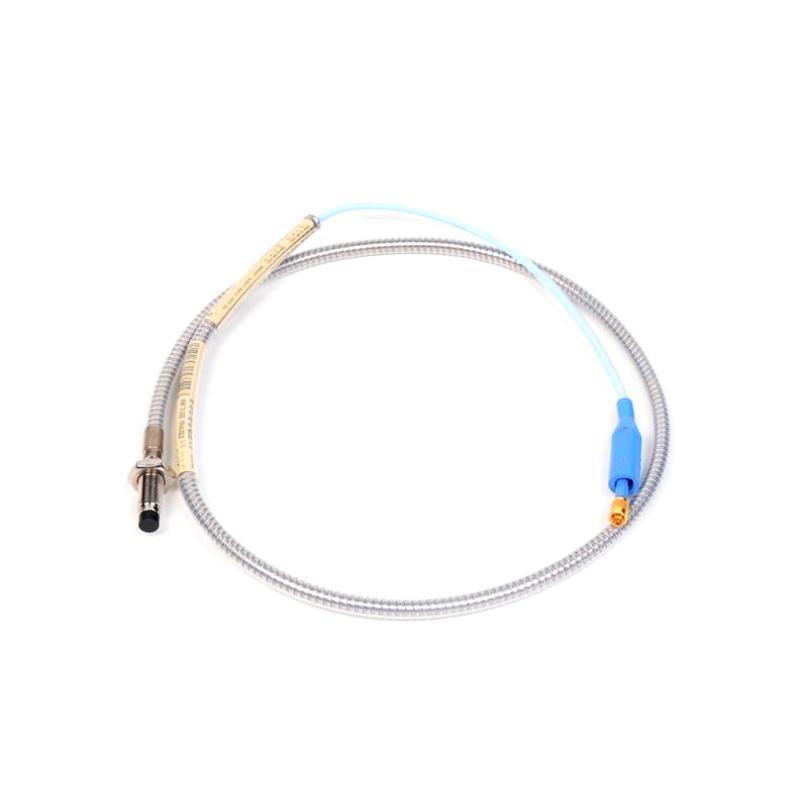

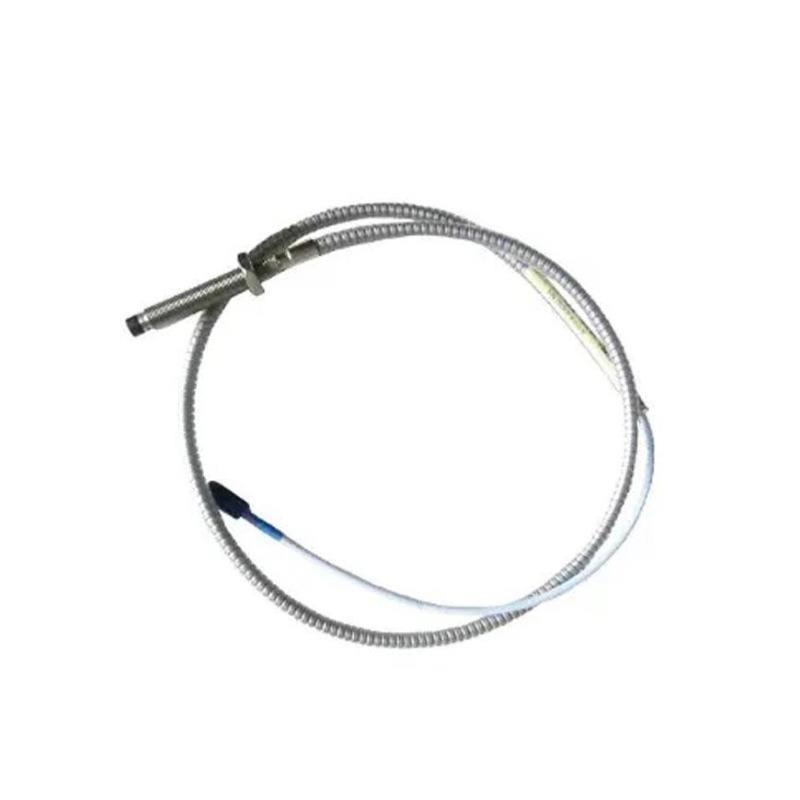

The Bently Nevada 330104-03-06-10-02-00 is a premium proximity probe from the 3300 XL 8 mm series, designed to deliver accurate, non-contact measurements من shaft vibration and axial position in rotating equipment. This model includes a 6-meter probe, 10-meter extension cable, and 2-meter connector cable. Known for its ruggedness and precision, it is ideal for demanding industrial environments where reliable condition monitoring is critical.
With high linearity, robust construction, and compatibility with Bently Nevada monitoring systems, this proximity probe is a trusted choice for engineers and maintenance teams worldwide.
Technical Specifications
| Item | Specification |
|---|---|
| الطراز Number | 330104-03-06-10-02-00 |
| Series | 3300 XL |
| Sensing Technology | Eddy Current (Non-contact) |
| Probe Tip Diameter | 8 mm |
| Linear Range | 0.25 mm to 2.0 mm |
| Sensitivity | -200 mV/mm (nominal) |
| Output Voltage | -200 mV to -22 V |
| Frequency Response | Up to 10 kHz |
| Target Material | AISI 4140 steel (standard calibration) |
| Connector Type | 3-pin, 3300 XL standard |
| Environmental Protection | IP68, hermetically sealed |
| Operating Temperature | -40°C to +100°C |
| Storage Temperature | -51°C to +177°C |
| Housing Material | AISI 304 Stainless Steel |
| Dimensions | Total Length : 1.0 meter |
| الوزن | 0.323 kg |
| Compliance | CE, RoHS |
Industry Applications
-
Power Generation – Turbine and generator shaft monitoring
-
Oil & Gas – Compressor and pump vibration detection
-
Petrochemical – Equipment condition monitoring in harsh environments
-
Steel Manufacturing – Mill motor and shaft diagnostics
-
Pulp & Paper – Monitoring من roller and shaft positions
-
Water Utilities – Pump and rotating machinery analysis
Key Advantages
-
High Accuracy: Provides precise measurements من vibration and displacement
-
Durable Design: Built to perform in demanding industrial settings
-
Sealed for Protection: Hermetically sealed (IP68) for moisture and dust resistance
-
Flexible Installation: 6 m probe length accommodates various setups
-
Wide Compatibility: Works with 3300 XL systems and other Bently Nevada monitors
-
Corrosion Resistance: Stainless steel housing for long-term durability
-
Stable Calibration: Factory-calibrated for consistent performance
-
High Frequency Range: Suitable for high-speed rotating equipment
-
Wide Temperature Tolerance: Operates in extreme temperature ranges
-
Certified Quality: CE and RoHS compliant
الأسئلة الشائعة (FAQ)
-
What does the model number 330104-03-06-10-02-00 signify?
It represents a 6 m probe, 10 m extension, and 2 m connector with version 03 configuration. -
Can it operate in wet environments?
Yes, it is IP68 rated and fully hermetically sealed. -
What systems is this probe compatible with?
It is designed for use with Bently Nevada 3300 XL systems and other compatible monitors. -
What is the expected frequency response?
Up to 10 kHz for high-speed rotating machinery. -
What material is the probe housing made من?
AISI 304 stainless steel. -
Is the probe factory-calibrated?
Yes, it is factory-calibrated for AISI 4140 steel targets. -
Can it be used in high-temperature environments?
Yes, up to +100°C operating and +177°C storage. -
What is the typical sensitivity?
-200 mV/mm, providing accurate displacement readings. -
Is it interchangeable with other 3300 XL probes?
Yes, it supports modular compatibility across the 3300 XL series. -
What is the linear range من the probe?
From 0.25 mm to 2.0 mm.
Recommended Related الطرازs
| الطراز Number | الوصف |
|---|---|
| 330104-03-07-10-02-00 | 7 m probe / 10 m extension / 2 m connector |
| 330104-00-05-05-01-CN | 5 m probe / 5 m extension / 1 m connector (China version) |
| 330104-01-06-10-02-00 | 6 m probe / 10 m extension / 2 m connector (Version 01) |
| 330104-00-23-10-02-00 | 23 m probe / 10 m extension / 2 m connector |
| 330130-040-00-00 | 4 m Extension Cable |
Popular Bently Nevada الطرازs
| الطراز Number | Product Name |
|---|---|
| 330104-00-25-10-02-CN | 25 m probe / 10 m extension / 2 m connector (China version) |
| 330104-00-22-10-02-00 | 22 m probe / 10 m extension / 2 m connector |
| 330130-045-01-05 | 4.5 m Extension Cable |
| 330104-00-07-10-02-05 | 7 m probe / 10 m extension / 2 m connector |
| 3300 XL Monitor | Vibration and displacement monitoring system |
