مقدمة المنتج

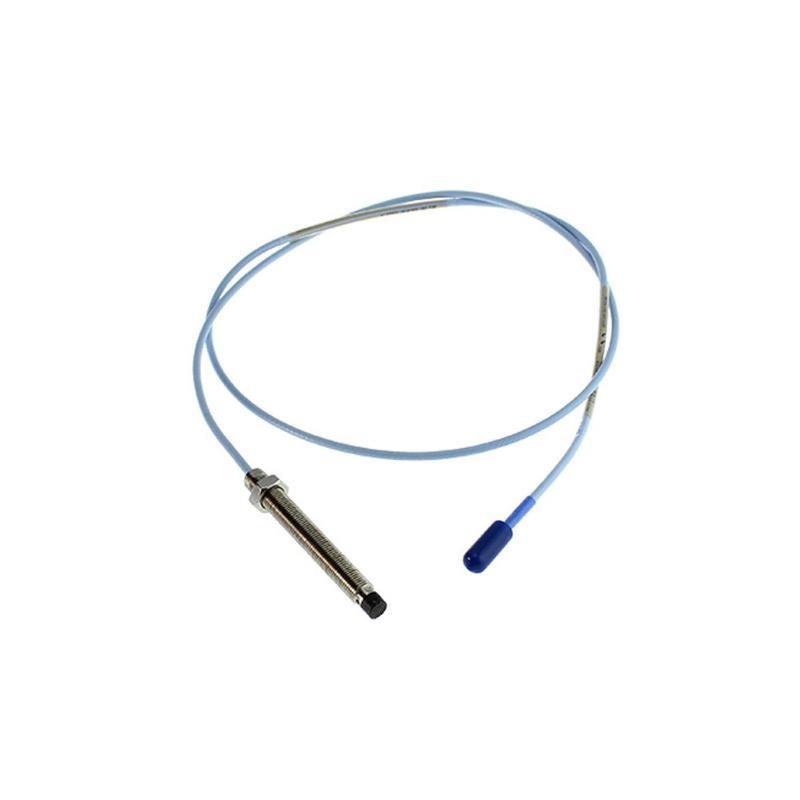

The 330104-02-09-05-01-00 3300 XL 8 mm Proximity Probe is a high-precision eddy-current displacement sensor designed for industrial vibration and position monitoring applications. Engineered for robust performance in demanding environments, it منfers superior accuracy and reliability. Its 8 mm diameter sensing tip ensures consistent measurements من machinery components, shafts, and rotating equipment.
Technical Specifications
| Parameter | Specification |
|---|---|
| الطراز Number | 330104-02-09-05-01-00 |
| Sensor Type | 8 mm Proximity Probe (Eddy-Current) |
| Sensing Diameter | 8 mm |
| Cable Length | 0.5 m |
| Total Length | 0.5 m |
| الوزن | 0.162 kg |
| Operating Temperature | -40°C to 120°C |
| Probe Material | Stainless Steel |
| Connector Type | Integral Connector |
| Linearity | ±1% FSO |
| Sensitivity | 100 mV/mil (typical) |
| Frequency Response | 0 – 12 kHz |
| Maximum Excitation Voltage | 24 V DC |
Product Applications
-
Continuous vibration monitoring من turbines, compressors, and generators
-
Shaft displacement measurement in rotating machinery
-
Integration with condition monitoring systems for predictive maintenance
-
Detection من rotor-to-stator clearance in motors and pumps
-
Monitoring من high-speed rotating equipment in power plants and industrial facilities
-
Dynamic measurement من machinery alignment and balance
Product Advantages
-
High Accuracy: Eddy-current sensing ensures precise displacement and vibration measurements.
-
Robust Design: Stainless steel construction منfers resistance to harsh industrial environments.
-
Wide Temperature Range: Operates effectively from -40°C to 120°C.
-
Noise Immوحدةy: ممتاز performance in electrically noisy environments.
-
Seamless Integration: Compatible with Bently Nevada 3300 XL monitoring systems for real-time diagnostics.
-
Compact Form Factor: 8 mm diameter and lightweight design allow easy installation in tight spaces.
FAQ
-
Q1: What is the recommended excitation voltage for this probe?
A1: The maximum recommended excitation voltage is 24 V DC to maintain accurate signal output. -
Q2: Can this probe be used in high-speed rotating machinery?
A2: Yes, the probe supports frequency response up to 12 kHz, suitable for high-speed applications. -
Q3: What type من signal output does this proximity probe provide?
A3: The probe provides an analog voltage output proportional to shaft displacement. -
Q4: Is the probe compatible with standard Bently Nevada 3300 XL monitors?
A4: Yes, it is fully compatible with 3300 XL monitoring systems without modifications. -
Q5: How does the probe handle electrical noise interference?
A5: The stainless steel shield and optimized signal circuitry minimize susceptibility to electrical noise. -
Q6: Can this probe operate in extreme cold environments?
A6: Yes, it operates reliably down to -40°C. -
Q7: What is the typical linearity من this sensor?
A7: The sensor منfers ±1% FSO linearity across its measurement range. -
Q8: What material is used for the probe tip?
A8: The probe tip is made from corrosion-resistant stainless steel for durability. -
Q9: Can the probe measure dynamic vibration?
A9: Yes, it provides accurate measurements for dynamic vibration up to its 12 kHz frequency response. -
Q10: What is the standard cable length provided with the probe?
A10: The standard cable length is 0.5 meters, which is integral to the probe assembly.
Related الطرازs
| الطراز Number | الوصف |
|---|---|
| 330104-02-08-05-01-00 | 3300 XL 8 mm Proximity Probe, 0.5 m cable |
| 330104-02-08-10-01-00 | 3300 XL 8 mm Proximity Probe, 1.0 m cable |
| 330104-02-08-10-02-00 | 3300 XL 8 mm Proximity Probe, 1.0 m cable, high-temp version |
| 330104-02-09-05-01-00 | 3300 XL 8 mm Proximity Probe, standard model |
| 330104-02-09-10-01-00 | 3300 XL 8 mm Proximity Probe, extended cable version |
| 330104-02-09-10-02-00 | 3300 XL 8 mm Proximity Probe, high-temp, extended cable |
Popular الطرازs
| الطراز Number | الوصف |
|---|---|
| 330104-02-07-05-00-00 | 3300 XL 8 mm Proximity Probe, short cable version |
| 330104-02-07-10-00-00 | 3300 XL 8 mm Proximity Probe, medium cable version |
| 330104-02-08-05-00-00 | 3300 XL 8 mm Proximity Probe, standard cable, standard temp |
| 330104-02-08-10-00-00 | 3300 XL 8 mm Proximity Probe, 1 m cable |
| 330104-02-09-05-01-00 | 3300 XL 8 mm Proximity Probe, widely used model |
| 330104-02-09-10-01-00 | 3300 XL 8 mm Proximity Probe, long cable |
