Product Overview

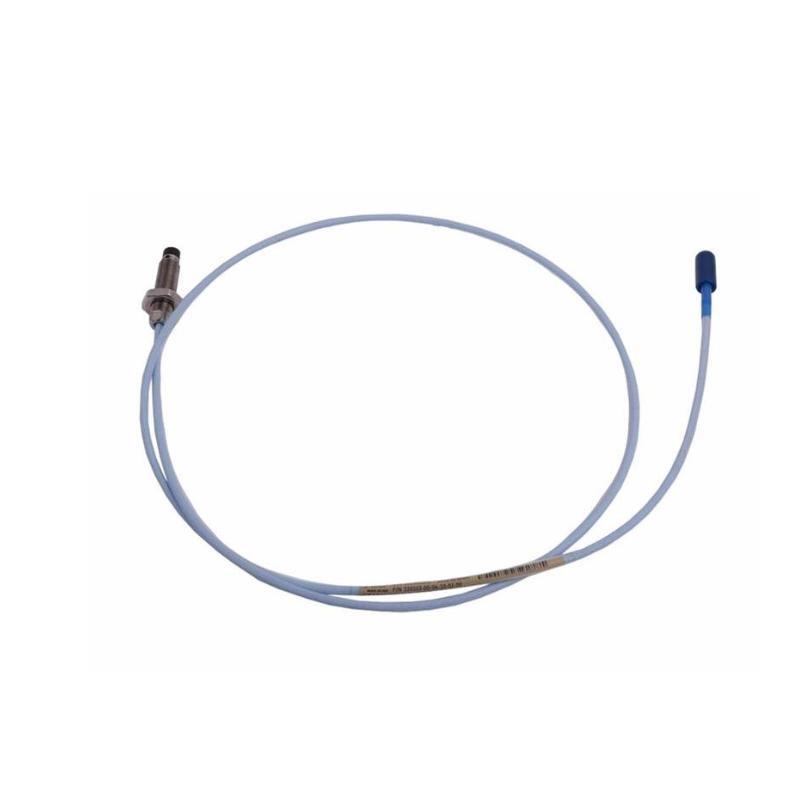

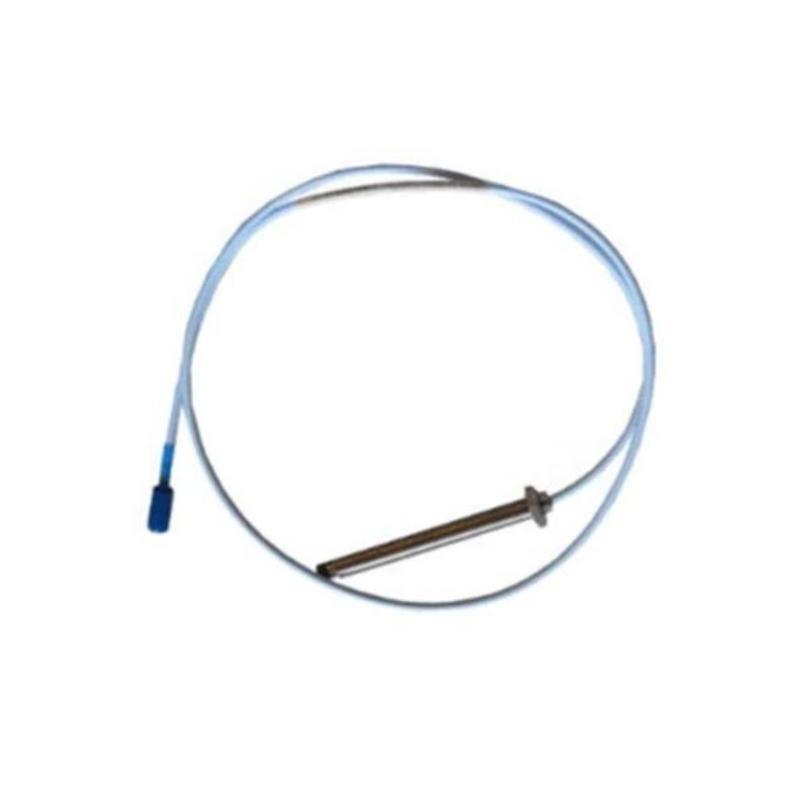

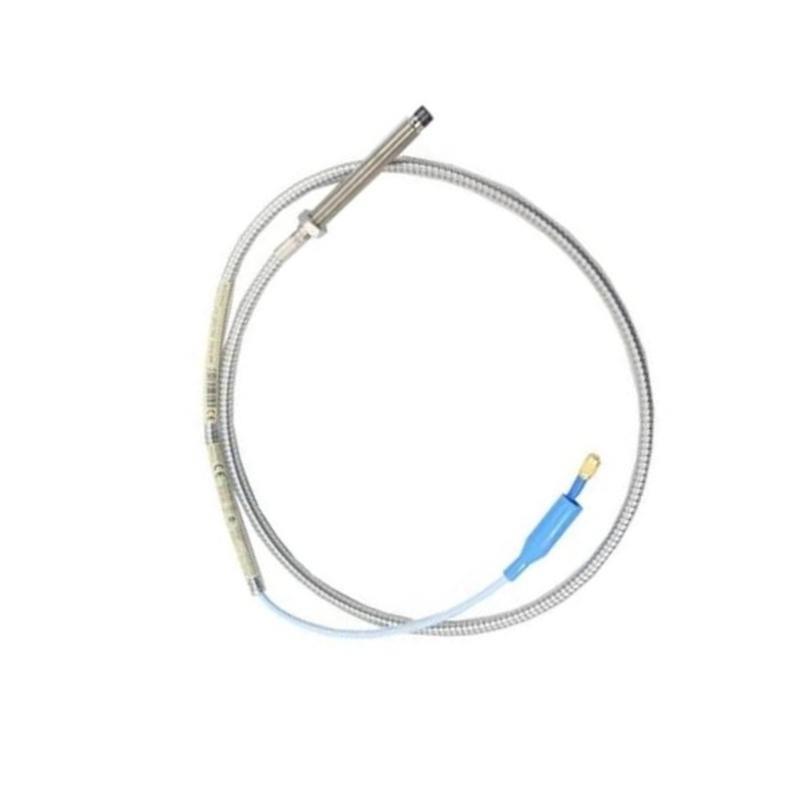

The Bently Nevada 330104-00-20-10-02-05 3300 XL 8 mm Proximity Probe is engineered for precise shaft vibration and position monitoring in rotating machinery. As part من the trusted 3300 XL series, it منfers long-term stability, high accuracy, and excellent resistance to environmental challenges.
Key Features
-
8 mm probe tip diameter suitable for a wide range من machinery
-
2.0 m probe length for flexible installation
-
Part من the 3300 XL series with proven durability
-
High sensitivity for accurate vibration and shaft position measurement
-
Fully compliant with API 670 standards
-
Resistant to EMI, contaminants, and industrial harsh environments
Technical Specifications
| Item | Specification |
|---|---|
| الطراز Number | 330104-00-20-10-02-05 |
| Series | Bently Nevada 3300 XL |
| Probe Tip Diameter | 8 mm |
| Probe Length | 2.0 m |
| System Compatibility | 3300 XL Proximity Transducer System |
| Linear Range | 2 mm (80 mils) |
| Frequency Range | 0 to 10 kHz |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| Operating Temperature | -35 °C to +177 °C |
| Storage Temperature | -51 °C to +177 °C |
| Dimensions | Total Length : 1.0 meter |
| الوزن | 0.323 kg |
Industry Applications
-
Power Generation – Turbine and generator shaft monitoring
-
Oil & Gas – Compressor and pump vibration analysis
-
Petrochemical – Process machinery condition monitoring
-
Manufacturing – Precision rotating machinery measurement
-
Marine & Offshore – Heavy-duty machinery protection
Advantages
-
High accuracy vibration and displacement measurement
-
Rugged and reliable performance in harsh environments
-
Meets API 670 standards for critical machinery protection
-
Long service life with reduced maintenance needs
-
Compatible with Bently Nevada proximitor sensors and extension cables
الأسئلة الشائعة (FAQ)
Q1: What is the probe tip diameter من this model?
8 mm
Q2: What is the probe length من this model?
2.0 meters
Q3: What is the linear measurement range?
2 mm (80 mils)
Q4: What industries commonly use this probe?
Power generation, oil & gas, petrochemical, marine, and manufacturing
Q5: Is this probe API 670 compliant?
Yes, it is designed to meet API 670 standards
Q6: What is the sensitivity rating?
7.87 mV/μm (200 mV/mil)
Q7: What is the supported frequency range?
0 to 10 kHz
Q8: Can it operate in high-temperature environments?
Yes, operating temperature range is -35 °C to +177 °C
Q9: Is it compatible with other 3300 XL system components?
Yes, it works with Bently Nevada proximitor sensors and extension cables
Q10: What is the approximate weight من the probe?
Around 0.323 kg
Related Bently Nevada Probes
| الطراز Number | الوصف |
|---|---|
| 330104-00-12-10-02-05 | 3300 XL 8 mm Proximity Probe |
| 330104-00-14-10-11-00 | 3300 XL 8 mm Proximity Probe |
| 330104-00-16-10-11-00 | 3300 XL 8 mm Proximity Probe |
| 330104-00-18-10-01-05 | 3300 XL 8 mm Proximity Probe |
| 330104-00-25-10-02-05 | 3300 XL 8 mm Proximity Probe |
Popular Bently Nevada Modules
| الطراز Number | الوصف |
|---|---|
| 3500/22M 288055-01 | Transient Data Interface (TDI) Module |
| 3500/25 149369-01 | Keyphasor Module |
| 3500/32 125712-01 | Relay Module |
| 3500/40M 176449-02 | Proximitor Monitor |
| 3500/42M 176449-02 | Velocity/Acceleration Monitor |
| 3500/50 141056-01 | Tachometer Module |
