Product Overview

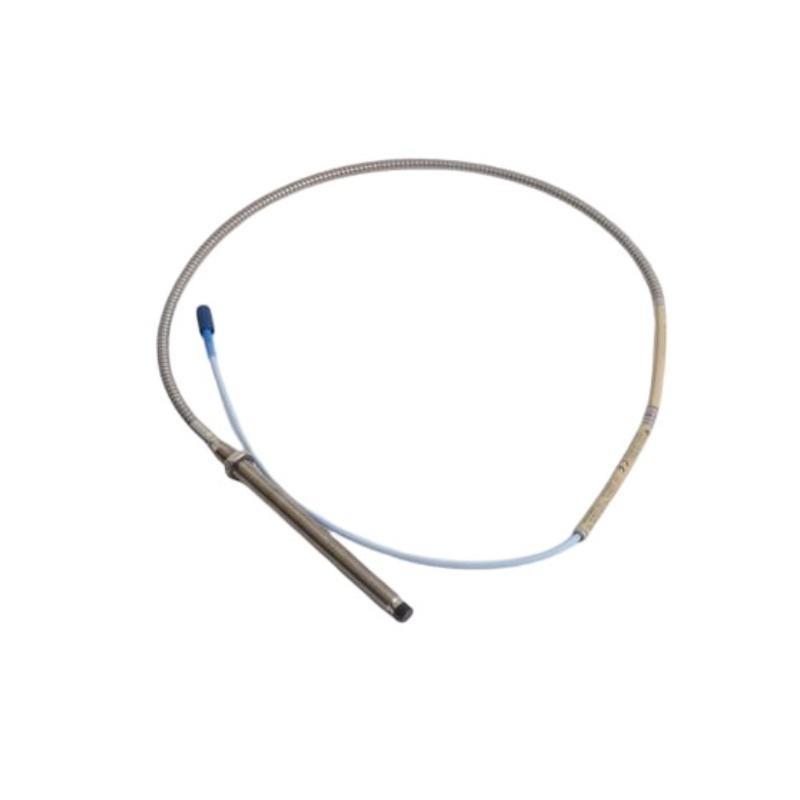

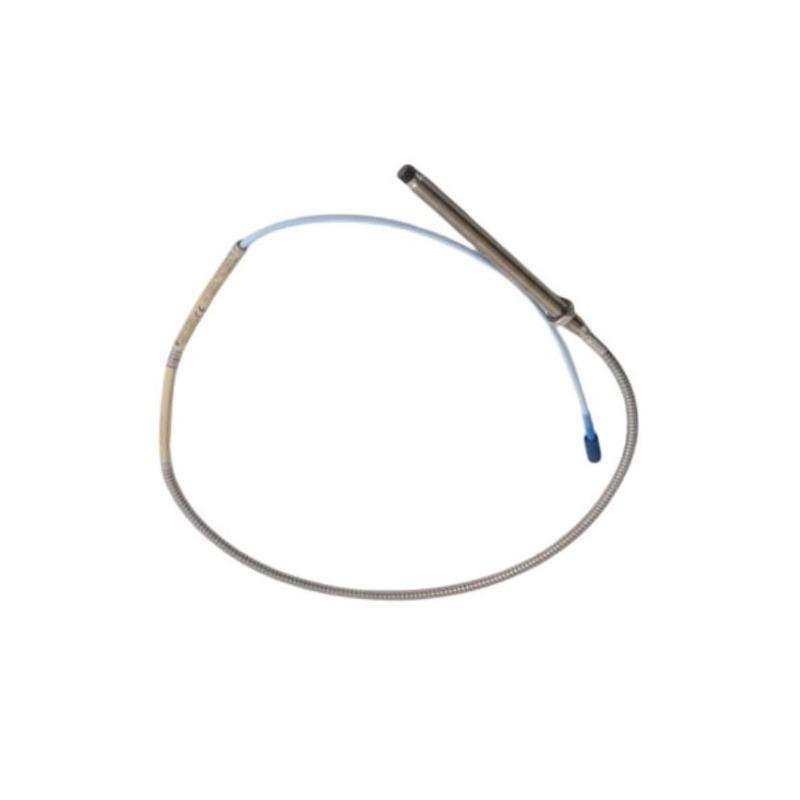

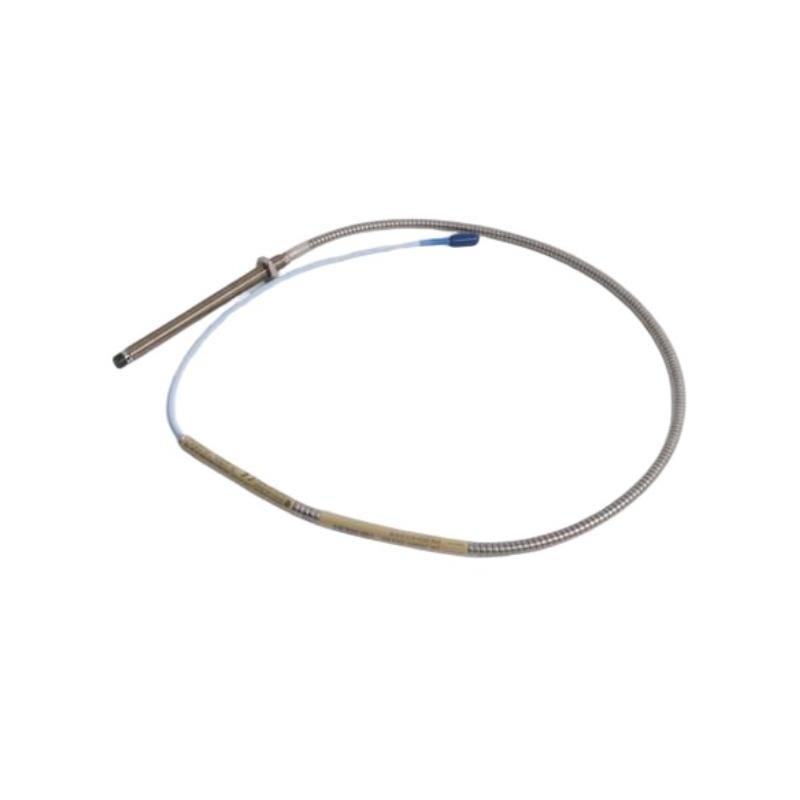

The Bently Nevada 330104-00-11-10-01-00 is a high-performance 3300 XL 8 mm proximity probe designed to deliver reliable and accurate measurements in harsh industrial environments. As part من the renowned Bently Nevada 3300 XL series, this proximity probe provides non-contact vibration and position measurements essential for machinery protection and condition monitoring.
This probe is built for long-term stability and resistance to environmental contaminants such as oil, moisture, and chemical vapors. With advanced technology and rigorous quality control, it ensures minimal signal degradation, excellent linearity, and compliance with API 670 standards.
Key Features
-
Non-contact vibration and position sensing
-
Industry-standard 8 mm tip with XL rugged design
-
Compatible with 3300 XL extension cables and drivers
-
High immوحدةy to electrical and environmental interference
-
API 670 compliant system performance
-
Designed for long-term deployment in demanding industrial applications
Technical Specifications
| Item | Specification |
|---|---|
| الطراز Number | 330104-00-11-10-01-00 |
| Series | 3300 XL |
| Probe Type | Proximity Probe |
| Tip Diameter | 8 mm (standard 3300 XL tip) |
| Mounting Thread Size | M10 x 1 |
| Unthreaded Length | 11 mm |
| Total Length | 100 mm |
| Cable Connector Orientation | Straight connector |
| Cable Length | 1.0 meter |
| Material | AISI 304 Stainless Steel |
| Temperature Range | -35°C to +177°C (-31°F to +350°F) |
| Pressure Range | Up to 500 psi |
| Sensitivity | 7.87 mV/μm (200 mV/mil) |
| Linear Range | 2 mm (80 mils) |
| System Compatibility | Works with 3300 XL extension cables and Proximitor sensors |
| Insulation Resistance | >10 GΩ |
| Dimensions | Total Length : 1.0 meter |
| الوزن | 0.323 kg |
Industry Applications
The Bently Nevada 330104-00-11-10-01-00 8 mm Proximity Probe is ideal for a wide range من applications, including:
-
Turbomachinery: Steam turbines, gas turbines, and compressors
-
Rotating Equipment: Pumps, fans, motors, and gearboxes
-
الحالة Monitoring Systems: Integration into vibration and thrust monitoring systems
-
OEM Installations: Equipment requiring embedded proximity detection solutions
-
Petrochemical Plants: High reliability required in explosive or corrosive environments
-
Power Generation: Reliable sensing in high-temperature and high-vibration settings
Advantages
-
Reliable Operation: ممتاز performance in high-vibration, high-temperature, and contaminated environments
-
Rugged Construction: Built with corrosion-resistant stainless steel for durability
-
Accurate Measurements: Delivers high linearity and precise shaft displacement readings
-
Modular Design: Compatible with a wide range من Bently Nevada systems
-
Low Signal Drift: Maintains calibration over extended periods
-
Easy Integration: Straightforward replacement and installation in existing systems
-
Field-Proven Performance: Trusted in mission-critical applications worldwide
-
Global Standard: Fully API 670 compliant, meeting the strictest monitoring criteria
-
Reduced Downtime: Enhances early failure detection and predictive maintenance
-
Comprehensive الدعم: Backed by GE Bently Nevada’s global technical service network
الأسئلة الشائعة (FAQ)
-
What is the primary use من this proximity probe?
It measures the vibration and shaft position من rotating machinery without physical contact. -
Is this probe compatible with all Bently Nevada systems?
It is designed for use with the 3300 XL system, including XL extension cables and Proximitor sensors. -
Can it be used in high-temperature environments?
Yes, it is rated for temperatures up to 177°C (350°F). -
Is the probe compliant with API 670 standards?
Yes, it meets API 670 requirements for machinery protection systems. -
What kind من connector does it have?
This model features a straight connector. -
Can the cable be extended beyond 1 meter?
Cable length can be extended with compatible extension cables within system limits. -
What materials is the probe made من?
The probe housing is made من AISI 304 stainless steel, ensuring corrosion resistance. -
Is this probe suitable for explosive or hazardous areas?
It depends on the installation configuration and certifications; consult your application guidelines. -
How accurate is the measurement?
It provides a sensitivity من 200 mV/mil (7.87 mV/μm) with excellent linearity over a 2 mm range. -
How is the probe typically mounted?
The M10 x 1 thread allows for secure mounting in compatible brackets or machinery ports.
