Product Overview

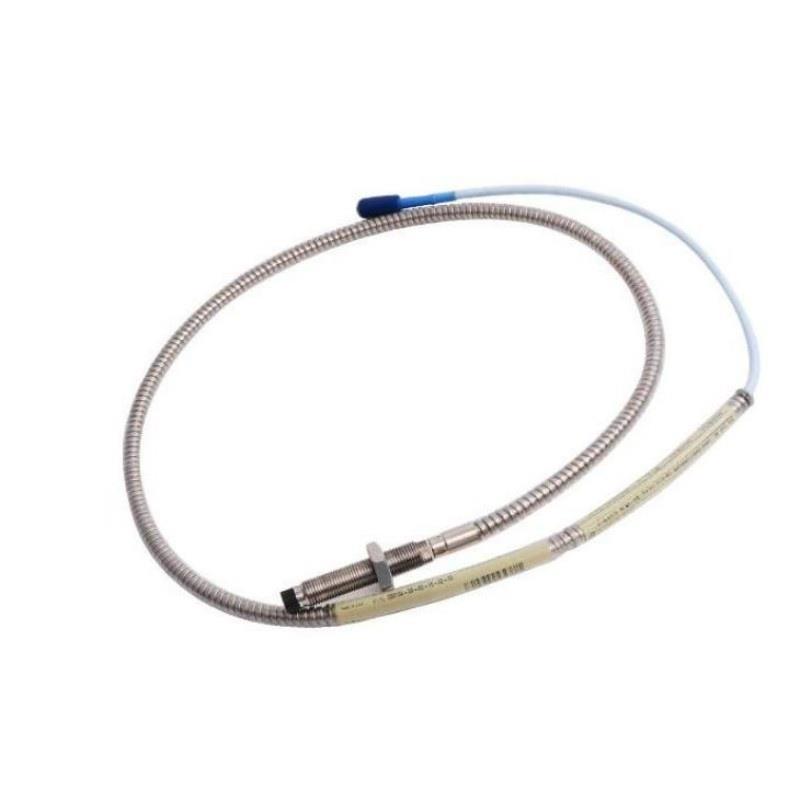

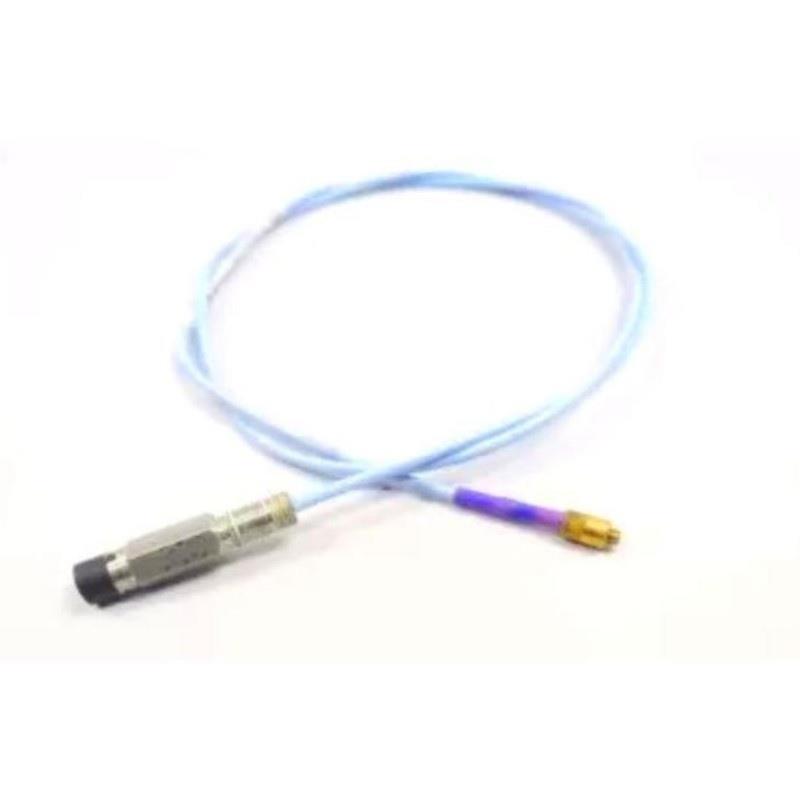

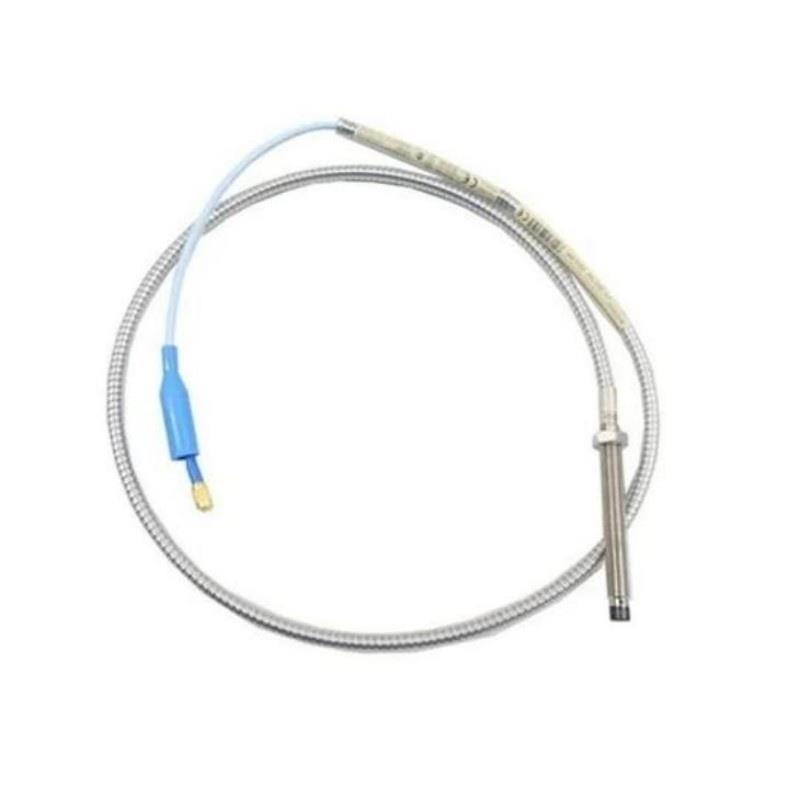

The Bently Nevada 330104-00-07-90-02-00 is part من the 3300 XL 8 mm Proximity Transducer System, designed to measure vibration and position in fluid-film bearing machines. It includes a proximity probe, extension cable, and Proximitor sensor. This model delivers high accuracy and conforms to API 670 standards.
Technical Specifications
| Parameter | Specification |
|---|---|
| الطراز Number | 330104-00-07-90-02-00 |
| Probe Tip Diameter | 8 mm (0.31 in) |
| Thread Type | M10 x 1 |
| Cable Type | Standard with ClickLoc connector |
| Cable Length | 9.0 meters |
| System Output | 200 mV/mil (7.87 V/mm) |
| Linear Range | 0.25 mm to 2.3 mm (10 mils to 90 mils) |
| Frequency Response | 0 – 10 kHz (+0, -3 dB) |
| Minimum Target Diameter | 15.2 mm |
| Operating Temperature | -52°C to +177°C (standard); up to +218°C (ETR) |
| الوزن | 2.907 kg (total system weight for 9 m cable) |
| Total Length | 9.0 meters |
| Probe Material | Stainless Steel (AISI 304) |
| Tip Material | Polyphenylene sulfide (PPS) |
| Connector Type | ClickLoc gold-plated coaxial |
| Compliance | CE, RoHS, ATEX, IECEx, CSA, FCC, SIL 2/3 |
Applications
-
Vibration monitoring on rotating machinery
-
Shaft position measurements
-
Overspeed and Keyphasor referencing
-
Fluid-film bearing monitoring
-
Turbo machinery diagnostics in power, oil & gas industries
Key Advantages
-
API 670 compliant for mechanical and performance standards
-
Full component interchangeability
-
Extended temperature range option available
-
No tools required for connector installation (ClickLoc)
-
High immوحدةy to RFI/EMI—ideal for harsh industrial environments
-
Strong mechanical build with TipLoc and CableLoc enhancements
الأسئلة الشائعة (FAQ)
Q1: What is the primary function من this proximity probe?
A1: It measures vibration and axial/radial position relative to a conductive target surface.
Q2: What is the output scale factor?
A2: 200 mV/mil (7.87 V/mm), with ±6.5% error for the 9-meter system.
Q3: Is this model compliant with API 670?
A3: Yes, it meets API 670 for linear range, temperature, and mechanical specs.
Q4: Can I mix XL and non-XL components?
A4: Yes, but overall system performance is reduced to that من non-XL components.
Q5: What’s the minimum target diameter for reliable readings?
A5: 15.2 mm, with reduced accuracy below this.
Q6: Can it operate in high-temperature environments?
A6: Yes. ETR versions support up to +260°C cable and +218°C probe tip temperatures.
Q7: Does it require special tools for connector assembly?
A7: رقم The ClickLoc connectors are finger-tight and self-locking.
Q8: Is the probe tip resistant to chemical exposure?
A8: It’s molded in PPS, suitable for industrial use, but extreme pH can degrade it.
Q9: What certifications does it carry?
A9: CE, RoHS, ATEX, IECEx, SIL 2/3, CSA, and FCC.
Q10: Can I mount it on a DIN rail?
A10: The associated Proximitor sensor supports DIN rail and panel mounting.
Related Bently Nevada 3300 XL الطرازs
| الطراز Number | الوصف | Cable Length | الوزن (kg) | Temp. Range |
|---|---|---|---|---|
| 330104-00-06-10-02-00 | M10 x 1, armored probe | 6.0 m | 2.5 | Std |
| 330104-00-05-50-02-00 | M10 x 1, armored probe | 5.0 m | 2.1 | Std |
| 330105-02-12-05-02-00 | Reverse-mount, 3/8-24 UNF | 5.0 m | 2.0 | Std |
| 330101-00-20-10-02-05 | 3/8-24 UNF, armored probe | 2.0 m | 1.6 | Std |
| 330103-00-05-10-02-00 | M10 x 1, no armor | 5.0 m | 1.8 | Std |
| 330192-00-20-10-02-00 | M10 x 1, ETR probe with armor | 2.0 m | 2.0 | ETR |
Popular Bently Nevada الطرازs
| الطراز Number | الوصف | Function Type | Length | الوزن (kg) |
|---|---|---|---|---|
| 330103-00-04-10-02-00 | 8 mm Probe, M10x1, no armor | Proximity Probe | 4.0 m | 1.6 |
| 330180-90-05 | Proximitor Sensor for 9 m system | Signal الحالةer | N/A | 0.25 |
| 330130-090-00-05 | Extension Cable, 9.0 m | Cable | 9.0 m | 0.34 |
| 3300/42M-01-00 | Proximitor Seismic Monitor | Vibration Monitor | N/A | 0.5 |
| 330400-01-05 | Velocity Transducer | Seismic Sensor | 5.0 m | 0.75 |
| 330101-00-08-10-02-05 | Probe, 3/8-24 UNF, armored, 8″ length | Proximity Probe | 2.4 m | 1.9 |
