الوصف

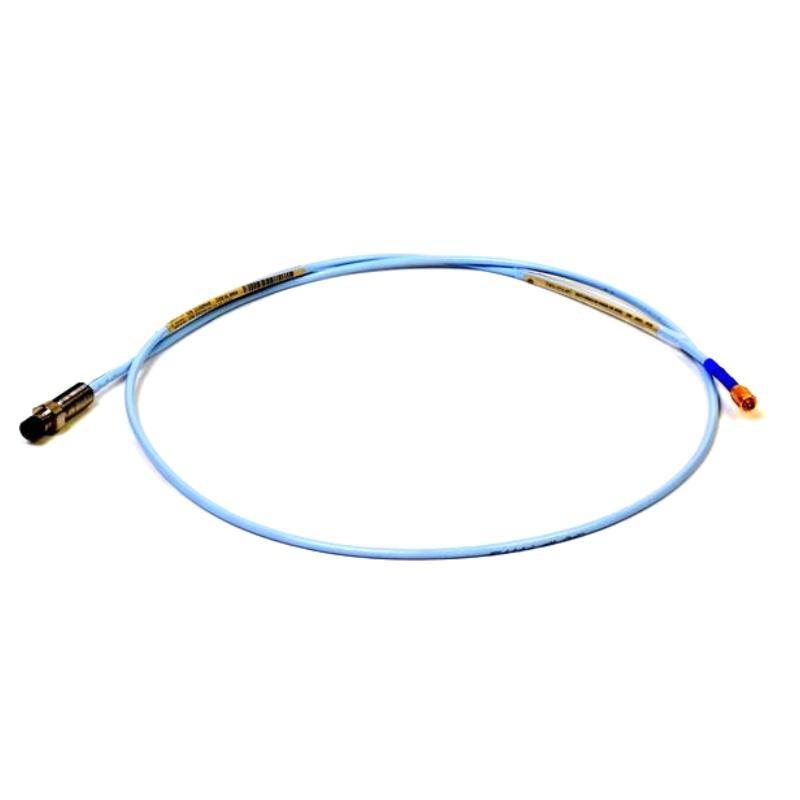

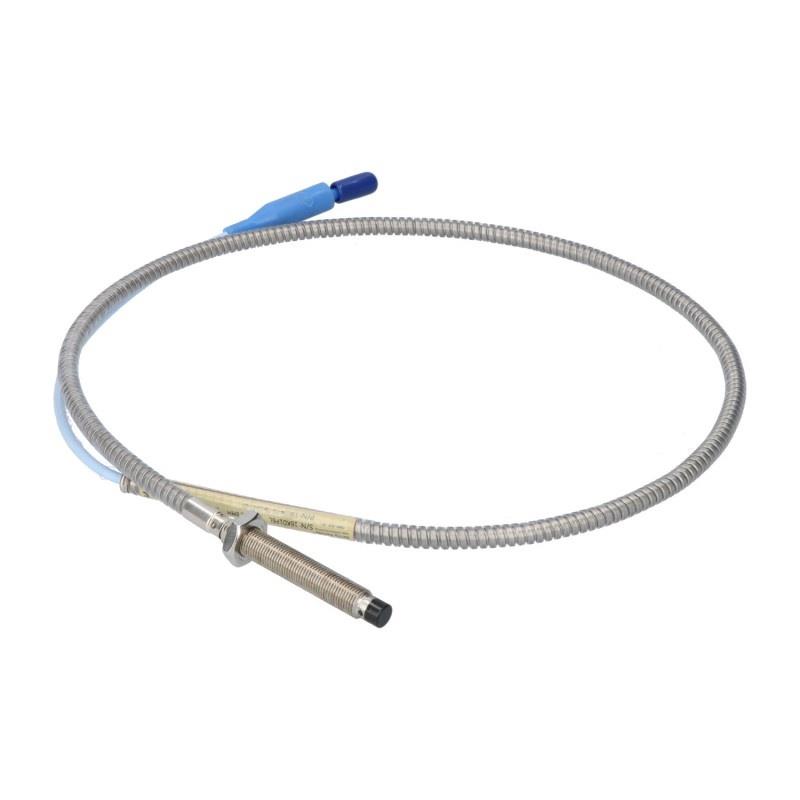

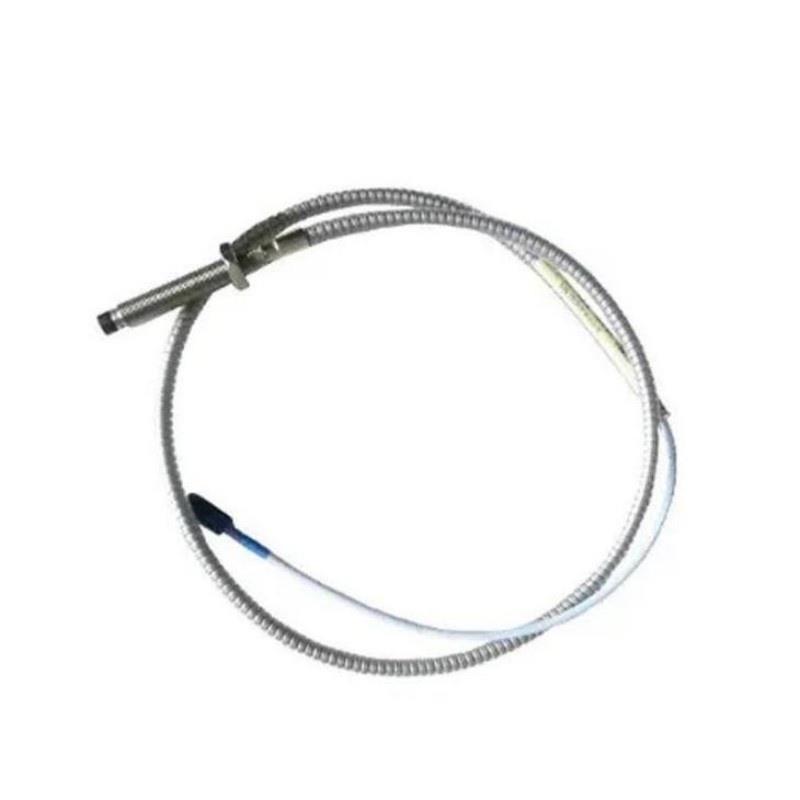

The Bently Nevada 330104-00-07-50-02-00 is part من the 3300 XL 8 mm Proximity Transducer System, منfering highly reliable, precise non-contact displacement and vibration measurements. It consists من a probe with M10 x 1 threaded mounting, armored cable, and ClickLoc connectors. Designed for harsh industrial environments, it ensures accurate monitoring من fluid-film bearing machines.
Applications
-
Turbomachinery vibration monitoring
-
Shaft position and radial displacement measurements
-
Overspeed and Keyphasor signal detection
-
Steam, gas, and hydro turbine condition monitoring
-
Gearbox and motor diagnostics
Advantages
-
Complies with API 670 for mechanical configuration and accuracy
-
Armor protection ensures durability in harsh environments
-
ClickLoc connectors prevent loosening and simplify installation
-
Full component interchangeability—no calibration required
-
Extended temperature capability with ETR versions
-
High RFI/EMI immوحدةy suitable for industrial environments
Technical Specifications
| Parameter | الوصف |
|---|---|
| Probe Type | 3300 XL 8 mm with M10 x 1 thread, armored cable |
| الطراز | 330104-00-07-50-02-00 |
| Total Length | 5.0 meters |
| الوزن | 1.615 kg (typical) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | Stainless Steel (AISI 303 or 304) |
| Cable Type | 75Ω triaxial, FEP insulated with stainless steel armor |
| Operating Temp. (Probe) | -52°C to +177°C |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | -9 Vdc ≈ 1.27 mm (50 mils) |
| Incremental Scale Factor (ISF) | 7.87 V/mm ±5% (Standard 5m system) |
| Frequency Response | 0 to 10 kHz |
| Minimum Target Diameter | 15.2 mm (0.6 in) |
| Recommended Shaft Diameter | ≥ 76.2 mm (3 in) |
| Environmental Rating | RFI/EMI immune, CE compliant |
| Compliance | SIL 2/3, FCC, CE, RoHS, ATEX/IECEx |
FAQs
Q1: What does the “50” in the model number signify?
A1: It indicates the total cable length من 5.0 meters.
Q2: Is this probe compatible with older non-XL Bently Nevada systems?
A2: Yes, it is backward compatible and interchangeable with 3300 5 mm and 8 mm series.
Q3: Does it support API 670 compliance?
A3: Yes, the 3300 XL 8 mm series is fully compliant with API 670 standards.
Q4: What type من connector does it use?
A4: It uses gold-plated ClickLoc connectors with armor and protector.
Q5: Can this probe be used in high-vibration environments?
A5: Yes, it is designed specifically for such conditions in turbomachinery.
Q6: What’s the function من the armored cable?
A6: It protects the cable from mechanical damage and harsh environments.
Q7: What is the advantage من the FluidLoc option?
A7: It prevents oil ingress through the cable, suitable for wet machinery.
Q8: Is calibration required when replacing components?
A8: No, the components are fully interchangeable without field calibration.
Q9: What materials are used in the probe’s construction?
A9: The case is stainless steel, and the tip is molded PPS plastic.
Q10: What’s the max pressure rating من the probe tip?
A10: While pressure-rated with a Viton O-ring seal, pressure testing must be specified separately.
