الوصف

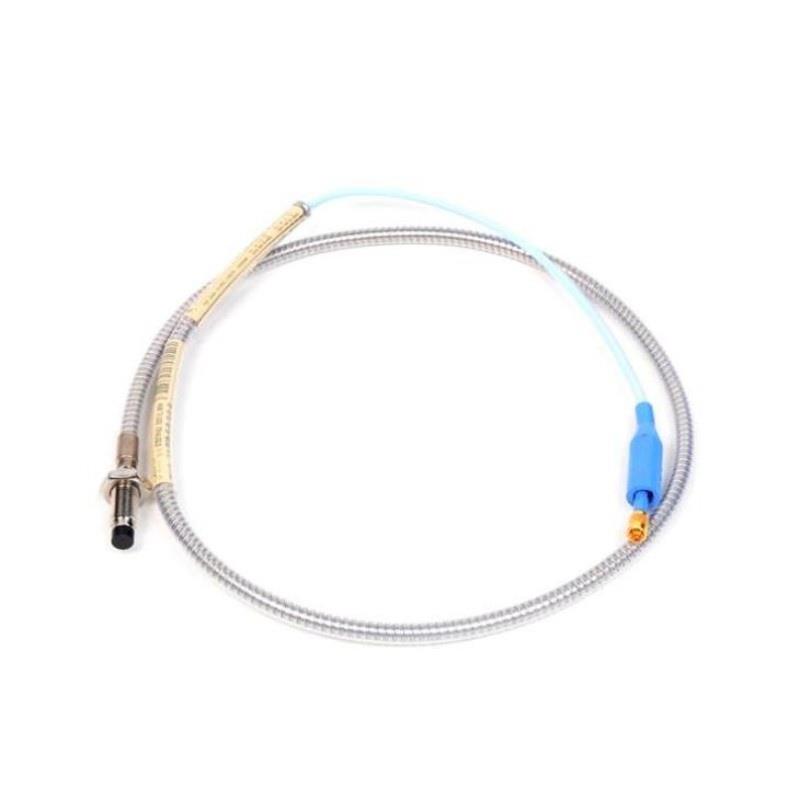

The Bently Nevada 330104-00-07-10-01-CN is a rugged proximity probe designed for use with the 3300 XL 8 mm Proximitor system. It provides precise non-contact measurements من shaft position and vibration in rotating machinery. The probe is equipped with an M10 x 1 thread and armored cable for industrial reliability.
Applications
-
Shaft vibration monitoring
-
Radial and axial position measurements
-
Overspeed and Keyphasor signal generation
-
Fluid-film bearing machine condition monitoring
-
Turbomachinery health diagnostics
Product Advantages
-
Fully compliant with API 670 Standard
-
Durable ClickLoc connectors for secure installation
-
ممتاز temperature and EMI/RFI immوحدةy
-
Backward compatible with non-XL 3300 systems
-
Extended temperature range options available
-
Armor-protected for harsh environments
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 3300 XL 8 mm Proximity Probe |
| رقم القطعة | 330104-00-07-10-01-CN |
| Thread Type | M10 x 1 |
| Total Length | 1.0 meter |
| الوزن | 0.323 kg |
| Tip Material | Polyphenylene sulfide (PPS) |
| Case Material | Stainless Steel (AISI 303/304) |
| Cable Type | Armored, FEP insulated, 75Ω triaxial |
| Minimum Bend Radius | 25.4 mm (1.0 in) |
| Connector Type | Miniature coaxial ClickLoc |
| Operating Temp (Probe) | –52°C to +177°C |
| Pressure Rating | Viton® O-ring sealed, not pressure-tested at factory |
| Interchangeable Components | Yes (with 3300 and XL 5 mm/8 mm systems) |
الأسئلة الشائعة (FAQ)
Q1: What is the main function من this proximity probe?
A1: It measures shaft position and vibration without physical contact.
Q2: Is the 330104-00-07-10-01-CN compatible with other Bently Nevada systems?
A2: Yes, it is backward compatible with non-XL 3300 5 mm and 8 mm components.
Q3: Can this probe be used in high-temperature environments?
A3: Yes, it supports up to +177°C. For higher temperatures, ETR variants are available.
Q4: What is the connector type used?
A4: It uses a gold-plated ClickLoc miniature coaxial connector.
Q5: Is the probe suitable for use in hazardous areas?
A5: Yes, it has CSA, ATEX, and IECEx certifications when properly installed.
Q6: Does it require calibration for different materials?
A6: Yes, it is factory calibrated for AISI 4140 steel. Calibration for other materials is optional.
Q7: What is the typical linear measurement range?
A7: The probe منfers a linear range من 2 mm (80 mils).
Q8: Can the cable be replaced in the field?
A8: Yes, the extension cables are modular and field-replaceable.
Q9: How is the environmental protection ensured?
A9: With armor cabling and optional connector protectors.
Q10: What makes this probe different from 5 mm models?
A10: The 8 mm model has a more rugged design and thicker encapsulation for durability.
Related الطرازs (Same Series)
| الطراز Number | الوصف | Thread Type | Length | الوزن |
|---|---|---|---|---|
| 330101-00-08-10-02-00 | 8 mm probe, UNF thread, armored | 3/8-24 UNF | 1.0 m | 0.323 kg |
| 330102-00-20-10-02-00 | 8 mm probe, UNF thread, armored, 2.0 m | 3/8-24 UNF | 2.0 m | 0.646 kg |
| 330103-00-02-10-02-05 | 8 mm probe, M10 thread, unarmored | M10 x 1 | 1.0 m | 0.289 kg |
| 330105-02-12-10-02-00 | 8 mm reverse-mount probe, armored | 3/8-24 UNF | 1.0 m | 0.350 kg |
| 330191-00-06-10-02-00 | 8 mm ETR probe, UNF thread, armored | 3/8-24 UNF | 1.0 m | 0.365 kg |
| 330194-00-06-10-02-00 | 8 mm ETR probe, M10 thread, armored | M10 x 1 | 1.0 m | 0.365 kg |
Popular الطرازs from Bently Nevada
| الطراز Number | Product الوصف | Type | Length | الوزن |
|---|---|---|---|---|
| 330104-00-06-10-02-00 | 8 mm probe, M10 thread, armored | Proximity Probe | 1.0 m | 0.323 kg |
| 330180-01-00 | 3300 XL Proximitor Sensor | Signal الحالةer | N/A | 0.246 kg |
| 330130-030-00-00 | 3300 XL Extension Cable, 3 m | Extension Cable | 3.0 m | 0.102 kg |
| 330500-02-00 | Velomitor Piezoelectric Velocity Sensor | Velocity Sensor | Fixed | ~0.3 kg |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Vibration Monitor Module | N/A | ~0.45 kg |
| 3500/22M-01-01-00 | Keyphasor Module for Rotational Speed Monitoring | Monitoring Module | N/A | ~0.40 kg |
