Product الوصف

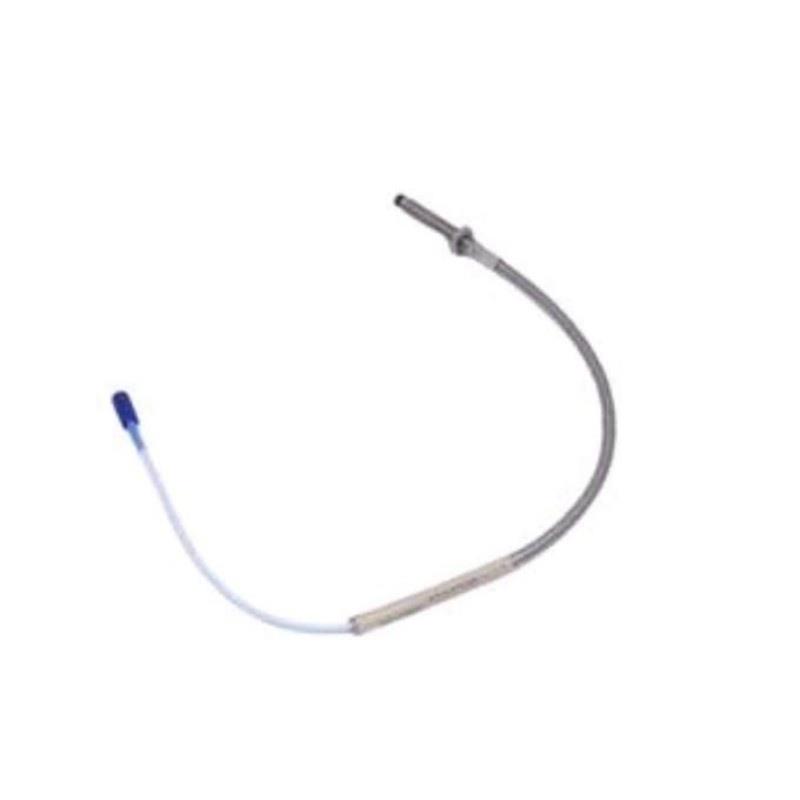

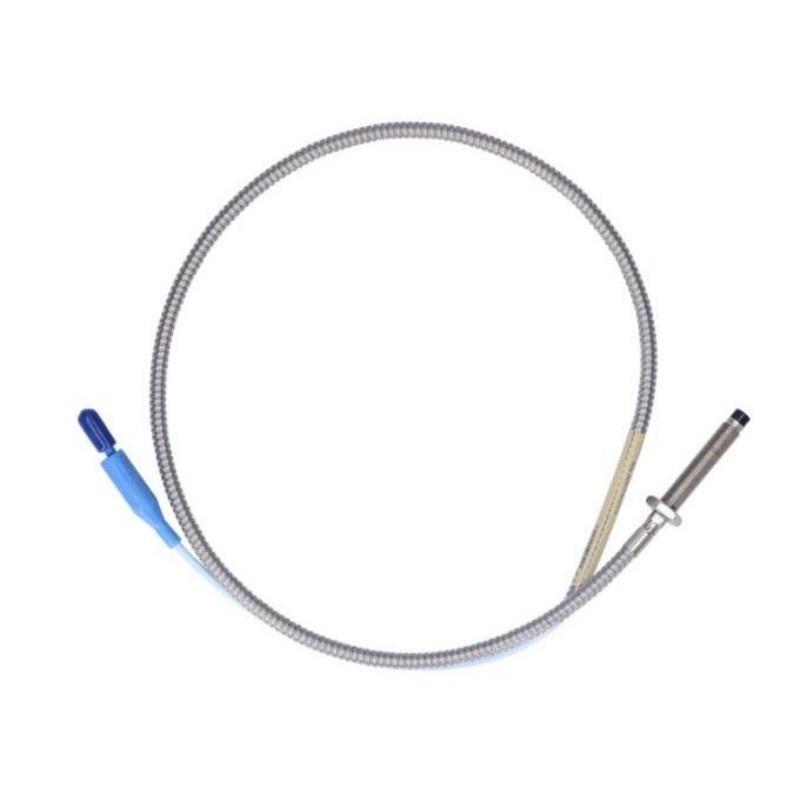

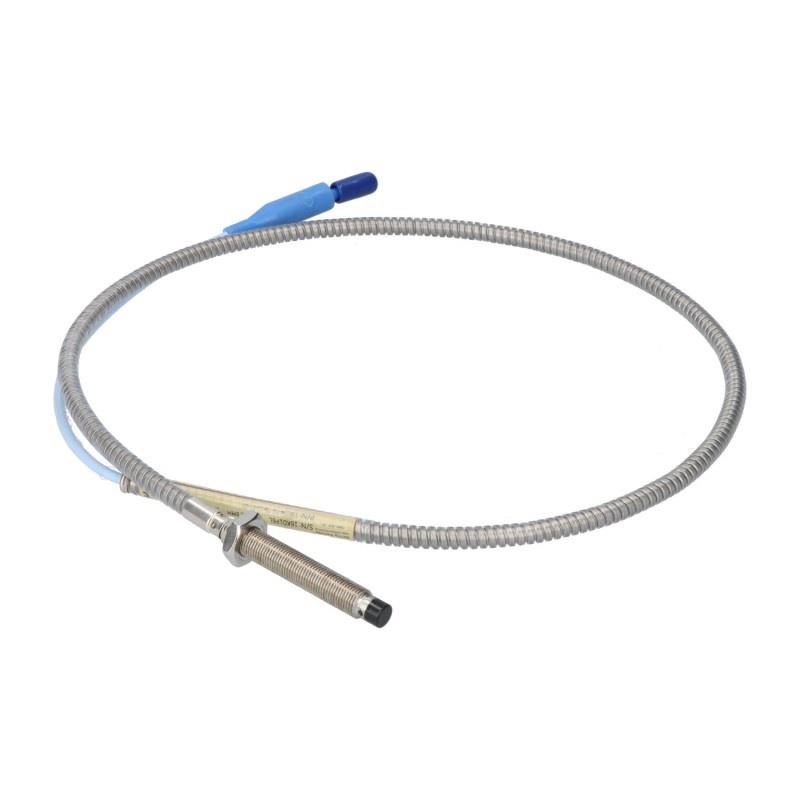

The Bently Nevada 330104-00-06-50-02-CN is part من the 3300 XL 8 mm Proximity Transducer System. Designed for accurate static and dynamic measurements, this probe detects shaft position and vibration in rotating machinery. It is engineered for robust use in demanding environments, منfering high reliability, API 670 compliance, and full compatibility with standard Bently Nevada Proximitor sensors and extension cables.
Product Features
-
API 670 Compliant
-
5.0m Probe Length with armor and standard ClickLoc connector
-
M10x1 Threaded stainless steel probe body
-
ClickLoc Gold-plated Connectors ensure secure, tool-free connection
-
FluidLoc Option متاح for oil sealing
-
Temperature Range: up to +177°C standard, up to +218°C ETR
-
Interchangeable Components with older 3300 systems
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Diameter | 8 mm |
| Probe Thread Type | M10 x 1 |
| Total Length | 5.0 meters |
| الوزن | 1.165 kg (approximate) |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Tip Material | PPS (Polyphenylene sulfide) |
| Cable Type | Triaxial FEP insulated |
| Pull Strength | 330 N (75 lbf) |
| Operating Temp (Standard) | -52°C to +177°C |
| Operating Temp (ETR) | Up to +218°C (tip), +260°C (cable) |
| Connector Type | ClickLoc miniature coaxial |
| Compliance | SIL 2 / SIL 3, CE, RoHS, FCC, ATEX, IECEx |
| Output Sensitivity | 200 mV/mil ±5% |
| Shaft Diameter Recommendation | ≥76.2 mm (3 in) |
| Minimum Bend Radius (Cable) | 25.4 mm (1 in) |
Applications
-
Steam and gas turbines
-
Compressors
-
Gearboxes
-
Pumps
-
Industrial fans
-
Keyphasor speed and reference signal detection
Product Advantages
-
High Precision: ممتاز linearity and scale factor consistency
-
Robust Design: Withstands harsh temperatures and vibration
-
Interchangeable Components: Reduces installation complexity
-
Quick Installation: ClickLoc connectors simplify wiring
-
Extended Lifespan: FluidLoc option prevents fluid ingress
-
Global Certifications: الدعمs hazardous area installations
الأسئلة الشائعة
Q1: What is the main function من this probe?
A1: It measures shaft position and vibration using non-contact eddy current technology.
Q2: Is this probe compliant with API 670?
A2: Yes, it fully meets the mechanical and performance requirements من API 670.
Q3: What is the thread type on the 330104-00-06-50-02-CN?
A3: It uses an M10x1 threaded probe case.
Q4: Can this probe be used in high-temperature environments?
A4: Yes, it supports up to +177°C standard and up to +218°C with the ETR option.
Q5: What is the output sensitivity من this probe?
A5: It delivers 200 mV/mil ±5%.
Q6: Are the connectors tool-free?
A6: Yes, ClickLoc connectors require only finger tightening.
Q7: Is the probe backward compatible?
A7: Yes, it is compatible with non-XL 3300 series 8 mm components.
Q8: Can I install it in a hazardous area?
A8: Yes, with appropriate barriers and certifications (ATEX, CSA, IECEx).
Q9: How is the probe protected from environmental damage?
A9: Connector protectors and armored cables provide robust environmental shielding.
Q10: What shaft sizes is this probe suited for?
A10: Recommended for shaft diameters من 76.2 mm (3 in) or larger.
Related الطرازs (Same Series)
| الطراز | Thread Type | Length | Armor | Special Feature |
|---|---|---|---|---|
| 330101-00-20-10-02-00 | 3/8-24 UNF | 2.0 m | No | Standard model |
| 330102-00-20-10-02-05 | 3/8-24 UNF | 2.0 m | Yes | With armor |
| 330103-00-04-10-02-00 | M10 x 1 | 1.0 m | No | Metric thread |
| 330104-00-06-10-02-00 | M10 x 1 | 1.0 m | Yes | Metric + armored |
| 330105-02-12-10-02-05 | 3/8-24 UNF | 1.0 m | Yes | Reverse-mount armored |
| 330106-05-30-10-02-00 | M10 x 1 | 1.0 m | No | Reverse-mount metric thread |
Popular الطرازs from Bently Nevada
| الطراز | Type | Function | Key Feature |
|---|---|---|---|
| 330180-91-CN | Proximitor Sensor | Interfaces with 8 mm probes | Panel mount, 9m system |
| 330130-040-00-05 | Extension Cable | Connects probe to sensor | 4.0 m, standard cable |
| 3500/42M-01-00 | Proximitor Seismic Monitor | Vibration monitoring | 4-channel, buffered output |
| 3500/15-05-01-00 | Power Supply Module | Power distribution | 24V DC input |
| 330104-00-06-10-02-00 | Proximity Probe | Metric threaded probe | 1.0 m armored |
| 330104-00-06-90-02-00 | Proximity Probe | Metric threaded, 9m system | Long cable for remote install |
