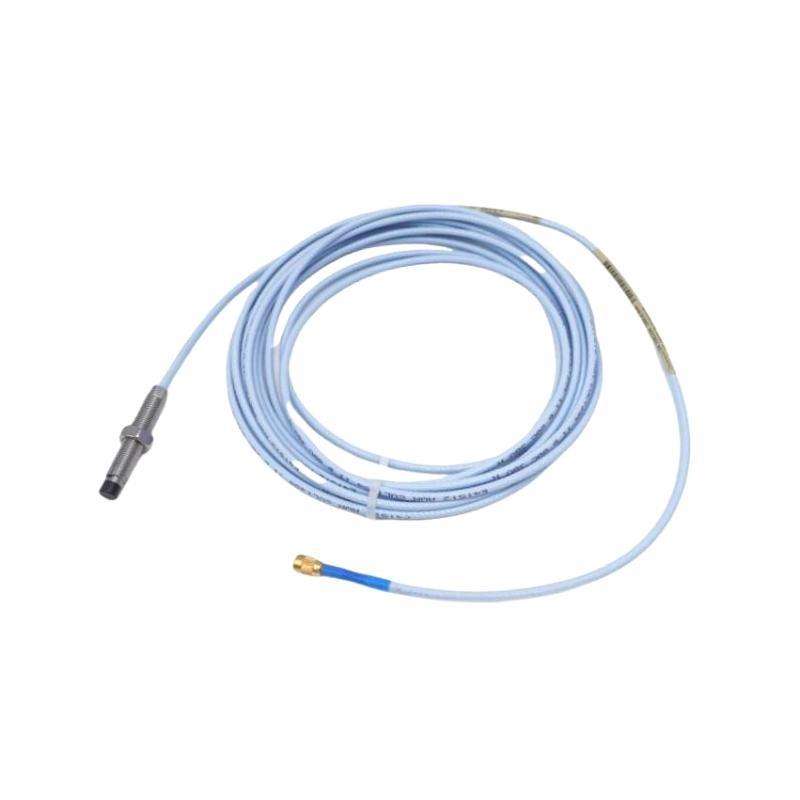

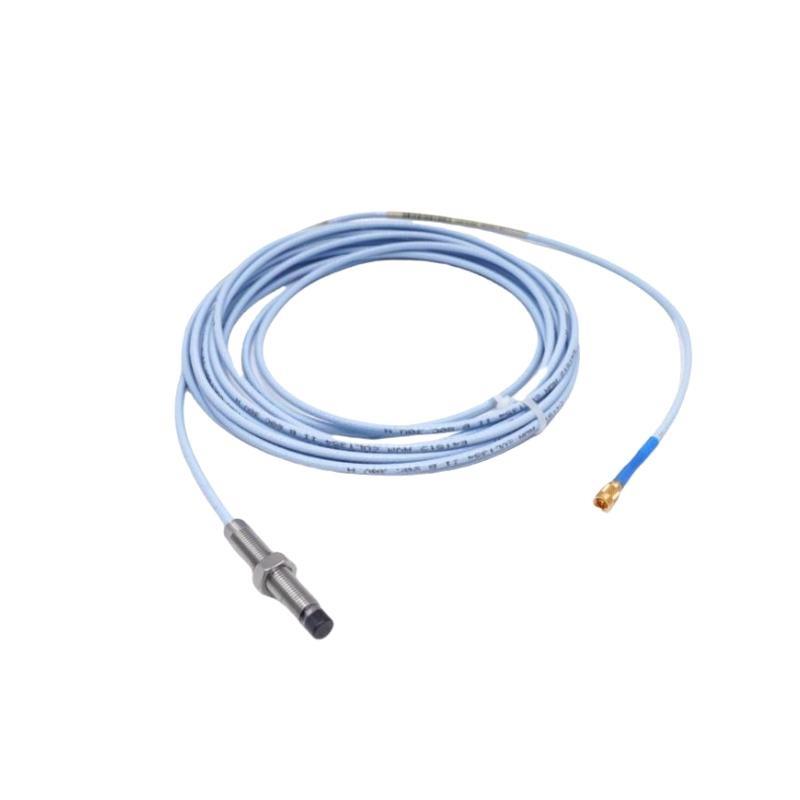

The Bently Nevada 330104-00-05-50-02-00 3300 XL 8mm Proximity Probe is part من the industry-leading 3300 XL 8mm Proximity Probe Series. Designed to deliver high-accuracy shaft position and vibration measurements, it ensures critical machinery protection in compliance with API 670 standards.
Produced by Bently Nevada (a Baker Hughes company), this probe combines superior linearity, excellent long-term stability, and robust construction, making it an ideal choice for condition monitoring in challenging industrial environments. The 330104-00-05-50-02-00 model features a 5-meter probe cable and a 90-degree 50-series connector, providing installation flexibility for space-constrained locations.
It is fully compatible with 3300 XL Proximitor sensors and monitoring systems, making it a reliable tool in predictive maintenance programs across industries such as power generation, oil & gas, petrochemical, marine, and metals & mining.
مواصفات المنتج
| Specification | Details |
|---|---|
| الطراز | 330104-00-05-50-02-00 |
| Series | 3300 XL 8mm Proximity Probes |
| الشركة المصنعة | Bently Nevada (Baker Hughes) |
| Sensing Range | 0 to 2 mm (80 mils) |
| Linear Range | 0.25 mm to 2 mm (10 mils to 80 mils) |
| Non-linearity | ±0.75% من full-scale range |
| Probe Tip Diameter | 8 mm |
| Total Length | 5 meters |
| Thread Type | 1/4-28 UNF |
| Connector Type | 90-degree 50-series connector |
| Probe Body Material | Stainless Steel |
| Cable Jacket Material | Polyethylene (PE), optional FEP |
| Operating Temperature (Probe) | -35°C to +177°C |
| Operating Temperature (Cable) | -51°C to +177°C |
| System Compatibility | 3300 XL Proximitor drivers and monitors |
| Compliance | API 670 certified |
| الوزن | 1.615 kg |
Applications
The 330104-00-05-50-02-00 Proximity Probe is trusted globally for real-time monitoring من critical rotating machinery in various industries:
-
Power Generation
Steam and gas turbines, generators, feedwater pumps, and critical plant motors. -
Oil & Gas
Compressors, centrifugal and reciprocating pumps, expanders, and motors in upstream, midstream, and downstream operations. -
Petrochemical and Chemical Plants
Rotating equipment monitoring in hazardous chemical processing environments. -
Marine & Offshore
Propulsion systems, auxiliary generators, and compressors on ships and منfshore platforms. -
Metals and Mining
Gearboxes, large motors, mill drives, and conveyor systems in mining and metals industries. -
Pulp & Paper
Paper machines, rollers, fans, and drive motors in pulp and paper production facilities.
Advantages
The 330104-00-05-50-02-00 Proximity Probe delivers numerous operational benefits:
-
Precision Monitoring
Accurate and repeatable measurement من shaft position and vibration. -
API 670 Compliance
Meets global industry standards for rotating machinery protection. -
Durable Construction
Stainless steel housing and robust cable for long service life in demanding environments. -
Wide Temperature Range
Operates across extreme temperatures from -35°C to +177°C (probe), -51°C to +177°C (cable). -
Space-Saving Installation
90-degree connector simplifies mounting in confined spaces. -
Flexible System Length
Works with various extension cable lengths to meet site requirements. -
Seamless System Integration
Fully compatible with 3300 XL Proximitor sensors and monitors. -
Reduced Maintenance
High stability and low drift minimize the need for frequent recalibration.
FAQs
-
What is the sensing range من this probe?
0 to 2 mm (80 mils). -
What is the connector type من this model?
90-degree 50-series connector. -
What is the standard cable length?
5 meters. -
Is this probe compliant with API 670?
Yes, it meets API 670 certification. -
What temperature ranges can it withstand?
Probe: -35°C to +177°C; Cable: -51°C to +177°C. -
Can it be installed in space-restricted areas?
Yes, the 90-degree connector allows installation in tight spaces. -
Is it compatible with older Bently Nevada monitors?
Yes, it integrates fully with 3300 XL systems. -
What industries typically use this probe?
Power generation, oil & gas, chemicals, mining, marine, and pulp & paper. -
How منten is recalibration required?
Minimal recalibration is needed due to the probe’s high stability. -
What is the linear range من this probe?
0.25 mm to 2 mm (10 mils to 80 mils).
Related الطرازs
| الطراز | الوصف | Key Features |
|---|---|---|
| 330104-00-04-10-02-CN | 8mm Proximity Probe (4 m cable, straight connector) | API 670 certified, standard installation |
| 330104-00-05-10-02-00 | 8mm Proximity Probe (5 m cable, straight connector) | API 670, flexible routing |
| 330103-06-13-10-02-00 | 8mm Proximity Probe (6 m probe, 13 m cable) | Longer cable for large machines |
| 330103-07-12-10-02-00 | 8mm Proximity Probe (7 m probe, 12 m cable) | For medium-to-large systems |
| 330103-06-25-10-02-00 | 8mm Proximity Probe (6 m probe, 25 m cable) | Extended length applications |
| 330106-05-10-10-02-05 | NSv Narrow Surface Probe | Tight clearance and restricted access |
Popular الطرازs from Bently Nevada
| الطراز | الوصف | Key Features |
|---|---|---|
| 3300 XL 8mm Proximity Probes | Standard 8mm proximity probes | High accuracy shaft monitoring |
| 3300 XL 11mm Proximity Probes | Large tip probes for wider gaps | For large shaft clearance |
| 3300 XL NSv Proximity Probes | Narrow Surface proximity probes | Ideal for space-restricted applications |
| 3500/42M Proximitor Monitor | Proximitor driver with advanced monitoring | Diagnostics and protection من critical assets |
| 330400 Velomitor Sensor Series | Vibration velocity sensors | Case-mounted vibration monitoring |
| 3500/22M Transient Data Interface | High-speed transient data capture | For advanced condition monitoring |
