Product Overview

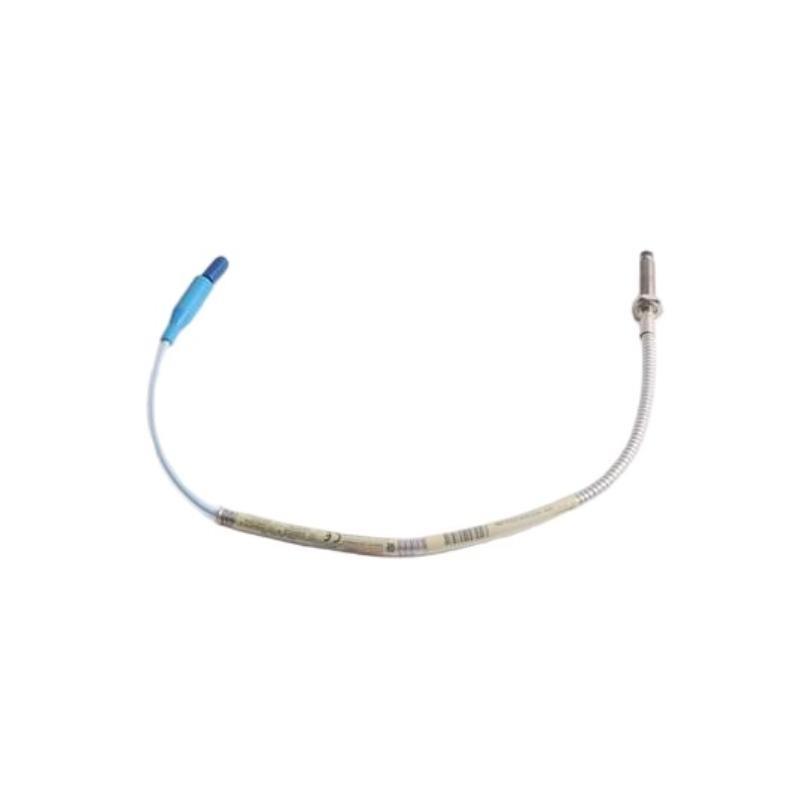

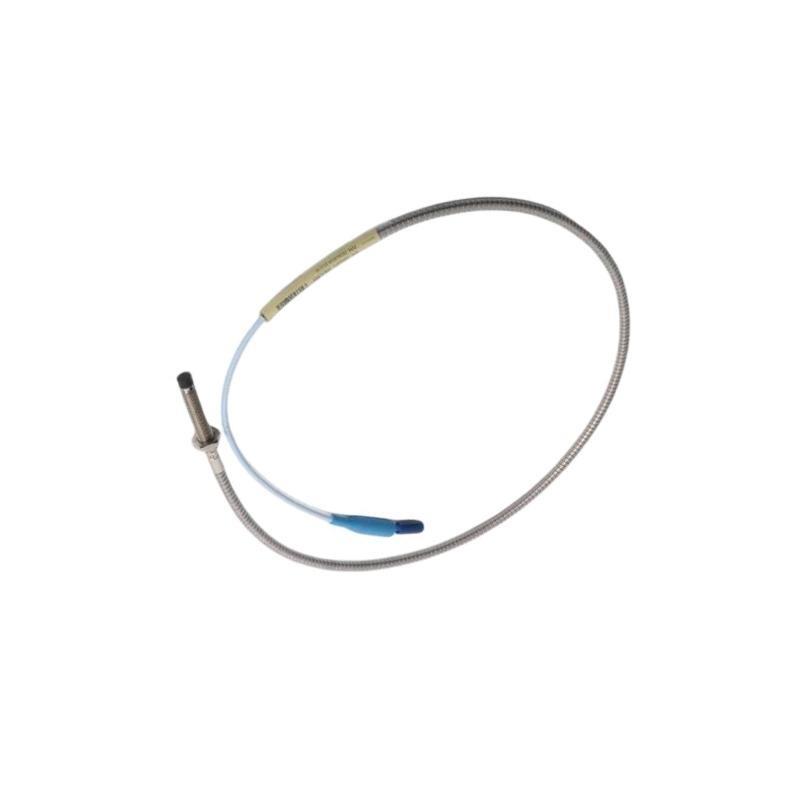

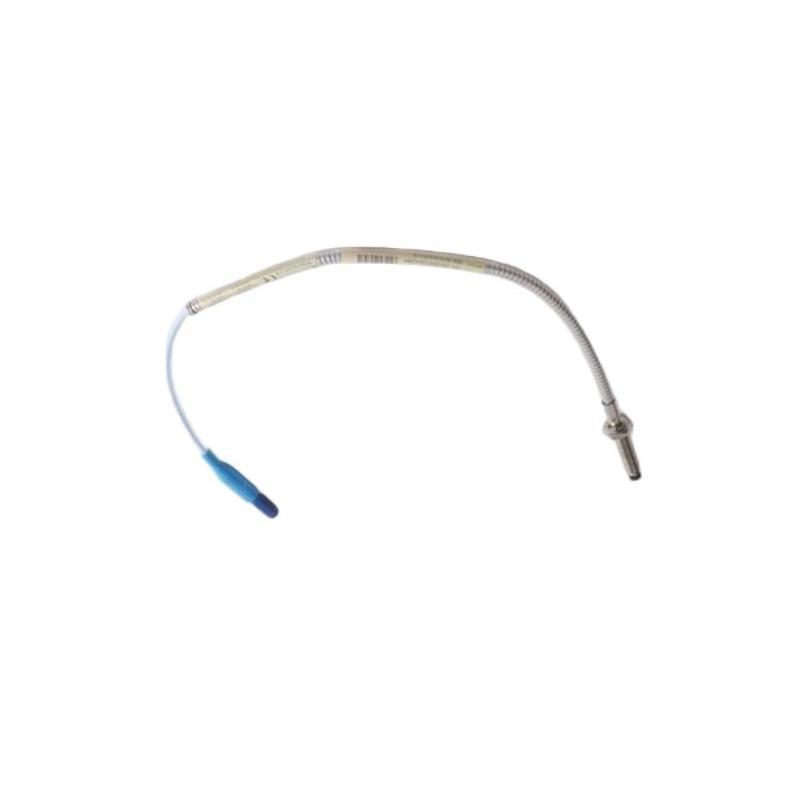

The Bently Nevada 330104-00-05-05-01-05 is a high-precision 8 mm proximity probe from the renowned 3300 XL series, designed for continuous shaft vibration and position monitoring in critical rotating machinery. Manufactured by Baker Hughes, this model features a 5-foot (1.52 meters) cable length, ideal for installations requiring medium-range sensor placement.
Engineered with a corrosion-resistant stainless steel body and a polyphenylene sulfide (PPS) tip, the probe منfers excellent durability and environmental resistance. Its advanced electromagnetic shielding ensures clean, accurate signal transmission. Compatible with the 3300 XL Proximitor® sensor system, it supports machinery protection and condition monitoring applications conforming to API 670 standards.
Key Features
-
8 mm probe tip diameter for precise sensing
-
5-foot (1.52 m) molded miniature coaxial cable for flexible installation
-
Stainless steel probe body with high corrosion resistance
-
High immوحدةy to EMI/RFI interference for reliable signal quality
-
Reverse polarity and overvoltage protection
-
IP68-rated for dust and water ingress protection
-
Compliant with API 670 machinery protection standards
-
CE and RoHS certified for global regulatory compliance
Technical Specifications
| Item | Specification |
|---|---|
| Product الطراز | 330104-00-05-05-01-05 |
| Product Family | 3300 XL 8 mm Proximity Probe |
| Sensing Range | 0.5 to 2.0 mm (20 to 80 mils) |
| Probe Tip Diameter | 8 mm |
| Cable Length | 5 feet (1.52 meters) |
| Connector Type | Molded miniature coaxial connector |
| Probe Body Material | AISI 303 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Thread Type | M10 × 1.0 or 3/8-24 UNF (application-dependent) |
| Operating Temperature | -35°C to +177°C |
| Storage Temperature | -51°C to +177°C |
| Vibration Limit | 10 g peak, 10-2000 Hz |
| Shock Limit | 1000 g, 1 ms, ½ sine wave |
| Environmental Protection | IP68 (probe only) |
| الوزن | 0.161 kg |
| Dimensions | Total Length : 0.5 meter |
Industry Applications
-
Steam, gas, and hydraulic turbines
-
Compressors and pumps
-
Electric motors and generators
-
Gearboxes and drive trains
-
Petrochemical and refining plants
-
Power generation facilities
-
Marine propulsion systems
-
General rotating machinery condition monitoring
Product Advantages
-
Robust and corrosion-resistant design ensures long operational life
-
High measurement accuracy and stability with factory-matched components
-
5-foot cable length supports versatile installation options
-
ممتاز EMI/RFI shielding minimizes electrical noise
-
IP68 ingress protection suitable for harsh environments
-
Meets API 670 machinery protection standards
-
Enables predictive maintenance and reduces unexpected downtime
-
Fully compatible with Bently Nevada 3300 XL monitoring systems
-
Simplifies installation with standardized connectors and cables
-
الدعمed by Baker Hughes’ global technical service network
الأسئلة الشائعة (FAQ)
-
What cable length does this probe have?
It features a 5-foot (1.52 meter) molded miniature coaxial cable. -
Is this probe compatible with the full 3300 XL system?
Yes, it is designed for seamless integration with all 3300 XL components. -
What sensing range does this probe cover?
The sensing range is 0.5 to 2.0 mm (20 to 80 mils). -
Can this probe operate in harsh industrial conditions?
Yes, it is built for extreme temperatures, vibration, moisture, and dust. -
What connector type is used?
Molded miniature coaxial connector. -
What is its ingress protection rating?
IP68, fully dust-tight and water resistant. -
Does this probe meet industry standards?
Yes, it complies with API 670 for machinery protection systems. -
Is calibration required before installation?
Factory calibration is standard; field verification is recommended. -
What materials are used in the probe?
Probe body is stainless steel; tip is polyphenylene sulfide (PPS). -
Are custom cable lengths available?
Custom lengths can be requested from Baker Hughes.
