Product Overview

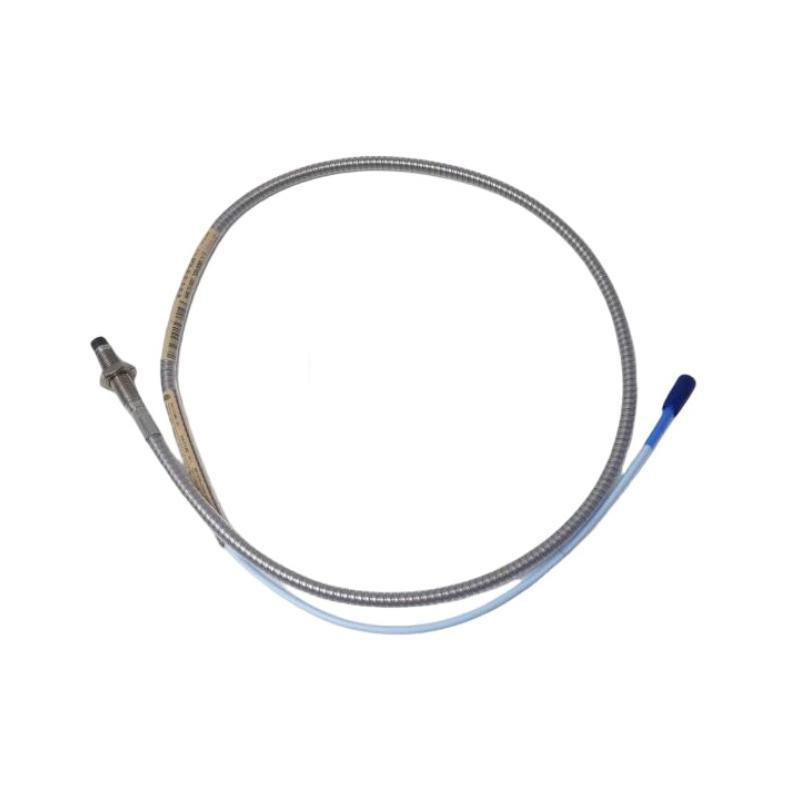

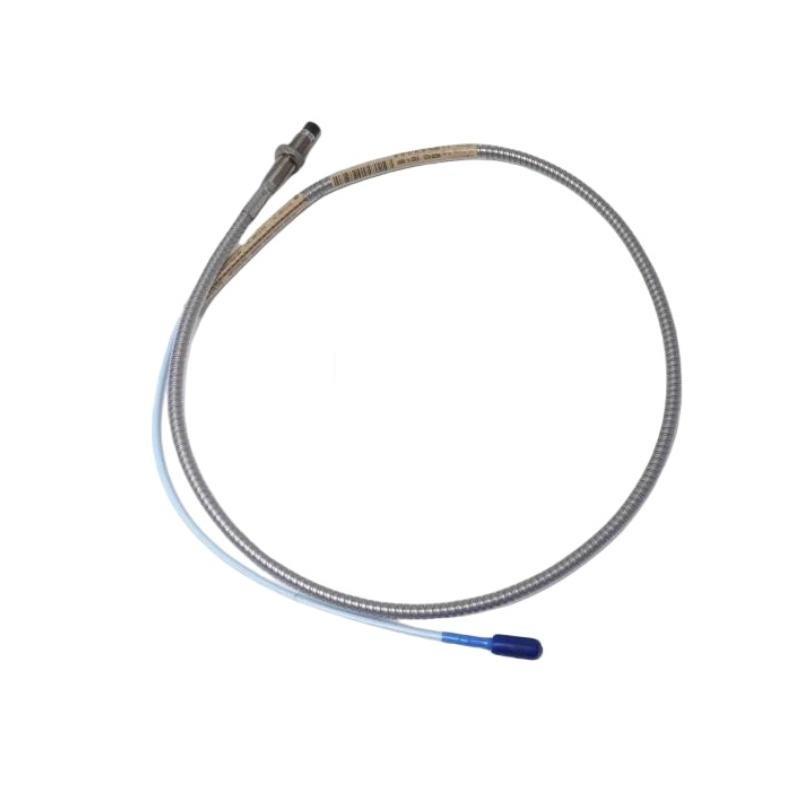

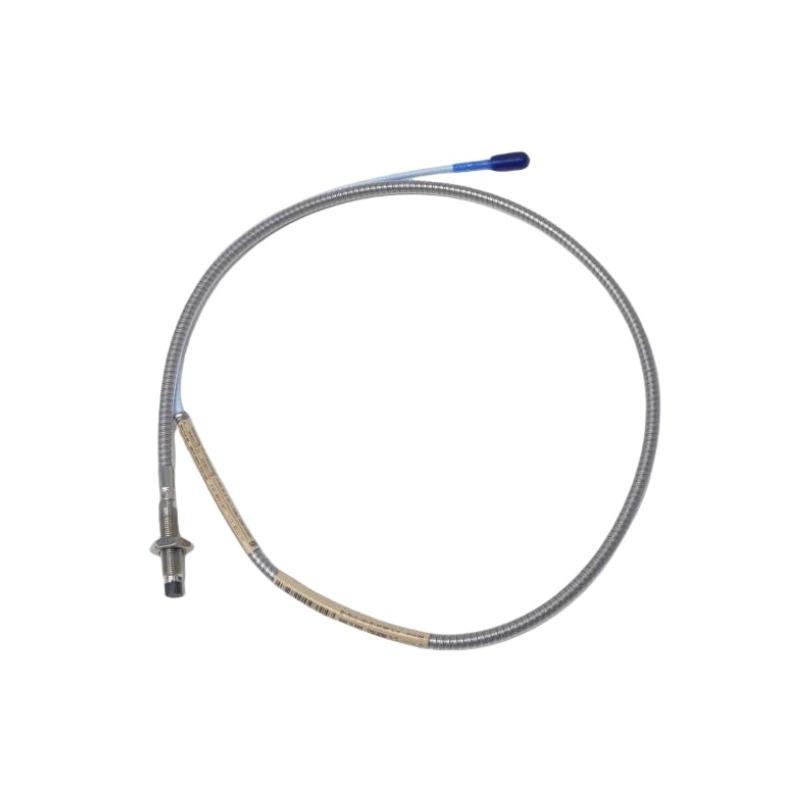

The Bently Nevada 330104-00-04-10-02-05 is a precision 8 mm proximity probe from the trusted 3300 XL series, designed for continuous vibration and position monitoring in critical rotating machinery. Manufactured by Baker Hughes, this model features a 4-foot (1.22 meter) cable length and is engineered to deliver reliable, high-fidelity signals in harsh industrial environments.
With a rugged stainless steel body and advanced electromagnetic shielding, the probe maintains measurement accuracy and durability. It is designed for integration with Bently Nevada’s 3300 XL Proximitor® sensor system to support machinery protection and condition monitoring solutions, enabling early detection من faults and improved maintenance planning.
Key Features
-
8 mm probe tip diameter for precise vibration sensing
-
4-foot (1.22 m) molded miniature coaxial cable for flexible installation
-
Stainless steel probe body resistant to corrosion and wear
-
High immوحدةy to EMI/RFI interference ensures clean signal transmission
-
Reverse polarity and overvoltage protection for enhanced durability
-
IP68 rated for protection against dust and water ingress
-
Compliance with API 670 machinery protection standards
-
CE and RoHS certifications for global regulatory compliance
Technical Specifications
| Item | Specification |
|---|---|
| Product الطراز | 330104-00-04-10-02-05 |
| Product Family | 3300 XL 8 mm Proximity Probe |
| Sensing Range | 0.5 to 2.0 mm (20 to 80 mils) |
| Probe Tip Diameter | 8 mm |
| Cable Length | 4 feet (1.22 meters) |
| Connector Type | Molded miniature coaxial connector |
| Probe Body Material | AISI 303 Stainless Steel |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Thread Type | M10 × 1.0 or 3/8-24 UNF (application-dependent) |
| Operating Temperature | -35°C to +177°C |
| Storage Temperature | -51°C to +177°C |
| Vibration Limit | 10 g peak, 10-2000 Hz |
| Shock Limit | 1000 g, 1 ms, ½ sine wave |
| Environmental Protection | IP68 (probe only) |
| الوزن | 0.323 kg |
| Dimensions | Total Length : 1.0 meter |
Industry Applications
-
Steam, gas, and hydraulic turbines
-
Compressors and pumps
-
Electric motors and generators
-
Gearboxes and drive trains
-
Petrochemical and refining plants
-
Power generation facilities
-
Marine propulsion systems
-
General rotating machinery condition monitoring
Product Advantages
-
Rugged design ensures reliable operation in demanding industrial environments
-
High measurement accuracy and stability with factory-matched components
-
Flexible 4-foot cable length for versatile installation options
-
Superior EMI/RFI shielding to minimize electrical noise
-
IP68 ingress protection rating enables use in wet and dusty conditions
-
Meets internationally recognized API 670 machinery protection standards
-
الدعمs predictive maintenance strategies to reduce unplanned downtime
-
Fully compatible with Bently Nevada 3300 XL system components
-
Simplifies installation and maintenance with standardized connectors and cables
-
Backed by Baker Hughes’ global technical support and service network
الأسئلة الشائعة (FAQ)
-
What is the cable length من this probe?
It has a 4-foot (1.22 meter) molded coaxial cable. -
Is this probe compatible with all Bently Nevada 3300 XL components?
Yes, it is designed for full compatibility with the 3300 XL system. -
What sensing range does this probe منfer?
The linear sensing range is 0.5 to 2.0 mm (20 to 80 mils). -
Can this probe withstand harsh industrial environments?
Yes, it is rated for extreme temperatures, vibration, and moisture exposure. -
What type من connector does it use?
A molded miniature coaxial connector is standard. -
What is the ingress protection rating?
IP68, suitable for protection against dust and water. -
Does it meet any industry standards?
It complies with API 670 machinery protection standards. -
Is factory calibration provided?
Yes, factory calibration ensures accuracy; field verification is recommended. -
What materials are used in the probe?
Stainless steel body and polyphenylene sulfide (PPS) tip. -
Are custom cable lengths available?
Custom cable lengths may be available upon request from the manufacturer.
Related الطرازs
| الطراز Number | الوصف |
|---|---|
| 330104-00-03-10-02-00 | 3 ft cable length probe |
| 330104-00-05-10-02-00 | 5 ft cable length probe |
| 330104-00-10-10-02-05 | 10 ft cable length probe with armored cable |
| 330103-00-04-10-02-05 | Similar 4 ft cable length 3300 XL probe |
| 330104-00-15-10-02-CN | 15 ft cable length probe |
| 330104-00-20-10-02-00 | 20 ft cable length probe |
Popular Bently Nevada الطرازs
| الطراز Number | الوصف |
|---|---|
| 330105-02-12-05-02-00 | 3300 XL Proximitor Sensor |
| 330104-00-10-10-02-05 | 10 ft extension cable for 3300 XL systems |
| 330130-045-00-05 | Standard 4.5 m extension cable |
| 3500/22M-01-01-00 | 3500 Series Communication Gateway Module |
| 3500/42M-01-00 | 3500 Series Vibration Monitor Module |
| 330180-91-00 | DIN rail mountable Proximitor Sensor |
