مقدمة المنتج

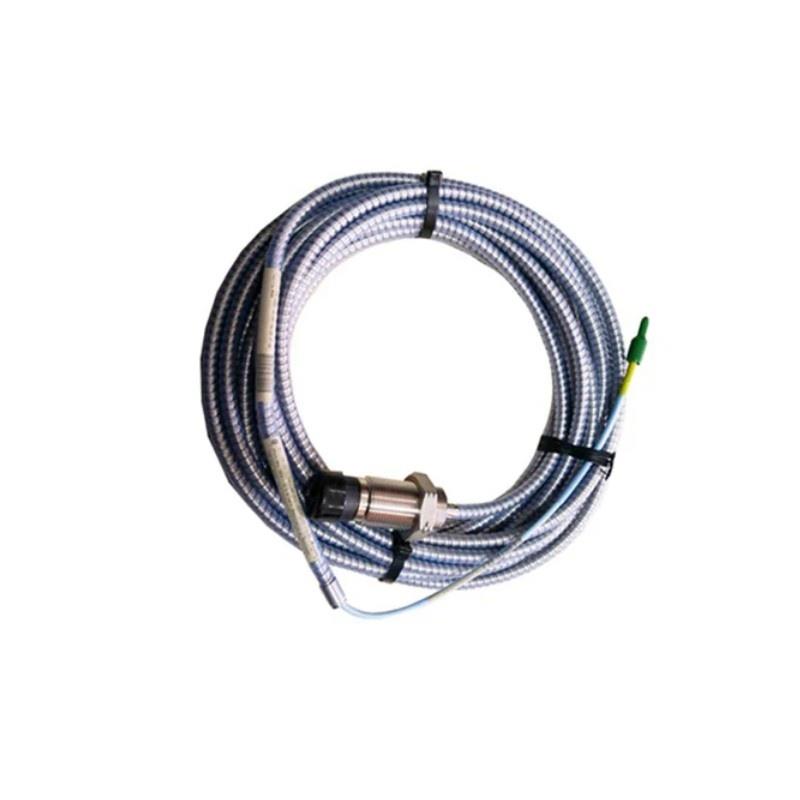

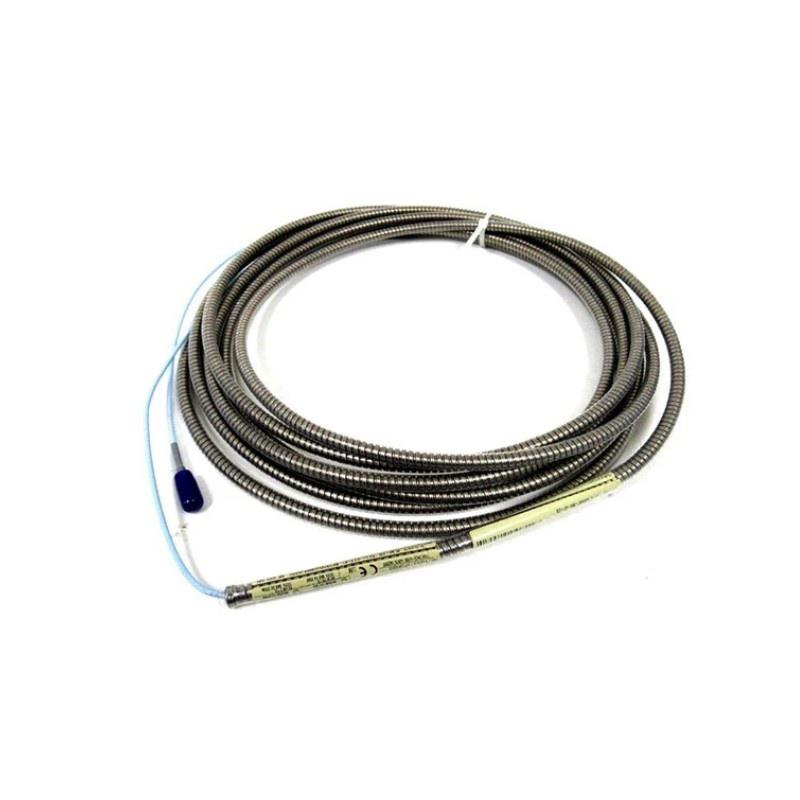

The Bently Nevada 330104-00-03-50-01-05 3300 XL 8 mm Proximity Probe is a high-precision component within the 3300 XL series, engineered for vibration monitoring and shaft position measurement in rotating machinery. It is designed to deliver consistent accuracy in harsh industrial environments, ensuring that operators receive reliable data for predictive maintenance and machine protection systems. With robust construction and compatibility with standard 3300 XL extension cables and proximitor modules, this probe is widely adopted in oil & gas, power generation, and heavy industrial applications.
Product Parameters
| Parameter | Specification |
|---|---|
| الطراز Number | 330104-00-03-50-01-05 |
| Series | 3300 XL 8 mm Proximity Probe |
| Tip Diameter | 8 mm |
| Material | Stainless steel housing |
| Operating Temperature | -35 °C to +177 °C |
| Storage Temperature | -45 °C to +200 °C |
| الوزن | 1.615 kg |
| Total Length | 5 m |
| Compatible Proximitor | 3300 XL Proximitor Sensor |
| Sensitivity | 200 mV/mil (7.87 mV/μm) |
Product Applications
-
Rotating Machinery: Shaft vibration and displacement measurements.
-
Turbomachinery: Steam and gas turbines, compressors, and expanders.
-
Industrial Equipment: Motors, pumps, fans, and gearboxes.
-
الحالة Monitoring Systems: Works with Bently Nevada monitoring racks for predictive maintenance.
-
Machine Protection Systems: Triggers alarms and shutdowns when dangerous vibration levels are detected.
Product Advantages
-
High Accuracy: Provides reliable and linear response across the operating range.
-
Durability: Resistant to high temperatures and harsh industrial conditions.
-
Compatibility: Fully integrates with 3300 XL extension cables and proximitor sensors.
-
Noise Immوحدةy: Enhanced shielding to reduce electrical interference.
-
Long Service Life: Rugged design with corrosion-resistant materials.
-
Ease من Installation: Standardized connectors and flexible cable routing.
FAQ
Q1: How does the 3300 XL 8 mm probe achieve accurate displacement measurement?
A1: It uses eddy-current technology that generates a stable magnetic field, detecting changes in distance between the probe tip and the shaft surface.
Q2: Can this probe be directly connected to the monitoring system without a proximitor?
A2: No, it must be connected to a 3300 XL Proximitor Sensor, which conditions the signal before transmission to the monitoring system.
Q3: What is the typical sensitivity calibration من this probe?
A3: The probe provides a sensitivity من approximately 200 mV/mil (7.87 mV/µm), ensuring precise measurement من shaft displacement.
Q4: Is the probe affected by shaft surface conditions?
A4: Yes, shaft material and surface finish can influence accuracy; standard practice recommends using a conductive, polished surface.
Q5: How is electrical noise minimized in this probe?
A5: The cable and probe feature superior shielding to suppress EMI and RFI, ensuring clean signals even in noisy industrial environments.
Q6: What happens if the system length does not match probe specifications?
A6: Mismatched system lengths can result in incorrect calibration and inaccurate measurements; probes must be paired with the correct extension cable and proximitor.
Q7: How does temperature variation impact probe performance?
A7: The probe is designed with thermal stability, maintaining accuracy across -35 °C to +177 °C, though extreme fluctuations may still introduce minor drift.
Q8: Can the probe be used in hazardous environments?
A8: Yes, when installed with properly rated proximitor and extension cables, it can comply with hazardous area certifications.
Q9: How is probe linearity tested?
A9: Linearity is verified during calibration using reference targets, ensuring consistent response throughout the measurement range.
Q10: What is the maximum cable length supported in this configuration?
A10: The system supports a total length من 5 m, comprising the probe cable and extension cable, without affecting accuracy.
Same-Series or Related الطرازs
| الطراز Number | الوصف |
|---|---|
| 330104-00-04-10-01-05 | 3300 XL 8 mm probe with 4 m cable length |
| 330104-00-02-10-01-00 | 3300 XL 8 mm probe with 2 m cable length |
| 330104-00-02-50-02-05 | 3300 XL 8 mm probe with different termination style |
| 330104-00-03-05-02-05 | 3300 XL 8 mm probe with 3 m cable, alternate configuration |
| 330104-00-04-10-02-05 | 3300 XL 8 mm probe, 4 m cable, angled connector |
| 330104-00-02-20-01-05 | 3300 XL 8 mm probe with short cable and alternate routing option |
Popular Bently Nevada الطرازs
| الطراز Number | الوصف |
|---|---|
| 330103-00-04-10-02-00 | 3300 XL 11 mm Proximity Probe |
| 330106-05-30-05-02-00 | 3300 XL 5 mm Proximity Probe |
| 330130-045-00-00 | Extension Cable for 3300 XL probes |
| 330180-51-00 | 3300 XL Proximitor Sensor |
| 3500/42M | Proximitor/Seismic Monitor Module |
| 3500/22M | Transient Data Interface Module |
| 3500/32M | Relay Module for machine protection |
| 330500-02-00 | Velocity Seismoprobe Transducer |
