مقدمة المنتج

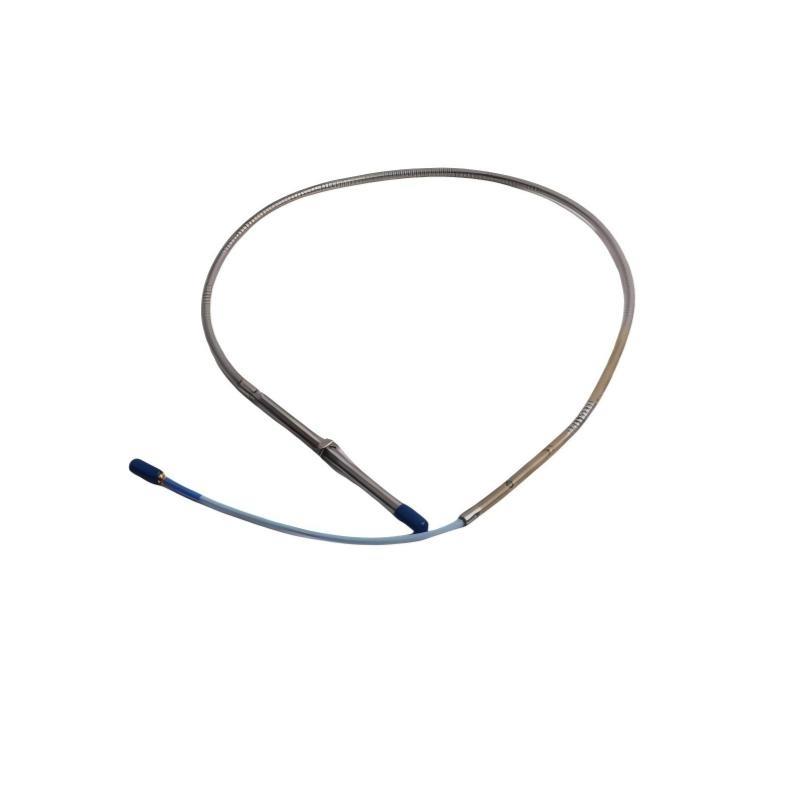

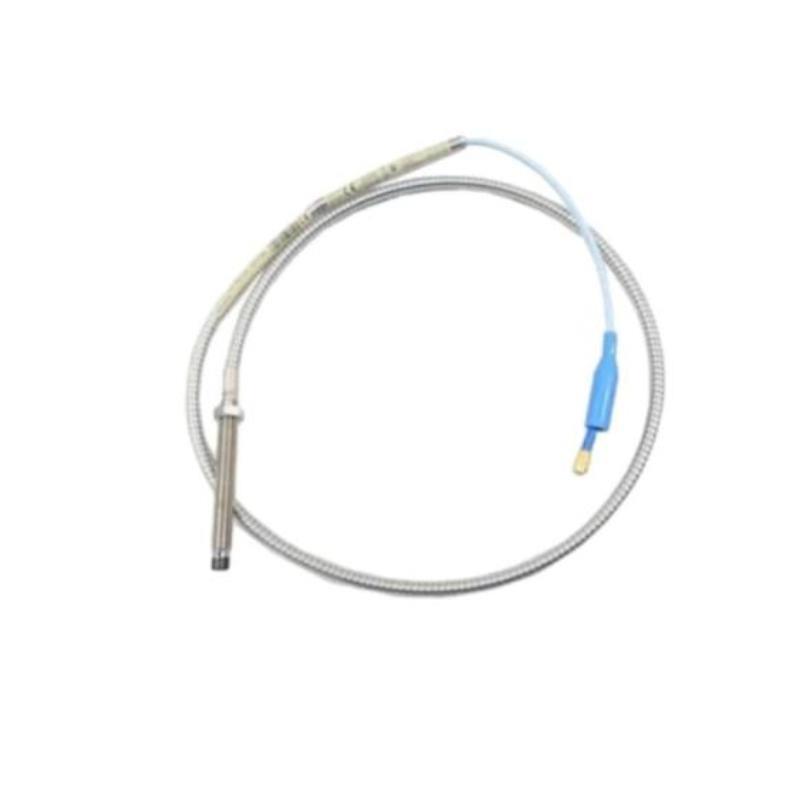

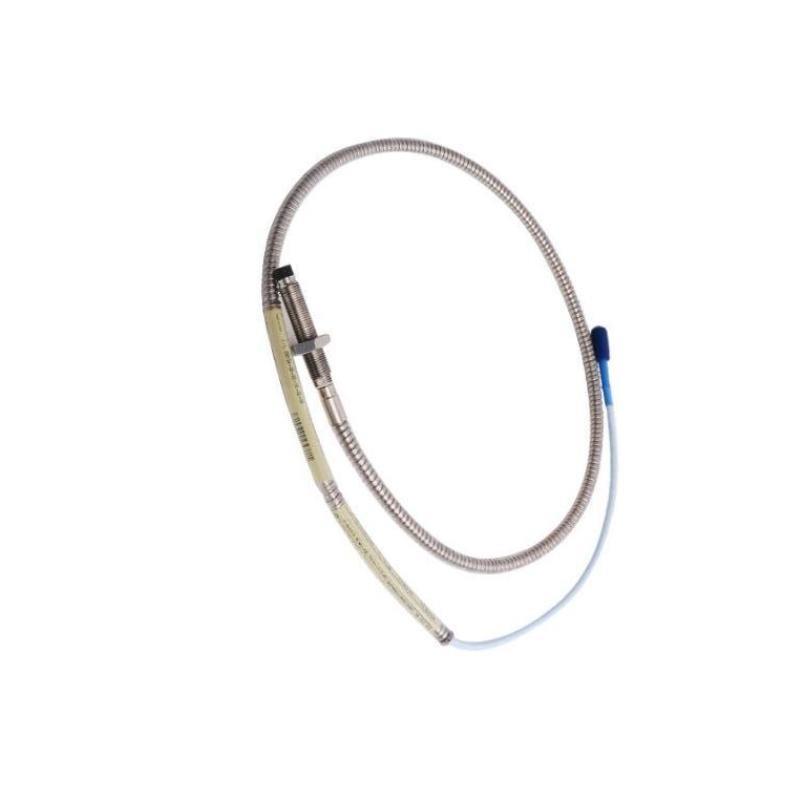

The Bently Nevada 330104-00-03-20-02-05 3300 XL 8 mm Proximity Probe is part من the well-recognized 3300 XL series designed for vibration and position monitoring in rotating machinery. This probe منfers high precision, robust performance, and excellent linearity across its measurement range. It is widely used in industrial applications where reliable condition monitoring is crucial for machinery health, such as turbines, compressors, motors, and pumps.
Product Parameters
| Parameter | الوصف |
|---|---|
| الطراز Number | 330104-00-03-20-02-05 |
| Series | 3300 XL |
| Overall System Accuracy | ±5% |
| Total Length | 2 m |
| الوزن | 0.646 kg |
| Operating Temperature | -35 °C to +177 °C |
| Frequency Response | 0 to 10 kHz |
| Compatible Driver | 3300 XL Proximitor Sensor |
| Insulation Resistance | >10 MΩ |
| Mounting Thread | M10 × 1 or 3/8-24 UNF depending on configuration |
Product Applications
-
Monitoring shaft vibration in turbines, compressors, and pumps.
-
Measuring rotor-to-stator clearance in rotating equipment.
-
Detecting shaft displacement and runout.
-
Providing input signals for condition monitoring systems and machinery protection systems.
-
الدعمing long-term reliability monitoring in high-speed rotating machinery.
Product Advantages
-
High Reliability: Built to withstand harsh industrial conditions including high temperature and vibration environments.
-
Consistent Accuracy: ممتاز linearity ensures precise vibration and displacement measurement.
-
Compatibility: Fully compatible with Bently Nevada proximitor sensors and monitoring systems.
-
Extended Range: Offers a robust measurement range for a wide range من machinery types.
-
Durability: Rugged construction with corrosion-resistant materials.
-
Ease من Installation: Compact probe size and multiple mounting options simplify integration.
FAQ
Q1: How does the probe ensure accuracy in high-temperature environments?
A1: The probe uses advanced insulation and thermal-resistant materials that maintain stable output even under elevated temperatures up to 177 °C.
Q2: Can this probe be directly connected to monitoring systems without a proximitor?
A2: No, it must be used with a Bently Nevada proximitor sensor to condition the raw probe signal into a usable monitoring signal.
Q3: What is the effect من cable length on signal accuracy?
A3: Cable length affects system calibration. The specified probe must be matched with its designed extension cable and proximitor for accurate performance.
Q4: Is the probe affected by electromagnetic interference (EMI)?
A4: The probe is shielded to minimize EMI. However, proper grounding and cable routing practices are necessary for optimal performance.
Q5: What frequency range can this probe reliably measure?
A5: It is designed for a usable frequency response up to 10 kHz, covering most industrial vibration monitoring needs.
Q6: Can the probe be used in hazardous or explosive environments?
A6: Yes, certain configurations من the 3300 XL probes are certified for hazardous areas when used with approved proximitor sensors.
Q7: How does this probe handle shaft runout measurements?
A7: The probe provides accurate proximity signals that allow monitoring systems to calculate both vibration and shaft runout values.
Q8: Does the probe require recalibration after installation?
A8: Factory calibration ensures accuracy, but system calibration with the proximitor and extension cable must match the specified configuration.
Q9: What is the insulation resistance specification and why is it important?
A9: The insulation resistance is greater than 10 MΩ, ensuring stable operation and signal integrity even in humid or contaminated environments.
Q10: How does probe orientation affect measurement?
A10: The probe orientation has minimal impact; however, it should be mounted perpendicular to the shaft surface for best accuracy.
Related الطرازs in the Same Series
| الطراز Number | الوصف |
|---|---|
| 330104-00-02-10-01-00 | 3300 XL 8 mm Proximity Probe, short cable version |
| 330104-00-02-50-02-05 | 3300 XL 8 mm Proximity Probe, extended cable version |
| 330104-00-03-05-02-05 | 3300 XL 8 mm Proximity Probe, 5 m cable |
| 330104-00-04-10-01-05 | 3300 XL 8 mm Proximity Probe, hazardous rated |
| 330103-00-04-10-02-05 | 3300 XL 5 mm Proximity Probe, high precision |
| 330105-02-12-05-02-05 | 3300 XL 11 mm Proximity Probe, extended range |
Popular الطرازs from the Same العلامة التجارية
| الطراز Number | الوصف |
|---|---|
| 330103-00-07-10-02-05 | 3300 XL 5 mm Proximity Probe |
| 330105-02-12-05-02-05 | 3300 XL 11 mm Proximity Probe |
| 330106-05-30-10-02-00 | 3300 NSv Proximity Probe |
| 330130-040-00-00 | Extension Cable for XL Probes |
| 330180-91-05 | 3300 XL Proximitor Sensor |
| 330850-90-05 | Seismic Transducer |
| 3500/22M | Transient Data Interface Module |
| 3500/42M | Vibration Monitor Module |
