Product Overview

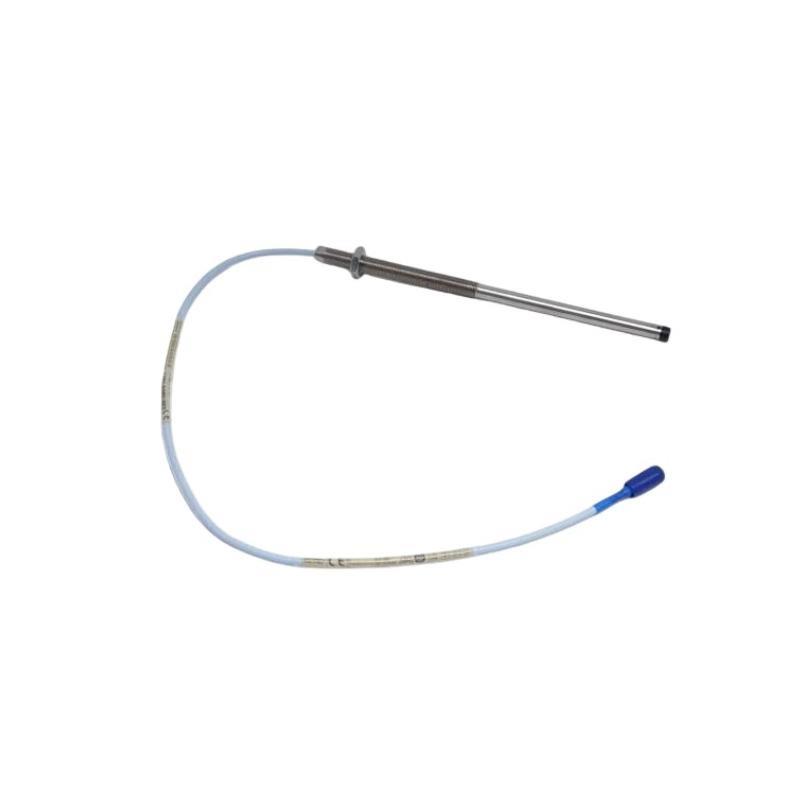

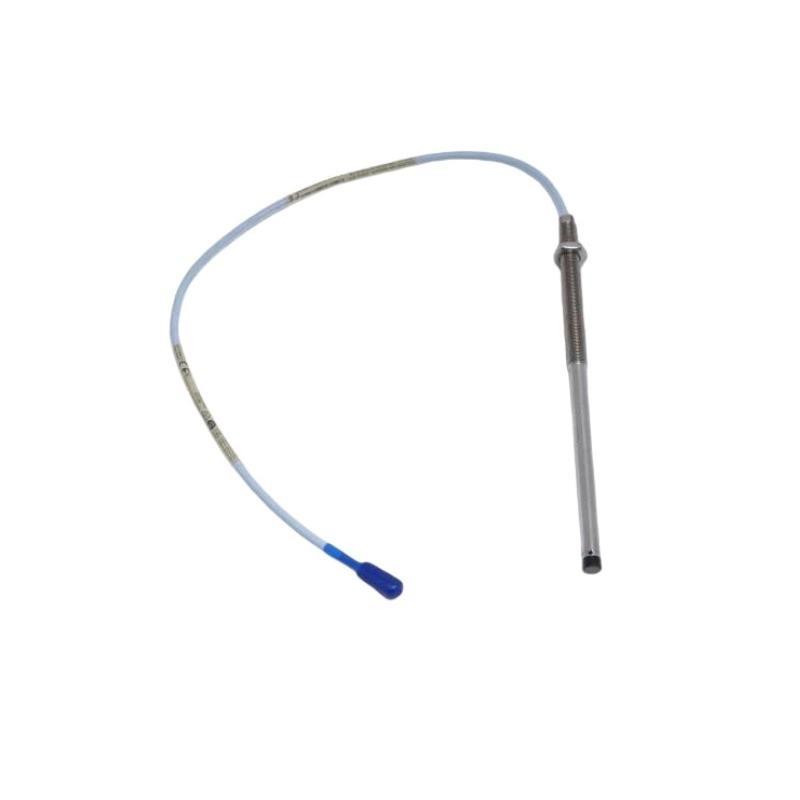

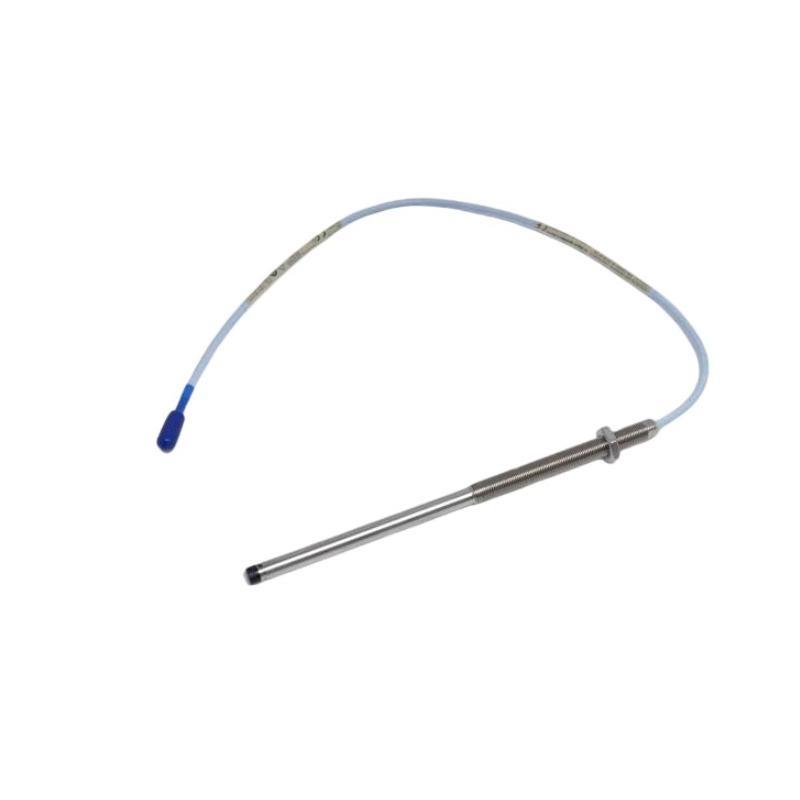

The Bently Nevada 330103-10-20-05-02-CN is a precision-engineered proximity probe from the 3300 XL 8 mm series, built to deliver reliable, high-resolution shaft vibration and position measurements. With its rugged stainless steel construction, advanced shielding, and industry-standard API 670 compliance, this probe is trusted in the most demanding rotating machinery environments.
Designed with a 20-foot (6.1 meters) integral cable, this model is optimized for installations where longer distance connectivity is essential. The probe’s robust housing and PPS tip enable operation in high-temperature, high-vibration, and corrosive conditions, making it suitable for compressors, turbines, and motors in industries such as oil & gas, petrochemical, and power generation.
Key Features
-
8 mm sensing diameter ensures optimal sensitivity and measurement accuracy
-
20-foot molded integral cable for reliable long-range signal transmission
-
Robust stainless steel body with PPS tip for chemical and thermal durability
-
EMI/RFI shielding guarantees signal integrity in electrically noisy environments
-
API 670-compliant for use in critical safety and monitoring applications
-
Fully compatible with 3300 XL Proximitor® sensors and extension cables
-
Easy-to-install threaded probe with 3/8-24 UNF mounting thread
-
Suitable for hazardous and harsh industrial environments
Technical Specifications
| Item | Specification |
|---|---|
| Product الطراز | 330103-10-20-05-02-CN |
| Series | 3300 XL 8 mm |
| Sensing Tip Diameter | 8 mm |
| Cable Length | 20 feet (6.1 meters), integral |
| Connector Type | Molded coaxial connector |
| Mounting Thread Type | 3/8-24 UNF |
| Measurement Range | 0.5 mm to 2.0 mm (20 to 80 mils) |
| Body Material | AISI 303 Stainless Steel |
| Tip Material | PPS (Polyphenylene Sulfide) |
| Operating Temperature | -35°C to +177°C |
| Storage Temperature | -51°C to +177°C |
| Shock Limit | 1000 g, 1 ms, half-sine pulse |
| Vibration Limit | 10 g peak, 10 – 2000 Hz |
| Environmental Rating | IP68 (probe only) |
| Dimensions | Total Length : 0.5 meter |
| الوزن | 0.161 kg |
Industry Applications
-
Gas and steam turbines
-
Compressors and blowers
-
Large electric motors and pumps
-
Gearboxes and rotating equipment
-
Refinery and petrochemical facilities
-
Power generation plants
-
Marine and منfshore platforms
-
Pulp, paper, and process industries
Product Advantages
-
Durability in extreme environments including high vibration and temperature zones
-
Accurate real-time monitoring من shaft vibration and axial position
-
Minimal signal loss over long cable distances due to high-quality coaxial design
-
Stable calibration over time, reducing maintenance and recalibration efforts
-
Certified compliance with API 670, enabling use in regulated protection systems
-
Quick and secure installation with industry-standard thread mounting
-
Electromagnetic immوحدةy ensures consistent performance near high-power equipment
-
Optimized for long-term reliability in continuous operation systems
الأسئلة الشائعة (FAQ)
-
What is the length من the cable on this model?
This model comes with a 20-foot (6.1 meters) integral cable. -
What is the purpose من the 3300 XL 8 mm Proximity Probe?
It measures shaft vibration and position in rotating machinery for condition monitoring and protection. -
Is this probe compatible with older Bently Nevada systems?
It is fully compatible with 3300 XL Proximitor® sensors and extension cables. -
What environments is this model suited for?
It’s designed for harsh industrial environments, including high temperature, vibration, and chemical exposure. -
Can this model be used in API 670 compliant systems?
Yes, it is designed and qualified to meet API 670 standards. -
What is the thread type for installation?
This model uses a standard 3/8-24 UNF thread. -
Does this probe require an extension cable or does it work standalone?
It requires use with a Proximitor sensor and may optionally use an extension cable depending on system configuration. -
What is the temperature rating من the probe?
Operating temperature range is -35°C to +177°C. -
How is the signal integrity maintained over 20 feet?
The integral coaxial cable is molded and shielded to minimize signal degradation and EMI/RFI interference. -
Can I order this model with a different cable length?
Yes, other models are available with 5, 9, 14, and other cable lengths.
Related الطرازs
| الطراز Number | الوصف |
|---|---|
| 330103-00-16-10-02-00 | 16 ft cable, 3/8-24 UNF, standard probe |
| 330103-07-18-10-02-00 | 18 ft cable, extended probe, high-temp resistant |
| 330103-08-13-10-02-CN | 13 ft cable, China localization |
| 330103-00-20-50-02-00 | 20 ft cable, long range, standard version |
| 330103-10-14-10-02-CN | 14 ft cable, high-accuracy, UNF mount |
| 330104-00-04-50-02-05 | 4 ft cable, compact installation |
Popular Bently Nevada الطرازs
| الطراز Number | الوصف |
|---|---|
| 330105-02-12-05-02-00 | 3300 XL Proximitor Sensor |
| 330130-045-00-05 | 4.5 m XL Extension Cable |
| 3500/42M-01-00 | 4-Channel Vibration Monitor |
| 3500/22M-01-01-00 | Rack Interface Module for 3500 system |
| 330180-91-00 | DIN-Rail Mount Proximitor Sensor |
| 330130-040-00-00 | 4 m Extension Cable for 3300 XL probes |
