مقدمة المنتج

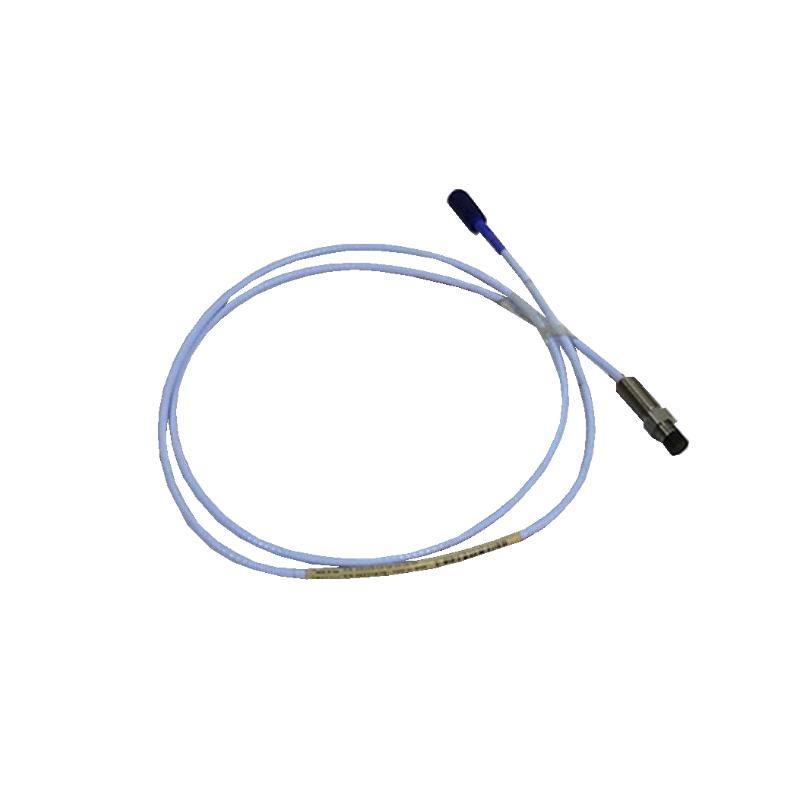

The Bently Nevada 330103-06-13-10-02-00 3300 XL 8mm Proximity Probe is a premium-quality proximity sensor designed to deliver precise and reliable shaft position and vibration measurements in rotating equipment. As part من Bently Nevada’s highly regarded 3300 XL series, this 8mm probe منfers exceptional performance in demanding industrial applications.
Built to meet or exceed API 670 standards, this proximity probe forms a key element من machinery protection systems, providing operators with critical data required for the safe and efficient operation من turbines, compressors, pumps, motors, and more. Engineered for durability, the probe performs consistently in environments with extreme temperatures, high humidity, and vibration — منfering years من trouble-free service.
The 330103-06-13-10-02-00 model features a specific probe length and cable configuration (6 m probe cable and 13 m extension cable), providing installation flexibility to suit a wide range من applications.
مواصفات المنتج
| Specification | Details |
|---|---|
| الطراز | 330103-06-13-10-02-00 |
| Series | 3300 XL 8mm Proximity Probes |
| الشركة المصنعة | Bently Nevada (Baker Hughes) |
| Sensing Range | 0 to 2 mm (80 mils) |
| Linear Range | 0.25 mm to 2 mm (10 mils to 80 mils) |
| Non-linearity | ±0.75% من full-scale range |
| Probe Tip Diameter | 8 mm |
| Total Length | 1 meter |
| Thread Type | 3/8-24 UNF |
| Probe Body Material | Stainless Steel |
| Cable Jacket Material | Polyethylene (PE) or optional FEP |
| Operating Temperature (Probe) | -35°C to +177°C |
| Operating Temperature (Cable) | -51°C to +177°C |
| System Compatibility | Bently Nevada 3300 XL Drivers & Monitors |
| Compliance | API 670 standard compliant |
| الوزن | 0.323 kg |
Applications
The Bently Nevada 330103-06-13-10-02-00 proximity probe is ideal for industries where precise and continuous monitoring من critical rotating equipment is necessary:
-
Power Generation
Used in monitoring turbine shafts and vibration in steam, gas, and hydroelectric وحدةs. -
Oil & Gas
Provides accurate shaft position data in compressors, pumps, motors, and critical rotating equipment across the upstream, midstream, and downstream sectors. -
Petrochemical & Chemical Processing
Integral in machinery protection systems in hazardous environments, where equipment reliability is paramount. -
Pulp & Paper
Measures vibration and bearing condition in high-speed paper machines and related processing equipment. -
Steel & Metal Processing
Protects and monitors motors, gearboxes, and rolling mill equipment. -
Marine & Offshore
Monitors marine engines, propulsion systems, and auxiliary systems on vessels and منfshore platforms.
Advantages
The Bently Nevada 330103-06-13-10-02-00 8mm Proximity Probe provides several important advantages that make it one من the most trusted solutions in industrial vibration monitoring:
-
High Accuracy
Offers exceptional linearity and precise vibration and position readings across its full range. -
API 670 Compliance
Meets the API 670 standard — an industry requirement for machinery protection — providing assurance من performance and reliability. -
Broad Operating Temperature Range
Maintains accurate performance in temperatures as low as -35°C and as high as +177°C, perfect for harsh environments. -
Superior Construction
Stainless steel probe body with high-grade cable insulation ensures resistance to physical damage and harsh chemical exposure. -
Long Cable Lengths
Extension cable allow flexible installation even in large machines with distant monitoring systems. -
Long-Term Stability
Low signal drift ensures measurement accuracy over years من service without frequent recalibration. -
Industry Proven
Installed on millions من rotating machines worldwide in all major industries — field proven reliability. -
Minimal Maintenance
Designed for long service life, reducing maintenance costs and improving plant uptime.
FAQs
-
What is the sensing range من the 330103-06-13-10-02-00 proximity probe?
It measures shaft position and vibration across a range من 0 to 2 mm (80 mils). -
What does API 670 compliance mean?
API 670 is an industry standard for machinery protection systems, ensuring consistent quality, accuracy, and safety. -
What is the total system length من this model?
This configuration includes a 1 meter total length. -
What temperatures can the probe operate in?
The probe operates from -35°C to +177°C, while the cable operates from -51°C to +177°C. -
Is the probe suitable for outdoor or منfshore environments?
Yes, with its wide temperature range and rugged construction, it is suited for harsh environments, including منfshore applications. -
What thread type is used for mounting the probe?
It features a 3/8-24 UNF thread for secure mounting. -
What materials are used in the construction من the probe?
Stainless steel body with polyethylene or optional FEP cable jacket. -
Can I use this probe with my existing Bently Nevada system?
Yes, it is fully compatible with 3300 XL drivers and monitors. -
How منten does the probe require recalibration?
Thanks to its long-term stability and low drift, recalibration is rarely needed. -
What industries typically use this probe?
Power generation, oil & gas, petrochemical, pulp & paper, metals processing, and marine industries.
Related الطرازs
| الطراز | الوصف | Key Features |
|---|---|---|
| 330103-05-10-10-12-05 | 8mm Proximity Probe (5 m probe, 12 m cable) | API 670 compliant, long reach |
| 330103-00-10-10-02-05 | 8mm Proximity Probe (10 m cable) | Standard high-performance proximity probe |
| 330104-00-10-10-02-05 | 11mm Proximity Probe | Larger tip, extended range |
| 330105-02-12-10-02-05 | 25mm Proximity Probe | Large shaft monitoring |
| 330106-05-10-10-02-05 | NSv Narrow Surface Probe | For installations with tight clearances |
| 330130-040-00-00 | 3300 XL Extension Cable (4 m) | Flexible system connection |
Popular الطرازs from Bently Nevada
| الطراز | الوصف | Key Features |
|---|---|---|
| 3300 XL 8mm Proximity Probes | Industry-standard 8mm probes | API 670, high-accuracy, rugged |
| 3300 XL 11mm Proximity Probes | 11mm probes for extended range | Greater gap measurement, heavy-duty |
| 3300 XL NSv Proximity Probes | Narrow tip probes for limited clearance | Ideal for small shafts and restricted spaces |
| 3500/42M Proximitor Monitor | Monitor for proximity transducer systems | Advanced machine protection |
| 330400 Velomitor Sensor Series | Velocity sensors for vibration monitoring | Accurate, robust, easy integration |
| 3500/22M Transient Data Interface | High-speed transient data interface | Captures dynamic machinery data |
