مقدمة المنتج

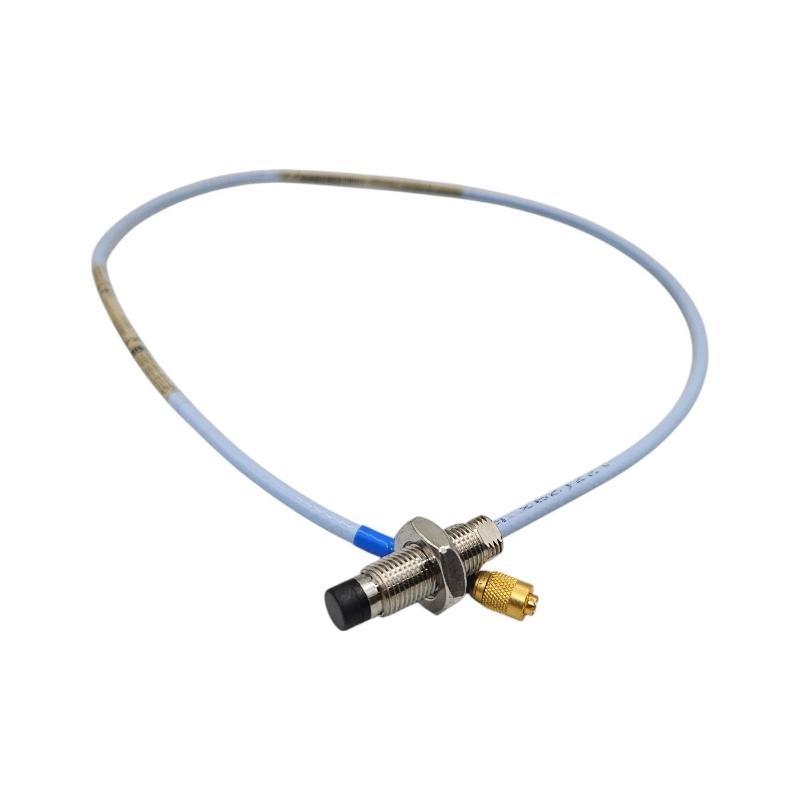

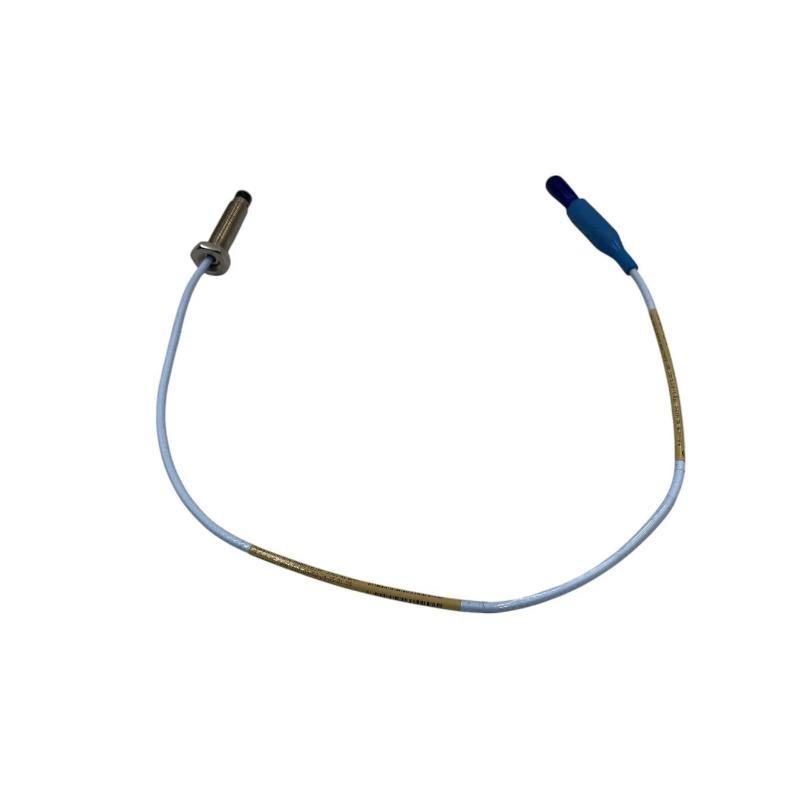

The Bently Nevada 330103-06-11-50-02-00 is part من the 3300 XL 8 mm Proximity Probe series, designed for accurate non-contact vibration and shaft position measurements. Engineered for critical rotating machinery, this probe delivers long-term stability, reliable linearity, and full compliance with API 670 standards. Its robust construction ensures durability in harsh industrial environments, providing essential data for condition monitoring and protection systems.
Technical Specifications
| Parameter | الوصف |
|---|---|
| الطراز Number | 330103-06-11-50-02-00 |
| Probe Tip Diameter | 8 mm (0.31 in) |
| Case Length | 110 mm |
| Thread Size | M10 × 1 |
| Total Cable Length | 5.0 m |
| Connector Type | Miniature coaxial ClickLoc |
| Material (Case) | AISI 303/304 Stainless Steel |
| Material (Tip) | Polyphenylene sulfide (PPS) |
| Sealing | Viton® O-ring |
| Operating Temperature | -35 °C to +177 °C |
| الوزن | 1.615 kg |
| System Compliance | API 670 (4th Edition) |
| Total Length | 5.0 meters |
Applications
The 330103-06-11-50-02-00 proximity probe is widely used in:
-
Steam and gas turbines
-
Compressors and centrifugal pumps
-
Generators and electric motors
-
Industrial fans and blowers
-
Gearboxes and rotating shafts
-
Critical machinery protection systems
Advantages
-
API 670 Compliance: Meets strict industry standards for reliability and accuracy.
-
Interchangeability: Fully compatible with 3300 XL 5 mm and 8 mm system components.
-
Durability: Stainless steel housing and PPS probe tip provide resistance against wear and harsh environments.
-
Enhanced EMI/RFI Immوحدةy: Ensures reliable operation in noisy industrial environments.
-
Compact & Rugged Design: Withstands demanding mechanical and environmental stresses.
-
Precise Measurement: Provides accurate vibration and shaft position readings for critical diagnostics.
FAQ
Q1: What is the function من the 330103-06-11-50-02-00 probe?
A1: It measures shaft vibration and axial position using eddy-current sensing technology.
Q2: Is this probe compliant with API standards?
A2: Yes, it fully complies with API 670 4th Edition for mechanical and performance requirements.
Q3: Can this probe be used with other 3300 XL components?
A3: Yes, it is fully interchangeable with 3300 XL proximitor sensors and extension cables.
Q4: What is the probe’s operating temperature range?
A4: It operates from -35 °C to +177 °C, making it suitable for high-temperature environments.
Q5: What type من connector does it use?
A5: It features a miniature coaxial ClickLoc connector for secure and reliable connections.
Q6: How long is the cable length in this model?
A6: This version includes a 5.0-meter total cable length.
Q7: What materials are used in the probe construction?
A7: The case is made من stainless steel (AISI 303/304), and the tip is PPS (polyphenylene sulfide).
Q8: How heavy is this probe assembly?
A8: The total weight is 1.615 kg.
Q9: Where is this probe typically installed?
A9: It is installed near the rotating shaft or machine surface to monitor displacement and vibration.
Q10: What is the sealing protection من this probe?
A10: It is equipped with a Viton® O-ring for effective sealing under industrial conditions.
Related الطرازs (Same Series or Similar)
| الطراز Number | Probe Diameter | Case Length | Cable Length | Connector Type | الوزن |
|---|---|---|---|---|---|
| 330103-00-11-50-02-00 | 8 mm | 110 mm | 5.0 m | ClickLoc | 1.61 kg |
| 330103-03-10-10-02-00 | 8 mm | 100 mm | 1.0 m | ClickLoc | 1.25 kg |
| 330103-04-08-10-02-00 | 8 mm | 80 mm | 1.0 m | ClickLoc | 1.20 kg |
| 330103-05-12-50-02-00 | 8 mm | 120 mm | 5.0 m | ClickLoc | 1.65 kg |
| 330103-07-09-15-02-00 | 8 mm | 90 mm | 1.5 m | ClickLoc | 1.30 kg |
| 330103-08-11-30-02-00 | 8 mm | 110 mm | 3.0 m | ClickLoc | 1.45 kg |
Popular Bently Nevada الطرازs
| الطراز Number | الوصف | Application |
|---|---|---|
| 330104-00-06-10-11-00 | 3300 XL 8 mm Proximity Probe | Standard vibration monitoring |
| 330180-91-CN | 3300 XL Proximitor Sensor | Probe driver for 3300 XL system |
| 330850-90-05 | Seismic Transducer | Low-frequency vibration monitoring |
| 330130-045-00-05 | Extension Cable (8 mm system) | Connects probe to proximitor |
| 3500/22M | Transient Data Interface Module | Machinery protection systems |
| 3500/42M | Proximitor/Seismic Monitor | Multi-channel monitoring من vibration & position |
