مقدمة المنتج

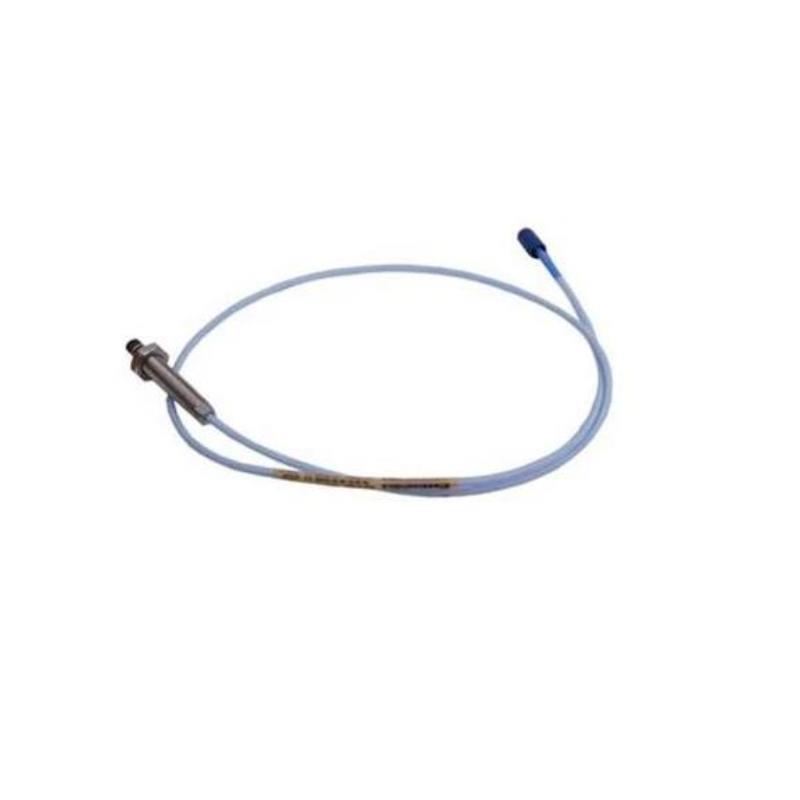

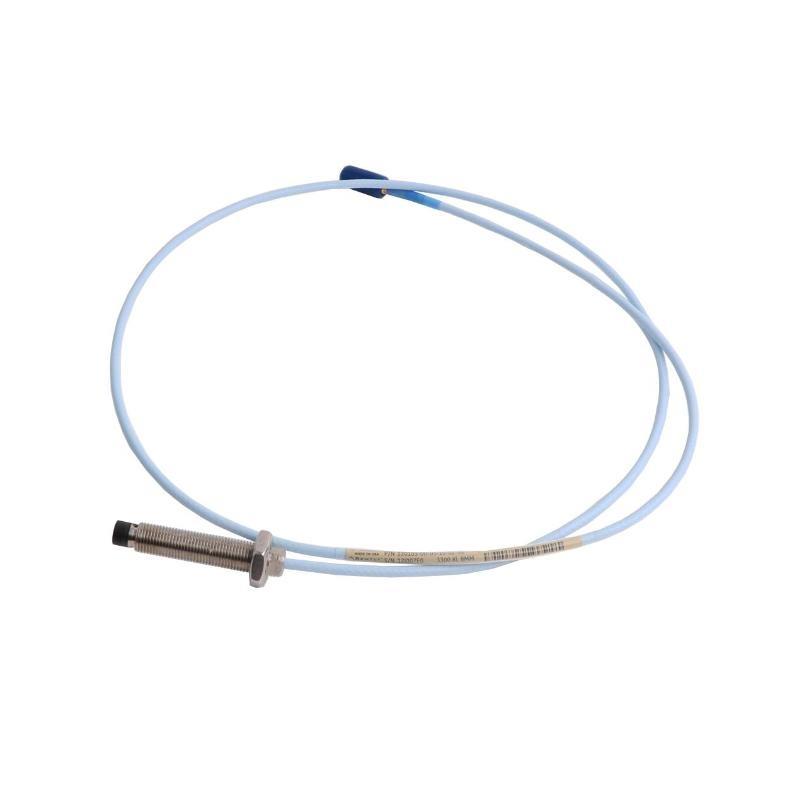

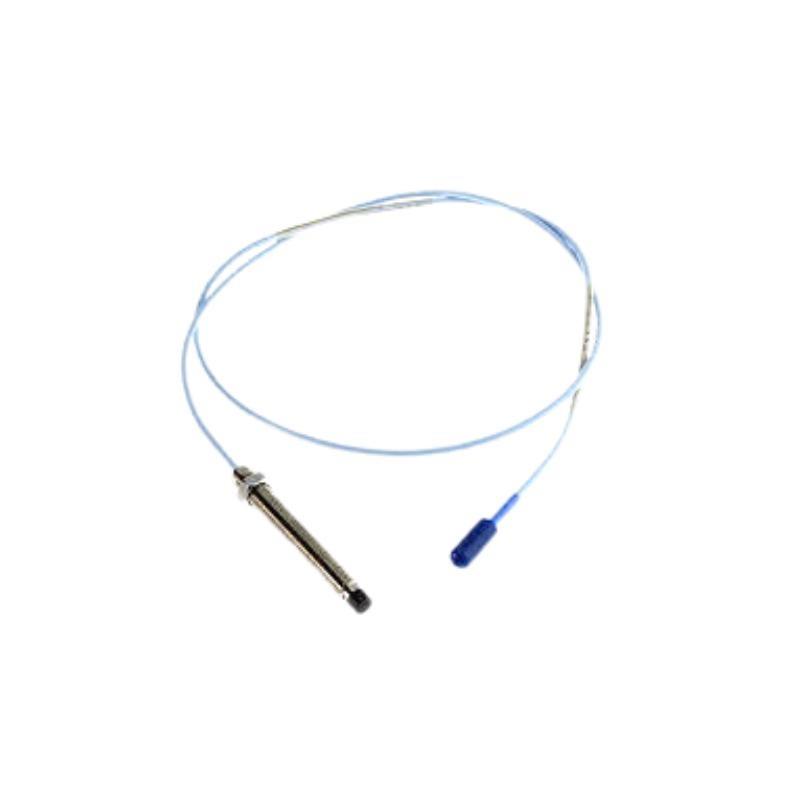

The Bently Nevada 330103-03-08-10-01-00 3300 XL 8 mm Proximity Probe is a high-precision sensor designed for monitoring rotating machinery in industrial applications. It operates on the eddy-current principle, providing accurate measurement من shaft position, vibration, and movement. The probe is optimized for use with the 3300 XL series monitoring system, ensuring seamless integration and reliable performance in critical applications such as turbines, compressors, and generators.
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Type | 8 mm Eddy-Current Proximity Probe |
| Series | 3300 XL |
| Output | Differential AC voltage |
| Linearity | ±1% من full-scale |
| Tip Material | Stainless Steel |
| Cable Type | Coaxial, shielded |
| Total Length | 1 m |
| الوزن | 0.323 kg |
| Operating Temperature | -40°C to +120°C |
| Maximum Cable Resistance | 250 Ω |
| Recommended Gap | 0.25 mm (0.010 in) |
| Connector | Bendix PTIH-10-6P or equivalent |
Product Applications
-
Rotating Machinery Monitoring: Turbines, compressors, pumps, generators.
-
Vibration Analysis: Detects shaft vibration and misalignment for predictive maintenance.
-
Rotor Position Sensing: Provides precise shaft position data for control systems.
-
الحالة Monitoring Systems: Integrated with 3300 XL monitoring systems to provide continuous operational data.
-
Industrial Plants: Power generation, petrochemical, and gas processing industries.
Product Advantages
-
High Accuracy: Provides precise measurement for critical machinery, enabling early fault detection.
-
Robust Design: Stainless steel tip and shielded cable ensure durability in harsh industrial environments.
-
Seamless Integration: Fully compatible with Bently Nevada 3300 XL monitoring systems.
-
Reliable Performance: Consistent output even under high vibration, temperature variations, and electrical noise.
-
Predictive Maintenance: Helps reduce unplanned downtime by providing continuous condition monitoring.
-
Flexible Mounting: 1-meter cable allows for convenient installation in confined or remote locations.
FAQ
Q1: What is the recommended gap for this 8 mm probe?
A1: The recommended gap is 0.25 mm (0.010 in) for optimal linearity and accuracy.
Q2: Can this probe be used in high-temperature environments?
A2: Yes, it operates reliably from -40°C to +120°C.
Q3: What type من signal output does the probe provide?
A3: The probe outputs a differential AC voltage suitable for 3300 XL monitoring systems.
Q4: How long can the probe cable be without affecting signal quality?
A4: The standard cable length is 1 meter, with maximum cable resistance up to 250 Ω to maintain signal integrity.
Q5: Is the probe suitable for detecting shaft vibration?
A5: Yes, it is specifically designed for vibration and shaft position monitoring.
Q6: What type من connector does the probe use?
A6: It uses a Bendix PTIH-10-6P or equivalent connector.
Q7: Can the probe be installed in a corrosive environment?
A7: The stainless steel tip and shielded cable provide resistance to mild corrosive conditions, but extreme chemical exposure should be avoided.
Q8: What is the linearity tolerance من the probe?
A8: The linearity is ±1% من full-scale measurement.
Q9: Is the probe compatible with other Bently Nevada monitoring systems?
A9: It is optimized for 3300 XL series systems; compatibility with other systems should be verified with the manufacturer.
Q10: Can this probe be used in high-vibration industrial plants?
A10: Yes, it is designed to maintain accurate readings in environments with high vibration levels.
Related الطرازs
| الطراز | الوصف |
|---|---|
| 330103-03-06-10-01-00 | 6 mm Proximity Probe for 3300 XL system |
| 330103-03-12-10-01-00 | 12 mm Proximity Probe for large shafts |
| 330103-03-08-10-02-00 | 8 mm Probe with extended cable option |
| 330103-03-08-10-03-00 | 8 mm Probe with high-temperature tip |
| 330103-03-08-10-04-00 | 8 mm Probe with reinforced cable |
| 330103-03-08-10-05-00 | 8 mm Probe for low-noise signal output |
Popular الطرازs
| الطراز | الوصف |
|---|---|
| 330103-03-06-10-01-00 | 6 mm Proximity Probe |
| 330103-03-12-10-01-00 | 12 mm Proximity Probe |
| 330103-03-08-10-02-00 | 8 mm Probe with extended cable |
| 330103-03-08-10-03-00 | 8 mm High-Temperature Probe |
| 330103-03-08-10-04-00 | 8 mm Reinforced Cable Probe |
| 330103-03-08-10-05-00 | 8 mm Low-Noise Probe |
| 330103-03-14-10-01-00 | 14 mm Proximity Probe |
| 330103-03-18-10-01-00 | 18 mm Heavy-Duty Proximity Probe |
