مقدمة المنتج

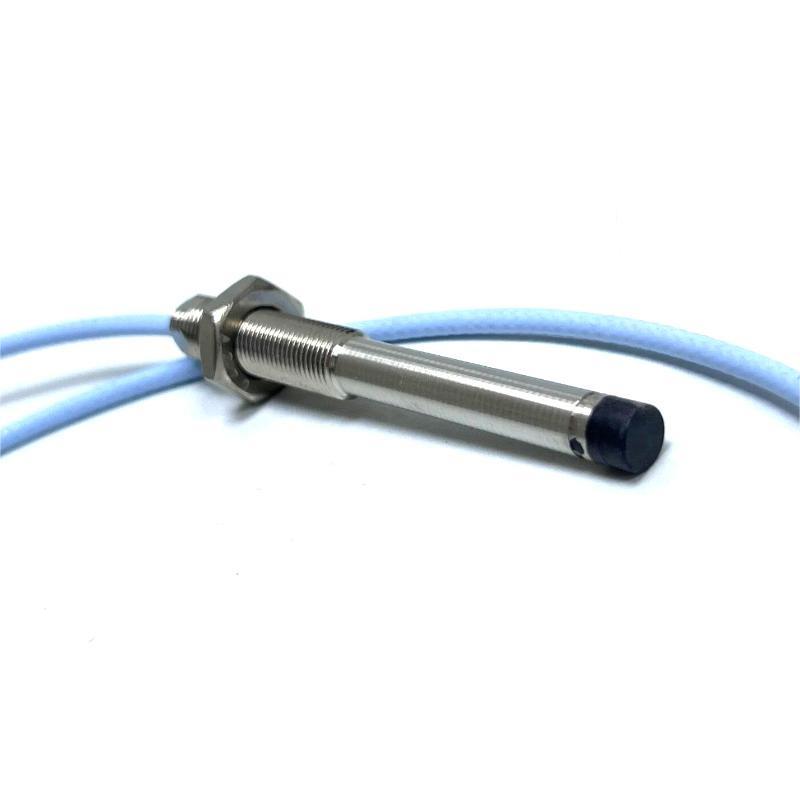

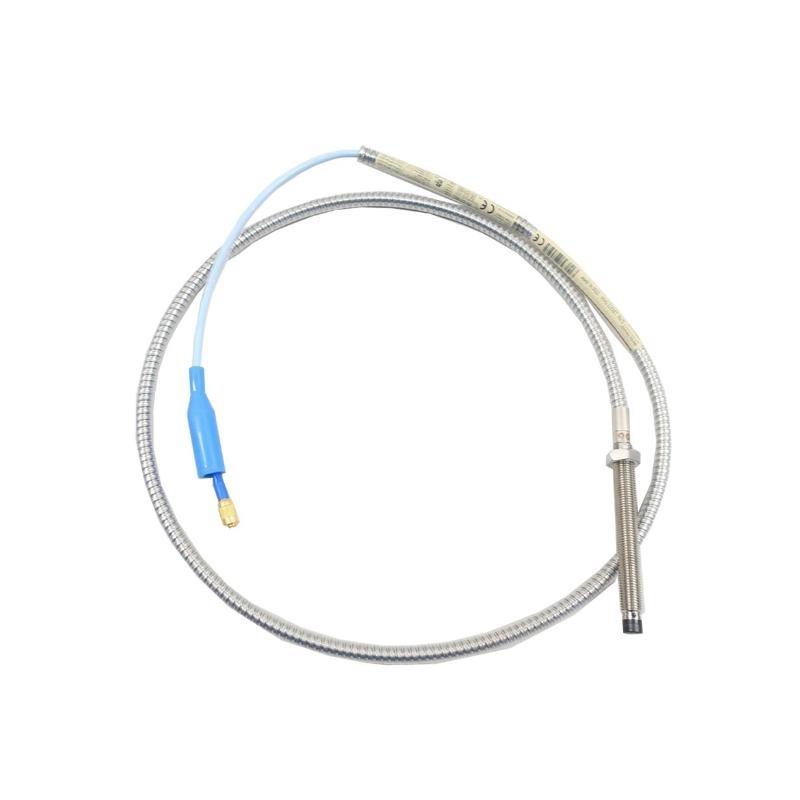

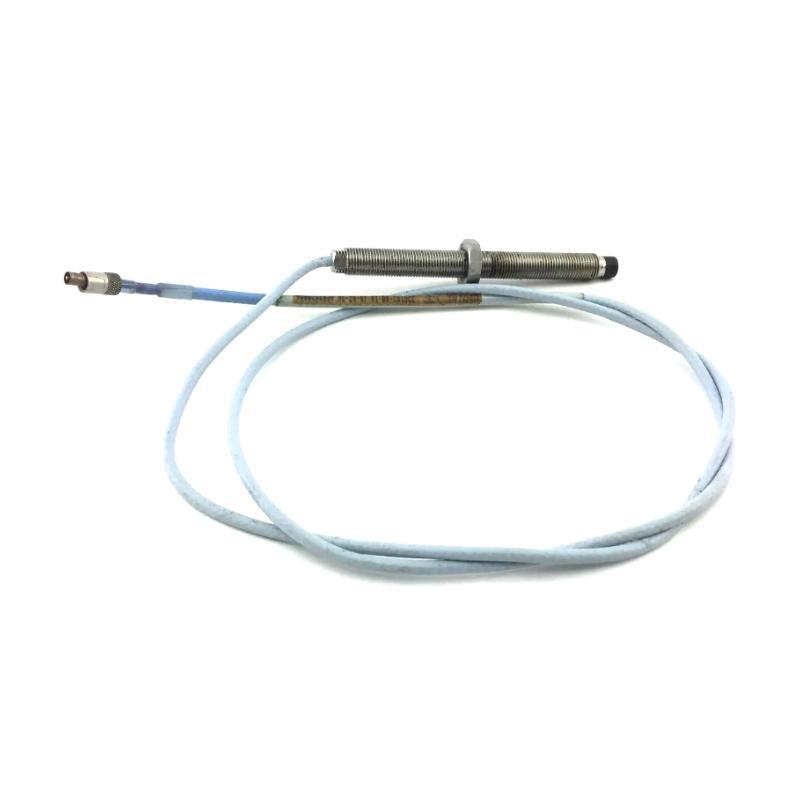

The Bently Nevada 330103-00-17-10-02-00 is a precision-engineered proximity probe within the 3300 XL 8 mm series. Designed for reliable vibration and displacement measurements, it ensures accurate monitoring من critical rotating machinery such as turbines, compressors, pumps, and motors. Its rugged construction, miniature ClickLoc connector, and compliance with API 670 make it a trusted choice in industrial condition monitoring systems.
Technical Specifications
| Parameter | الوصف |
|---|---|
| الطراز Number | 330103-00-17-10-02-00 |
| Probe Type | 3300 XL 8 mm Proximity Probe |
| Case Length (Overall) | 170 mm |
| Total Cable Length | 1.0 m (3.3 ft) |
| Connector Type | Miniature coaxial ClickLoc with standard cable |
| Agency Approvals | None |
| Compliance | API 670 (4th Edition) |
| Measurement Range | -2 mm to +2 mm relative to target |
| Linear Range | 2.0 mm (80 mils) nominal |
| Output Signal | Voltage proportional to probe-to-target distance |
| Operating Temperature | -35 °C to +177 °C |
| Interchangeability | Compatible with 3300 XL extension cables and Proximitor sensors |
| Total Length & الوزن | 1.0 m / 0.323 kg (shipping weight approx. 1.5 kg) |
Product Applications
-
Continuous monitoring من shaft vibration and position in rotating machinery.
-
Measurement من radial and axial shaft displacement.
-
الحالة monitoring in turbines, compressors, pumps, and generators.
-
Integration with Bently Nevada Proximitor sensors for API 670 compliant protection systems.
-
Use in predictive maintenance strategies to prevent machinery failure.
Product Advantages
-
High Accuracy: Delivers precise vibration and displacement data in compliance with API 670.
-
Rugged Reliability: Designed for harsh industrial environments with extended temperature capability.
-
Interchangeability: Fully interchangeable with other 3300 XL probes, extension cables, and Proximitor sensors.
-
ClickLoc Connector: Ensures secure connections with reliable signal transmission.
-
Proven Performance: Widely adopted across industries for critical machinery protection.
FAQ
Q1: What type من sensor technology does the 330103-00-17-10-02-00 use?
A1: It uses eddy-current sensor technology for non-contact vibration and displacement measurements.
Q2: Is this probe compliant with API 670 standards?
A2: Yes, it meets API 670 (4th Edition) requirements for linear range, accuracy, and mechanical configuration.
Q3: Can the probe be used with all 3300 XL extension cables?
A3: Yes, it is fully interchangeable within the 3300 XL system.
Q4: What is the linear range من this probe?
A4: The linear range is approximately 2.0 mm (80 mils).
Q5: What connector type does this probe use?
A5: It features a miniature coaxial ClickLoc connector with a standard cable.
Q6: What is the operating temperature range?
A6: The probe operates reliably between -35 °C and +177 °C.
Q7: What machinery is best suited for this probe?
A7: It is ideal for turbines, compressors, pumps, and motors requiring precise shaft vibration monitoring.
Q8: What is the difference between this model and those with hazardous-area approvals?
A8: This version does not carry hazardous-area approvals; approved versions (e.g., with “05” suffix) include CSA, ATEX, and IECEx certifications.
Q9: What is the total length and weight من this probe?
A9: The total length is 1.0 m, and the probe weighs 0.323 kg.
Q10: Does this probe provide static as well as dynamic measurements?
A10: Yes, it measures both static shaft position and dynamic vibration.
Recommended Related الطرازs (Same Series)
| الطراز Number | الوصف | Length / الوزن |
|---|---|---|
| 330103-00-12-10-02-00 | 3300 XL 8 mm Probe, 120 mm case, 1.0 m cable | 1.0 m / 0.310 kg |
| 330103-00-14-10-02-00 | 3300 XL 8 mm Probe, 140 mm case, 1.0 m cable | 1.0 m / 0.315 kg |
| 330103-00-20-10-02-00 | 3300 XL 8 mm Probe, 200 mm case, 1.0 m cable | 1.0 m / 0.330 kg |
| 330103-00-25-10-02-00 | 3300 XL 8 mm Probe, 250 mm case, 1.0 m cable | 1.0 m / 0.335 kg |
| 330103-00-30-10-02-00 | 3300 XL 8 mm Probe, 300 mm case, 1.0 m cable | 1.0 m / 0.340 kg |
| 330103-00-35-10-02-00 | 3300 XL 8 mm Probe, 350 mm case, 1.0 m cable | 1.0 m / 0.345 kg |
أخرى Popular Bently Nevada الطرازs
| الطراز Number | الوصف | Dimensions / الوزن |
|---|---|---|
| 330104-00-06-10-11-00 | 3300 XL 8 mm Proximity Probe, 60 mm case | 1.0 m / 0.310 kg |
| 330180-91-CN | 3300 XL Proximitor Sensor, Chinese version | 92 x 35 x 35 mm / 0.250 kg |
| 330850-90-05 | 3300 XL NSv Proximity Probe | 1.5 m / 0.280 kg |
| 330500-02-00 | Velomitor Piezo-Velocity Sensor | 25 x 55 mm / 0.200 kg |
| 3500/42M | 3500 Vibration Monitor Module | 241 x 24 x 234 mm / 0.5 kg |
| 330130-045-00-00 | 3300 XL Extension Cable (4.5 m) | 4.5 m / 0.350 kg |
