Product Overview

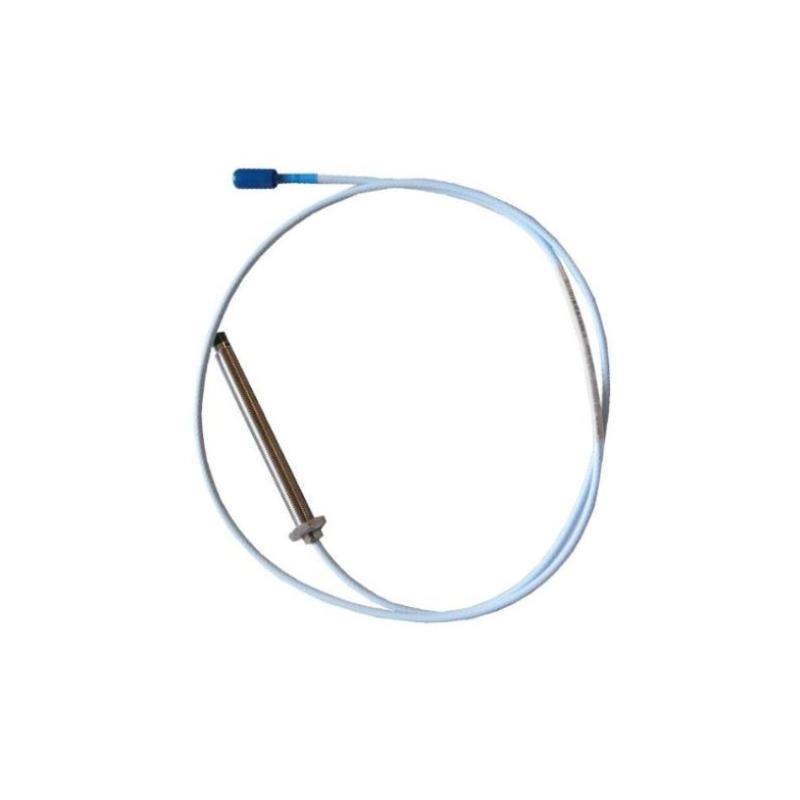

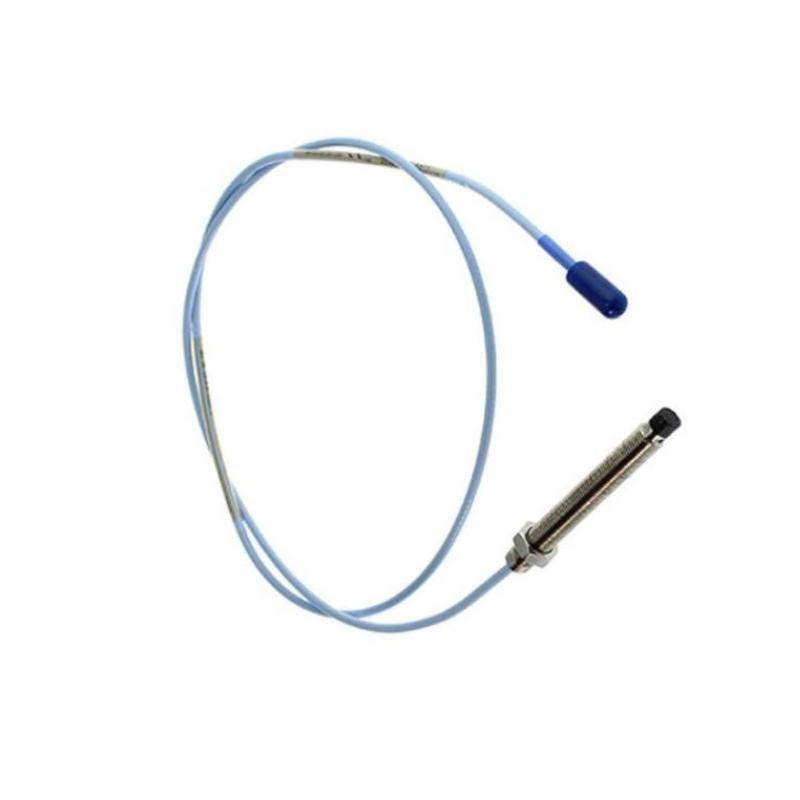

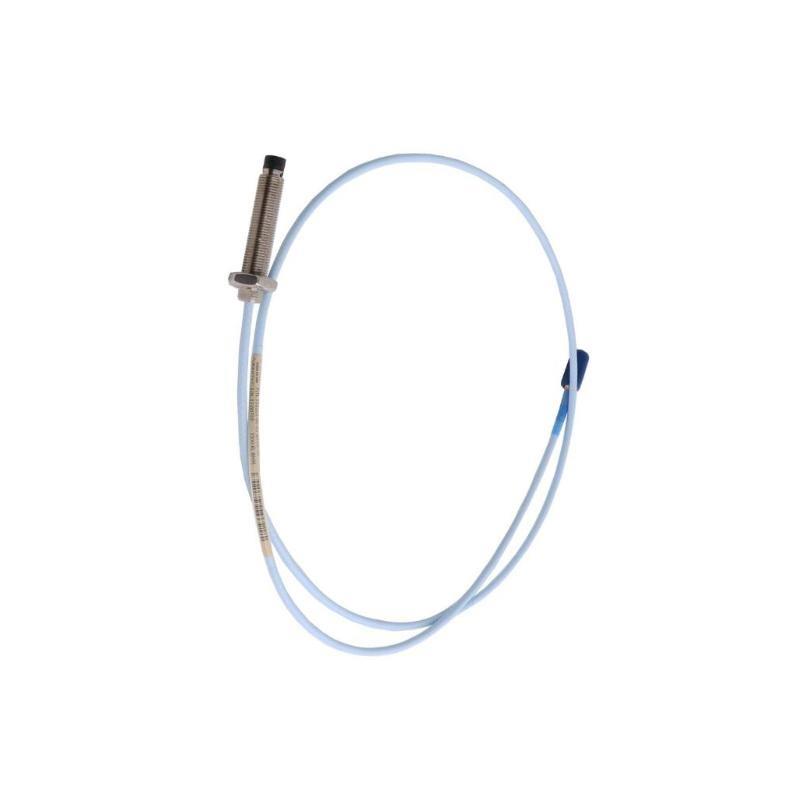

The Bently Nevada 330103‑00‑13‑10‑12‑CN is an 8 mm non-contact proximity probe from the robust 3300 XL series, featuring a 10 m integral cable and a 90° angled connector with a China-specific (“‑CN”) configuration. Housed in stainless steel and sealed to IP68, this probe provides precise shaft vibration and displacement monitoring in challenging industrial environments.
Key Features
-
8 mm probe tip ensures accurate, repeatable measurements
-
10 m integrated triaxial, low-noise cable
-
90° angled, China-configured connector
-
5/8‑18 UNF threaded body for reliable mounting
-
Stainless steel housing for durability and corrosion resistance
-
IP68 protection against dust, moisture, and oil
-
High shock tolerance (5,000 g) and vibration resistance (50 g)
-
Factory-calibrated for plug-and-play compatibility with 3300 XL systems
-
Operates across extreme temperature ranges
-
Meets API 670 and CE safety standards
Technical Specifications
| Specification | Details |
|---|---|
| الطراز Number | 330103‑00‑13‑10‑12‑CN |
| Series | 3300 XL 8 mm |
| Probe Diameter | 8 mm |
| Mounting Thread | 5/8‑18 UNF‑2A |
| Sensing Range | 2 mm (80 mils) |
| Linear Range | 0.25–2.0 mm (10–80 mils) |
| Connector Orientation | 90° angled (China-specific) |
| Cable Length | 10 meters (integral) |
| Cable Type | Triaxial coaxial, low noise |
| Probe Material | AISI 304 stainless steel |
| Operating Temp | –35 °C to +177 °C (–31 °F to +351 °F) |
| Storage Temp | –51 °C to +177 °C (–60 °F to +351 °F) |
| Environmental Rating | IP68 (properly installed) |
| Vibration Rating | 50 g peak, 10–2,000 Hz |
| Shock Rating | 5,000 g, 1 ms half‑sine pulse |
| Insulation Resistance | >10⁹ Ω at 500 VDC |
| Accuracy | ±0.07 mm (±2.8 mils) typical |
| Dimensions | Total Length : 1.0 meter |
| الوزن | 0.323 kg |
| Compliance | API 670, CE |
Industry Applications
Ideal for installations requiring long cable runs and angled, China-standard connectors:
-
Steam and gas turbine shaft monitoring
-
Oil & gas compressor and pump systems
-
Petrochemical mixers and agitators
-
Mining conveyor and crusher shaft measurement
-
Marine propulsion and auxiliary systems
-
HVAC fan and blower shafts
-
Pulp & paper roller monitoring
-
Water treatment pump and motor monitoring
Product Advantages
-
10 m cable enables flexible placement and routing
-
90° China connector eases wiring in confined spaces
-
Stainless steel casing withstands harsh industrial conditions
-
IP68 rating ensures protection against moisture and contaminants
-
Non-contact sensing avoids mechanical wear over time
-
Pre-calibrated for high accuracy from day one
-
Capable من handling high shock and vibration environments
-
Seamlessly integrates with 3300 XL system components
-
Compliant with API 670 critical machinery standards
-
Ensures stable signal transmission over extended cable lengths
الأسئلة الشائعة (FAQ)
-
What does “‑CN” mean?
It denotes a China-configured connector and localized approvals. -
Is the connector angled or straight?
It uses a 90° angled connector tailored to China standards. -
How long is the cable?
The integral cable is 10 meters. -
Can it operate in wet or oily environments?
Yes, it is IP68 rated when installed correctly. -
Which industries typically use this probe?
Power, petrochemical, mining, marine, HVAC, paper, wastewater. -
Does it need field calibration?
No—factory calibration ensures accuracy. -
What temperature range can it handle?
–35 °C to +177 °C (–31 °F to +351 °F). -
How rugged is it?
Withstands 5,000 g shock and 50 g vibration. -
Can I add extension cables?
The included 10 m cable eliminates the need for extensions. -
What is the accuracy specification?
±0.07 mm (±2.8 mils).
Related الطرازs
| الطراز Number | الوصف |
|---|---|
| 330103‑00‑05‑10‑12‑CN | 5 m cable, 90° China-configured connector |
| 330103‑00‑06‑10‑12‑CN | 6 m cable, 90° China-configured connector |
| 330103‑00‑08‑10‑12‑CN | 8 m cable, 90° China-configured connector |
| 330103‑00‑10‑10‑01‑CN | 10 m cable, straight China-configured connector |
| 330104‑00‑10‑10‑02 | 10 m XL extension cable for modular probe systems |
| 330180‑91‑05 | 8 mm Proximitor sensor module compatible with 8 mm probes |
