مقدمة المنتج

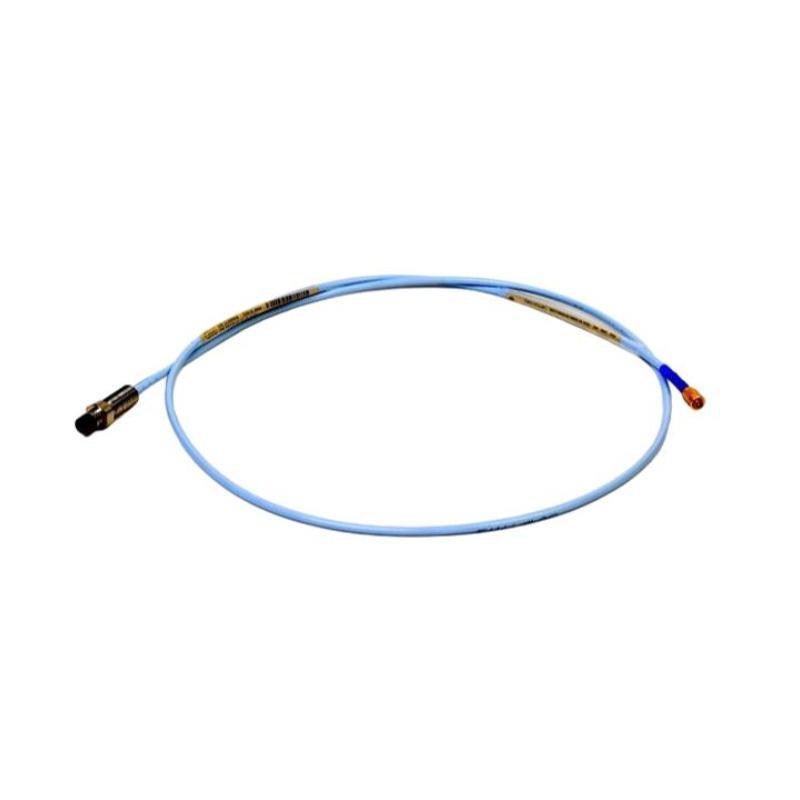

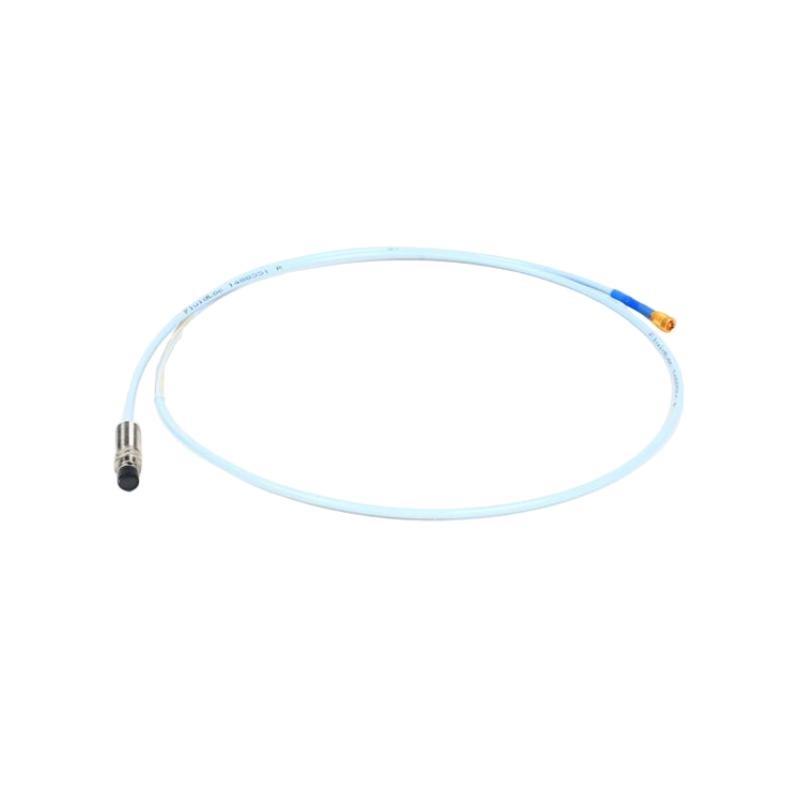

The Bently Nevada 330103-00-11-50-02-05 is an 8 mm proximity probe from the 3300 XL series, engineered for precise, non-contact monitoring من shaft vibration and displacement in rotating machinery. Equipped with a 5.0-meter cable, this probe provides flexibility for installations where the monitoring system is positioned at a distance. The probe features a PPS tip and stainless steel housing, ensuring long-term performance in demanding industrial environments, including high humidity, dust, and temperature variations.
مواصفات المنتج
| Parameter | Specification |
|---|---|
| الطراز | 330103-00-11-50-02-05 |
| Measurement Range | 8 mm |
| Total Length | 5.0 meters |
| الوزن | 1.615 kg |
| Probe Tip Material | Polyphenylene Sulfide (PPS) |
| Housing Material | Stainless Steel (AISI 303/304) |
| Connector Type | Miniature Coaxial ClickLoc™ |
| Cable Type | Standard Industrial Cable |
| Thread Type | M10 × 1 |
| Operating Temperature | –40 °C to +120 °C |
| Target Material | AISI 4140 Steel |
| Compliance | API 670 4th Edition |
Applications
-
Vibration Monitoring: Continuously measures radial and axial shaft vibrations to support predictive maintenance.
-
Shaft Displacement Measurement: Provides accurate real-time displacement data for rotor alignment and balancing.
-
Keyphasor® Pulse Output: Supplies precise synchronization signals for protection and control systems.
-
Extended Reach Installations: The 5 m cable allows flexible positioning where the probe is not adjacent to the monitoring system.
-
Industrial Environment Adaptation: Reliable performance in high humidity, dusty, or variable temperature conditions.
Product Advantages
-
High Accuracy: Non-contact measurement delivers consistent and repeatable results.
-
Durable Construction: PPS probe tip and stainless steel housing ensure robust performance in industrial environments.
-
System Compatibility: Fully compatible with the 3300 XL monitoring system.
-
Compliance with Standards: Meets API 670 machinery protection requirements.
-
Flexible Installation: The 5 m cable allows installation in diverse configurations.
FAQ
Q1: How is the correct probe-to-shaft gap determined?
A1: Use a feeler gauge to verify that the clearance matches the recommended specifications.
Q2: Can the probe maintain measurement accuracy at different rotational speeds?
A2: Yes, the probe is designed to provide accurate readings within its rated speed range.
Q3: How can electrical interference be minimized?
A3: Ensure proper shielding, grounding, and route cables away from noise sources.
Q4: How do I verify the probe’s proper operation after installation?
A4: Conduct system self-tests and confirm Keyphasor® pulse and vibration signal output.
Q5: Is the PPS tip compatible with all standard shaft materials?
A5: Yes, it is compatible with steel and common alloy targets.
Q6: How is Keyphasor® signal timing checked?
A6: Compare the Keyphasor® pulse to a reference signal under steady operating conditions.
Q7: Can the cable be extended beyond 5 meters?
A7: Extensions may impact signal integrity; for guidance, please contact us.
Q8: What indicates potential probe malfunction?
A8: Irregular pulses, signal dropouts, or unexpected noise spikes may indicate issues.
Q9: Is recalibration required when replacing the probe?
A9: No, 3300 XL probes are designed for plug-and-play functionality.
Q10: How should signal anomalies be addressed?
A10: Check probe gap, cable integrity, and grounding; for expert support, please contact us.
Recommended الطرازs (Same Series / Related)
| الطراز | الوصف |
|---|---|
| 330101-00-11-10-02-R0 | 8 mm probe, 1 m standard cable |
| 330102-00-11-10-02-R0 | 8 mm armored probe, 1 m cable |
| 330103-00-11-10-02-R0 | Standard 8 mm probe, 1 m cable |
| 330104-00-11-10-02-R0 | Smooth-case 8 mm probe, 1 m cable |
| 330191-00-11-10-02-R0 | Low-temperature 8 mm probe, 1 m cable |
| 330106-00-11-10-02-R0 | Reverse-mount 8 mm probe, 1 m armored cable |
