Product Overview

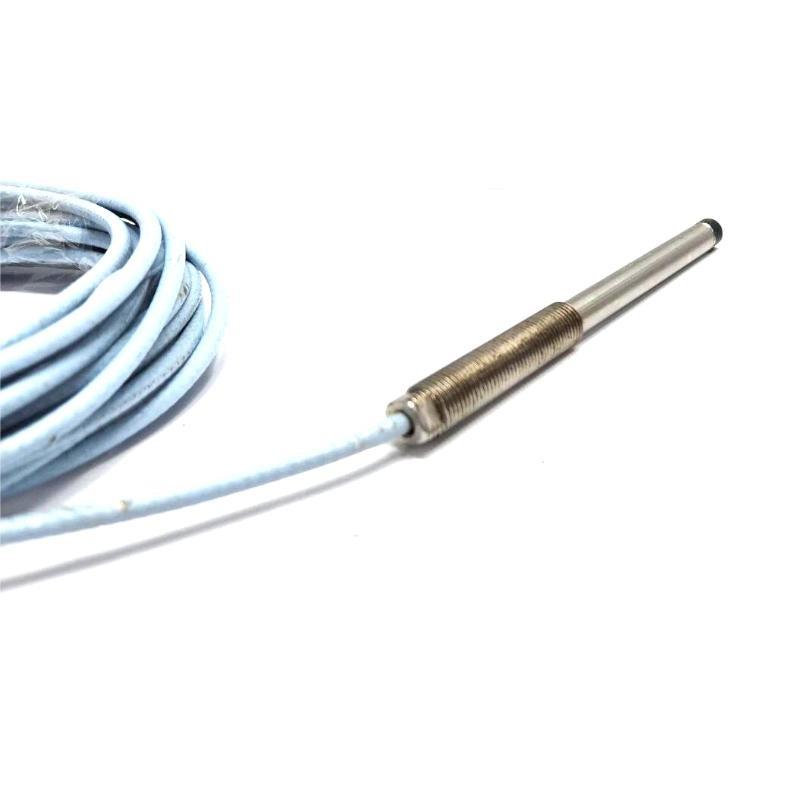

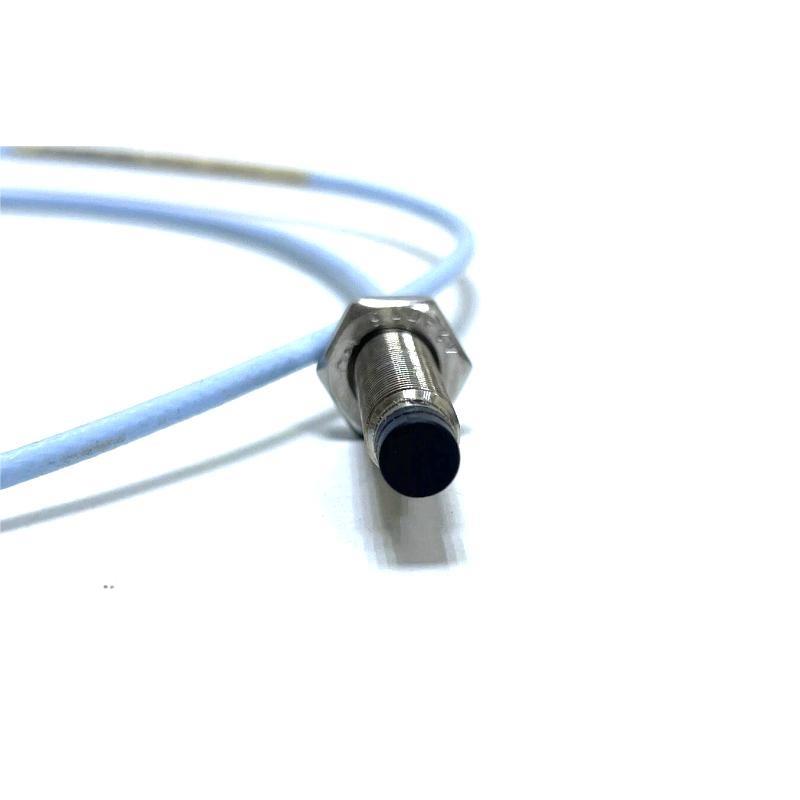

The Bently Nevada 330103-00-08-10-01-00 is a high-performance 8 mm proximity probe from the 3300 XL series. It provides accurate non-contact measurement من shaft vibration and position in critical machinery. Designed for reliability, it meets API 670 standards and supports interchangeability من components, simplifying installation and maintenance.
Applications
-
Vibration monitoring من rotating machinery
-
Shaft position and displacement measurement
-
Overspeed and Keyphasor reference signal detection
-
Fluid-film bearing condition monitoring
Advantages
-
Fully compliant with API 670 mechanical and performance standards
-
High immوحدةy to EMI/RFI and harsh environments
-
SpringLoc and ClickLoc connectors for easy, reliable connections
-
Optional extended temperature and fluid-resistant configurations
-
Interchangeable with previous 3300 series probes and sensors
Technical Specifications
| Parameter | Value |
|---|---|
| Probe Tip Diameter | 8 mm |
| Thread Size | M10 x 1 |
| Total Length | 1.0 meter |
| الوزن | 0.323 kg |
| Linear Range | 2 mm (0.25 to 2.3 mm gap) |
| Operating Temperature Range | -52°C to +177°C (standard) |
| Extended Temp Range (optional) | up to +218°C (probe tip) |
| Frequency Response | 0 – 10 kHz (+0, -3 dB) |
| Minimum Shaft Diameter | 50.8 mm (recommended ≥76.2 mm) |
| Cable Type | 75Ω triaxial FEP insulated |

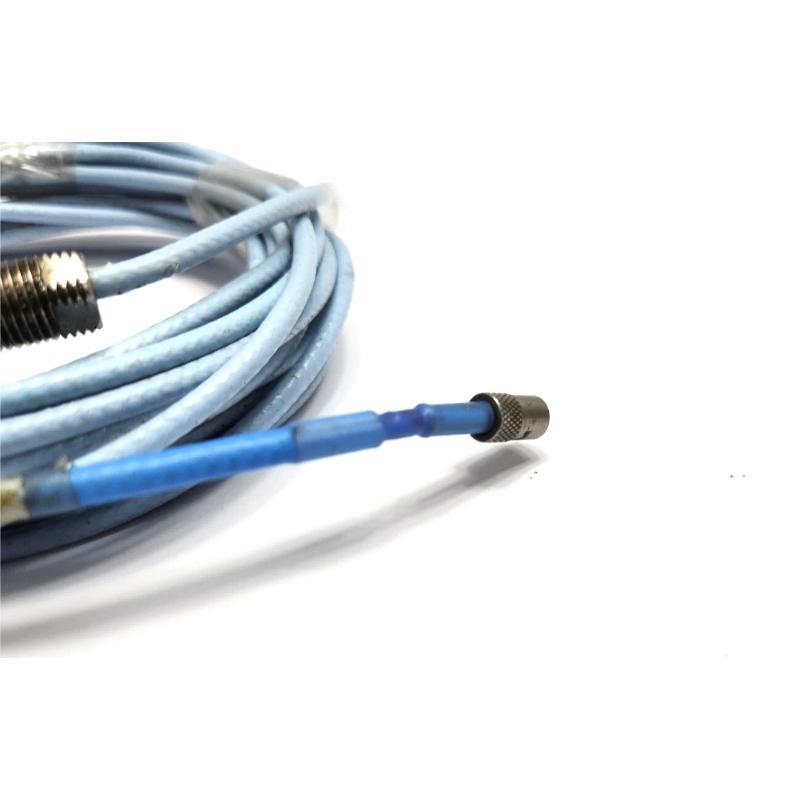

| Connector | Gold-plated ClickLoc miniature coaxial |
| Compliance | CE, RoHS, SIL 2/3, ATEX, IECEx |
FAQ
Q1: What is the primary function من the 330103 proximity probe?
A1: To measure shaft vibration and position without physical contact.
Q2: Is this probe compliant with API 670 standards?
A2: Yes, it fully complies with API 670 requirements.
Q3: Can it be used in high-temperature applications?
A3: Yes, with the extended temperature version, it can operate up to 218°C.
Q4: Is the probe interchangeable with older 3300 series components?
A4: Yes, it is electrically and mechanically interchangeable with non-XL 3300 series.
Q5: What type من target material is it calibrated for?
A5: It is factory-calibrated for AISI 4140 steel.
Q6: What is the recommended gap voltage setting?
A6: Approximately -9 VDC, equivalent to a 1.27 mm gap.
Q7: Are special tools needed for the connectors?
A7: No, ClickLoc connectors are finger-tight and click into place.
Q8: Does it have protection against fluid ingress?
A8: Yes, with the optional FluidLoc cable to prevent fluid leakage.
Q9: How is it mounted?
A9: It can be panel-mounted or DIN rail-mounted via the Proximitor sensor.
Q10: What is the expected frequency response من the system?
A10: Flat response from 0 to 10 kHz within +0, -3 dB.
Recommended Related الطرازs
| الطراز Number | الوصف | Length | الوزن |
|---|---|---|---|
| 330101-00-08-10-02-00 | 3300 XL 8mm, 3/8-24 UNF, no armor | 1.0 m | 0.323 kg |
| 330102-00-08-10-02-00 | 3300 XL 8mm, 3/8-24 UNF, with armor | 1.0 m | 0.35 kg |
| 330104-00-08-10-02-00 | 3300 XL 8mm, M10x1, with armor | 1.0 m | 0.35 kg |
| 330105-02-12-10-02-00 | 3300 XL 8mm, reverse mount, UNF | 1.0 m | 0.32 kg |
| 330140-00-08-10-02-00 | 3300 XL 8mm, smooth case, no armor | 1.0 m | 0.32 kg |
| 330191-00-08-10-02-00 | 3300 XL 8mm, ETR, UNF, no armor | 1.0 m | 0.34 kg |
Popular Bently Nevada الطرازs
| الطراز Number | الوصف | Length | الوزن |
|---|---|---|---|
| 330180-01-00 | 3300 XL Proximitor Sensor, panel | 1.0 m | 0.246 kg |
| 330130-03-00 | 3300 XL Extension Cable | 3.0 m | 0.102 kg |
| 3500/42M-01-00 | Proximitor/Seismic Monitor Module | N/A | 0.45 kg |
| 3500/22M-01-00 | Transient Data Interface Module | N/A | 0.48 kg |
| 3500/25-01-01-00 | Keyphasor Module | N/A | 0.42 kg |
| 3500/15-05-01-00 | Power Supply Module | N/A | 0.50 kg |
