مقدمة المنتج

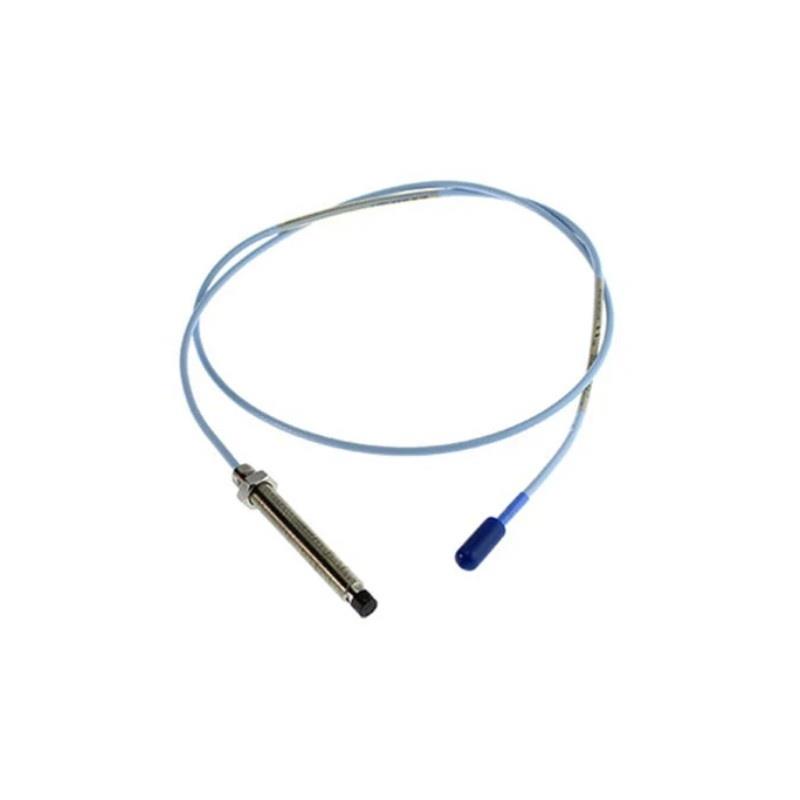

The Bently Nevada 330103-00-08-05-01-CN 3300 XL 8 mm Proximity Probe is a precision-engineered probe designed to measure the relative displacement من a machine shaft relative to the probe mounting location. As part من the renowned 3300 XL series, this model provides high accuracy and long-term reliability for machinery protection and condition monitoring systems. It is widely applied in rotating machinery such as turbines, compressors, pumps, and generators, ensuring effective vibration analysis and shaft position monitoring.
Technical Specifications
| Parameter | الوصف |
|---|---|
| الطراز Number | 330103-00-08-05-01-CN |
| Series | Bently Nevada 3300 XL 8 mm Proximity Probe |
| Probe Tip Diameter | 8 mm |
| الوزن | 0.162 kg |
| Total Length | 0.5 m |
| Nominal Gap | 2.0 mm |
| Sensitivity | -200 mV/µm (±6%) |
| Operating Temperature | -35 °C to +175 °C |
| Storage Temperature | -50 °C to +100 °C |
| Mounting Thread | M10 × 1 or 3/8”-24 UNF (depending on version) |
| Electrical Isolation | Yes, between probe tip and case |
Product Applications
-
Power Generation: Monitoring turbines and generators to prevent shaft rubs and detect misalignment.
-
Oil & Gas: Ensuring compressors and pumps run within safe vibration limits.
-
Petrochemical Plants: Continuous monitoring من critical rotating equipment to avoid costly downtime.
-
Manufacturing: Used in motors and gearboxes for predictive maintenance.
-
Aerospace and Defense: Integrated into testing rigs for high-speed rotating equipment.
Product Advantages
-
High Accuracy and Stability: Ensures precise shaft displacement measurements with minimal drift.
-
Robust Industrial Design: Resistant to harsh environmental conditions such as high heat, humidity, and contamination.
-
Wide Compatibility: Fully compatible with the 3300 XL series drivers and extension cables, providing flexible system design.
-
Ease من Integration: Simple installation into standard probe mounts with threaded fittings.
-
Enhanced Reliability: Long operational life with minimal maintenance requirements.
-
Proven Performance: Used worldwide across industries with a long track record من trusted performance.
FAQ
Q1: What is the linear range من the 330103-00-08-05-01-CN probe?
A1: The linear range is typically 2 to 4 mm depending on the configured driver and installation setup.
Q2: How does the probe achieve electrical isolation?
A2: The probe incorporates an insulated design where the sensing tip is isolated from the stainless steel body to prevent grounding interference.
Q3: Can this probe operate under high vibration conditions?
A3: Yes, it is designed to withstand vibration levels up to 10 g peak within the 5–2,000 Hz frequency range.
Q4: What type من drivers is this probe compatible with?
A4: It is fully compatible with the 3300 XL Proximitor drivers, particularly the 3300-xx series.
Q5: How is sensitivity calibrated?
A5: Sensitivity is factory-calibrated to -200 mV/µm (±6%), ensuring consistent output across probes.
Q6: What is the maximum shock the probe can withstand?
A6: The probe can handle shock loads up to 500 g peak without damage.
Q7: Does cable length affect the probe’s output?
A7: Yes, correct calibration is dependent on the specified probe, extension cable, and driver combination. Deviations can affect accuracy.
Q8: What is the recommended nominal gap for installation?
A8: The recommended gap is 2.0 mm to ensure accurate linear response.
Q9: Can the probe be used in high-temperature applications?
A9: Yes, the operating temperature range is -35 °C to +175 °C, suitable for high-temperature machinery.
Q10: How does this probe integrate with monitoring systems?
A10: The probe connects to a proximitor sensor via extension cable, which converts the displacement into a voltage signal for the monitoring system.
Recommended Same-Series or Related الطرازs
| الطراز Number | الوصف |
|---|---|
| 330103-00-08-05-12-00 | 3300 XL 8 mm Proximity Probe with 12 m cable |
| 330103-00-10-05-02-BR | 3300 XL 8 mm Probe, extended length version |
| 330103-00-09-10-11-00 | 3300 XL 8 mm Probe, different mounting thread |
| 330103-00-08-15-02-05 | 3300 XL 8 mm Probe, long body version |
| 330103-00-09-50-02-00 | 3300 XL 8 mm Probe for extended range |
| 330103-17-22-10-12-05 | Special version 3300 XL 8 mm Probe |
Popular الطرازs from the Same العلامة التجارية
| الطراز Number | الوصف |
|---|---|
| 330103-00-08-50-12-00 | 3300 XL 8 mm Probe, general-purpose |
| 330180-91-05 | 3300 XL Proximitor Sensor |
| 330130-045-00-05 | 3300 XL Extension Cable, 4.5 m |
| 3500/22M | Transient Data Interface Module |
| 3500/42M | Proximitor/Seismic Monitor |
| 3500/40M | Proximitor Monitor |
| 3500/93 | System Rack Interface Module |
| 7200-16-00-00 | Proximity Transducer System |
