مقدمة المنتج

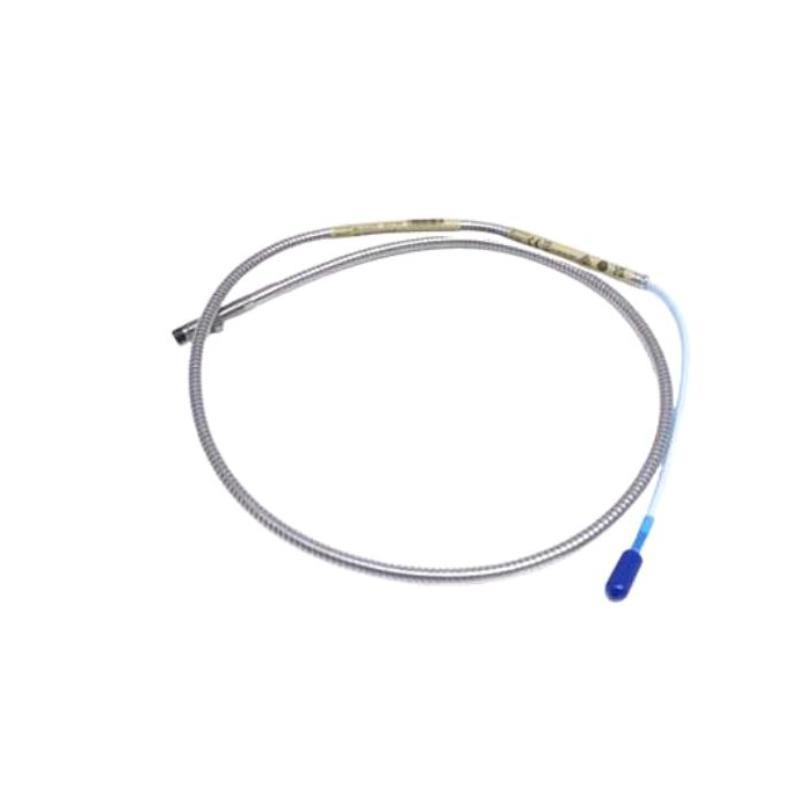

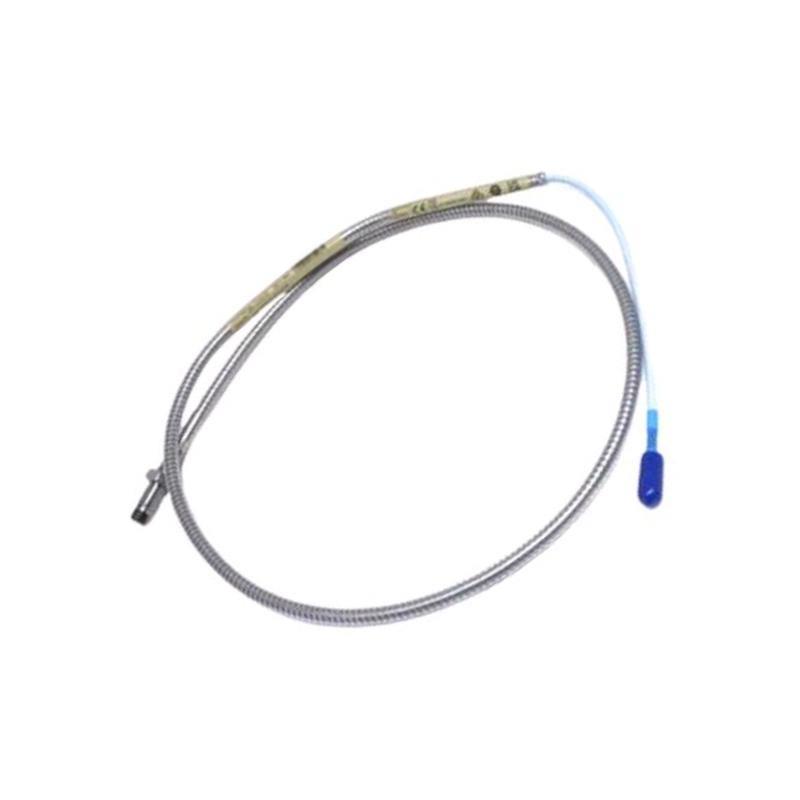

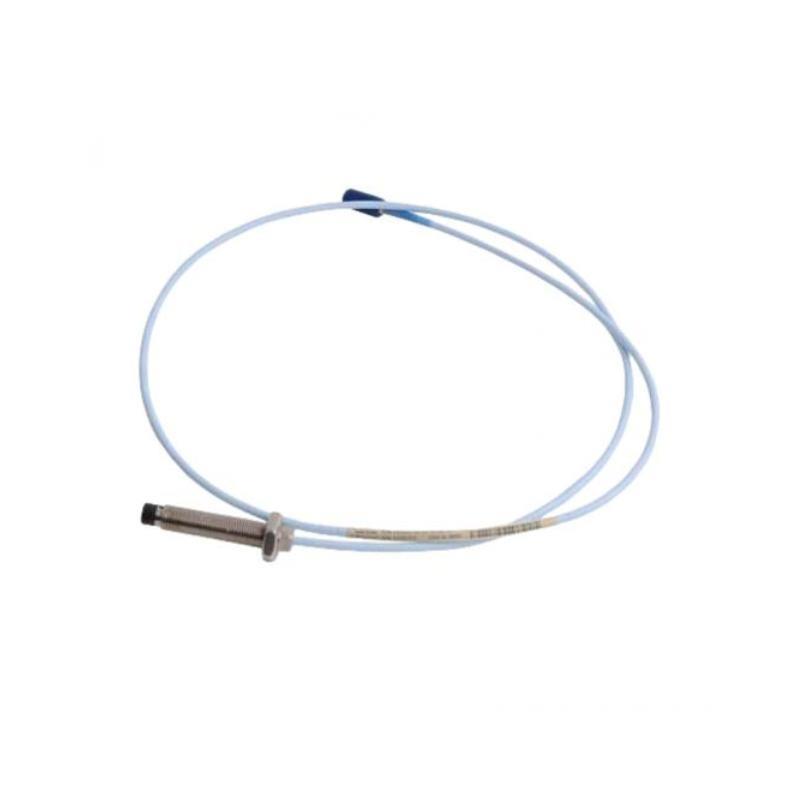

The Bently Nevada 330102-00-42-05-02-00 is part من the 3300 XL 8 mm Proximity Probe System, designed for reliable and accurate non-contact vibration and displacement measurements in industrial rotating machinery. This probe utilizes eddy-current sensing technology, allowing it to detect the relative motion and position من a conductive target (usually the shaft) with high precision.
It is widely adopted in turbine generators, compressors, pumps, and other critical assets where continuous monitoring من shaft vibration, axial displacement, and position is required. The 3300 XL series has been engineered to deliver robust performance in challenging environments such as high temperatures, high electromagnetic interference, and mechanical stress conditions.
Technical Specifications
| Parameter | الوصف |
|---|---|
| الطراز | Bently Nevada 330102-00-42-05-02-00 |
| Series | 3300 XL 8 mm Proximity Probe System |
| Probe Tip Diameter | 8 mm (0.315 in) |
| Linear Range | 2.0 mm (80 mils) typical |
| Sensitivity | 200 mV/mil (7.87 mV/µm) |
| Connector Type | Miniature coaxial with environmental protection |
| Operating Temperature Range | -35 °C to +177 °C (-31 °F to +350 °F) |
| Pressure Rating | Up to 10,000 psi (with proper installation hardware) |
| Material | Stainless steel probe housing |
| Total Length | 0.5 m |
| الوزن | 0.162 kg |
Product Applications
The 3300 XL 8 mm Proximity Probe is primarily used in machinery protection and condition monitoring systems. Its typical applications include:
-
Shaft vibration measurement in turbines, compressors, and motors.
-
Axial displacement monitoring in thrust bearing applications.
-
Radial shaft position tracking in pumps and fans.
-
Phase and speed reference measurement in rotating equipment.
-
Integration into predictive maintenance programs to prevent catastrophic equipment failures.
Product Advantages
-
High Accuracy: Provides precise shaft vibration and displacement readings with a linear and repeatable response.
-
Robust Design: Resistant to harsh industrial environments, including high temperatures and pressures.
-
API Compliance: Meets API 670 requirements for critical machinery monitoring systems.
-
Interchangeability: Fully compatible with other Bently Nevada 3300 XL system components, ensuring flexible installation.
-
Noise Immوحدةy: Enhanced shielding and design reduce electromagnetic interference for reliable readings.
-
Proven Reliability: Part من the globally trusted 3300 XL series, extensively used across industries for decades.
FAQ
Q1: What type من sensing technology does the 330102-00-42-05-02-00 probe use?
A1: It uses eddy-current technology for non-contact displacement and vibration measurements.
Q2: What is the standard sensitivity من this probe?
A2: The sensitivity is 200 mV/mil (7.87 mV/µm), consistent across the linear measurement range.
Q3: Can this probe operate in high-temperature environments?
A3: Yes, it supports continuous operation from -35 °C to +177 °C, making it suitable for turbines and compressors.
Q4: Is this probe interchangeable with other 3300 XL probes?
A4: Yes, it is fully interchangeable with other 3300 XL 8 mm probes and works with the same Proximitor sensors.
Q5: How does cable length affect performance?
A5: Cable length is factory-calibrated. Each probe and cable assembly is matched with the Proximitor sensor to ensure accuracy.
Q6: What type من connector is used on the probe?
A6: It uses a ruggedized miniature coaxial connector with environmental sealing.
Q7: Can this probe be used for thrust measurement?
A7: Yes, it can be used to monitor axial shaft displacement in thrust bearing applications.
Q8: What is the maximum pressure rating for installation?
A8: The probe can withstand up to 10,000 psi when installed with appropriate fittings.
Q9: Does this probe require external power?
A9: No, the probe itself does not. It is powered through the 3300 XL Proximitor sensor.
Q10: Is the system compliant with industrial standards?
A10: Yes, the probe system complies with API 670 standards, which are widely adopted in critical rotating machinery monitoring.
Recommended Same-Series or Related الطرازs
| الطراز Number | الوصف |
|---|---|
| 330103-00-04-10-02-05 | 3300 XL 11 mm Proximity Probe |
| 330104-00-09-10-02-05 | 3300 XL 25 mm Proximity Probe |
| 330105-02-12-05-02-00 | 3300 XL Extension Cable (various lengths) |
| 330130-040-00-00 | 3300 XL 8 mm Proximitor Sensor |
| 330180-50-00 | 3300 XL Phase Reference Probe |
| 330171-00-92-10-01 | 3300 XL NSv (Narrow Side-view) Probe |
