Product الوصف

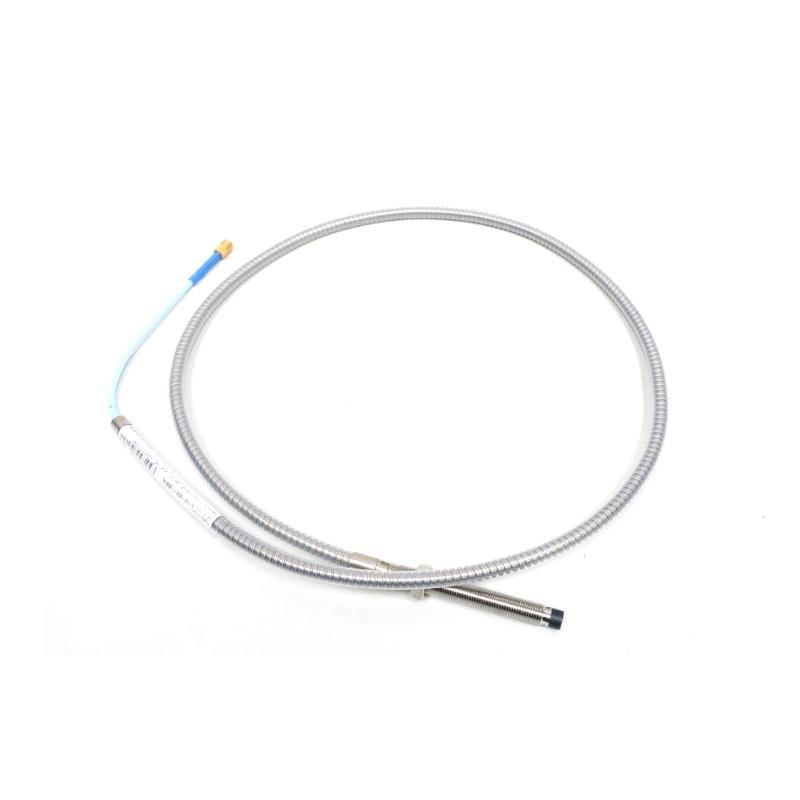

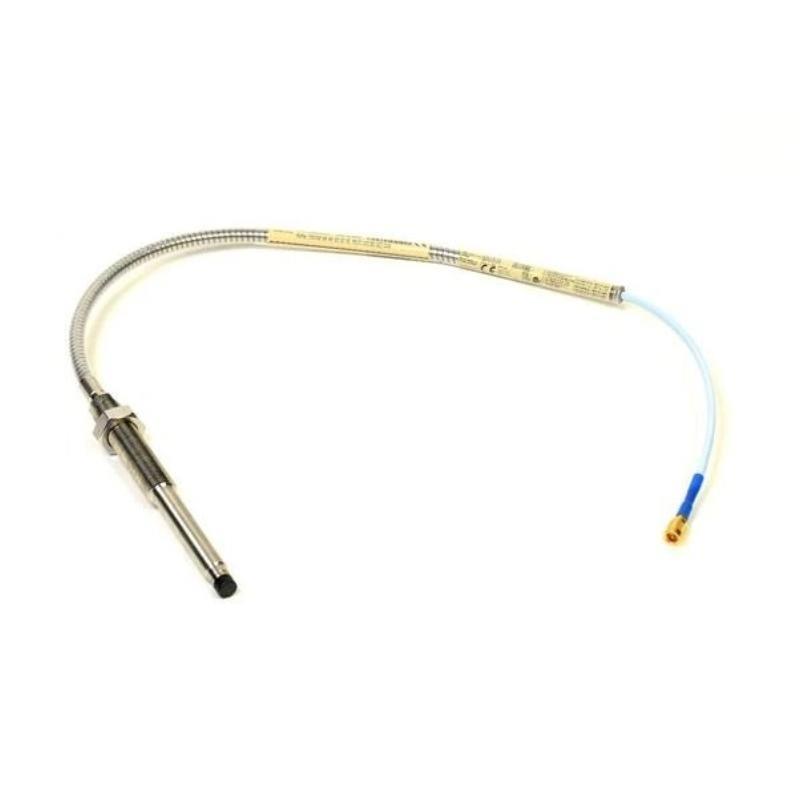

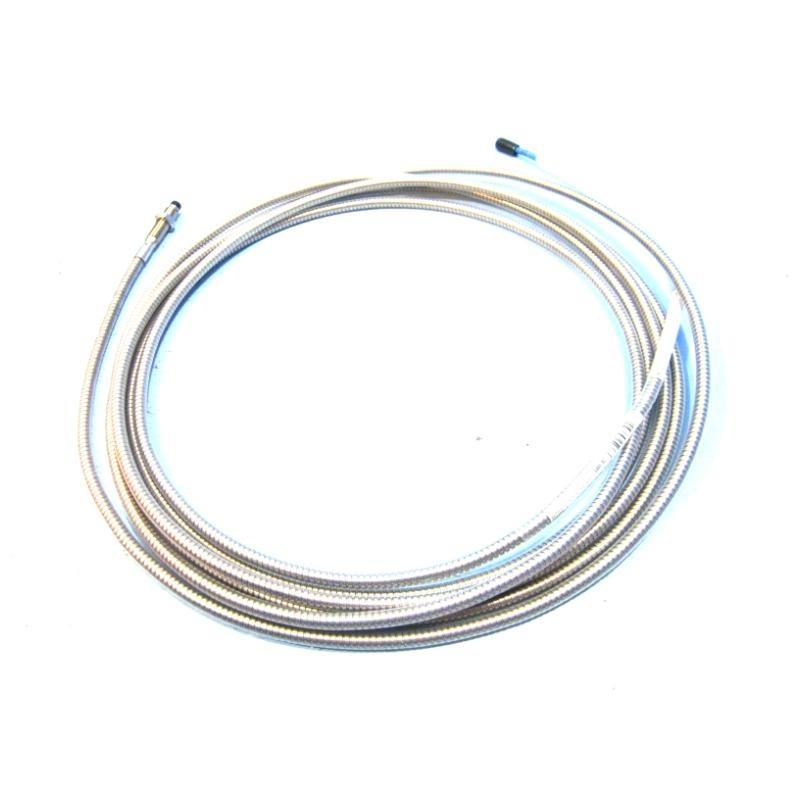

The Bently Nevada 330102-00-30-50-02-05 3300 XL 8 mm Proximity Probe is a high-performance, armored proximity transducer designed for precise static (position) and dynamic (vibration) measurements on fluid-film bearing machinery. It provides an output voltage proportional to the gap between the probe tip and a conductive surface. Fully compliant with API 670, it ensures accurate, stable readings and robust environmental performance.
Technical Specifications
| Parameter | Value |
|---|---|
| الطراز | 330102-00-30-50-02-05 |
| Probe Diameter | 8 mm |
| Total Length | 5.0 meters (16.4 feet) |
| الوزن | 1.615 kg |
| Thread Size | 3/8-24 UNF |
| Tip Material | PPS (Polyphenylene sulfide) |
| Case Material | Stainless Steel (AISI 303/304) |
| Cable Type | Armored, Standard, ClickLoc connector |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Operating Temperature (probe) | -52°C to +177°C (-62°F to +350°F) |
| Frequency Response | 0 – 10 kHz, ±3 dB |
| Minimum Target Size | 15.2 mm diameter |
| Shaft Diameter Recommended | ≥76.2 mm (3 in) |
Applications
-
Vibration and position monitoring in rotating machinery
-
Keyphasor speed and phase reference
-
Overspeed protection systems
-
Measurement من fluid-film bearing clearances
-
Use in high-density installations requiring robust environmental immوحدةy
Advantages
-
API 670 compliant, ensuring industry-standard performance
-
Backward compatible with non-XL 3300 8 mm and 5 mm systems
-
ممتاز RFI/EMI immوحدةy, supports use in fiberglass enclosures
-
Robust armored construction with improved mechanical strength
-
Connector protectors and FluidLoc options for harsh environments
-
Easy installation with ClickLoc connectors (no special tools needed)
الأسئلة الشائعة
Q1: What is the primary application من this proximity probe?
A1: It is primarily used for measuring shaft vibration and position in fluid-film bearing machines.
Q2: Is this probe compliant with API 670?
A2: Yes, it fully complies with API 670 specifications for mechanical configuration, linearity, and stability.
Q3: Can this probe be used in high-temperature environments?
A3: Yes, it supports operating temperatures up to +177°C for the probe tip.
Q4: Does it require calibration to specific materials?
A4: It is factory-calibrated to AISI 4140 steel but can be calibrated to other materials on request.
Q5: Can I mix XL and non-XL components?
A5: Yes, but system performance will be limited to the non-XL components.
Q6: How does the armored cable improve performance?
A6: The armor increases mechanical protection and resistance to physical damage in harsh environments.
Q7: What is the recommended shaft diameter for accurate measurements?
A7: A minimum shaft diameter من 76.2 mm (3 inches) is recommended.
Q8: Is any special tool needed for connector installation?
A8: No, ClickLoc connectors are designed for tool-free installation.
Q9: How long can the field wiring run?
A9: Field wiring can be up to 305 meters (1000 feet) between the Proximitor sensor and the monitor.
Q10: Does it come with hazardous area approvals?
A10: Yes, CSA, ATEX, and IECEx approvals are available as options.
Related الطرازs
| الطراز Number | الوصف | Length | الوزن |
|---|---|---|---|
| 330101-00-30-50-02-05 | 3300 XL 8mm Probe (unarmored) | 5.0 m | 1.4 kg |
| 330103-00-30-50-02-05 | 3300 XL 8mm Probe M10 thread | 5.0 m | 1.615 kg |
| 330104-00-30-50-02-05 | 3300 XL 8mm Probe M10 w/armor | 5.0 m | 1.615 kg |
| 330105-02-12-50-02-05 | 3300 XL 8mm Reverse Mount, 3/8-24 | 5.0 m | 1.6 kg |
| 330140-00-50-02-05 | 3300 XL 8mm Smooth Case Probe | 5.0 m | 1.5 kg |
| 330191-00-50-02-05 | 3300 XL 8mm ETR High Temperature | 5.0 m | 1.65 kg |
Popular Bently Nevada الطرازs
| الطراز Number | الوصف | Length | الوزن |
|---|---|---|---|
| 3300/16 | Proximitor Monitor Module | N/A | 0.5 kg |
| 3300/20 | Dual Vibration Monitor | N/A | 0.6 kg |
| 330104-00-05-10-02 | 3300 XL 8mm Probe, armored | 1.0 m | 0.6 kg |
| 3500/22M | Transient Data Interface Module | N/A | 1.2 kg |
| 3500/42M | Proximitor Seismic Monitor | N/A | 1.1 kg |
| 3500/94M | VGA Display Module | N/A | 1.8 kg |
