الوصف

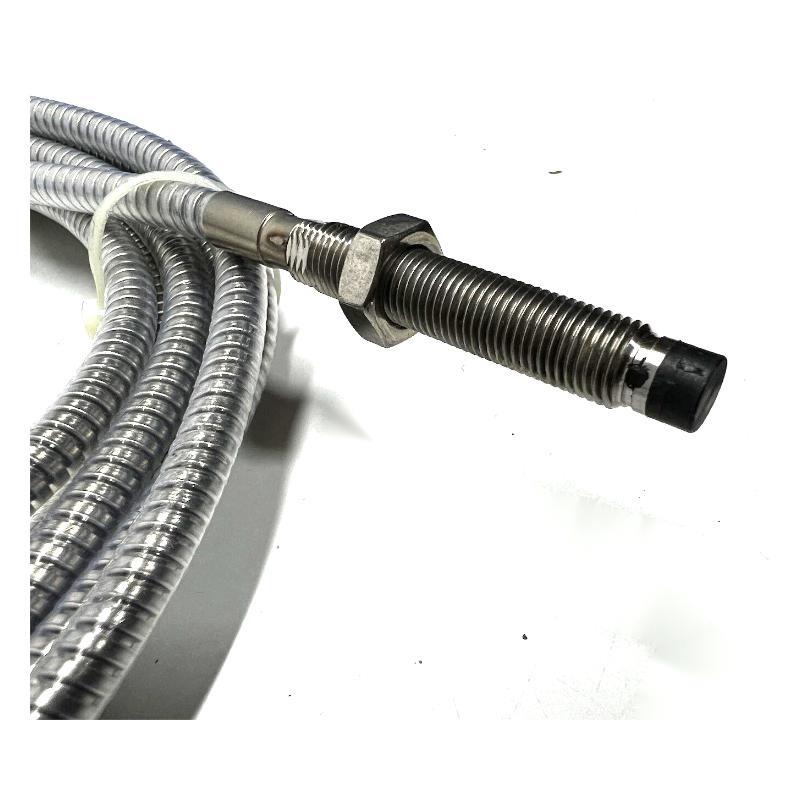

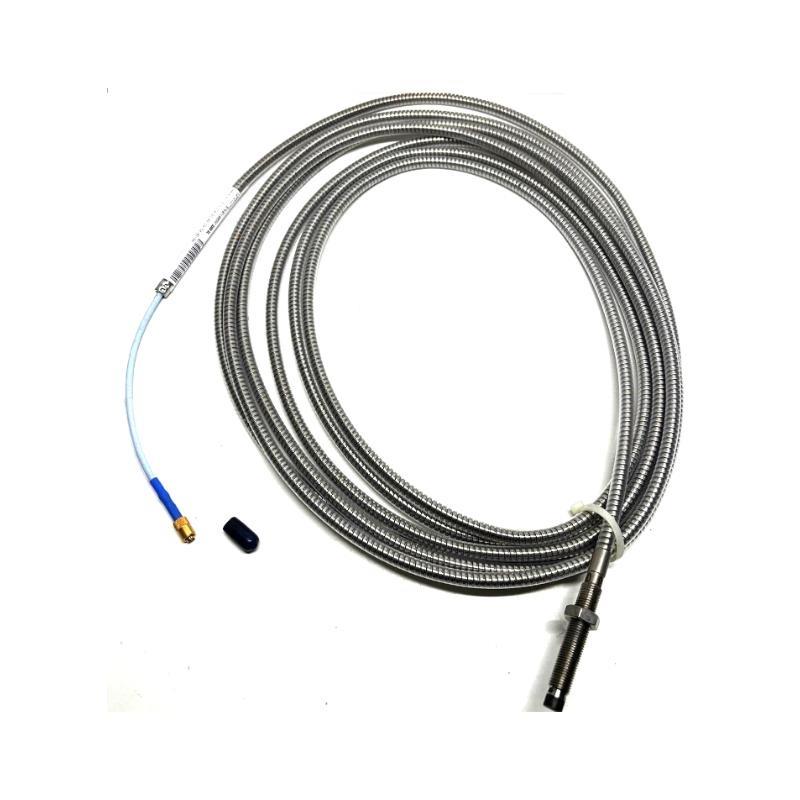

The Bently Nevada 330102-00-20-10-01-05 is part من the 3300 XL 8 mm Proximity Transducer System, designed for precise vibration and position measurement in fluid-film bearing machines. It منfers advanced performance, full interchangeability من components, and meets API 670 standards for linearity, accuracy, and temperature stability. Featuring a rugged armored cable for protection, it ensures long-term reliability in demanding industrial environments.
Applications
-
Vibration and position monitoring من rotating machinery
-
Keyphasor and speed measurement
-
Fluid-film bearing machines
-
Turbines, compressors, and motors in oil, gas, and power generation
Advantages
-
API 670 compliant performance
-
Full component interchangeability without calibration
-
Improved RFI/EMI immوحدةy for reliable operation
-
Rugged armored construction for harsh environments
-
Extended temperature options available
Technical Specifications
| Parameter | Specification |
|---|---|
| Probe Tip Diameter | 8.0 mm |
| Thread Size | 3/8-24 UNF |
| Total Length | 1.0 m |
| الوزن | 0.323 kg |
| Case Material | Stainless Steel |
| Cable Type | Armored |
| Linear Range | 2 mm (80 mils) |
| Recommended Gap | 1.27 mm (50 mils) |
| Operating Temperature | -52°C to +177°C |
| Storage Temperature | -52°C to +177°C |
| Humidity Resistance | ≤3% ASF variation in 93% RH |
| Frequency Response | 0–10 kHz |
| Minimum Target Diameter | 15.2 mm |
FAQ
Q1: What is the main use من the 330102 probe?
A1: It is used for vibration and position monitoring in rotating machinery with fluid-film bearings.
Q2: Does it meet API standards?
A2: Yes, it fully complies with API 670 requirements.
Q3: Can components be mixed with other 3300 series?
A3: Yes, it is backward compatible and interchangeable with non-XL 3300 8 mm components.
Q4: What is the recommended gap setting?
A4: Approximately 1.27 mm (50 mils) or -9 VDC.
Q5: Is this probe suitable for high-temperature environments?
A5: Yes, extended temperature versions are available for up to +218°C.
Q6: What is the minimum shaft diameter for accurate measurement?
A6: Recommended minimum shaft diameter is 76.2 mm (3 inches).
Q7: Does it require special installation tools?
A7: No, thanks to ClickLoc connectors and SpringLoc terminal strips.

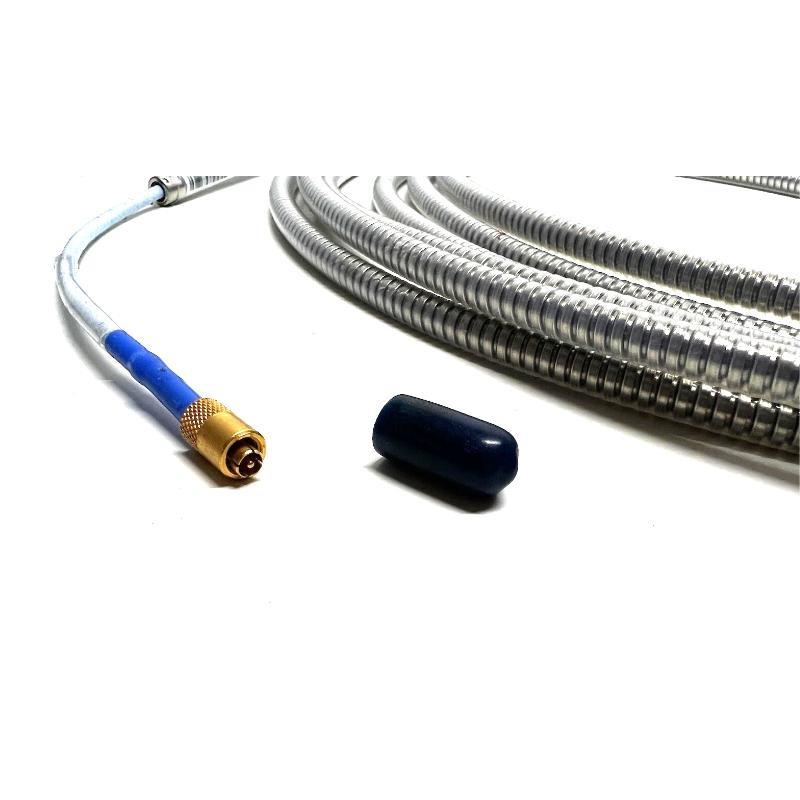

Q8: How is the cable protected?
A8: The probe includes a rugged stainless steel armored cable.
Q9: Can it withstand high humidity?
A9: Yes, it is tested for ≤3% change in scale factor under 93% RH.
Q10: What certifications does it carry?
A10: It is certified for use in hazardous areas, meeting ATEX, IECEx, and CSA standards.
Related الطرازs
| الطراز Number | الوصف | Length | الوزن |
|---|---|---|---|
| 330101-00-20-10-02-05 | 3300 XL 8 mm Probe, unarmored | 1.0 m | 0.250 kg |
| 330103-00-20-10-02-05 | 3300 XL 8 mm Metric Probe, unarmored | 1.0 m | 0.250 kg |
| 330104-00-20-10-02-05 | 3300 XL 8 mm Metric Probe, armored | 1.0 m | 0.323 kg |
| 330105-02-12-10-02-05 | 3300 XL 8 mm Reverse Mount Probe | 1.0 m | 0.320 kg |
| 330191-00-20-10-02-05 | 3300 XL 8 mm Extended Temp Probe | 1.0 m | 0.300 kg |
| 330192-00-20-10-02-05 | 3300 XL 8 mm Extended Temp Probe, armored | 1.0 m | 0.340 kg |
Popular Bently Nevada الطرازs
| الطراز Number | الوصف | Length | الوزن |
|---|---|---|---|
| 330180-50-00 | 3300 XL Proximitor Sensor, Panel Mount | 5.0 m | 0.700 kg |
| 330130-060-00 | 3300 XL Extension Cable | 6.0 m | 0.240 kg |
| 3500/42M-01-00 | 3500/42M Proximitor Seismic Monitor | – | 1.2 kg |
| 3500/22M-01-01 | 3500/22M Transient Data Interface | – | 1.5 kg |
| 3500/25-01-01-00 | 3500/25 Keyphasor Module | – | 1.3 kg |
| 3500/15-05-01-00 | 3500/15 Power Supply Module | – | 1.8 kg |
